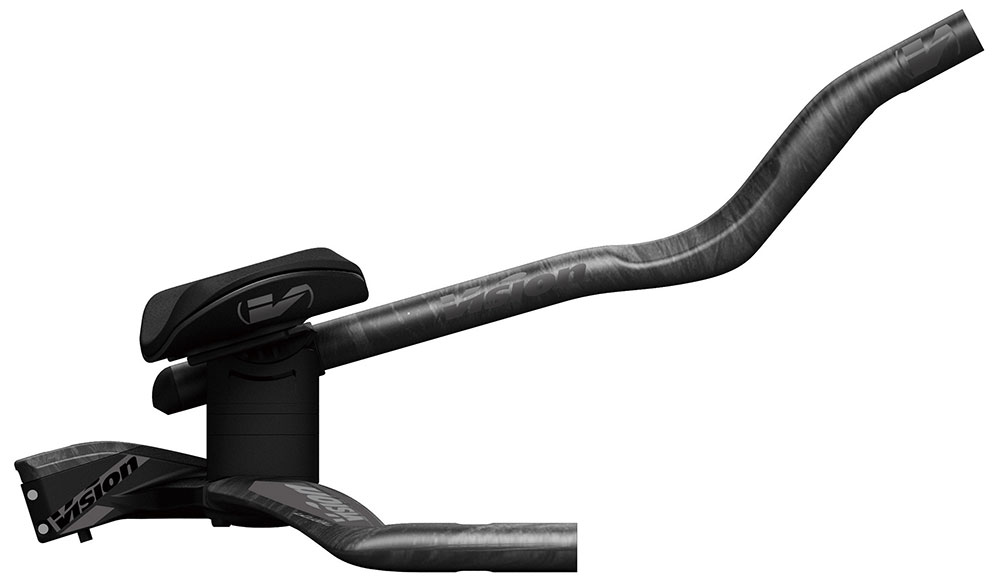

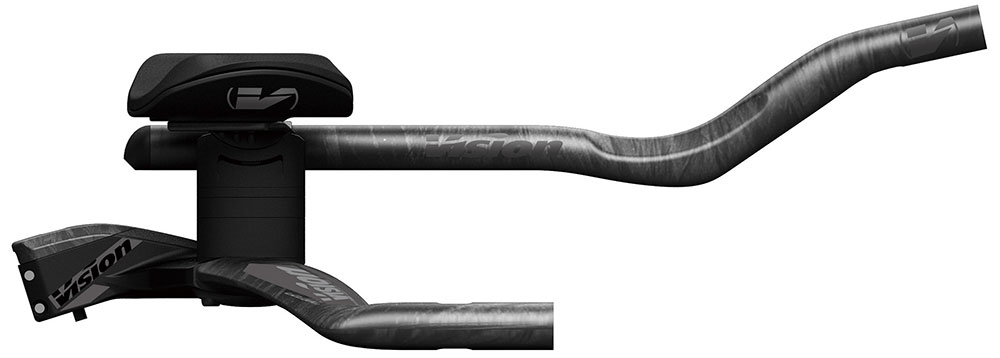

Vision Metron TFA Aerobar with Snakebite Stem Time Trial Bar

The basis of the Metron Aerobar design is the trailer, which is easily adjustable in various dimensions without concealed screws.

Features – Vision Metron TFA Aerobar

• The patent-pending Snakebite stem enables a foldable handlebar base with internal cable routing
• Full carbon fiber wings with ergonomic support
• Normalized adjustment gradation in every direction
• Easy adjustability without hidden screws
• Internal cable routing and Di2-compatible UCI conformity 3:1
• Stem allows positioning of internal Di2 connections and internal cable routing.

Product features

• Stack: 70 mm to 145 mm (center of lower edge of stem to uncompressed pad in 5 mm increments)
• Reach: -9 mm to -99 mm (center of base bar to rear edge of armrest in 7.5 mm increments)
• Armrest width: 210 mm to 360 mm (from outside to outside in 15 mm increments)
• Handlebar attachment length adjustment: 245 mm to 385 mm (center of base handlebar to end)
• Handlebar extension length: 412 mm
• Handlebar attachment height: 60 mm (center to center)
• Handlebarattachment angle: 35° (12° at the end of the handlebar attachment)
• Handlebar attachment width: 80 mm (center to center)
• Handlebar base width: 400 mm (center to center)
• Drop/Rise base handlebar: -25 mm / +25 mm (center to center)
• Armrest rotation: 0 – 13°
• Angle adjustment handlebar attachment: 0 – 16°

Handlebar material

• Carbon

Weight

• 1155 g (manufacturer information)

Scope of delivery

• 1 x Vision Metron TFA Aerobar with Snakebite stem

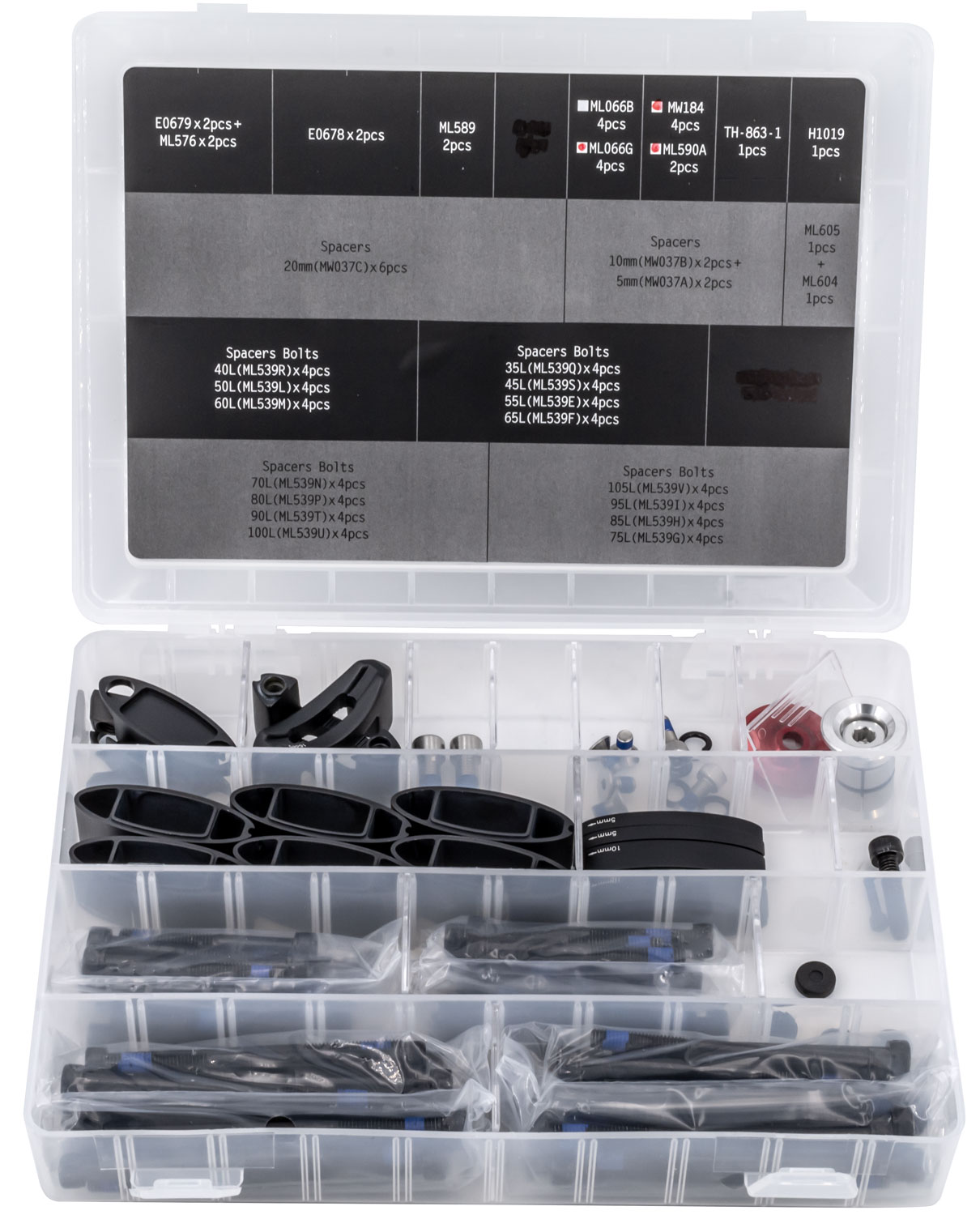

• 1 x Spacer and bolt box

Technologies

EASY ADJUSTMENT
Variable adjustment options in different directions form the basis of the Metron Aerobar design and are easy to change without hidden screws.

INTEGRATION
The new Metron Aerobar system features a flip-flop carbon wing handlebar, an ergonomic trailer and a “snakebite” stem that connects the system. This enables an internal Di2 connection and integrated cable routing. Also one of the highest adjustable AM options currently available.

AERODYNAMICS
Developed with the expertise and feedback of pro riders, this aerobar is the stiffest and best wind-integrated handlebar stem system currently available to cycling enthusiasts. Enjoy this high-tech product with its first-class functions.
