Supernova Mini 3 Pro ML – E-bike Headlight

The curve illumination also improves many times over. The headlight is clicked on the matching Monkeylink stem in no time. The new Terraflux 5 lens ensures very homogeneous illumination and has a particularly eye -friendly photo for hours of night trips.

Product features – Supernova Mini 3 Pro MonkeyLink

• Range of use: E-Bike
• High beam
  • 650 lm, 140 lx (standard mode)
  • up to 1100 lm, 190 lx (optionally programmable)
• High beam output
  • 13 W (standard mode)
  • 21 W (optionally programmable)
• Low beam: 450 lm, 110 lx
• Low beam output: 7.5 W
• Daytime running lights: automatic change function depending on the ambient light
• Input voltage: 12 V DC
• Power LED: Terraflux 5
• Dimensions: 34.5 x 41 x 41 mm
• Cable length: 212 mm, with microgold sticker

Notes: Only on wheels with Monkeylink stemmers assembled!

Material

• Anodized aluminium

Color

• matt black

Weight (manufacturer information)

• 120 g (with holder)

Scope of delivery

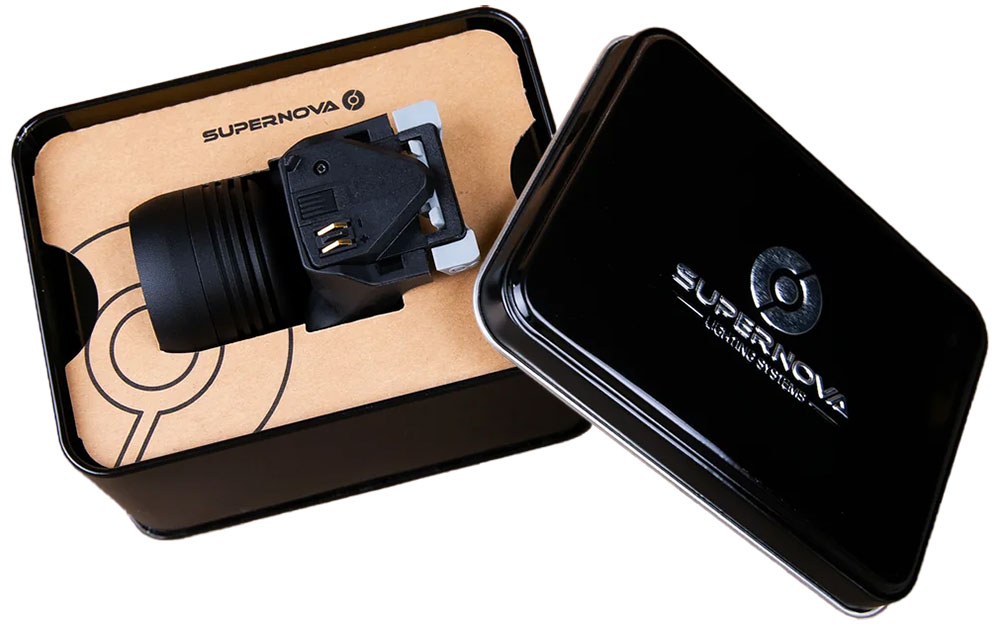

• 1 x Supernova Mini 3 Pro MonkeyLink (12V) – E-Bike front light
• 1 x Magnetic switch for high beam function with micro gold connector
• 1 x MSH22 high beam switch bracket
• MonkeyLink bracket

Technology

MONKEYLINK SYSTEM
MonkeyLink is a revolutionary new connection standard for mechanical and electrical accessories on e-bike. With it you can install the light in no time without having to infect a cable. This will make the retrofitting and converting of lighting to the children’s play prepared for MonkeyLink. Of course, there is also a theft protective function for the permanent use.

TERRAFLUX LENS
The TERRAFLUX lens is a milestone in the development of optics. No other lens of this size produces such bright and uniform illumination on the road and at the same time has such good ambient illumination above the cut-off line. With the TERRAFLUX lens, you will be noticed in traffic without dazzling oncoming traffic. Thanks to sophisticated light control, the TERRAFLUX lens directs 90 % of the light to where it is needed most: onto the road. There it forms a wide and uniform carpet of light that extends from the front wheel far into the distance. At night, this light component is used for excellent illumination of the surroundings and warns of low-hanging branches on the trail. We have been driving forward the development of the TERRAFLUX for years in order to make the lens even more efficient and the light beam even brighter. Some of our latest products now feature the fourth TERRAFLUX version.

ALUMINUM HOUSING
We use aerospace aluminum for our housings because it is not only super strong but also has the best heat conduction properties. The better the cooling, the brighter the LED. In addition, the housings are anodized, salt water-resistant, and defy the most adverse conditions. Extreme tests in all seasons and climates by ultracycling athletes on the road with SUPERNOVA lighting prove their outstanding reliability and durability.

LED COOLING
We believe in high performance with the best possible efficiency. Cooling extends the service life significantly. The most important prerequisites for an ideal heat dissipation include a careful choice of material and sophisticated construction. For example, completely uninterrupted heat dissipation can only be obtained by a housing that is made seamlessly from a single piece of aluminum. In extreme situations, integrated heat sensors keep the headlight in an optimum temperature range. With extensive computer simulations, our engineers continue to find the most appropriate way to derive the heat from the LEDs. Our more than 20 years of experience with LED front lights comes into its own here.
