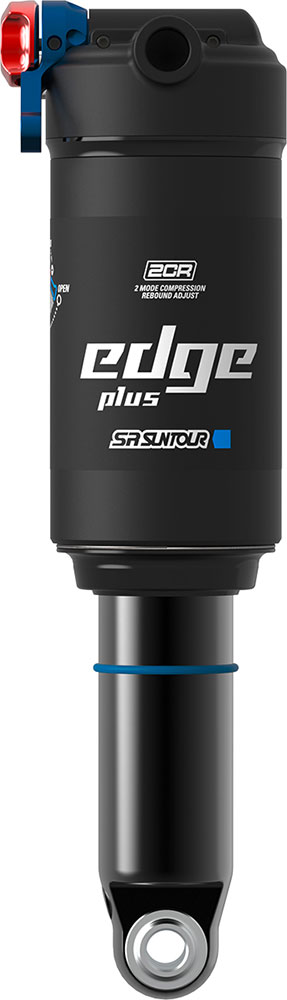

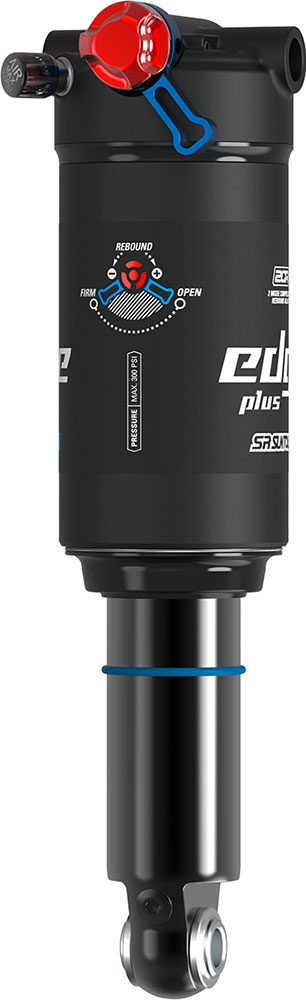

Suntour RS21 EDGE Plus 2CR Rear Shock Trunnion

RS21 EDGE Plus 2CR: Precise damping technology for demanding mountain bikes

The RS21 EDGE Plus 2CR combines an increased negative air volume with a precise 2CR damping system that enables exact suspension tuning. The lockout allows the suspension to be locked out directly on the shock if required, which is particularly efficient when climbing. Its compact trunnion design also ensures high stability and optimum frame integration.

Features – Suntour RS21 EDGE Plus 2CR

• Air spring with increased negative volume for sensitive response
• 2CR damping system with separate rebound and compression adjustment
• Trunnion mount for high stiffness and space-saving design
• Direct lockout on the shock for efficient uphill riding
• Lightweight, robust design for XC, trail and all-mountain bikes

Product features

• Range of use: XC, trail and all-mountain
• Model name: Edge Plus
• Shaft eyelet: Trunnion
• Body Eyelet: Standard
• Damping type: Air
• Adjustability: 2CR (2 positions of compression & Low Speed Rebound adjustment)
• Eye to Eye: 165 mm
• Stroke: 45 mm

Material

• Aluminum

Weight

• approx. 300 g

Scope of delivery

• 1 x Suntour RS21 EDGE Plus 2CR Trunnion shock

Shock bushings not included!
