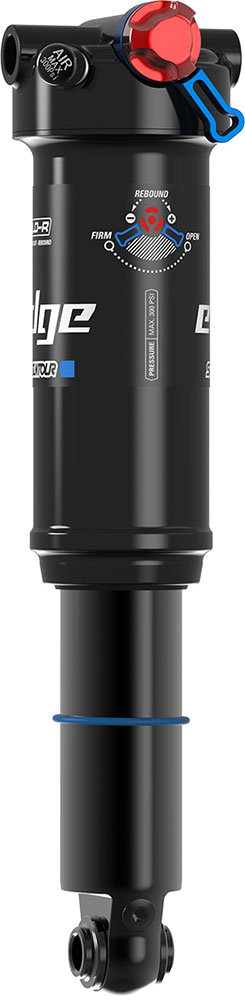

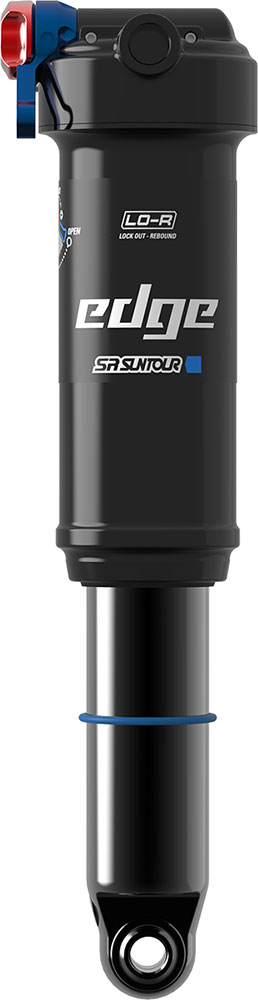

Suntour RS19 EDGE LOR Rear Shock Trunnion

RS19 EDGE LOR air shock – lightweight, adjustable and trail-ready

The RS19 EDGE LOR impresses with its sensitive air suspension, which can be precisely adjusted to the rider’s weight and trail profile. The trunnion mount ensures high rigidity and a compact design, which is particularly advantageous when changing direction quickly. In addition, the adjustable rebound allows individual fine-tuning for maximum control on technical trails.

Features – Suntour RS19 EDGE LOR

• Air spring technology for low weight and sensitive response
• Trunnion mount for increased stiffness and compact mounting
• LOR lockout for efficient climbing and energy-saving asphalt passages
• Adjustable rebound damping for a personalized ride feel
• Robust, lightweight housing for versatile trail and XC applications

Product features

• Range of use: Trail & XC
• Model name: Edge
• Shaft eyelet: Trunnion
• Body Eyelet: Standard
• Damper type: Air
• Adjustability: LOR (Lock-Out with low-speed rebound adjustment)
• Eye to Eye: 225 mm
• Stroke: 75 mm

Material

• Aluminum

Weight

• approx. 310 g

Scope of delivery

• 1 x Suntour RS19 EDGE LOR shock Trunnion

Shock bushings not included!
