SRAM Rival E1 AXS 2×12-speed 48/35T Groupset

Scope of delivery – SRAM Rival E1 AXS 2×12-speed Groupset

• 2 x Rival eTap® AXS E1 HRD shift/brake lever FM disc brake
• 1 x Rival E1 DUB 2×12-speed Crank 48/35T
• 1 x Rival AXS E1 12-speed Rear derailleur
• 1 x Rival AXS E1 2×12-speed Braze-on Front derailleur
• 1 x Rival XG-1250 12-speed Cassette 10-36
• 2 x Centerline CenterLock brake rotor 160 mm
• 1 x Rival E1 Flattop 12-speed chain 126 links
• 2 x eTap / AXS battery unit

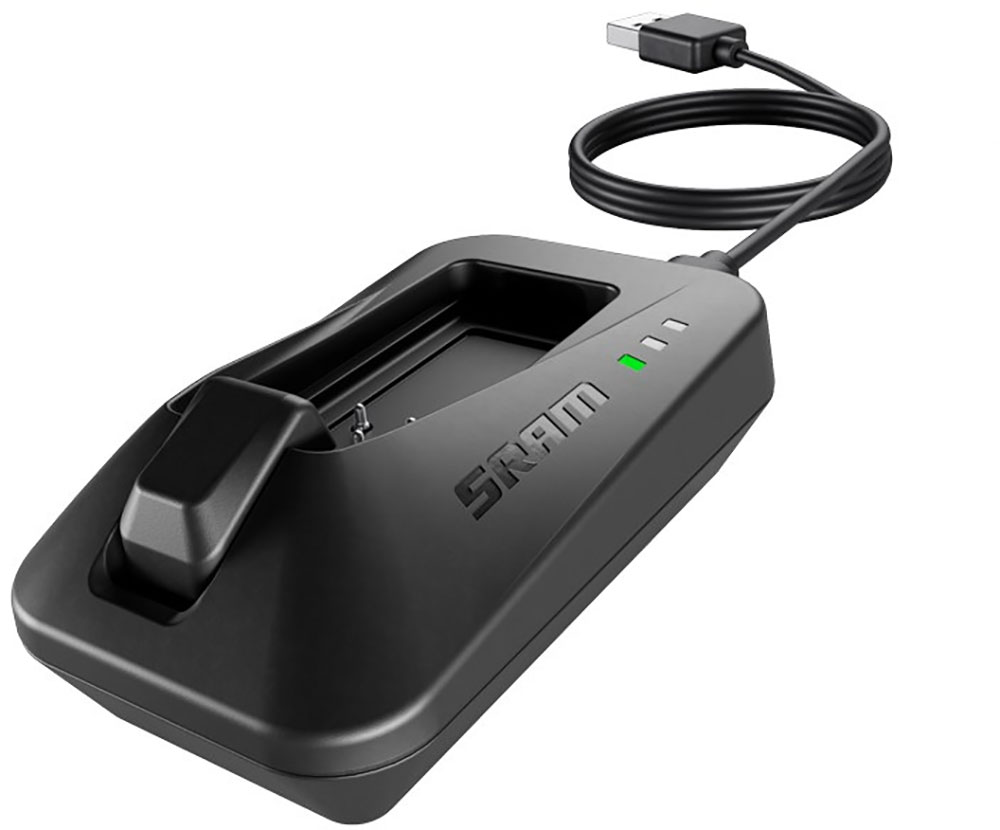

• 1 x eTap / AXS charger

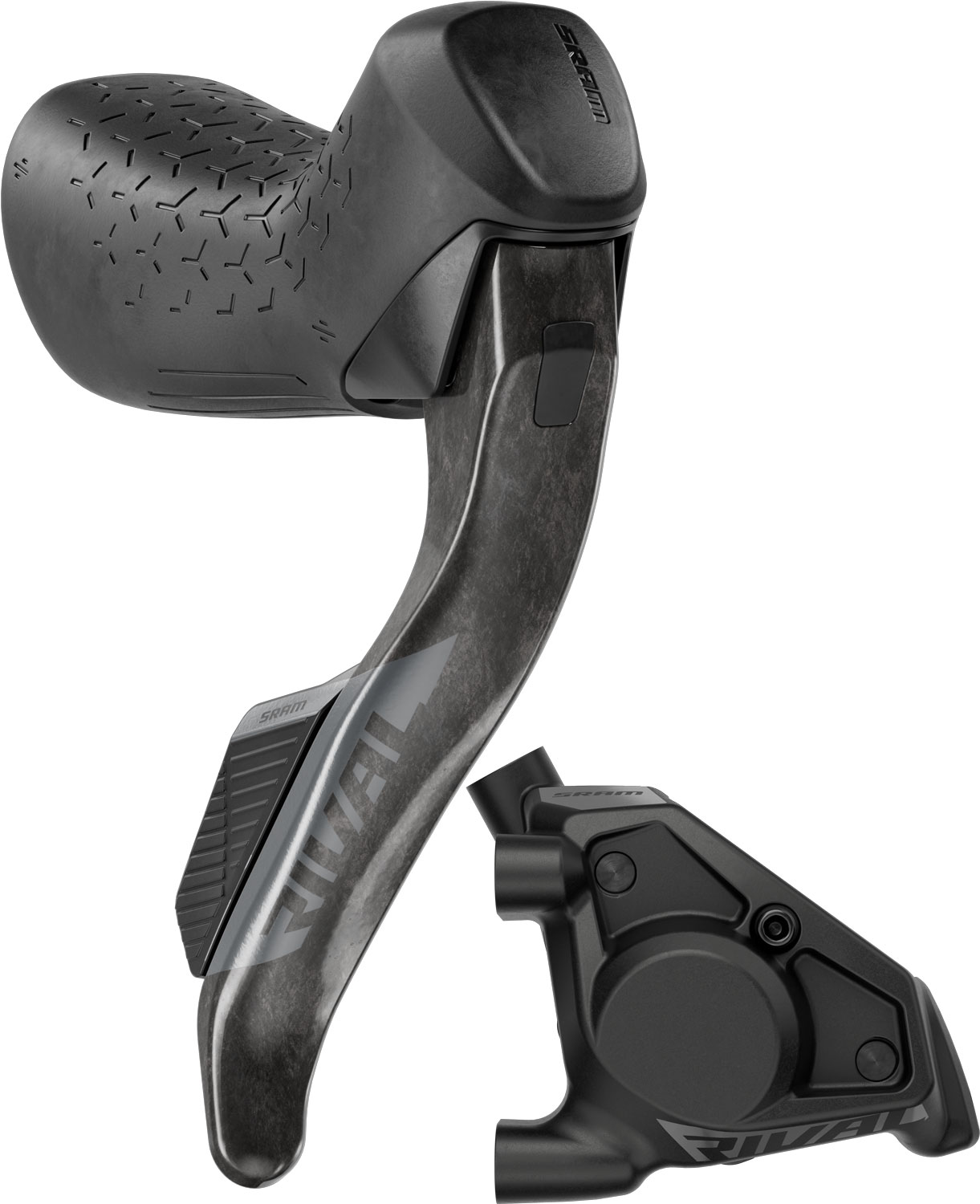

SRAM Rival eTap® AXS E1 HRD shift/brake lever FM disc brake

All in one: effortless braking with just one finger and completely wireless shifting with unparalleled ergonomics. SRAM has given its shift/brake unit a higher brake lever pivot point so that you need around 80% less force than before when braking from the top handlebar position. But because braking performance is only part of the equation, they’ve extended the reach adjustment range while eliminating the risk of pinching your fingers during hard braking. Lighter, with more powerful brakes and adjustable to fit even more hand sizes – all you have to do is pedal.

Features

• Braking with just one finger – whether from the top grip or in the sprint position
• AXS-capable for easy setup, quick personalization and high reliability
• Optimized shape of the grip body fits a wide range of hand sizes
• Carbon brake lever for low weight
• Structured shift paddles and grip body for more control and comfort
• Grip width adjustment for individual adaptation to different hand sizes

Product features

• Application: Road bike
• Model: Rival eTap AXS
• Grip width adjustment: Yes
• Brake type: Hydraulic brake system (disc brake)
• Brake caliper: 2-piston
• Brake caliper mount: Flat mount 20 mm offset
• Front gear steps: 1/2-speed
• Rear gear steps: 12-/13-speed
• Recommended brake disc type: 2-piece CenterLine

Mounting / cable length

• right – rear / 1800 mm
• left – front / 950 mm

Brake lever material

• Brake lever: Carbon
• Shift lever: Plastic
• Brake pads: Steel-backed organic

Color

• black

Weight

• 746 g (manufacturer’s specification)

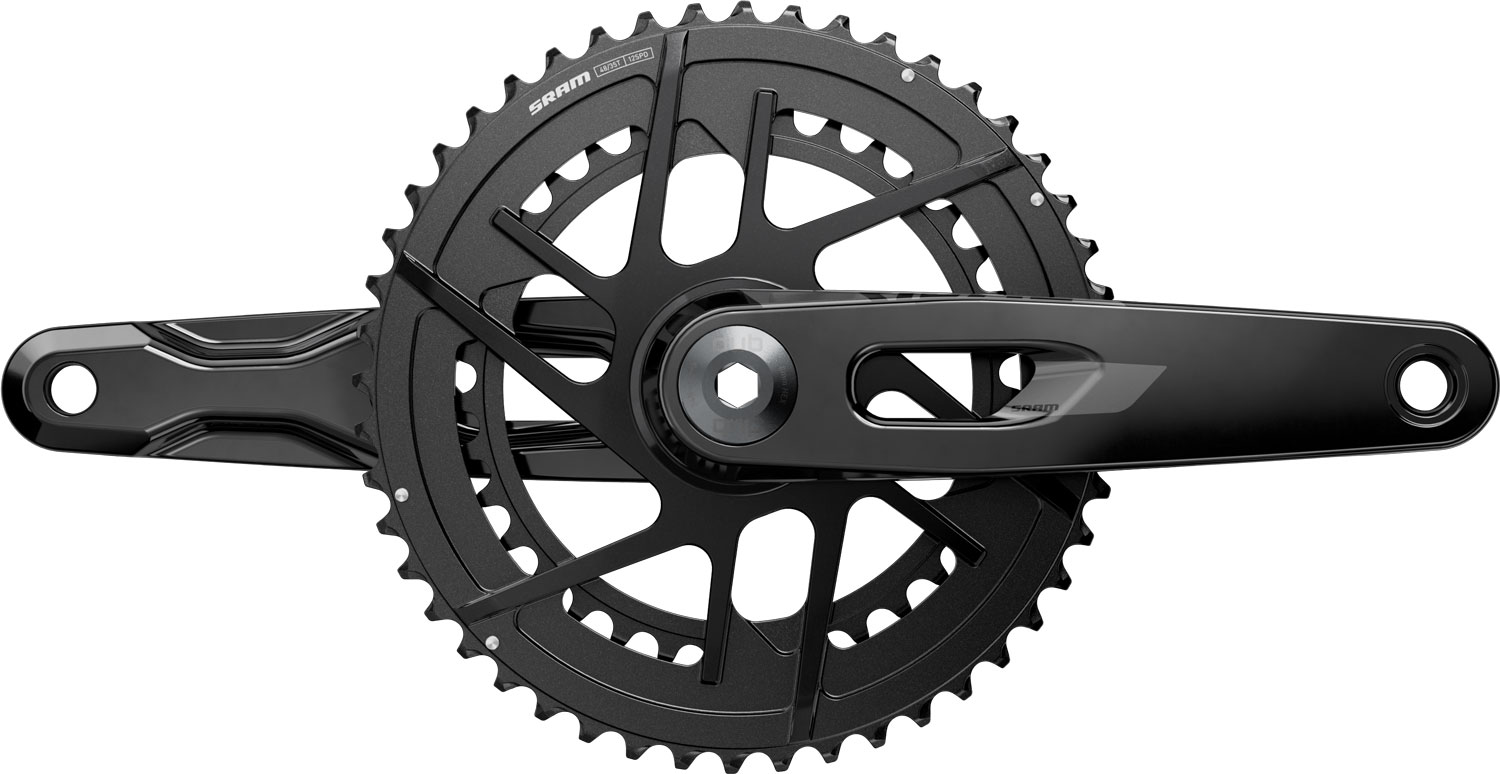

SRAM Rival E1 DUB 2×12-speed Crank 48/35T

SRAM most advanced aluminum road crankset is also its most stunning. Careful engineering has resulted in crankarms that optimize stiffness to weight ratio, with material only where it’s needed. Integrated chainrings deliver flawless shifting in ranges that fit your needs, with the whole package coming in over 50 grams lighter than the previous generation.

Features

• X-Range gearing technology gives you more range and a smoother gear progression, so you’re always in the right gear
• Crisp and accurate front shifts
• DUB bottom bracket adds durability and simplicity

Product features

• Use: Road
• Crank Arms: Rival
• Guard: No
• BCD: Direct Mount

• Chainring Size: 48/35 teeth
• BB Spindle Interface: DUB
• BB Compatibility: All SRAM Road DUB
• Chain Compatibility: Road Flattop D1/E1
• Gear front: 2-speed
• Gear rear: 12-speed
• Chainline: 45 mm

Crank arm length (choose variant)

• 165 mm
• 170 mm
• 172,5 mm

Material

• Crank arms: Aluminium
• Chainring: Aluminium

Color

• black

Weight

• 801 g (manufacturer information)

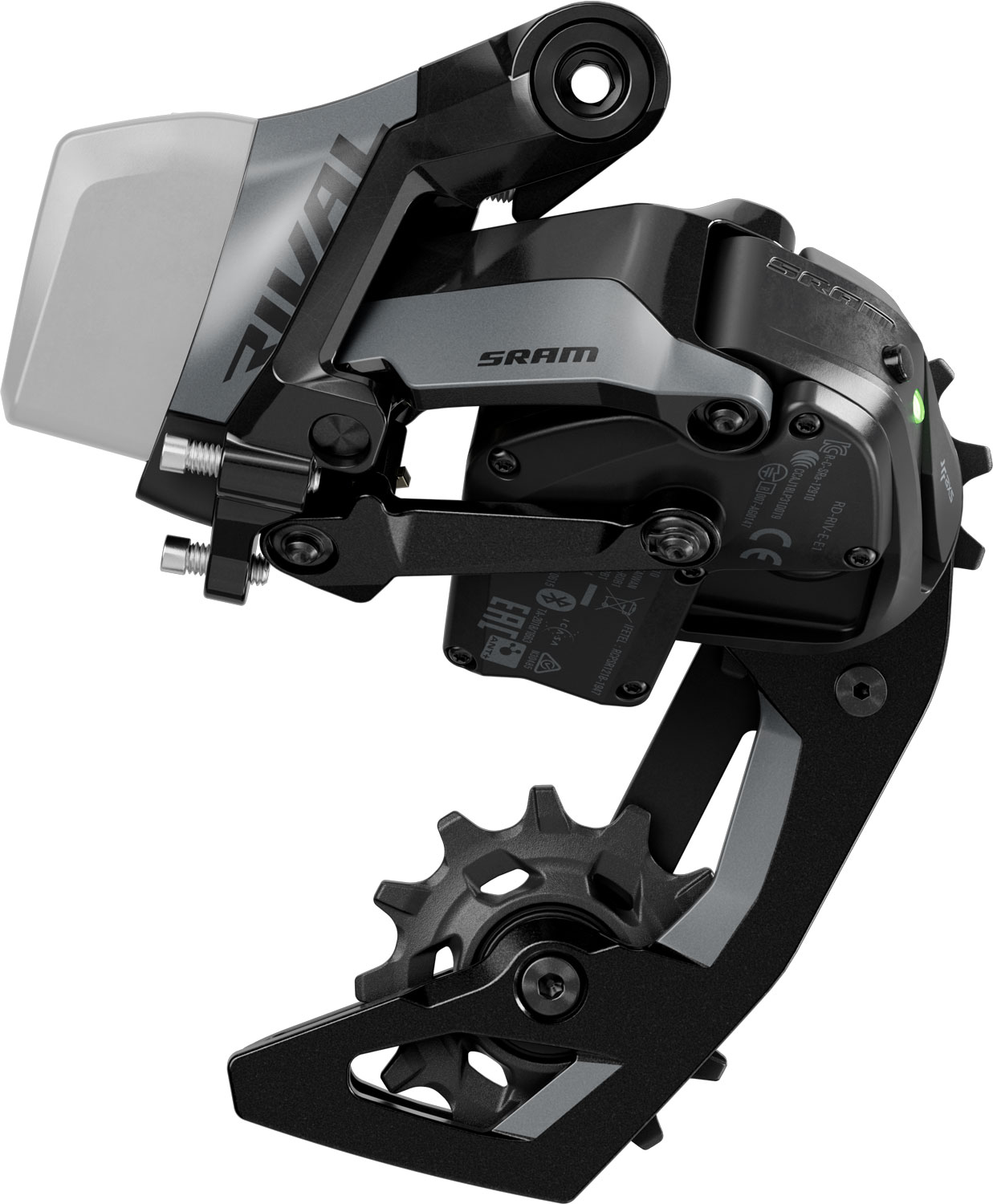

SRAM Rival AXS E1 12-speed Rear derailleur

The brains of the operation. The Rival AXS rear derailleur is the choice for road riding, for all cassette sizes from 10-28 to 10-36, for any terrain you cover. Precise wireless shifting with advanced chain management lets you ride with confidence anywhere.

Features

• Chain management technology keeps the drivetrain quiet and secure
• AXS enabled for easy setup, personalization, and reliability
• Compatible with both 1x and 2x drivetrains
• Compatible with cassettes from 10-28T to 10-36T

Product features

• Range of use: road bike, cyclocross, gravel
• Model: Rival E1
• Gears: 12-speed
• Communication protocol: AXS
• Shift technology: Wireless
• Chain compatibility: Road Flattop D1/E1
• Cassette compatibility: 10-28 to 10-36 teeth
• Cassette sprocket size max.: 36 teeth
• Cassette sprocket size min.: 10 teeth

Material

• Outer cage: Aluminum
• Inner cage: Aluminum
• Bearing: Steel

Color

• black/grey

Weight

• 306 g (manufacturer information)

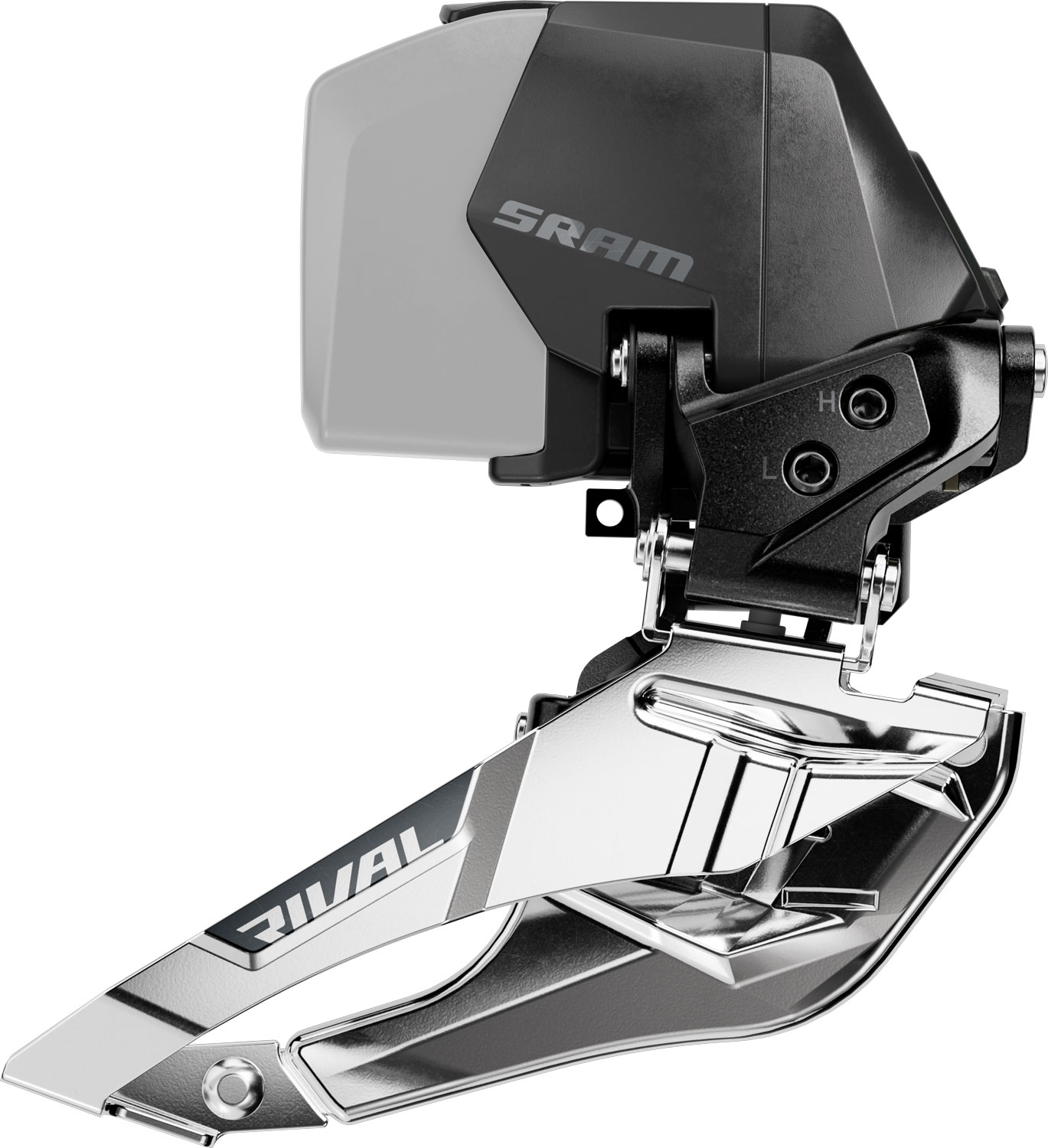

SRAM Rival AXS E1 2×12-speed Braze-on Front derailleur

Experience elevated front shifting. The Rival AXS front derailleur uses SRAM Yaw cage movement and auto trim for silent, rasp-free running, and a narrower cage shape that integrates with the X-Range chainring design for fast, clean shifts. The setup tool means you’ll get the ideal position without any fuss, too.

Features

• AXS enabled for easy wireless setup, monitoring, personalization, and reliability
• Refined cage shape results in faster and more accurate front shifts
• Easy setup with included tool
• SRAM Yaw cage technology optimized for use with X-Range chainrings
• Auto trim functionality for rasp free running
• Compatible with 46/33T, 48/35T, 50/37T chainring combinations

Product features

• Range of use: Gravel, Road
• Group: Rival AXS
• Mounting: Braze On
• Gear front: 2-speed
• Gear rear: 12-speed

Color

• black

Weight

• 156 g (manufacturer information)

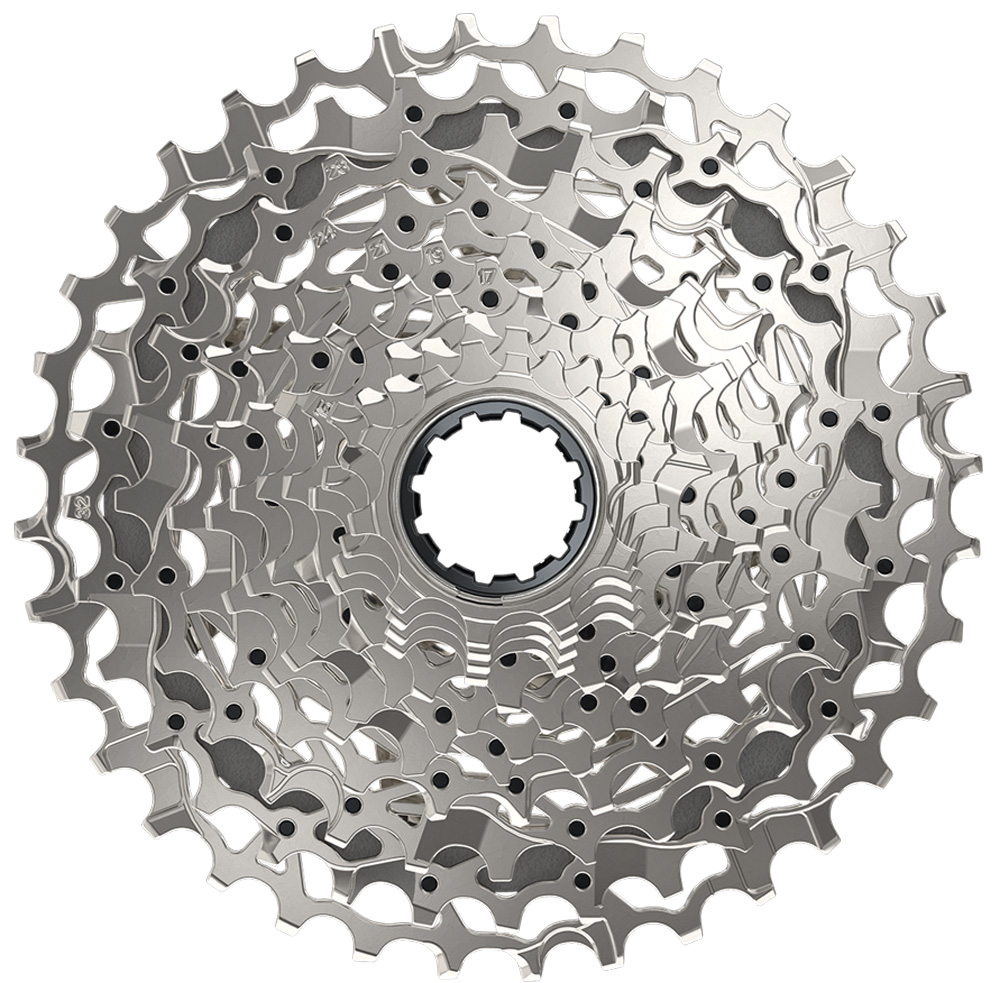

SRAM Rival XG-1250 12-speed Cassette

SRAMs premier X-Range gearing, which utilizes tight jumps between chainrings and a 12-speed, wide range, 10-tooth start cassette, is now available for Rival. This includes new cassettes that feature smooth, precise shifting in ranges that cover road, gravel and everything in between.

Features

• X-Range™ gearing gives you more range and a smoother gear progression, so you’re always in the right gear
• Nickel chrome plating for quiet and durability
• FULL PIN construction for durability and light weight
• Designed to work with an XDR™ driver body

Product features

• Use: Road, Gravel, Cyclocross
• Model: XG-1250
• Gear: 12-speed
• Freehub: XDR

Graduation

• 10-36 Teeth: 10,11,12,13,15,17,19,21,24,28,32,36

Color

• silver

Scope of delivery

• 1 SRAM Rival XG-1250 12-speed Cassette

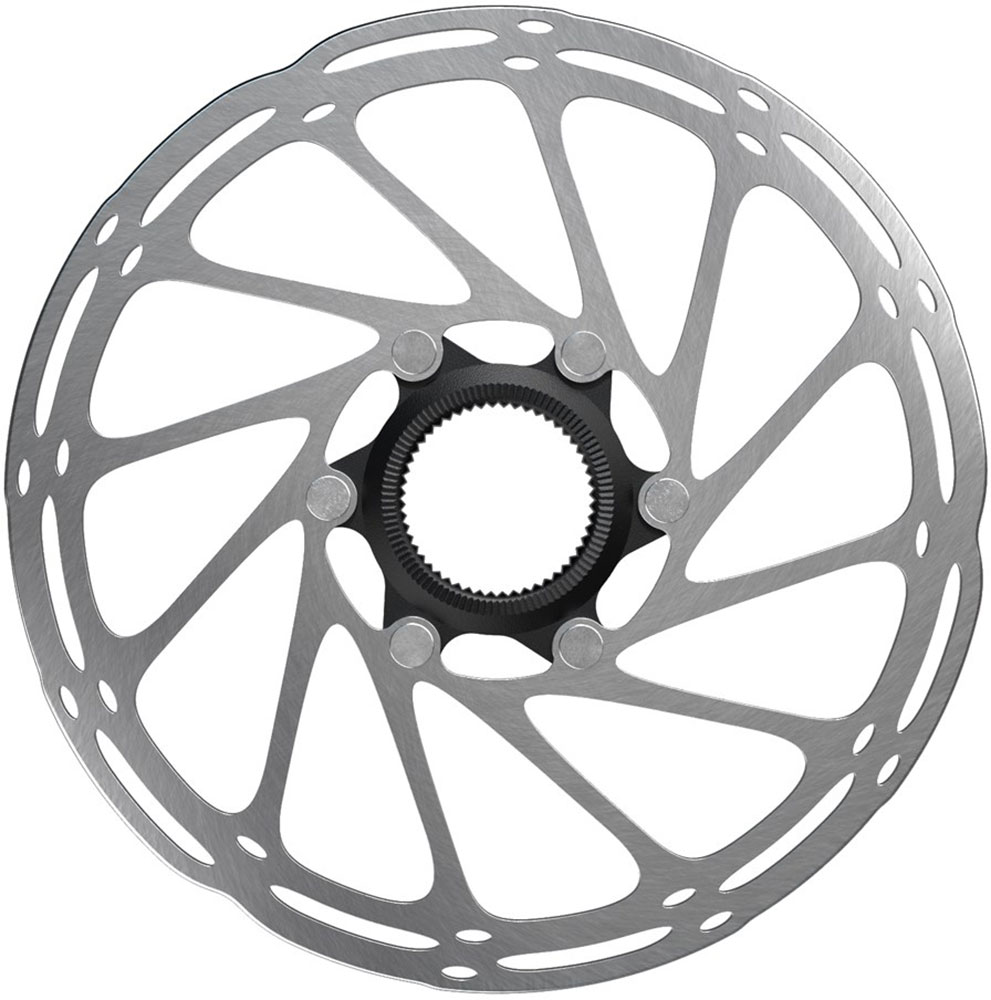

SRAM Centerline CenterLock brake rotor

The CenterLine brake rotors offer a smooth, even and quiet-running braking surface. Rounded edges make wheel installation easier and comply with UCI regulations.

Features

• Rounded edges are UCI compliant and allow for easier wheel installation
• Compatible with road and MTB brakes

Product features

• Area of application: Road bike, MTB
• Construction: One-piece
• Mounting: Centerlock
• Diameter: 160 mm

Material

• Steel

SRAM Rival E1 Flattop 12-speed chain

SRAM has taken its strongest Rival chain and made it even lighter. The cut-outs in the outer plates of the flattop chain reduce the weight and at the same time the hard chrome finish increases durability when you shift through the gears under load. This chain is ready for any distance, no matter how long.

Features

• Flattop technology enables a narrower chain with quieter operation and increased strength and durability
• Compatible with 12-speed Road and 13-speed XPLR AXS gravel groupsets
• Hard chrome-plated inner plates for reduced wear and a longer service life
• Recesses in the outer plates to reduce weight.

Product features

• Area of application: Road / Gravel
• Model: Rival
• Rear gear steps: 12-/13-speed
• Locking link: PowerLock D1
• Pin: Solid Pin
• Chain technology: Road Flattop E1
• E-bike approval: Yes
• Links: 126

Material

• Coating of the pin: Chrome hardened
• Coating of the outer link plate: Nickel
• Coating of the inner link plate: Nickel

Color

• Silver

Weight (manufacturer’s specification)

• 248 g (114 links)

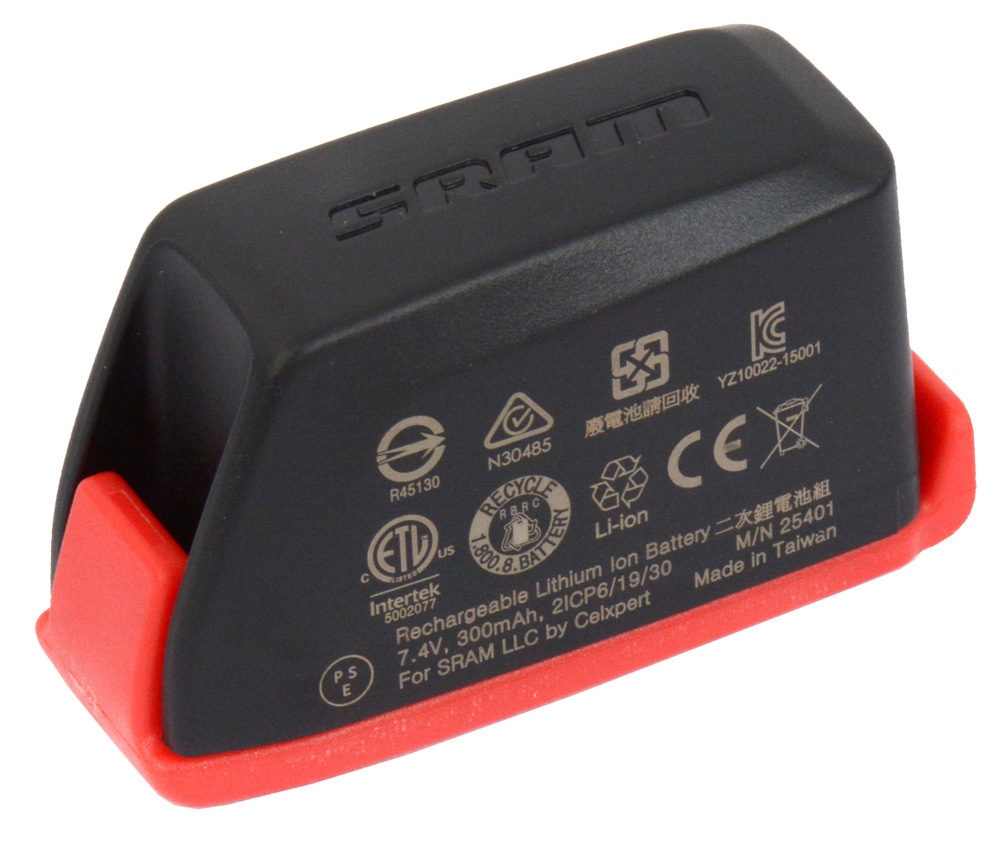

Sram eTap / AXS battery unit

SRAM eTap / AXS battery is the power source for the eTap / AXS system and is interchangeable between front derailleur and rear derailleur. It’s time to shift up a gear. We at SRAM know that technological progress has to prove itself in practice. A bicycle in particular should be simple. Elegance means doing without anything superfluous. That’s progress, and it’s our guiding principle for our first electronic shifting system, the SRAM RED® eTap.

Features

• Ride up to 1000 kilometers on one charge

Product features

• Battery: Lithium-ion battery
• Nominal capacity: 300mAh
• Nominal voltage: 7.4V

Compatibility

• eTap front derailleur
• eTap rear derailleur
• AXS front derailleur
• AXS rear derailleur
• RockShox Reverb AXS Vario seatpost

Weight

• 24 g (manufacturer’s specification)
