SRAM Maven Base Stealth disc brake

Maven Base’s lever body houses Directlink, which translates rider input for a smooth application of power. And because of a stiff 4-bolt caliper that sheds an incredible amount of heat, that feel remains consistent, so the last corner feels like the first corner. And with so much baseline power on hand, there is more range than ever before to tune the ride qualities to exactly how you want with different pad materials, and rotor sizes. Maven Base features a Blast Black anodized finish, and for ease of customization includes tool-free Reach Adjust.

Features – Sram Maven Base Stealth Disc Brake

• Four 18 mm pistons for extreme-duty power

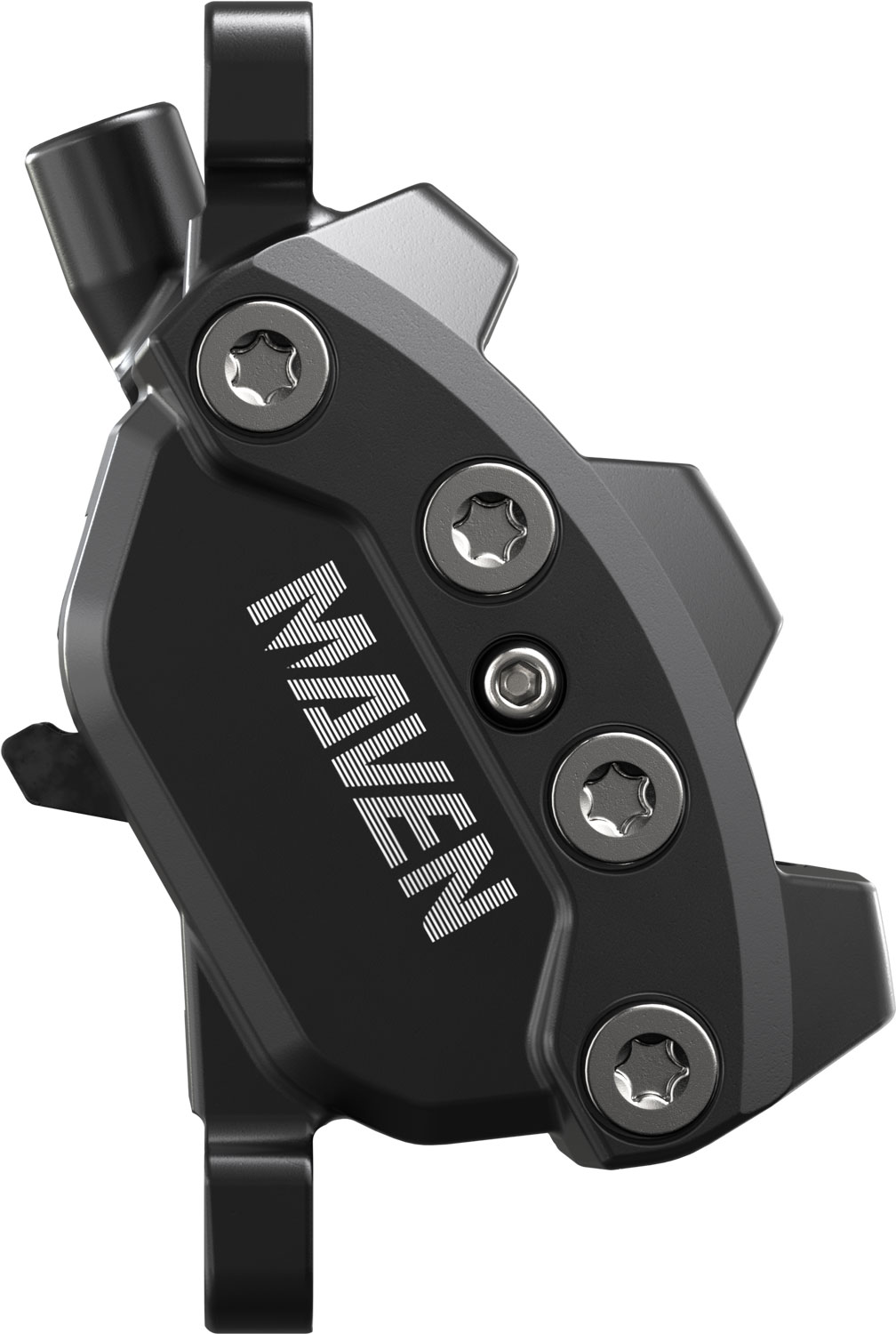

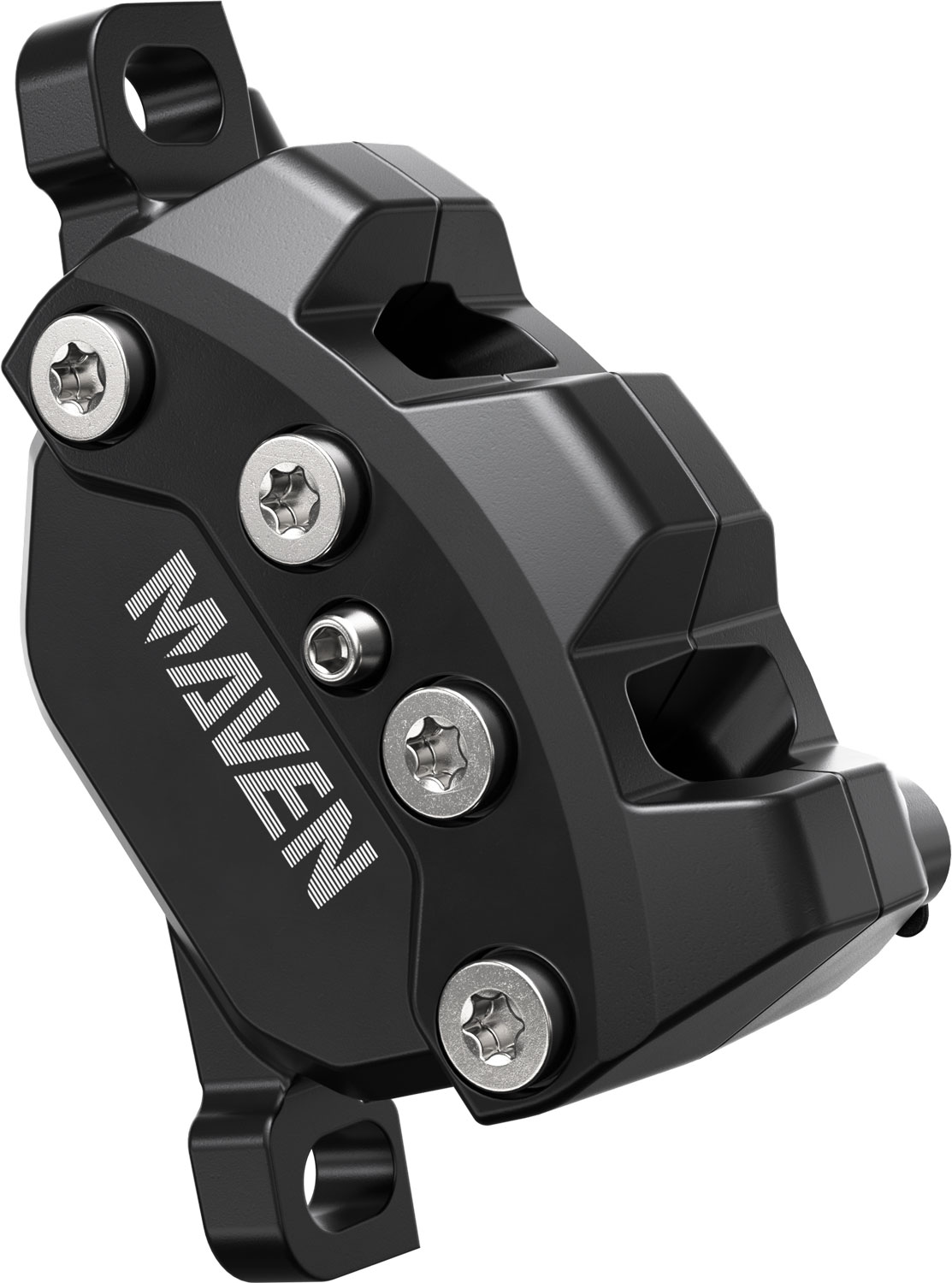

• Stiff 4-piston caliper with best heat management and easier bolt access
• Organic pads come standard for the best modulation and the quietest ride

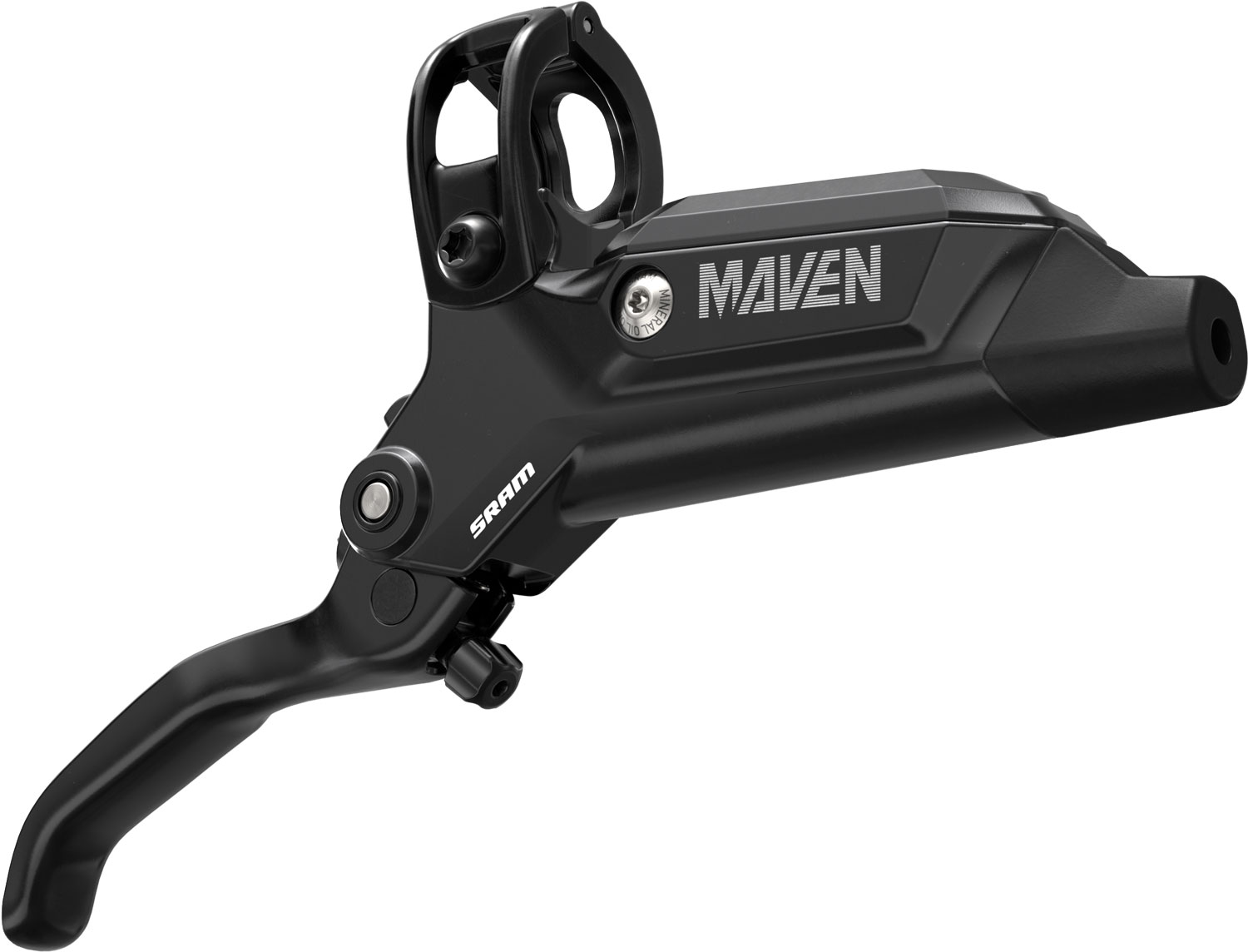

• Stealth lever architecture for a sleeker, more modern ride
• Tool-free lever reach adjust
• Mineral Oil for low maintenance and performance
• Designed for use with Maxima Mineral Brake Oil only
• Caliper features Bleeding Edge bleed port for drip-free maintenance

Product features

• Application: MTB
• Brake type: Hydraulic
• Caliper construction: 2-piece
• Pistons: 4
• Pad type: Steel-backed Organic
• Bracket: Direct Mount DIR
• Hydraulic fluid: SRAM Mineral Oil
• Lever pivot: Bushing
• Contact adjust: No
• Reach adjust: Tool-free
• Caliper bleed port: bleeding Edge

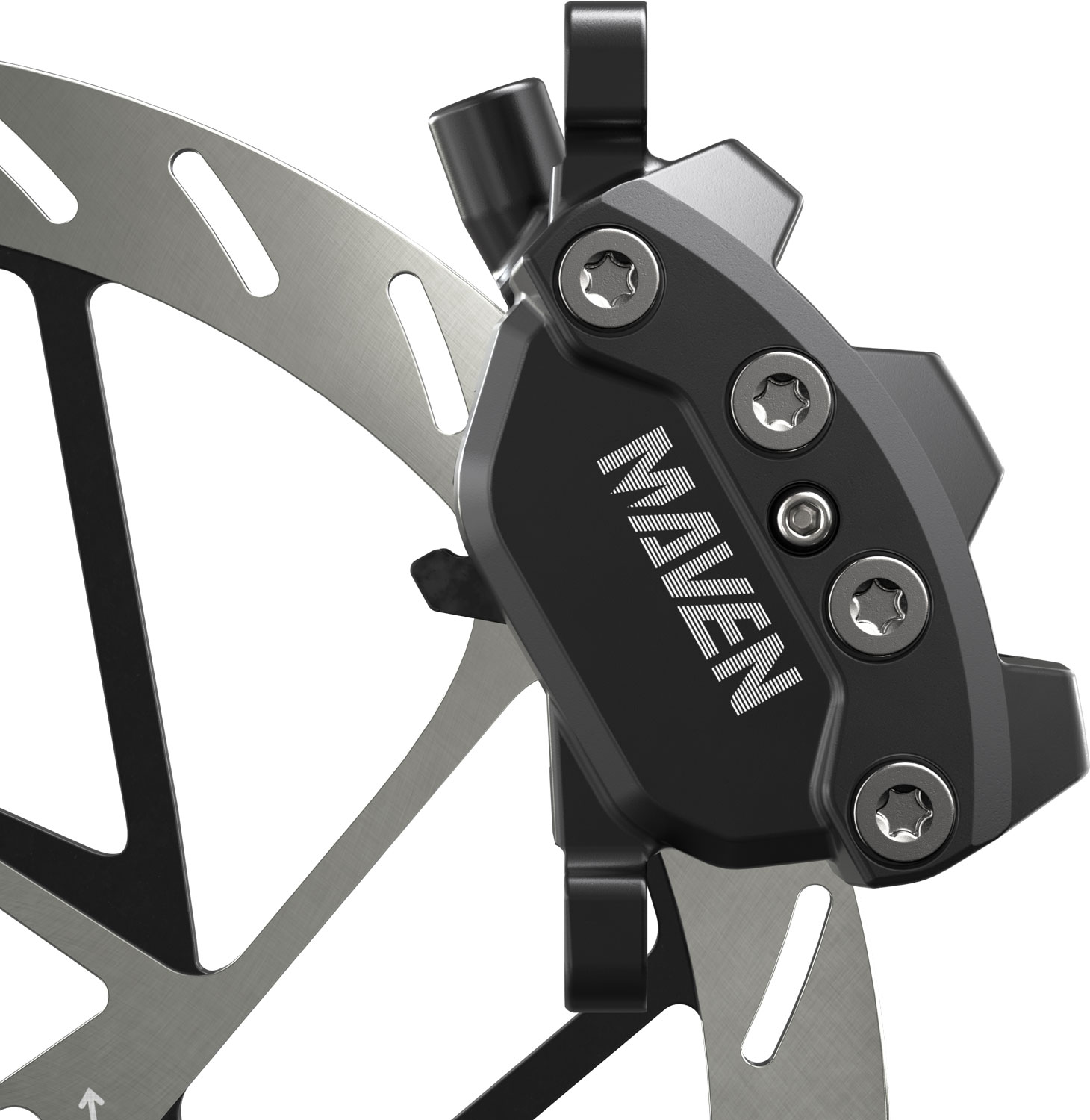

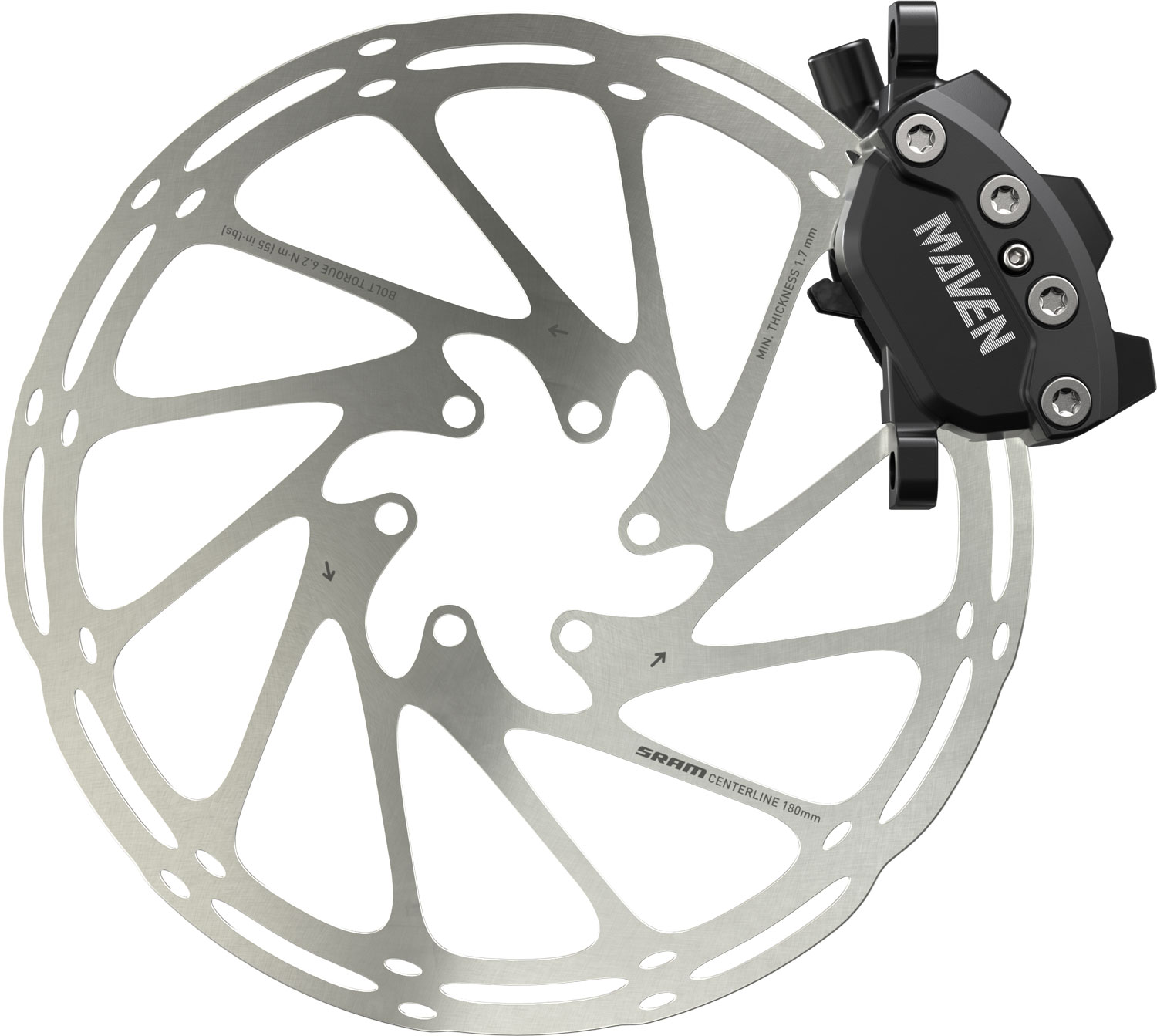

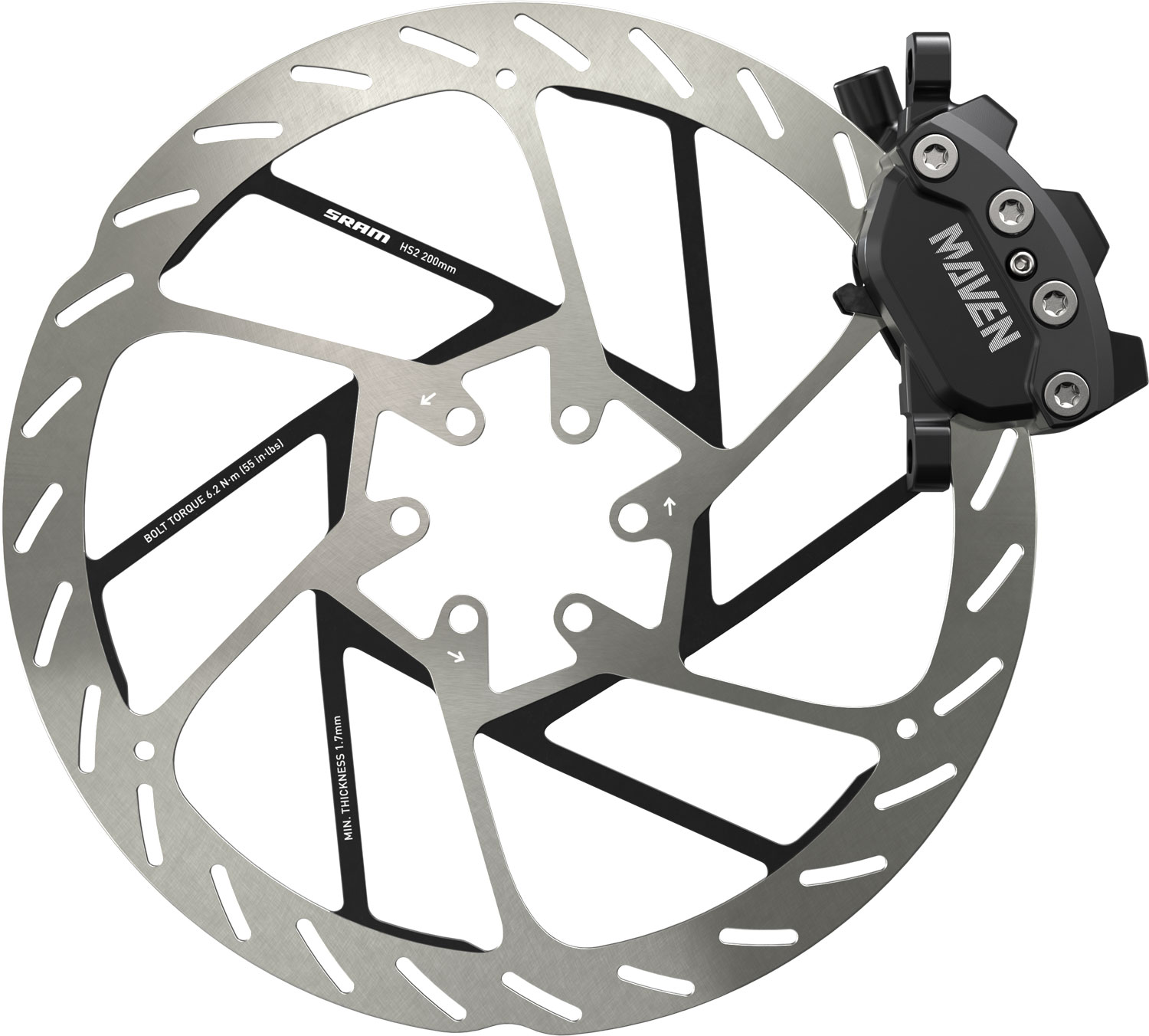

• Rotor type recommended: 1-piece Centerline (not included!)

Mounting – Hose length (choose variant)

• Front – 950 mm
• Rear – 2000 mm

Material

• Lever: Aluminium
• Body: Aluminium
• Caliper: Aluminium
• Pistons: Phenolic Plastic
• Bolts: Steel

Color

• Blasted Black anodized

Weight

• 380 g (manufacturer information)

Scope of delivery

• 1 x Maven Base Stealth Disc Brake
• 1 x MatchMakerClamp
• 2 x Fastening screws
• 1 x Insertpin
• 1 x Olive
• 1 x 20P-2 Adapter
• 1 x Transport safety
• Disc brake is ready for installation, completely assembled and bleeded!

Rotor not included!
