SRAM GX Eagle AXS Carbon 32T 175mm 52T Boost Groupset

Scope of delivery – SRAM GX Eagle AXS Groupset

• 1 x GX Eagle AXS Rear Derailleur 12-speed
• 1 x GX Eagle Carbon DUB 1×12-speed Crank Boost 32T 175mm
• 1 x GX Eagle XG-1275 12-speed Cassette 10-52
• 1 x AXS Pod Controller with Clamp
• 1 x GX Eagle 12-speed chain 126 links
• 1 x Battery

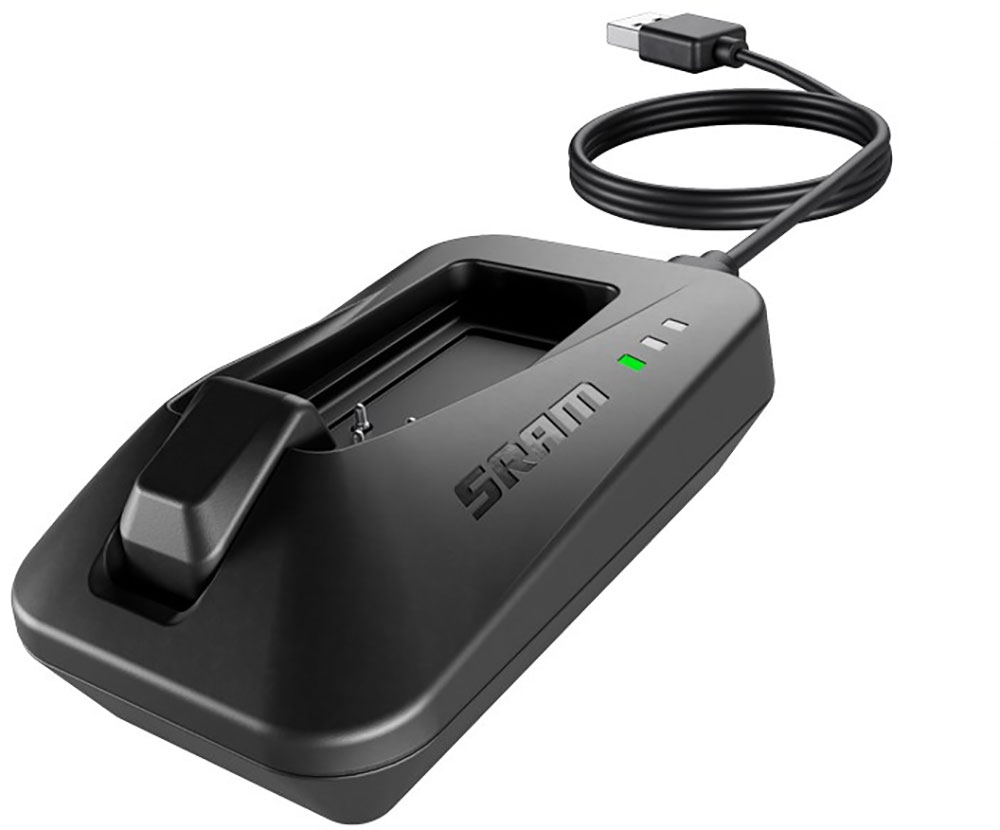

• 1 x Charger/Cord

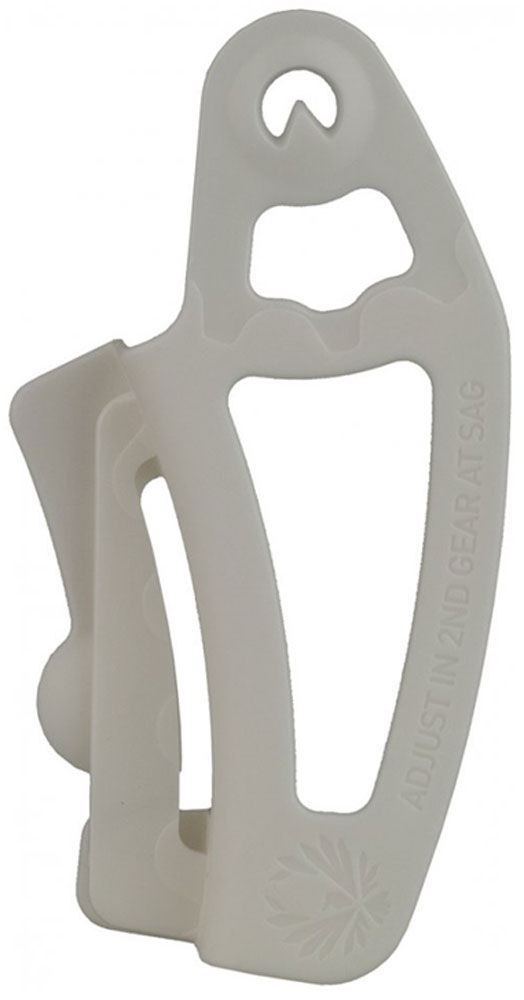

• 1 x Chain Gap Tool
• 1 x Multitool

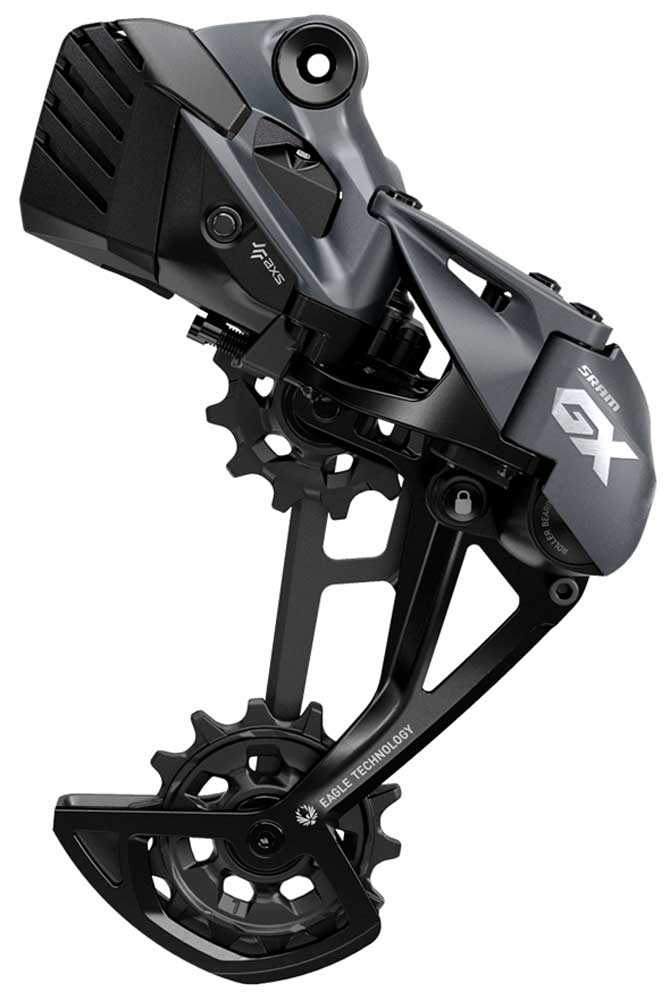

Sram GX Eagle AXS 12-speed Rear Derailleur

Riders want a derailleur that shifts on command, whether under climbing load or sprinting to the stage finish. The GX Eagle AXS derailleur gets it done with everything you have come to expect from the AXS connect components. The GX Eagle AXS derailleur is smart enough to protect itself thanks to its incredibly resilient Overload Clutch. Engineered with a variety of rider preferences in mind, it is compatible with the new expanded range 10-52t cassette as well as the 10-50t cassette. Showcasing its lineage from the proven GX Eagle mechanical line, the GX Eagle AXS derailleur is there for one thing – to do the job.

Features

• AXS enabled componentry software that makes it possible to both program and personalize new SRAM and RockShox components Eagle technology
• Overload Clutch protection
• Finished with the GX Eagle master colorway

Product features

• Use: MTB
• Group: GX Eagle AXS
• Gears: 1 x 12
• Max. tooth: 52T
• Technology Highlights: AXS, Eagle, X-HORIZON, X-SYNC, ROLLER BEARING CLUTCH, CAGE LOCK

Material

• Cage: Steel
• Pulleys: Steel

Color

• lunar

Weight

• 478 g (manufacturer information)

Sram GX Eagle Carbon DUB 1×12-speed Crank Boost 32T 175 mm

The SRAM carbon GX Eagle crankset delivers consistent performance every time out. Featuring SRAM’s X-SYNC 2 tooth profile chainring, the Carbon GX crankset is engineered for complete chain control. Each tooth’s thickness is precisely toleranced and controlled to work seamlessly with the chain’s inner and outer links. DUB technology features a better-engineered bottom bracket and a new spindle design. Together, these allow for a more uniform approach to bottom bracket fitment, better sealing against contamination and forward and backward compatibility. Now everyone can benefit from a new measure of durability.

Features

• Proprietary carbon layup technology
• Fully compatible with any 1x drivetrain
• DUB technology features a uniform approach to bottom bracket fitment, better sealing against contamination and is forward and backward compatible
• Direct mount ring

Product features

• Use: MTB
• Group: GX Eagle (1 x 12-speed)
• Model: DUB
• Gradation: 32 teeth
• Mounting: Direct Mount
• Axle diameter: 28.99 mm
• Bottom bracket:  DUB:BSA73, PF89.5, PF92, PF30 MTB73, BB30 MTB73, BSA MTB68SP
• Gear rear: 12-speed
• Chain line: 52 mm
• Crank arm length: 170 mm

Material

• Crank arms: Carbon
• Chainring: Aluminum

Color

• Lunar Grey

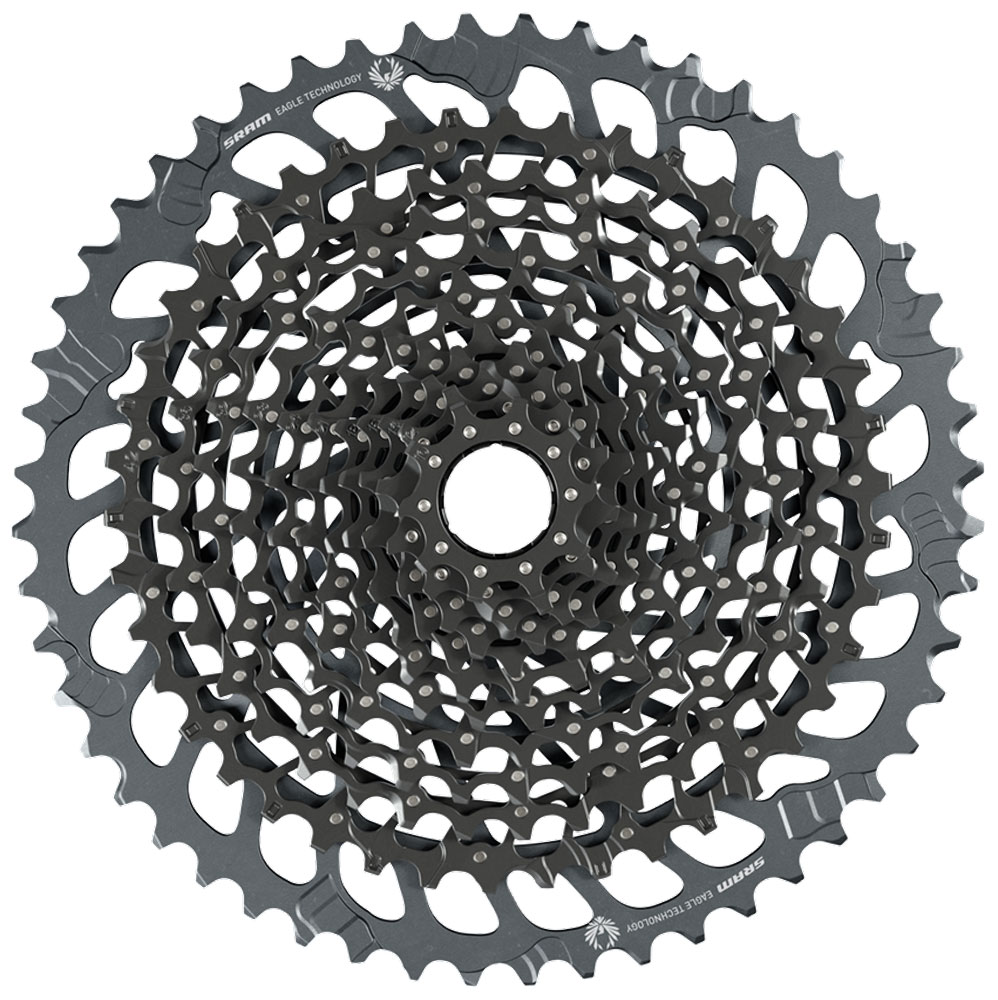

Sram GX Eagle XG-1275 12-speed Cassette 10-52

The new Sram XG-1275 10-52 Eagle cassette for riders who prioritize all day function over anything else. With an expanded, 520-percent gear range giving riders more ability to spin and recover on the burliest climbs. Featuring FULL PIN™ technology that uses lightweight, precision engineered steel cogs permanently connected with high-strength stainless steel pins. An open design similar to the X-DOME™ cassette that aids in mud clearance, giving riders crisp shifting performance and longer component life.

Features

• 520-percent gear range utilizing the industry standard XD™ hub driver
• Light and strong FULL PIN™ technology similar to X-DOME™ bringing true 1x gear range to more riders and builds
• Lunar and black colorway makes the XG-1275 cassette right at home on any build

Product features

• Use: MTB
• Model: XG-1275
• Speeds: 12-speed
• Teeth: 10-52
• Gear Ratios: 10-12-14-16-18-21-24-28-32-36-42-52
• Recommended Chain: Eagle chains only

Compatibility

• Only compatible with XD™ Driver Body

Material

• machined cromoly (cog cluster)
• aluminium (largest cog)

Color

• lunar/black

Weight

• 451 g (manufacturer information)

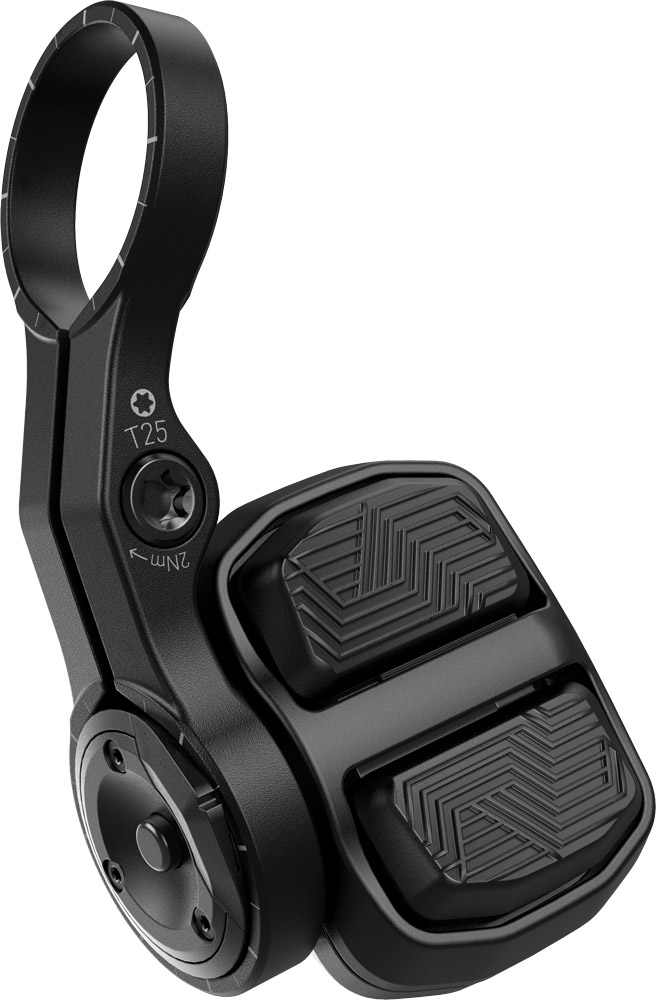

Sram AXS Pod Controller

The Sram AXS Pod transforms the crucial act of rider inputs into a vastly more personal experience for all of your AXS controls. Pod offers lighter weight than Eagle Ecosystem AXS Controllers, updated ergonomics and a vastly superior range of adjustability. Featuring a “click and fire” two-button design, with an intuitive action that requires the ideal amount of rider input to activate. Plus, it allows riders to personalize button assignments through the AXS™ App and accepts ergonomically adjustable buttons with subtle grip. With a unique flippable design, AXS Pods can be mounted left- or right-handed – it’s one component, with a world of possibilities. Finished in a premium high polish casing to finish the look of your super bike.

Features

• Lighter weight, better and more adaptable ergonomics, superior adjustability, premium finish
• All-new “click and fire” two-button design. Intuitive and straightforward action requiring the ideal amount of rider input
• Personalize paddle options for complete customizability via the AXS™ App.

Product features

• Use: MTB
• Default Function: AXS – Rear Derailleur
• Orientation: Right/Left
• Clamp: Discrete
• Compatible with ANT+ devices: Yes
• Multi-position: Yes
• Battery size: CR2032

Color

• black

Weight

• 50 g (manufacturer information)

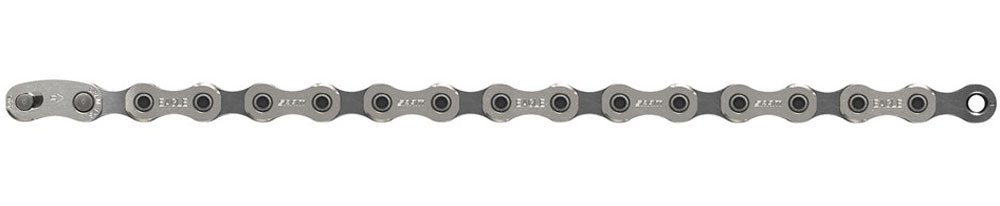

Sram GX Eagle 12-speed chain

The GX Eagle™ chain is designed with SRAM’s Eagle™ geometry, the GX Eagle™ chain features solid pin construction, Eagle™ PowerLock® and smooth, efficient shifting that you can count on every time out.

Features

• Groundbreaking new chain design and technology
• The Eagle chain has been completely re-engineered, and is produced with new manufacturing technology.
• All-new Eagle PowerLock chain connector with FLOW LINK technology provides better chain-guiding and increased longevity
• Unique features and design also provide significantly improved wear resistance on Eagle cassettes and rings

Product features

• Use: MTB
• Model: GX Eagle
• Gear: 12-speed
• Links: 126
• Technology Highlight(s): FLOWLINK™, POWERLOCK®
• Closing Link: Eagle™ PowerLock® PVD
• Recommended Group: GX Eagle™
• Pin Treatment: Chrome hardened
• Compatibility: All levels of Eagle™ drivetrain systems

Material

• Outer link finish: Nickel
• Pin: Chrome

Color

• Outer link: silver
• Inner link: black

Weight

• 258 g (manufacturer information)
