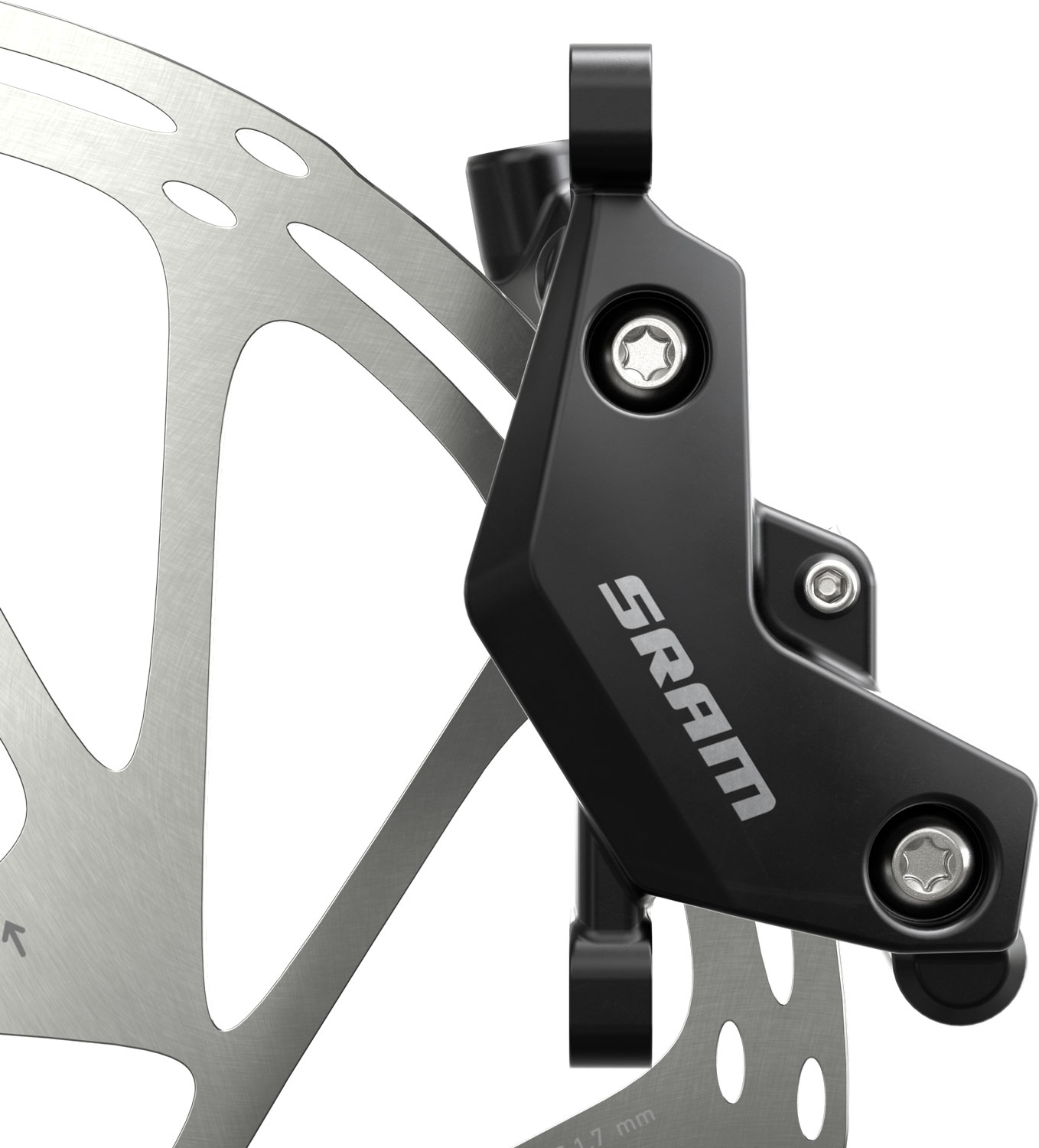

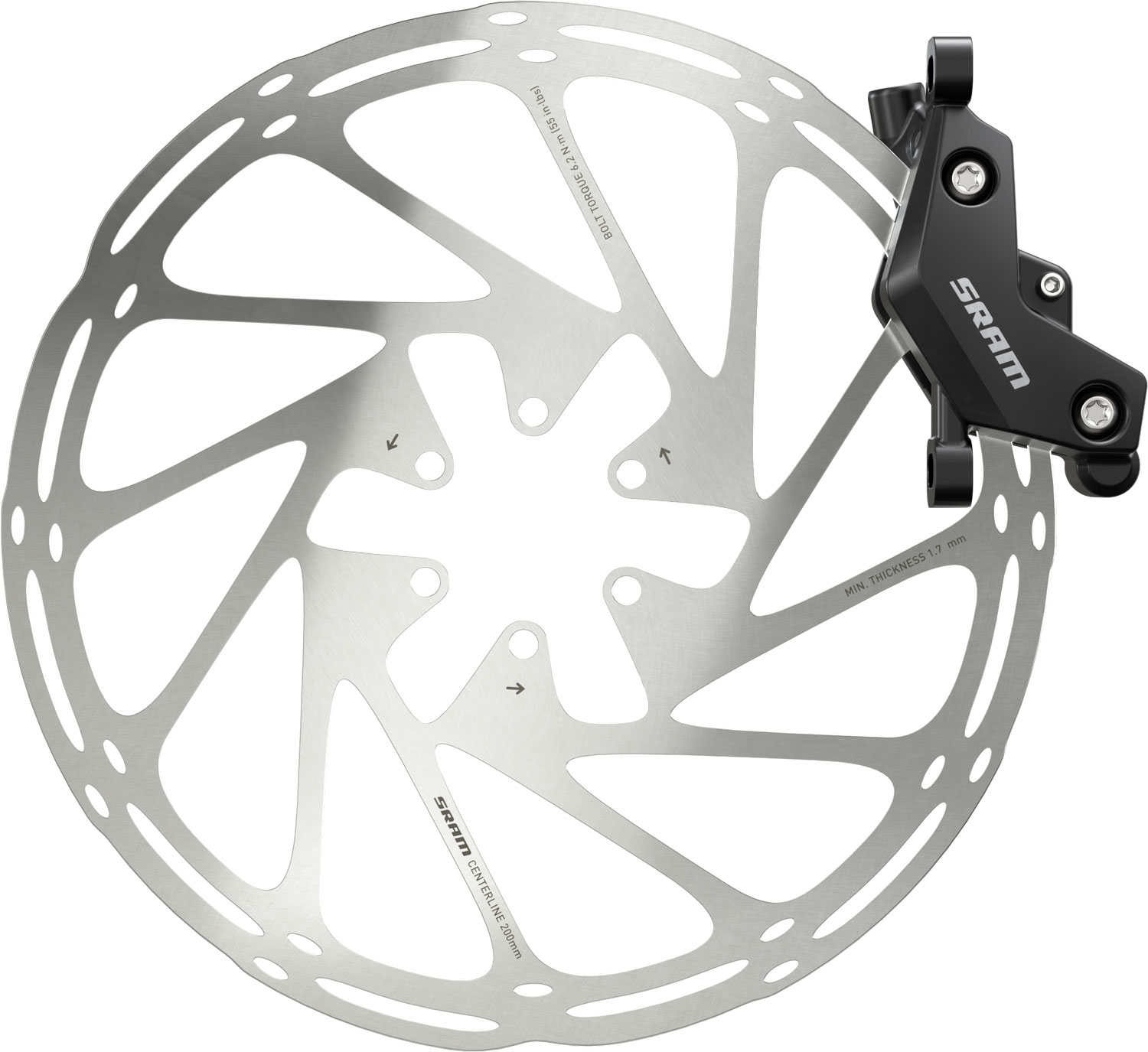

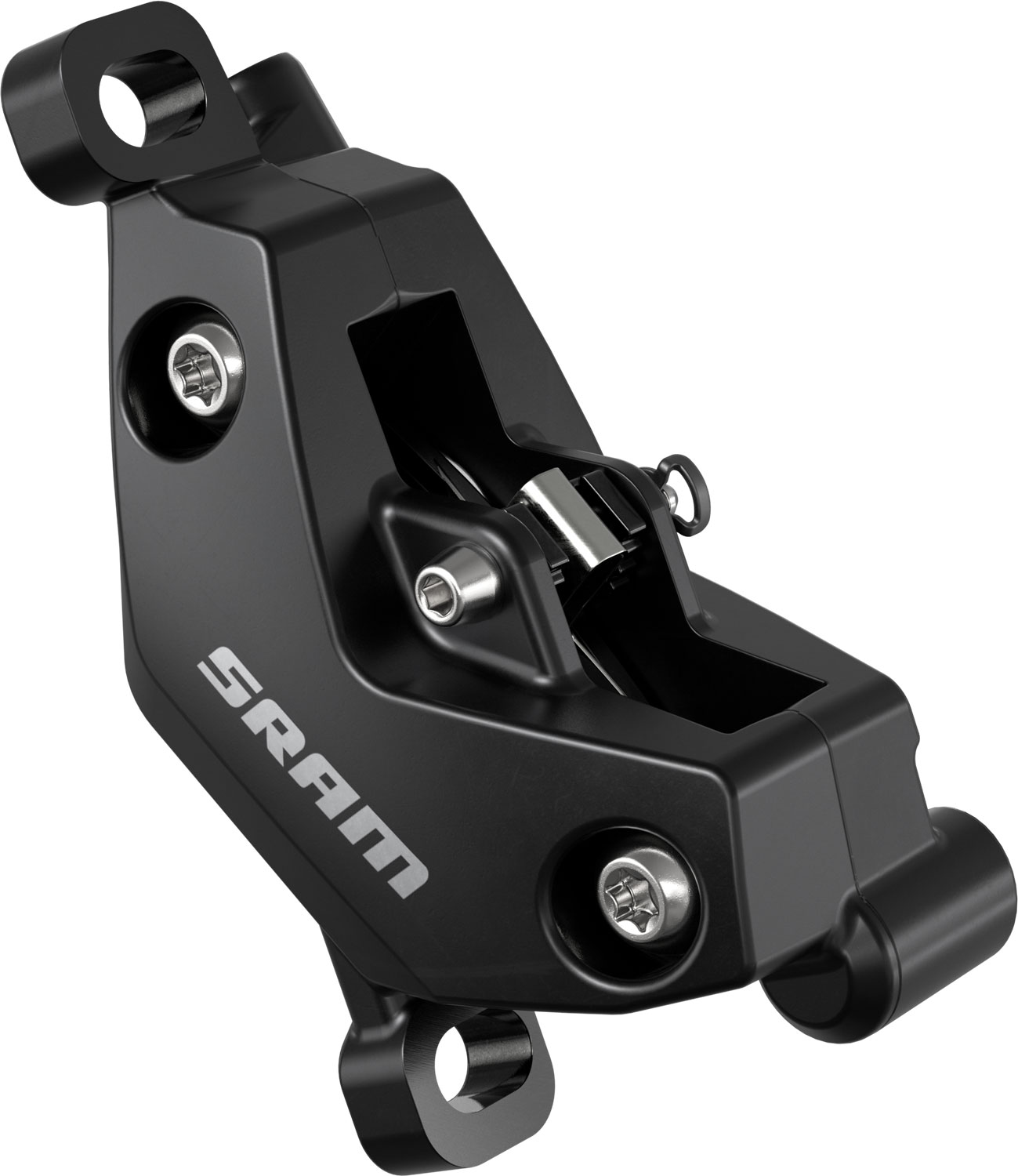

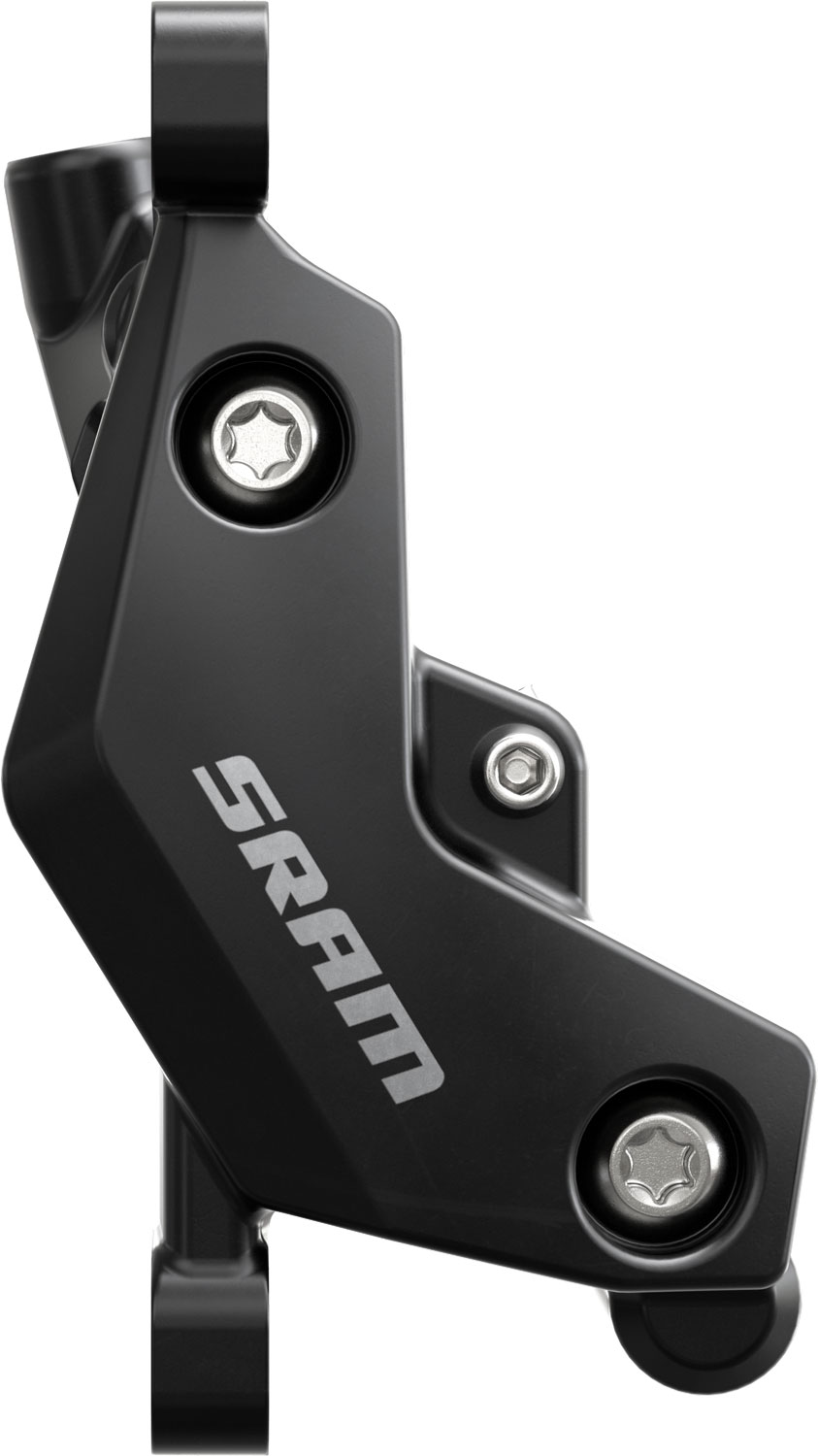

SRAM DB4 Stealth Disc Brake

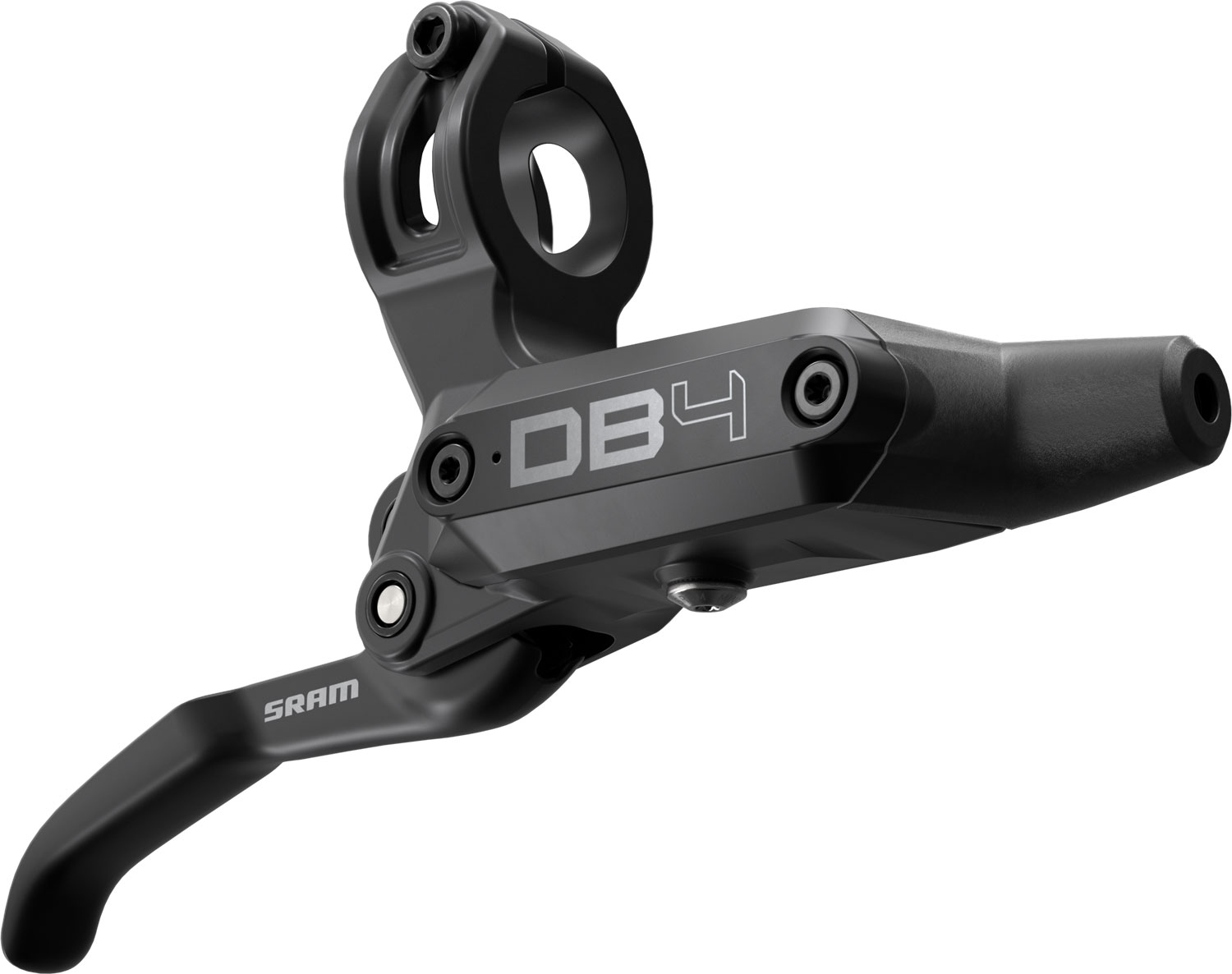

The right and left specific stealth lever body design brings the hose parallel to the bar, allowing for an organized cockpit that pairs perfectly with mechanical Eagle Transmission shifters. Consistent heavy-duty power is no surprise, as DB4 shares the same proven caliper architecture as DB8.

Features – Sram DB4 Stealth Disc Brake

• Stealth lever architecture pairs perfectly with mechanical Eagle Transmission shifters
• Split ring clamp
• Code-like heavy duty power
• Left and right specific levers feature tooled lever reach adjust
• Uses existing SRAM Large brake pads
• Designed for use with Maxima Mineral Oil only
• Designed for use with SRAM Mineral Oil Bleed Kit only

Product features

• Application: MTB
• Brake type: Hydraulic
• Caliper construction: 2-piece
• Pistons: 4
• Pad type: Steel-backed Organic
• Bracket: Direct Mount DIR
• Hydraulic fluid: SRAM Mineral Oil
• Lever pivot: Bushing
• Contact adjust: No
• Reach adjust: Tooled
• Caliper bleed port: Threaded
• Rotor type recommended: 1-piece Centerline (not included!)

Mounting – Hose length (choose variant)

• Front – 2000 mm
• Rear – 2000 mm

Material

• Lever: Aluminium
• Body: Aluminium
• Caliper: Aluminium
• Pistons: Phenolic Plastic
• Bolts: Steel

Color

• Diffusion Black Anodized

Weight

• 365 g (manufacturer information)

Scope of delivery

• 1 x DB4 Stealth Disc Brake
• 1 x MatchMakerClamp
• 2 x Fastening screws
• 1 x Insertpin
• 1 x Olive
• 1 x Transport safety
• Disc brake is ready for installation, completely assembled and bleeded!

Rotor and Adapter not included!
