Descrição

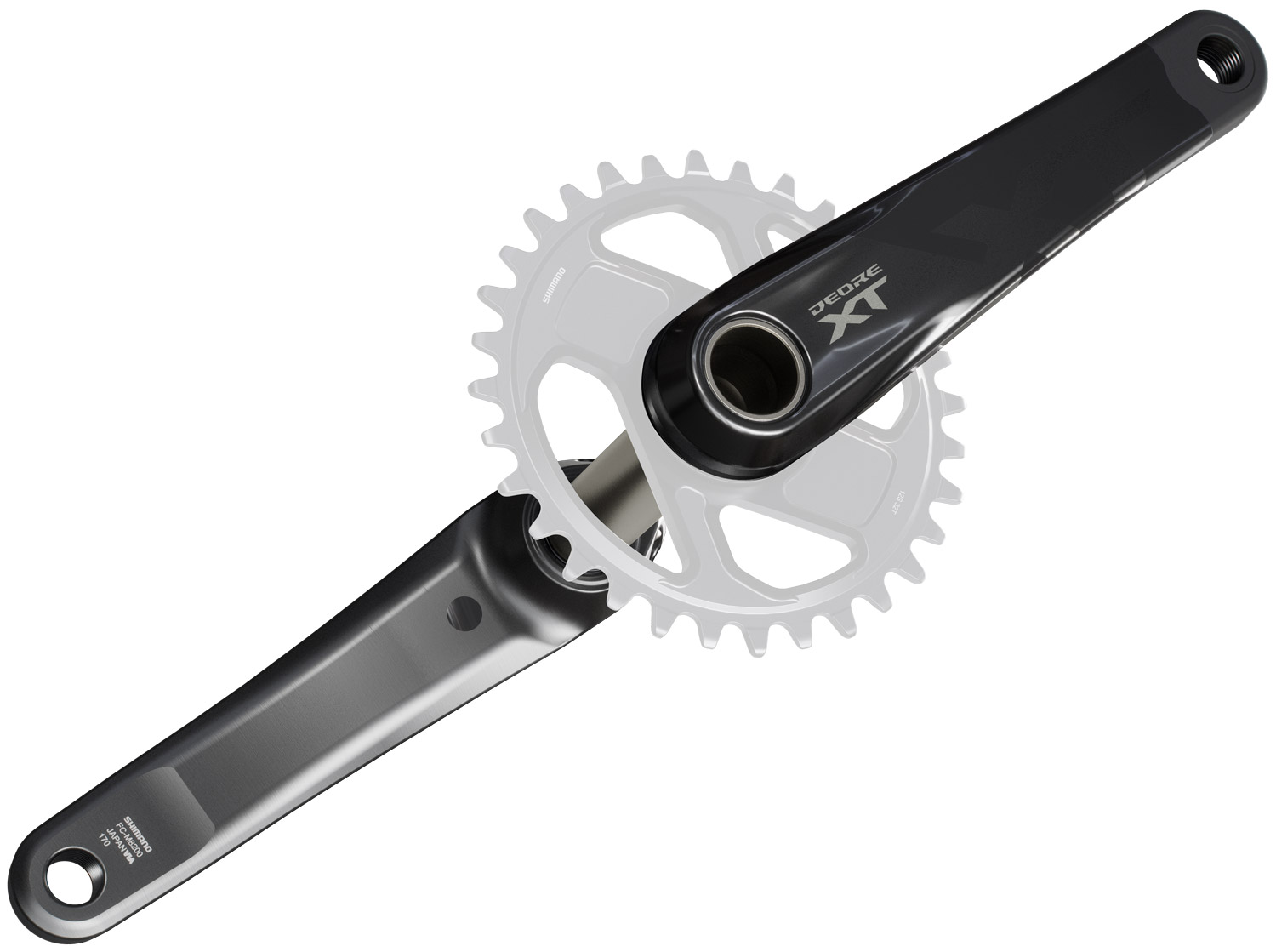

Robust, intuitive and consistent: XT FC-M8200 12-speed Crankset from Shimano
Offered in lengths from 160-175 mm and with all sizes of the reinforced SM-CRM86 direct-mount chain ring, there is a specification of FC-M8200 for every enduro rider.
From the foundational moments in the early 1980s when DEORE XT first revolutionized mountain biking, SHIMANO brings fast and reliable shifting, a robust drivetrain construction, and refined braking systems to more riders with the latest introduction of DEORE XT M8200 Di2 components. Following the recent launch of our flagship XTR M9200 race group, DEORE XT receives key technology and design cues from XTR, delivering a robust group designed to withstand the demands of real-world riding, and consistently redefining what’s possible on two wheels.
Features – Shimano XT FC-M8200 1×12-speed Crank
- Enduro Specific Spindle: A thicker enduro-specific spindle raises the mark for durability and big- hit survivability
- HOLLOWTECH II: Shimano’s forging provides optimal weight, stiffness and rigidity for Enduro riding and racing
- Q Factor/Chain line: An enduro-optimized Q Factor brings race-feel familiarity, while a 55mm chain line offers maxed-out frame compatibility
- Compatibility: M8200 cranks come standard with a 24mm spindle and are compatible with Shimano’s threaded and Press Fit bottum brackets
- FC-M8200 Q-Factor 176mm
- Chain line 55mm
- O.L.D 131mm / 141mm / 142mm / 148mm
- Compatibility 1 x 12-speed with CS-M8200 cassettes 9-45 and 10-51
- Mounting system Direct mount (Lighter and stiffer design & easy exchangeable chainring by direct mount and one key release)
- Chainring SM-CRM86 Available in different gradations (28-30-32-34-36) – Chainring is not included!
Product features
- Use: MTB
- Group: XT M8200
- Model: FC-M8200
- Gradation: Chainring is not included!
- Q-Factor: 176mm
- Threaded BB shell width: 68 / 73mm
- Gear rear: 12-speed
- Construction: Hollowtech II
- Compatible Chain: 12-speed HG
- O.L.D: 131mm / 141mm / 142mm / 148mm
- Chain line: 55mm
Crank arm length (choose variant)
- 160mm
- 165mm
- 170mm
- 175mm
Material
- Crank arm: Aluminum Anodized
- Crank axle: Steel Plated
Scope of delivery
- 1 x Shimano XT FC-M8200 1×12-speed Crank without Chainring
For suitable SM-CRM86 Chainring >CLICK HERE<
Technologies
DYNAMIC CHAIN ENGAGEMENT+
SPECIAL GEAR TEETH FUNCTION SHIMANO’s DYNAMIC CHAIN ENGAGEMENT+ is a special gear teeth profile designed for use in single-chainring configurations for XC, enduro, and trail riding. It gives more chain retention and smoother pedaling – even over bumpy terrain. Chain retention of any gear will reduce abrasion and worn out.
HOLLOWTECH II
Providing the best balance of stiffness, strength, weight and rotating performance The concept of HOLLOWTECH II technology is focused on producing a superior crankset which will maximize a rider’s power transfer. The rigidity of the crankset ensures pedaling efficiency while its weight, a key element of the crankset, you want light, aids in cycling longer distances over which the rider needs to pedal more. Naturally, SHIMANO strove for the optimum balance between the conflicting needs of stiffness while producing a lightweight crank. HOLLOWTECH technology is an ultra-lightweight hollow crankarm created by SHIMANO with the company’s own proprietary forging technology that also maintains rigidity. The addition of HOLLOWTECH II technology integrates the bottom bracket axle with the right crankarm for more stiffness and a weight savings to achieve a high-dimensional balance. Its outboard bottom bracket bearing system provides better weight distribution and more pedaling stability, allowing for more efficient power transfer. The HOLLOWTECH II crankset has been developed by pursuing the optimum balance of stiffness & rotating performance in a lightweight and beautiful crankset design. High Precision Sealing Moreover, HOLLOWTECH II crankset has a high-precision sealing in the bearing area to increase durability maintaining the excellent rotating performance for long periods.
IFCM8200MXX
4550170305581
