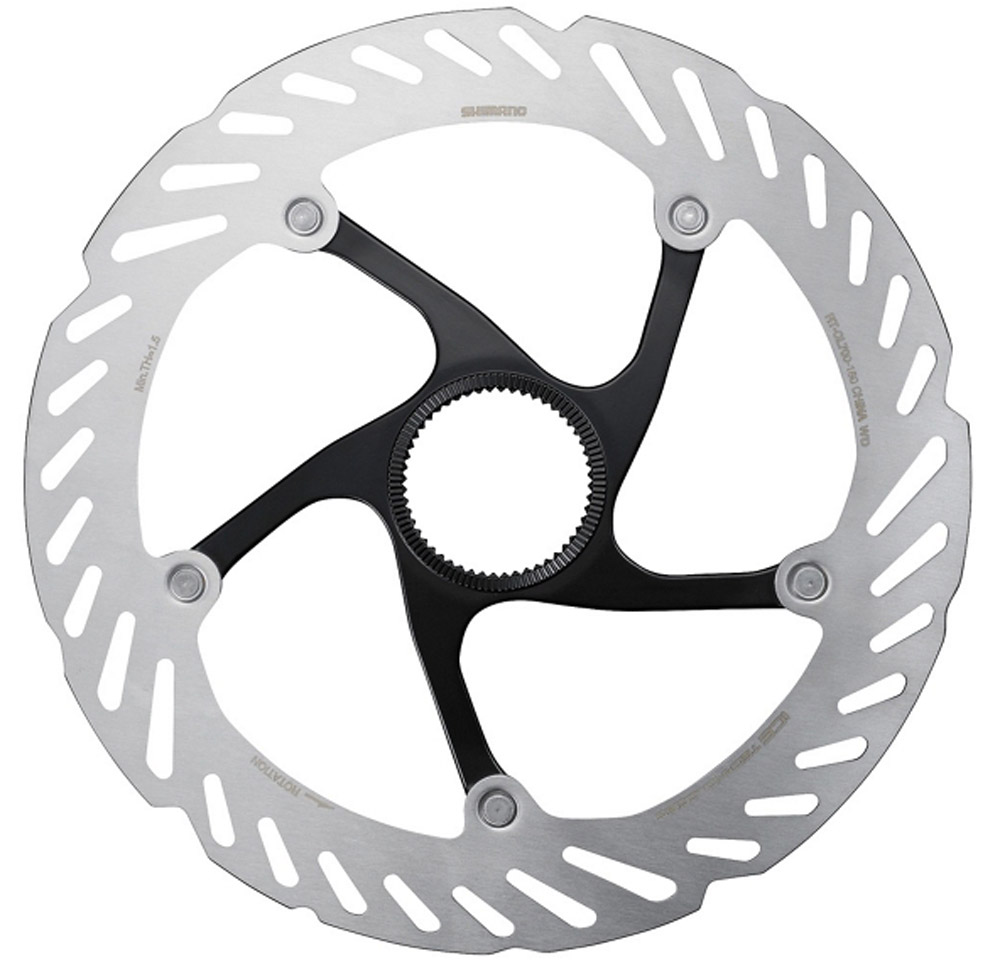

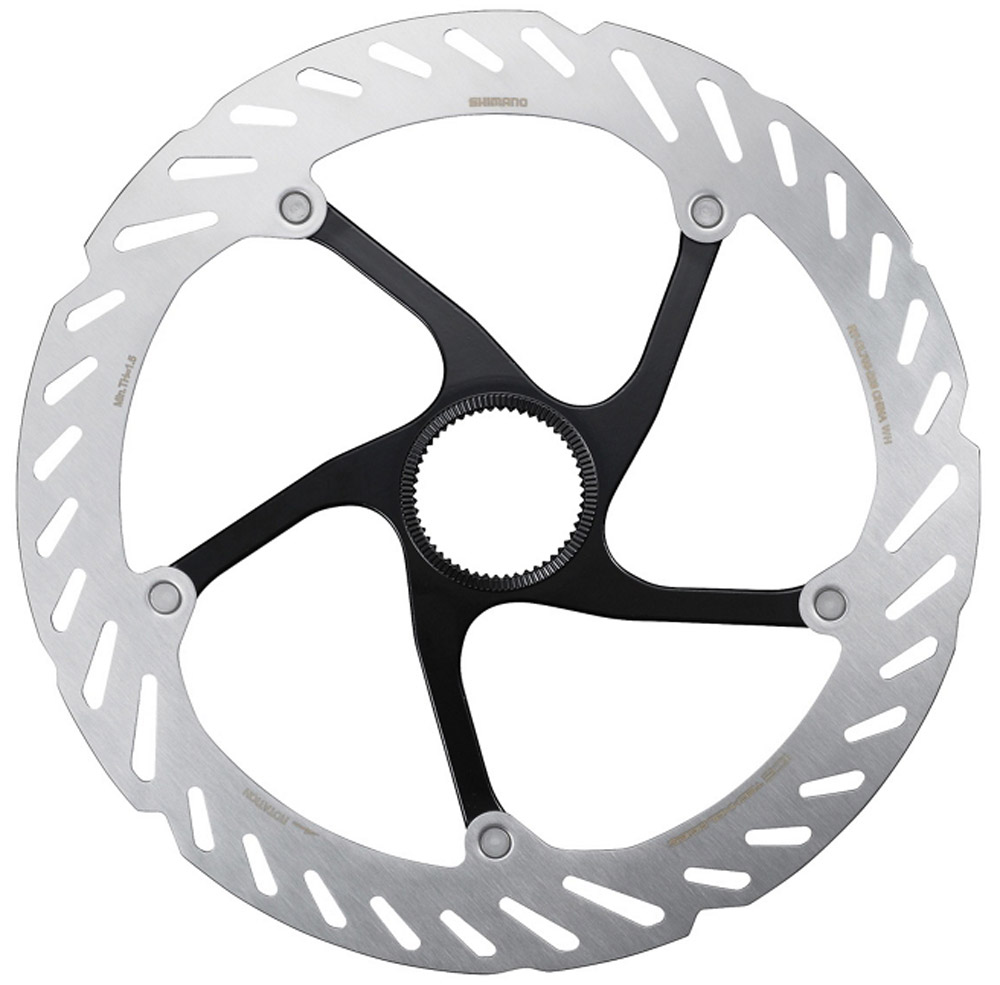

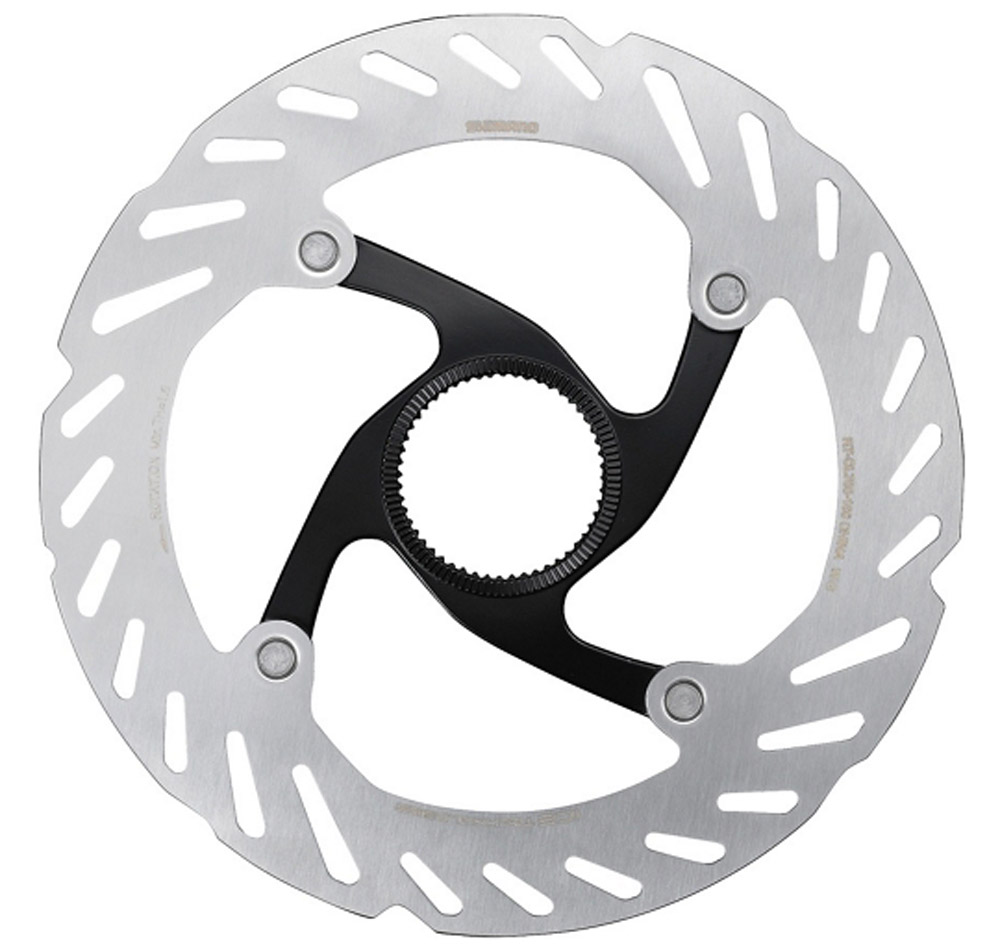

Shimano RT-CL700 Center-Lock Disc Rotor

Features – Shimano Center-Lock Disc Rotor RT-CL700

• High-performance and consistent brake performance
• Revised ICE TECHNOLOGY brake disc: optimised with new 3D aluminium carrier
• Quiet: The new, optimised 3D aluminium carrier reduces brake disc noise
• 140mm and 160mm optimal for Road / Gravel
• Lockring type with internal (Internal Serration) or external (External Serration) toothing

Product features

• Use: Road, Gravel, MTB
• Group: 105, GRX, DEORE
• Model: RT-CL700
• Disc mount: Center-Lock
• Pad compatibility: Metal / Resin

Diameter (choose variant)

• 140mm intern
• 140mm extern
• 160mm intern
• 160mm extern
• 180mm intern
• 180mm extern
• 203mm intern
• 203mm extern

Lockring type with internal or external tool holder!

Material

• Rotor: Stainless steel
• Adapter: Aluminium
• Lockring: Steel

Gewicht (manufacturer information)

• approx. 106g without Lockring (140mm)
• approx. 127g without Lockring (160mm)
• approx. 153g without Lockring (180mm)
• approx. 188g without Lockring (203mm)

Scope of delivery

• 1 x Shimano RT-CL700 Center-Lock Disc Rotor incl. Lockring

Technologies

Ice-Tech FREEZA
SHIMANO’s ICE TECHNOLOGIES has realized the ultimate clad rotor, incorporating aluminum fins for enhanced heat control. With an increased surface area for heat dispersion, the rotor achieves a 50°C reduction in heat. This in turn generates a 20% increase in braking force durability and a 20% longer pad life.

Center-Lock System
The CENTER LOCK system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
