Shimano GRX RX610 1×12-speed Group Disc 160/160mm

912,61€

SKU: BD-20164459 Categories: , , , , Marca:

Descrição

Shimano GRX RX610 1×12-speed Group Disc 160/160mm
The Shimano GRX RX610 1×12-speed groupset is the perfect choice for gravel bikers with a competitive spirit. It combines Shimano’s legendary precise mechanical shifting technology with finely tuned, gravel-specific gear ratios. Perfect for anyone looking for a lightweight and efficient gravel bike group at the highest level – whether for demanding dirt road races or long bikepacking tours (no box packaging).

Scope of delivery – Shimano GRX RX610 1×12-speed groupset + disc brakes 160/160mm

  • 1 x Shimano GRX FC-RX610 FC-1×12-speed crankset 40 teeth 175mm

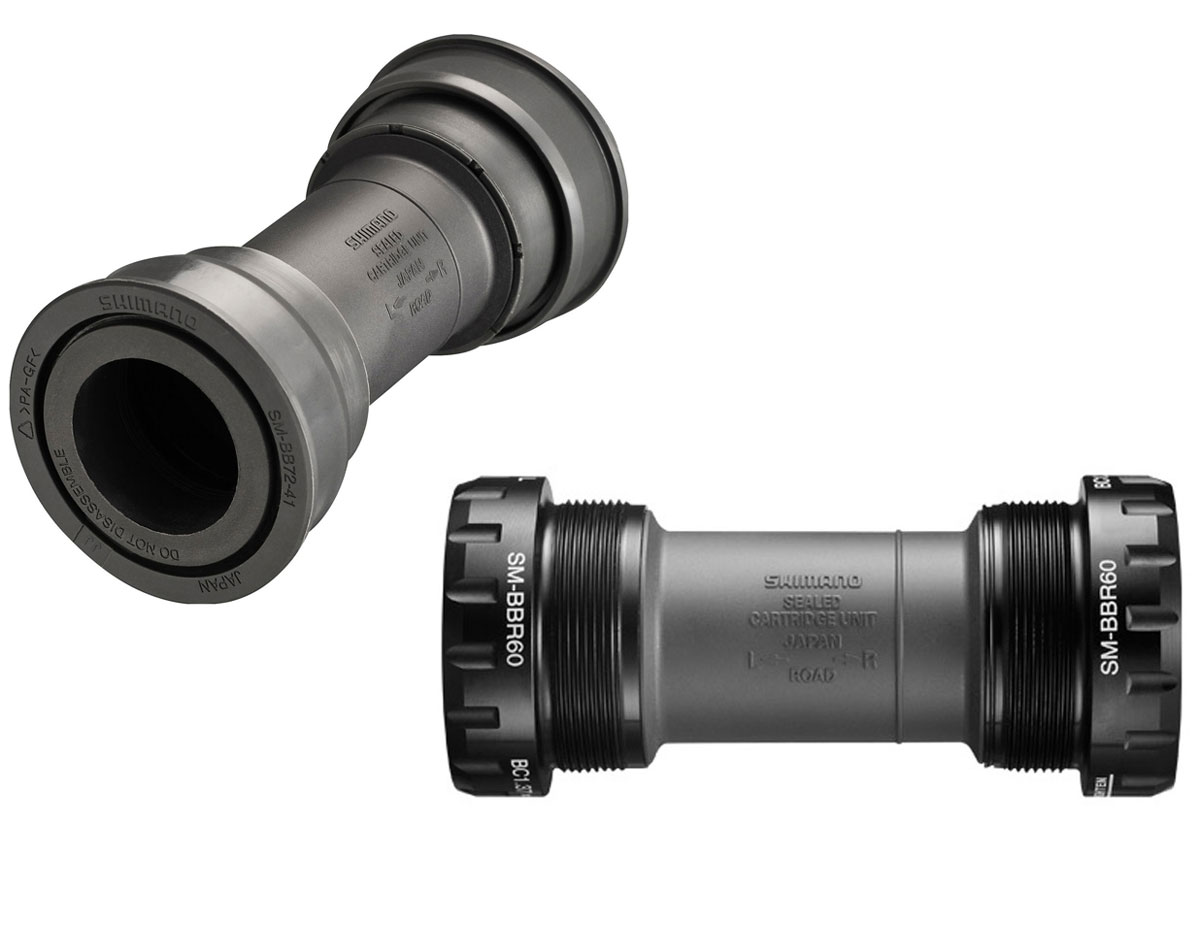

  • 1 x Shimano SM-BBR60 BSA Hollowtech II bottom bracket
  • 1 x Shimano SM-BB72-41B Hollowtech II Press-Fit bottom bracket

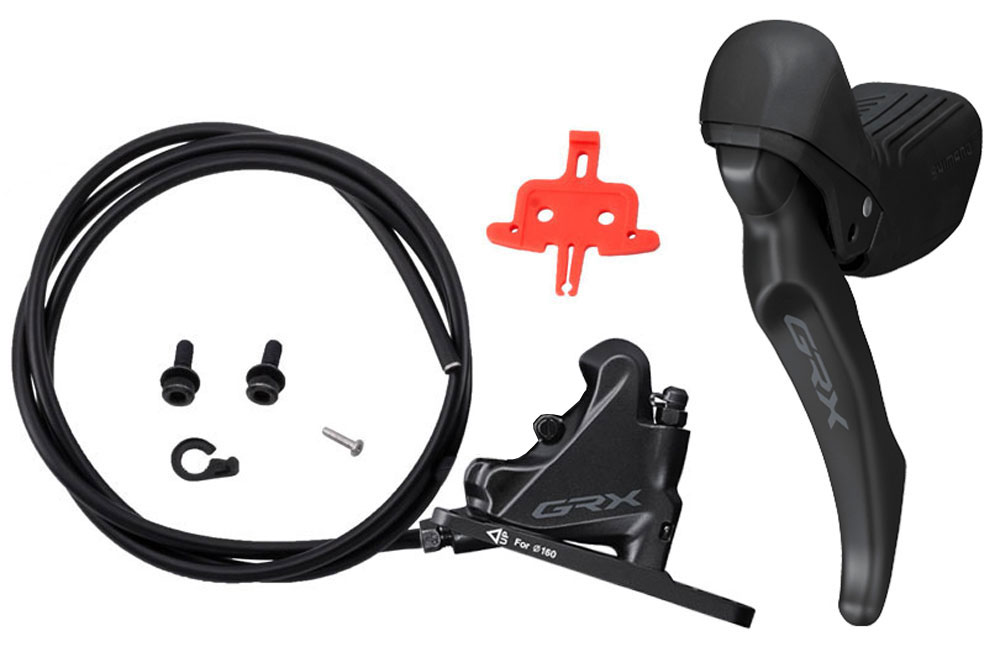

  • 1 x Shimano GRX BL-RX610-L+BR-RX400 front disc brake

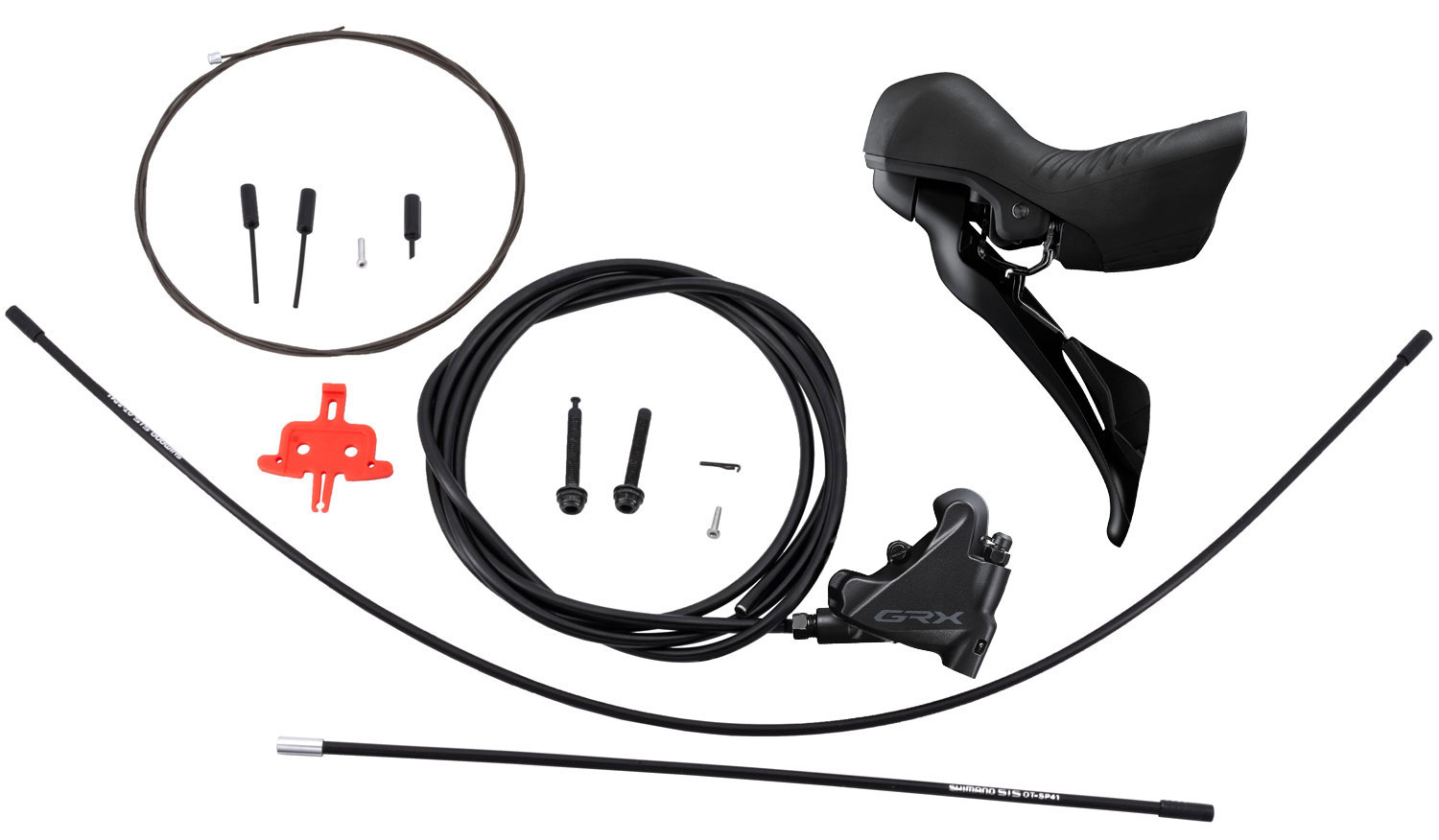

  • 1 x Shimano GRX ST-RX610+BR-RX400 12-speed rear disc brake
  • 1 x Shimano GRX RD-RX822-GS 1×12-speed rear derailleur
  • 1 x Shimano CS-M7100 12-speed cassette 10-45 incl. lockring
  • 1 x Shimano CN-M7100 12-speed chain 128 links with Quick-Link
  • 2 x Shimano RT-CL800 Center-Lock brake rotor 160mm incl. lockring

For your riding freedom: the GRX RX610 1×12-speed disc groupset from Shimano

Finally, for more price-sensitive customers and to enable a wider price range for complete gravel bikes, Shimano has updated its 600 series cranks and shifters for 1×12 and 2×12 setups, which now utilize technology from the original 800 GRX component line as a result of a trickle-down process.

Key features include textured covers and a non-slip coating on the brake levers to improve control over rough terrain. The new cranksets offer gearing options specifically designed to meet the demands of gravel riding. The 2×12 crankset is equipped with a 46 mm and a 30 mm chainring and is available in crank arm lengths of 165, 170, 172.5 and 175 mm. The RX610 1×12 crank has the same four crank arm lengths and is now available with a heavy-duty 38T or the traditional 40T chainring. These options are combined with a 10-45 or 10-51 cassette.

Key features include textured covers and a non-slip coating on the brake levers to improve control on rough terrain. The new cranksets offer gearing options specifically designed to meet the demands of gravel riding. The 2×12 crankset is equipped with a 46 mm and a 30 mm chainring and is available in crank arm lengths of 165, 170, 172.5 and 175 mm. The RX610 1×12 crank has the same four crank arm lengths and is now available with a heavy-duty 38T or the traditional 40T chainring. These options are combined with a 10-45 or 10-51 cassette.

The new GRX brake levers feature Shimano’s Dual Control system with lightweight and responsive mechanical 12-speed shifting. While the left lever of the 2×12 GRX groupset offers Shimano’s unmatched smooth shifting, the new 1×12 groupsets offer two options for the left lever: a brake-only lever model and a dropper-specific option that seamlessly integrates brake and dropper post operation for quick and effortless operation.

Shimano GRX FC-RX610 1×12-speed crank 40 teeth

The new GRX FC-RX610-1 2-PIECE 1×12-speed crankset offers the perfect synthesis of low weight and high efficiency for riding in mixed terrain. The gear ratio options cater to the special requirements of gravel and ensure a consistent rhythm with tighter gear steps.
Finally, for more price-sensitive customers and to enable a wider price range for complete gravel bikes, Shimano has updated its 600 series cranks and shifters for 1×12 and 2×12 setups, which now utilize technology from the original 800 GRX component line as a result of a trickle-down process.
Key features include textured covers and a non-slip coating on the brake levers to improve control over rough terrain. The new cranksets offer gearing options specifically designed to meet the demands of gravel riding. The 2×12 crankset is equipped with a 46 mm and a 30 mm chainring and is available in crank arm lengths of 165, 170, 172.5 and 175 mm. The RX610 1×12 crank has the same four crank arm lengths and is now available with a heavy-duty 38T or the traditional 40T chainring. These options are combined with a 10-45 or 10-51 cassette.

Features

  • Optimum gear ratio for different surfaces and different riding styles
  • Gravel-specific gear ratio helps to maintain the riding rhythm even on uneven terrain with wider tires
  • Option with 10-45 and 10-51 cassettes for a variety of riding styles

Product features

  • Use: Gravel, Cyclocross
  • Groupset: GRX
  • Model: FC-RX610-1
  • Q-Factor: 151mm
  • Housing width: 68 / 70mm
  • Front gear steps: 1-speed
  • Rear gear steps: 12-speed
  • Mount: 2-PIECE
  • Compatible chain: 12-speed HG
  • 4-arm crank spider: Yes
  • Bolt circle: 110mm
  • Chainline: 49.7mm
  • Recommended bottom bracket Pressfit: SM-BB72
  • Recommended bottom bracket BSA: SM-BBR60

Crank arm length (choose variant)

  • 170mm
  • 172,5mm
  • 175mm

    Material

    • Crank arms: aluminium, anodized
    • Crank axle: Steel, plated
    • Chainring: Anodized aluminium

    Color

    • Series color

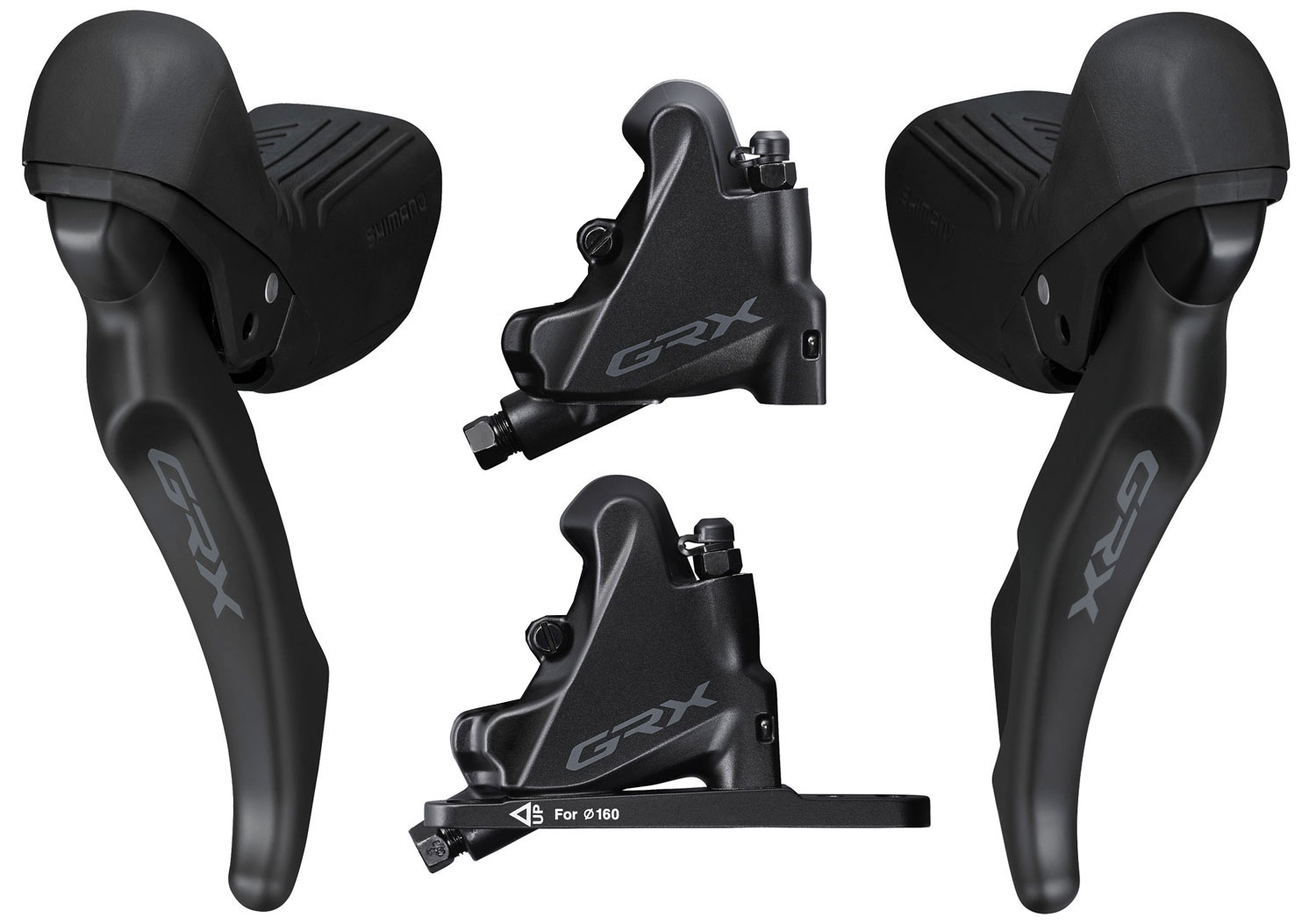

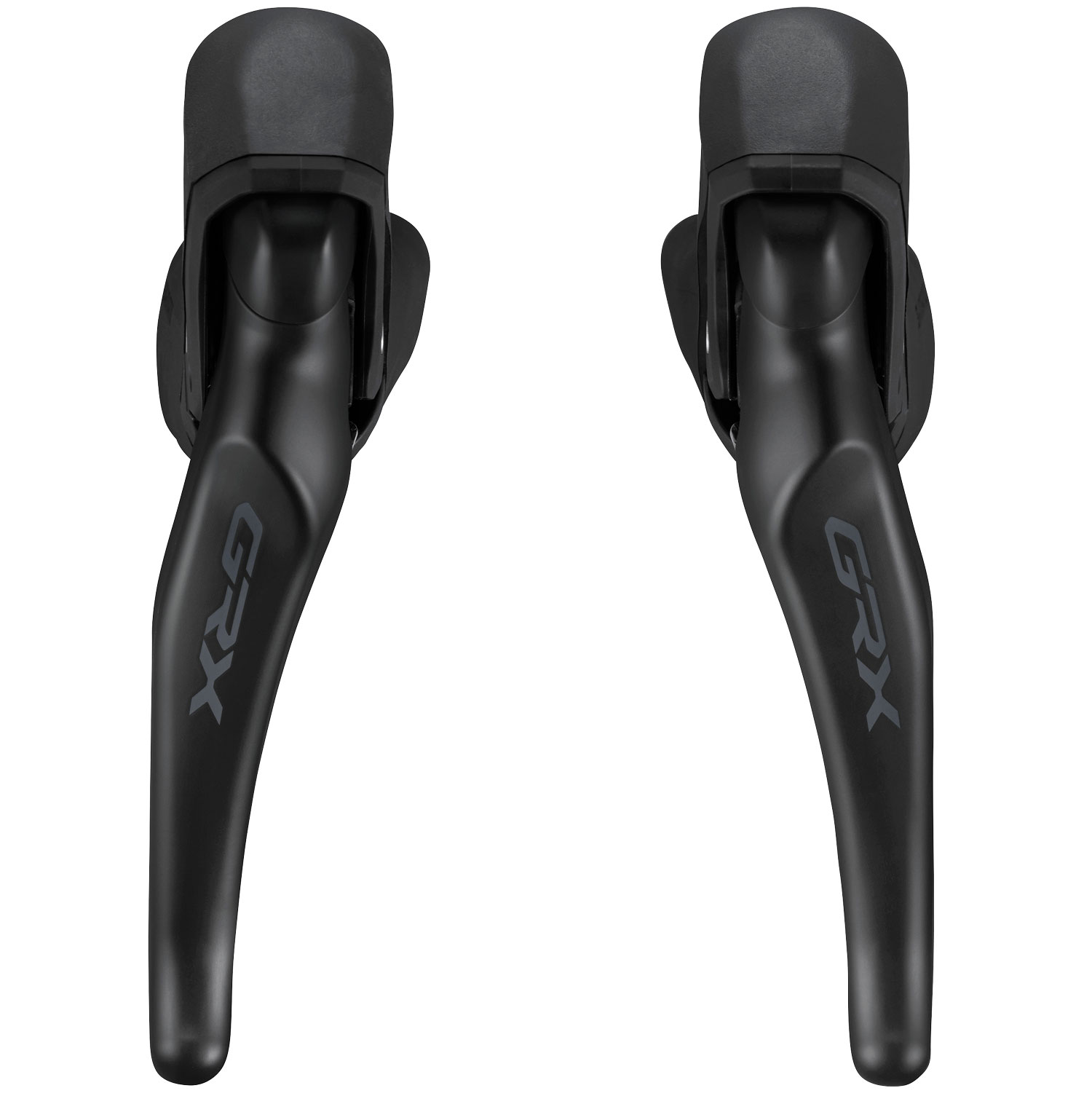

      Shimano GRX BL/ST-RX610 1×12-speed STI unit + BR-RX400 disc brake set

      A central concern of gravel riders is a reliable braking system with sufficient power reserves, the new Shimano GRX 1 x 12-speed BL-RX610-L brake levers / STI levers ST-RX610 with BR-RX400 flat-mount brake calipers for hydraulic disc brakes are characterized by excellent deceleration performance to maintain control on steep, demanding or even surprising descents.

      Features

      • The SHIMANO GRX BL-RX610-L brake lever works with SHIMANO’s leading hydraulic disc brakes for more control on mixed terrain
      • Gravel-tuned lever and bracket ergonomics
      • Anti-slip brake lever
      • More control on changing terrain
      • Left-hand mounting position for 1 x 12-speed shifting system
      • Don’t be afraid to ride on uneven terrain
      • Excellent heat dissipation
      • Flat mounting
      • Easy adjustment and maintenance
      • Practical tool access
      • Simple cable connection system (J-Kit)
      • Simple impeller change
      • Simple, clean bleeding system
      • ONE WAY BLEEDING
      • Included in the scope of delivery: 1 x GRX BL-RX610-L brake lever left, 1 x GRX ST-RX610 12-speed STI unit right, 2 x GRX BR-RX400 flat-mount brake calliper, 1 x flat-mount adapter 140mm/160mm, 2 x brake pads Resin without cooling fins, 2 x brake hose SM-BH90-JK-SS 1000mm / 1700mm (coolable), 4 x fixing screw for brake calliper (for brake calliper), 4 x brake hose SM-BH90-JK-SS 1000mm / 1700mm (coolable).(coolable), 4 x fixing screw for brake calliper (for rear 2 x 38mm), 2 x cable connection kit, 1 x inner shift cable (Optislick) 2100mm, 1 x inner shift cable outer cover SIS OT-SP41 600mm, 1 x inner shift cable outer cover SIS OT-SP41 300mm, 1 x end caps + end covers
      • J-Kit – The SM-BH90-JK-SS brake hoses are filled with mineral oil and pre-assembled on the BR-RX400 brake callipers!

      Product features

      • Area of application: Gravel, Cyclocross
      • Groupset: GRX
      • Model: BL-RX610-L / ST-RX610-R
      • Type: Brake lever / Dual-Control (STI)
      • Mounting: left/right
      • Front gear steps: 1-speed
      • Rear gear steps: 12-speed
      • Visual gear indicator: no
      • Grip width adjustment: Yes, with tool
      • Handlebar diameter: 23.8mm/24.2mm
      • Brake type: Hydraulic brake system (disc brake)
      • Brake caliper: BR-RX400
      • Brake calliper mount: Flat mount
      • Brake pad: Resin without cooling fins
      • Brake hose: SM-BH90-JK-SS front 1000mm / rear 1700mm (can be shortened)
      • One-way bleeding: Yes
      • Brake fluid: Mineral oil
      • Recommended brake rotor: SM-RT64, SM-RT70, SM-RT800

      Material

      • Lever: Aluminum
      • Brake caliper: Aluminum

      Color

      • Series color

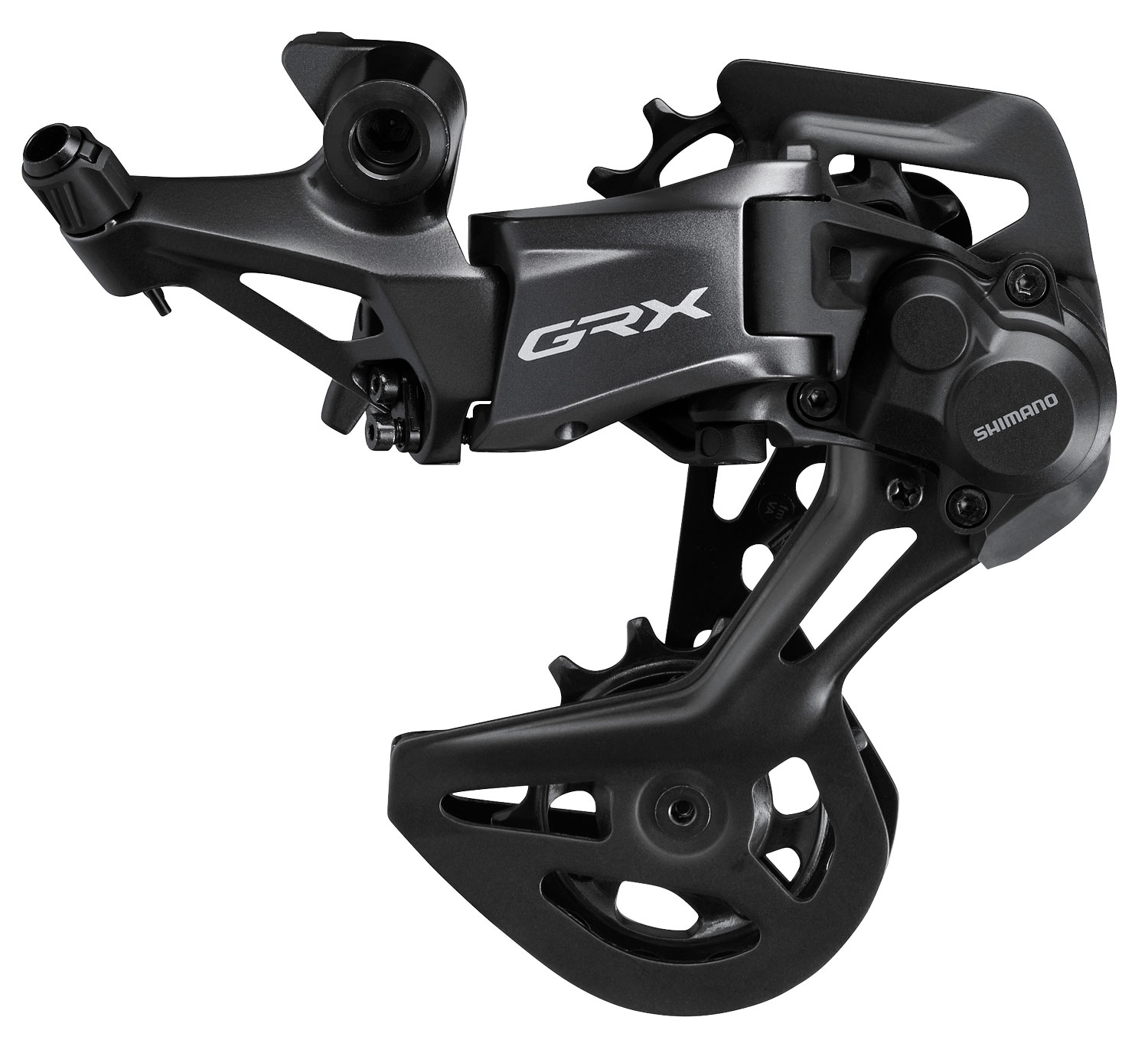

        Shimano GRX RD-RX822-GS 1×12-speed rear derailleur

        The SHIMANO GRX RD-RX822 1 x 12-speed rear derailleur with integrated chain stabilizer ensures quiet, safe and precise shifting on mixed terrain.

        Features

        • Quiet and smooth shifting system for uneven terrain
        • Adjustable chain stabilizer prevents the chain from jumping out
        • SHIMANO SHADOW RD+
        • Frictionless and reliable shifting with changing ground conditions
        • Spring tension adapted to gravel
        • Compatible with the latest DUAL-CONTROL shift/brake lever for road bikes
        • RD-RX822-GS
          • 45 teeth max. large sprocket
          • Works with 12-speed 10-45 cassette
          • Better ground clearance (shorter cage)

        Product features

        • Use: Gravel, Cyclocross
        • Group: GRX
        • Model: RD-RX822
        • Mounting: Direct mount (conventional)
        • Technology: Shadow RD+
        • Gear steps: GS type 1×12-speed (10-45 cassette)
        • Compatible chain: 12-speed HG
        • Max. Teeth large sprocket: 45 teeth (GS)
        • Min. teeth large sprocket: 45 teeth (GS)
        • Max. Teeth small sprocket: 10 teeth
        • Min. teeth small sprocket: 10 teeth
        • Max. Differential front: 0 teeth
        • Total capacity: 35 teeth (GS)

        Cage length

        • Type-GS medium length

        Cage material

        • Aluminum
        • Steel
        • Glass fiber reinforced plastic

        Color

        • Series color

        Weight

        • approx. 290g/GS (manufacturer’s specification)

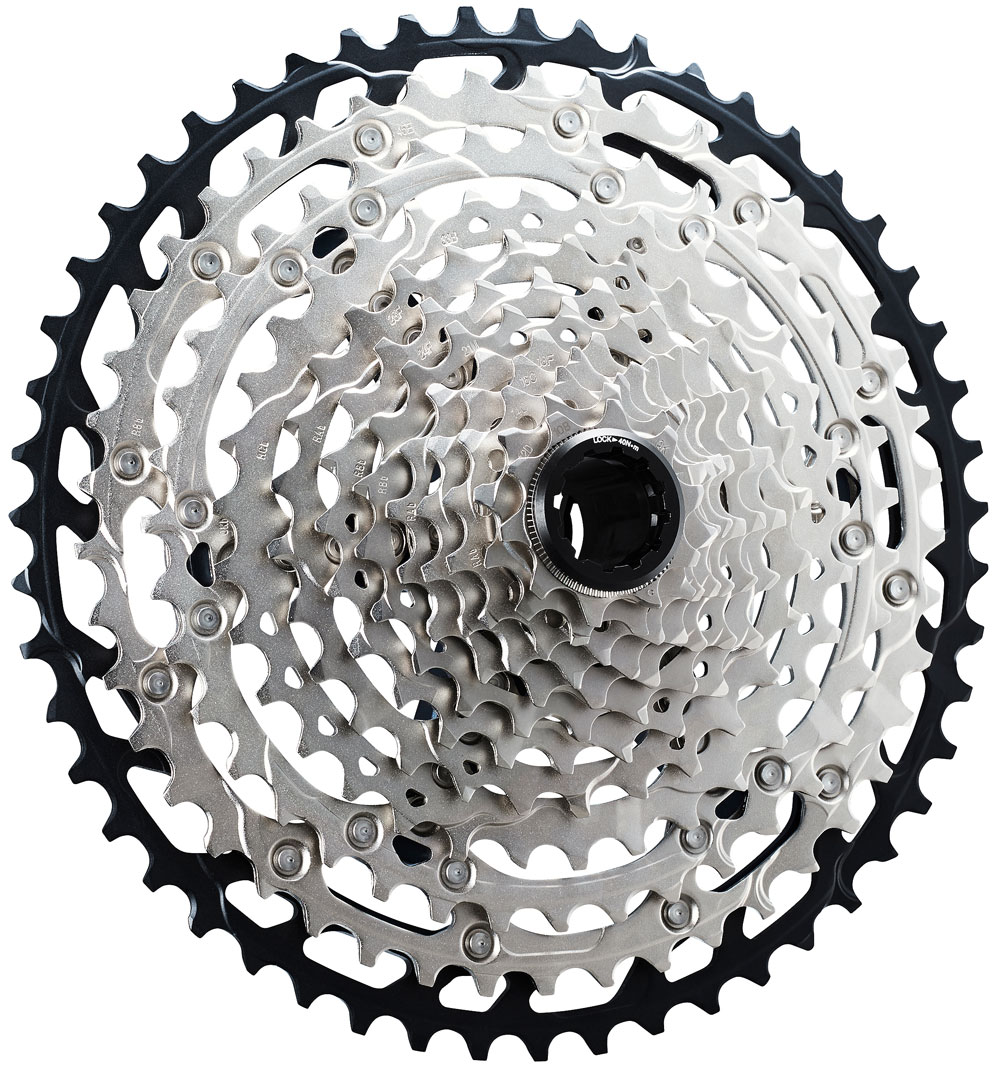

        Shimano CS-M7100 12-speed cassette 10-45

        The Shimano CS-M7100 with Hyperglide+ for faster shifting is the right cassette for the new GRX R820/610 1 x 12-speed groupset. For the 12-speed cassette, SHIMANO has revised the design of the freehub for the CS-M7100 and uses the new MICRO SPLINE technology.

        Features

        • 10-45 (12-speed, Rhythm Step transmission for Cross Country)
        • Hyperglide+ faster shifting, improved speed, shifting efficiency and smoothness on any terrain
        • Aluminum and steelmaterial
        • BEAM SPIDER construction Faster acceleration
        • MICRO SPLINE FREEHUB cassette hub integrates seamlessly with small upper 10-tooth sprockets

        Product features

        • Use Gravel, Cyclocross
        • Model: CS-RM7100-12
        • Type: Hyperglide+
        • Gear steps: 12-speed
        • Recommended chain: 12-speed HG

        Gradation

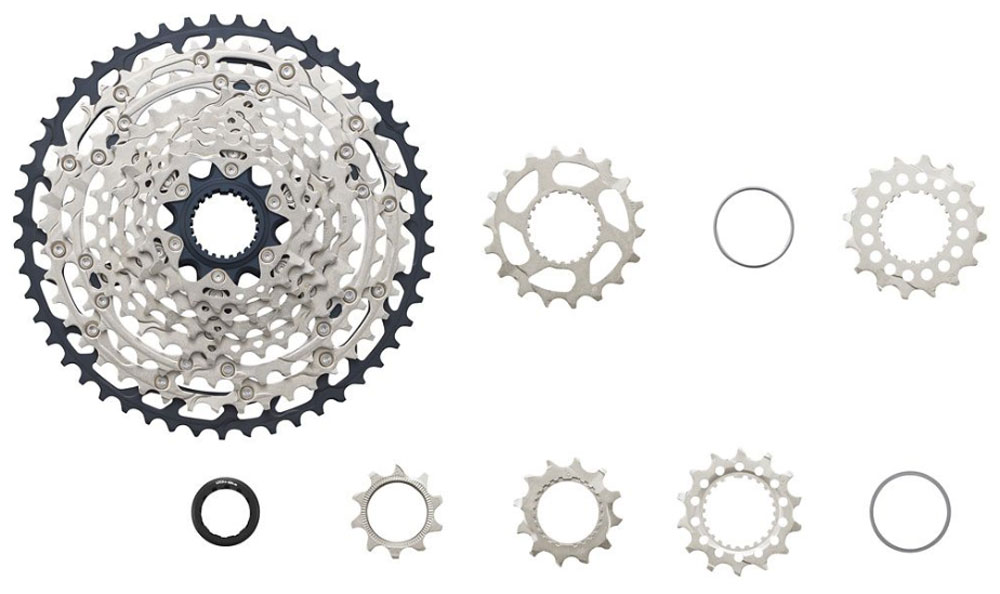

        • 10-45 (10-12-14-16-18-21-24-28-32-36-40-45 teeth)

        Material: Aluminum

        • Aluminum
        • Steel

        Weight

        • approx. 513g – 10-45 (manufacturer’s specification)

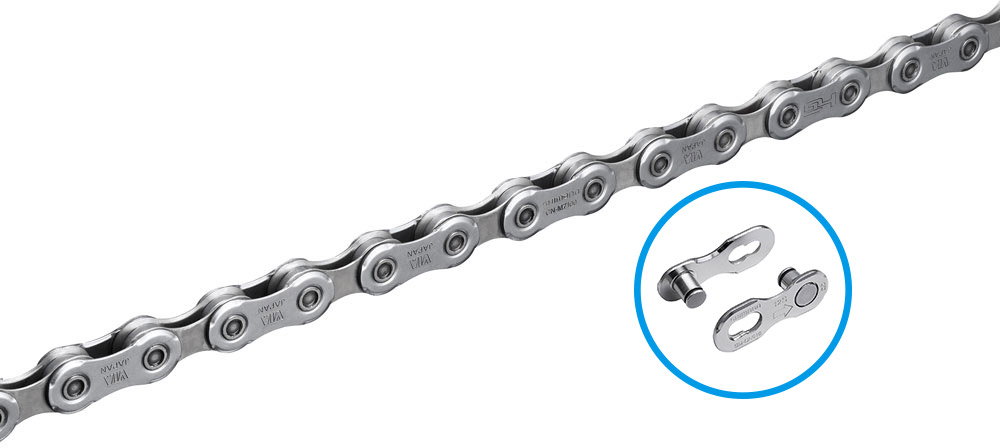

        Shimano CN-M7100 12-speed chain 128 links with Quick-Link

        The special design of the Shimano CN-M7100 12-speed chain ensures improved shifting performance and smoother running – even on rough terrain. The also new SM-CN910-12 quick-link fastener enables easy assembly.

        Features

        • Special chain design for new drivetrain components
        • Improved chain guide with a larger area at the end of the inner plate to hold the tooth on the front and cassette sprocket
        • Improved shifting performance
        • Simple assembly
        • Smoother riding even in rough terrain
        • Compatible with the new generation of drivetrain components
        • Comes with the user-friendly Quick-Link (SM-CN910-12)
        • Quick-Link pliers for installation and removal (TL-CN10) – Not included!

        Product features

        • Application: MTB, Gravel, Cyclocross
        • Model: CN-M7100
        • Front gear steps: 1/2-speed
        • Rear gear steps: 12-speed
        • Type: HG
        • Hollow pin: No
        • Outer plate coating: SIL-TEC
        • Closure: Quick-Link SM-CN910-12

        Links

        • 128

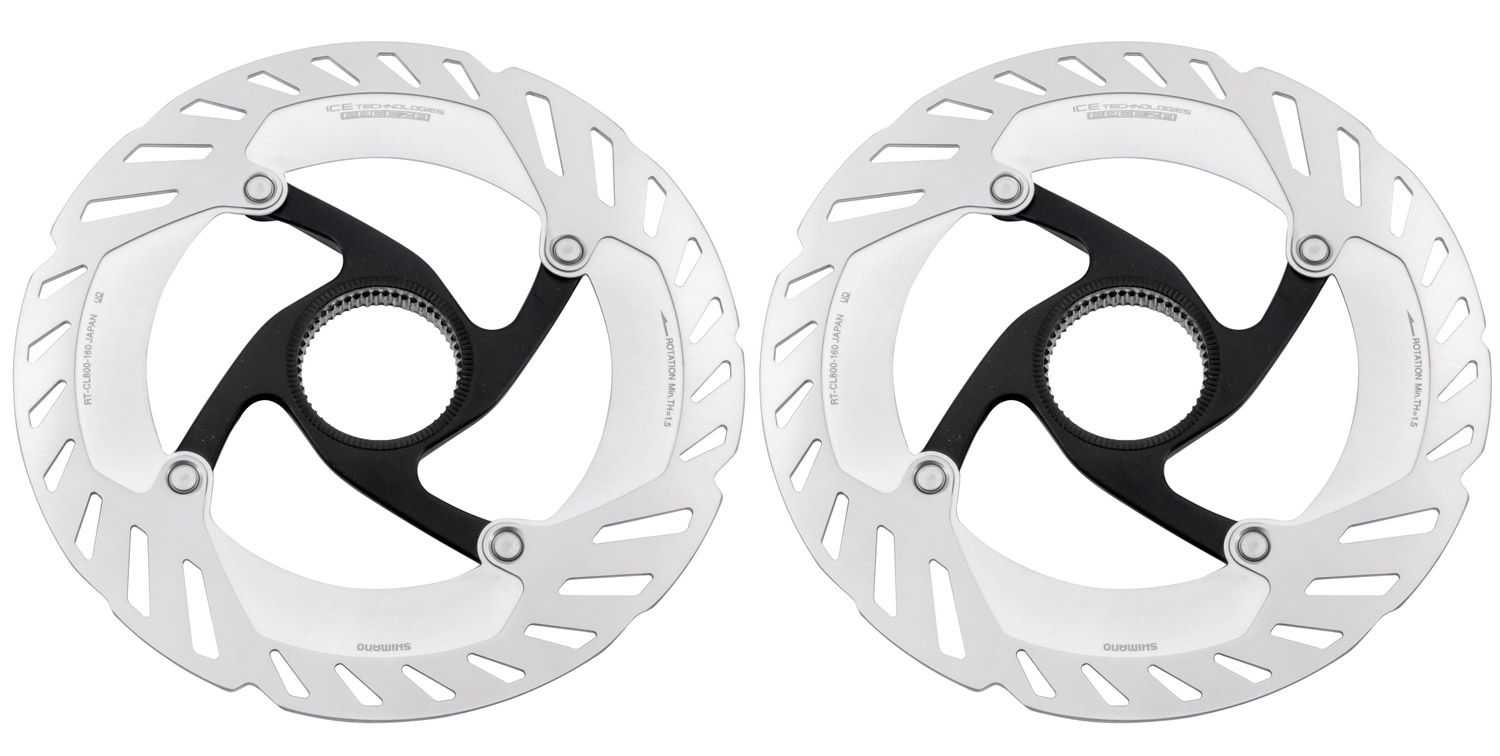

        Shimano RT-CL800 Center-Lock brake rotors 160mm

        SHIMANO’s compact and lightweight RT-CL800 brake rotors are characterized by particularly fast heat dissipation thanks to ICE TECHNOLOGIES FREEZA heat management system. SHIMANO’s CENTER LOCK design makes the installation and removal of brake rotors child’s play.

        Features

        • First-class and consistent braking performance
        • New ICE TECHNOLOGIES FREEZA design for even faster heat dissipation
        • 140mm and 160mm optimal for road / gravel bikes

        Product features

        • Application: Road bike, Gravel
        • Groupset: Ultegra, GRX
        • Model: RT-CL800
        • Mount: Center-Lock
        • Compatible pads: Metal / Resin (plastic)

        Diameter

        • 160mm

        Material

        • Rotor: Stainless steel / aluminum
        • Lock ring: Aluminum

          Shimano GRX 12-speed


          GRX6101045DXB0

          SHIMANO INC.

          3-77 Oimatsu-cho, Sakai-ku, Sakai-shi

          590-8577 Osaka

          Japan

          https://www.shimano.com


          Shimano Europe BV

          High Tech Campus 92

          NL-5656 Eindhoven

          Netherlands

          contactshimano@shimano-eu.com https://www.shimano.com

          Informação adicional

          Peso 3,56 kg
