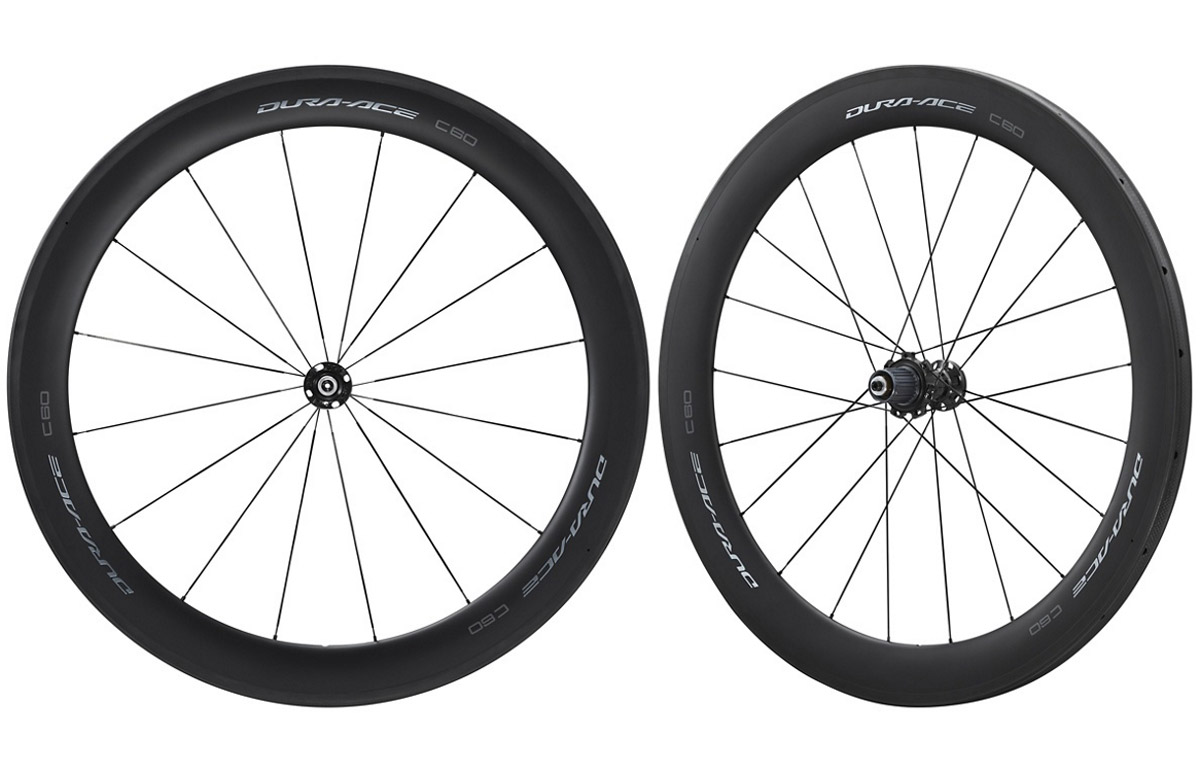

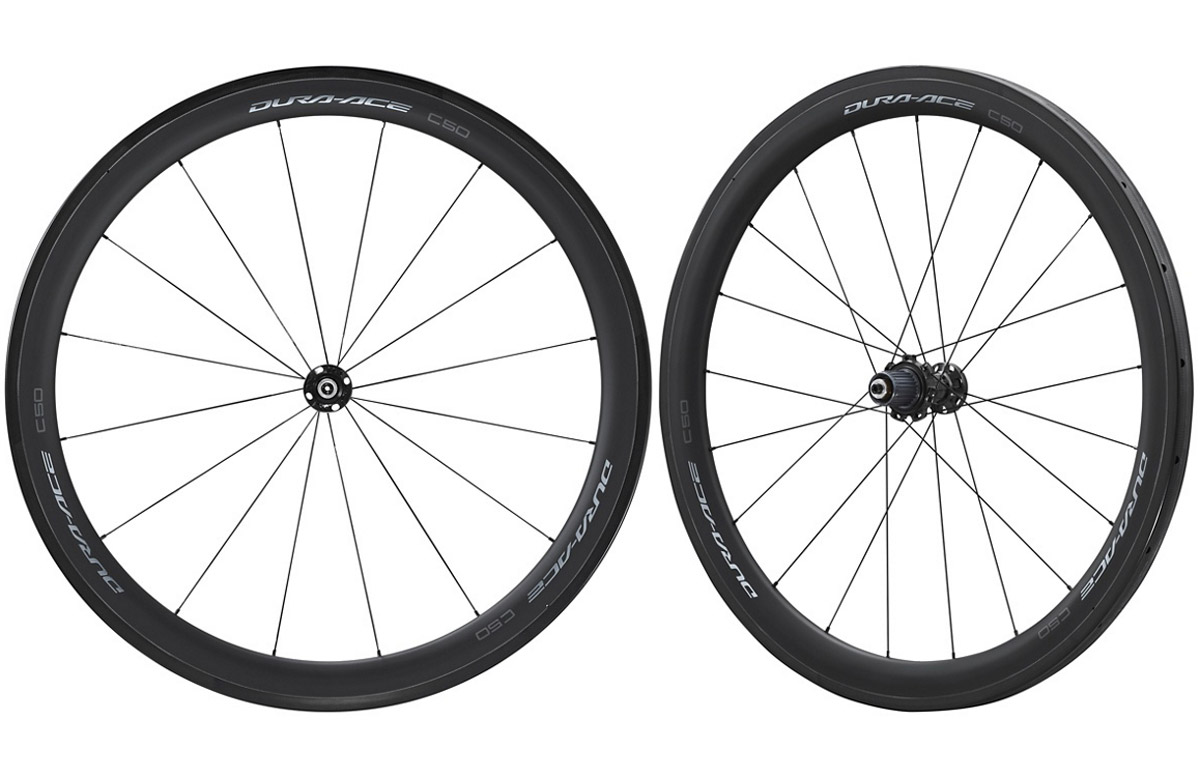

Shimano DURA ACE WH-R9200-TU 28″ Tubular Carbon Wheelset

THE SCIENCE OF SPEED: Shimano Dura Ace WH-R9200-TU for Tubular & Rim Brakes

Shimano has been working for years to provide you with an advantage of seconds. The new 12-speed DURA-ACE R9200 is the fastest groupset ever and the pinnacle of SHIMANO technology and innovation. Speed was the key driver for the development of this new generation road groupset. That’s why every component has been revised, refined and optimised to make you even faster – whether to leave the peloton behind you or to win the final sprint on the Champs-Élysées.

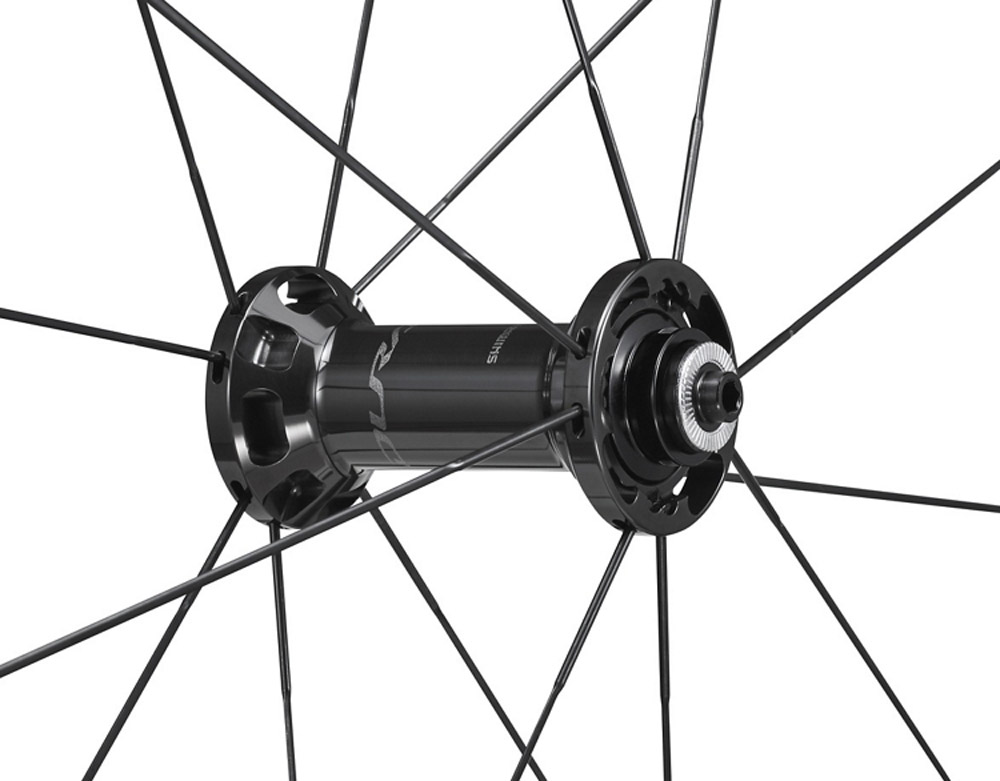

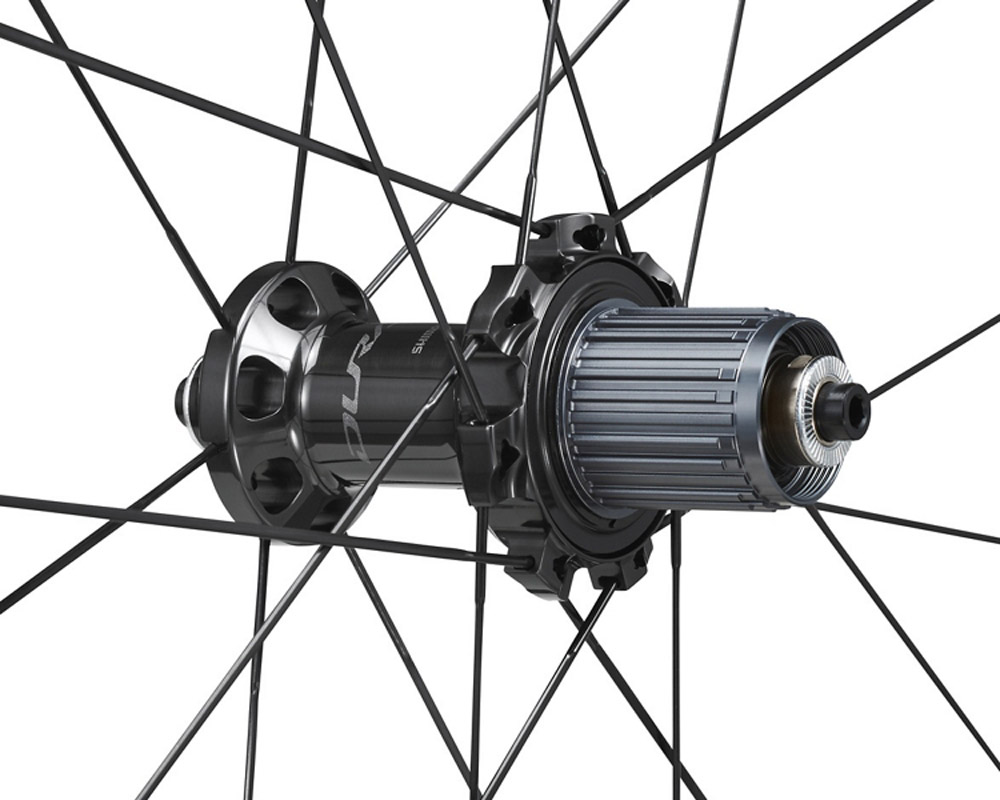

The DURA-ACE WH-R9200-TU for tubular and rim brakes is a true gem in the new wheelset line-up. With a lighter, wider full carbon rim and a lighter hub, the WH-R9200-TU is perfectly equipped for powerful accelerations and sprints. The new rims with 36 mm, 50 mm and 60 mm high profile – offer good aerodynamic properties despite their extremely low weight. Meanwhile, the 12-speed FREEWHEEL boasts an increased drive stiffness due to DIRECT ENGAGEMENT.

Features – Shimano DURA ACE WH-R9200-TU 28″ Tubular Wheelset | Quick Release

• All-round tubular wheels made from lightweight materials with balanced aerodynamics
• Balanced low inertia & aerodynamics
• Responsive acceleration
• Improved drive rigidity
• OPTBAL spoke system
• Lightweight within rigid
• Ultra-light full carbon rim
• Compatible only with Shimano road 12-speed cassette sprockets

Product features

• Use: Road
• Group: Dura Ace R9200
• Model: WH-R9200-TU
• Wheel size: 28″
• Tyre type: Tubular
• Rim size: 700C
• Rim outer witdh: 28mm
• Brake type: Rim Brake
• Freehub body: Shimano 12-speed Road
• Over locknut: front 9 x 100mm / rear 10 x 130mm
• Axle Fixing method: Quick Release
• Contact seal: Labyrinth and Contact
• Spokes: front 16 / rear 21
• Tire recommended size: 25-28″ to 32-28″

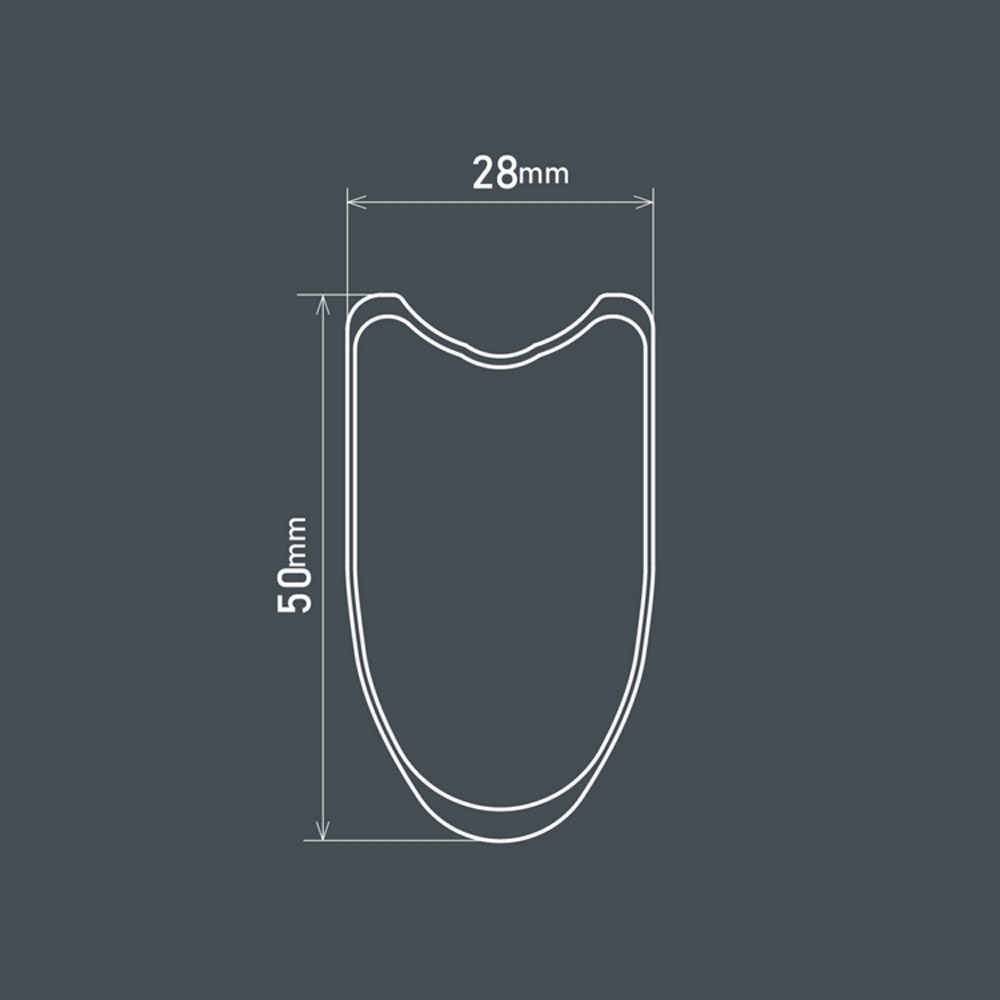

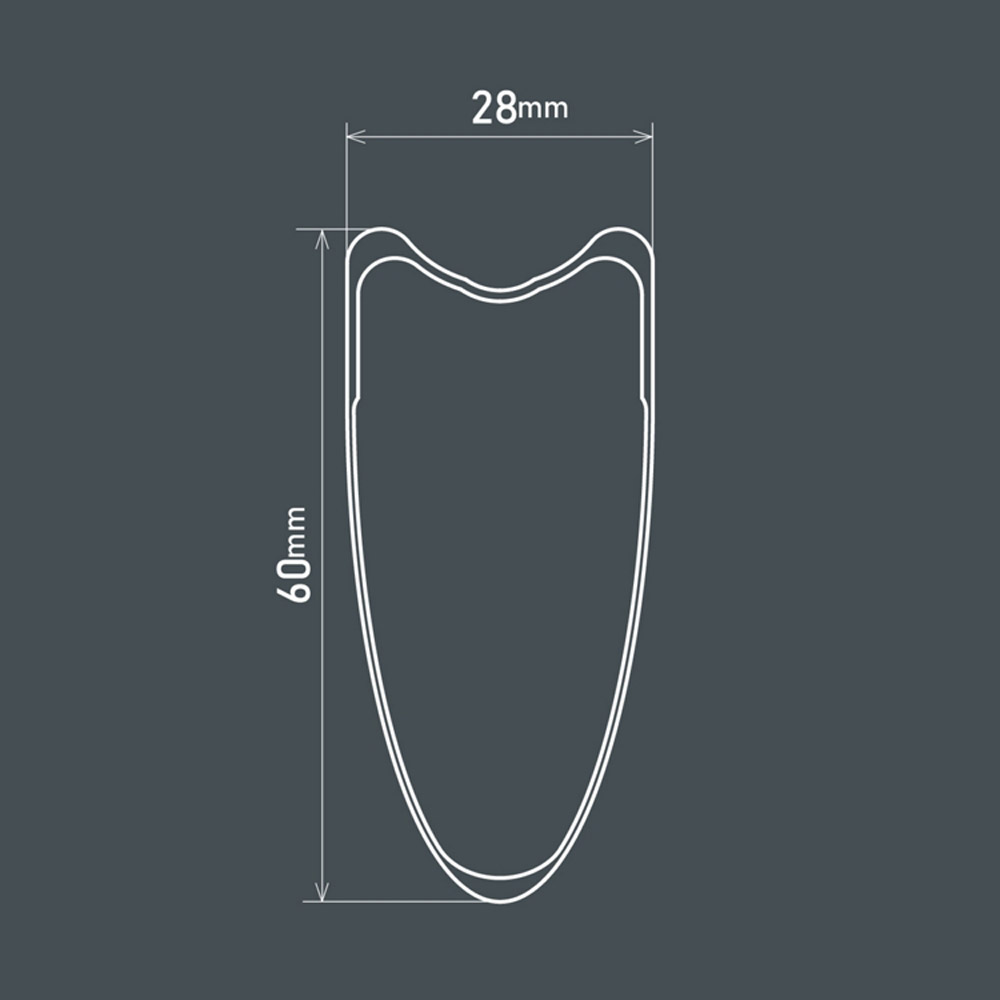

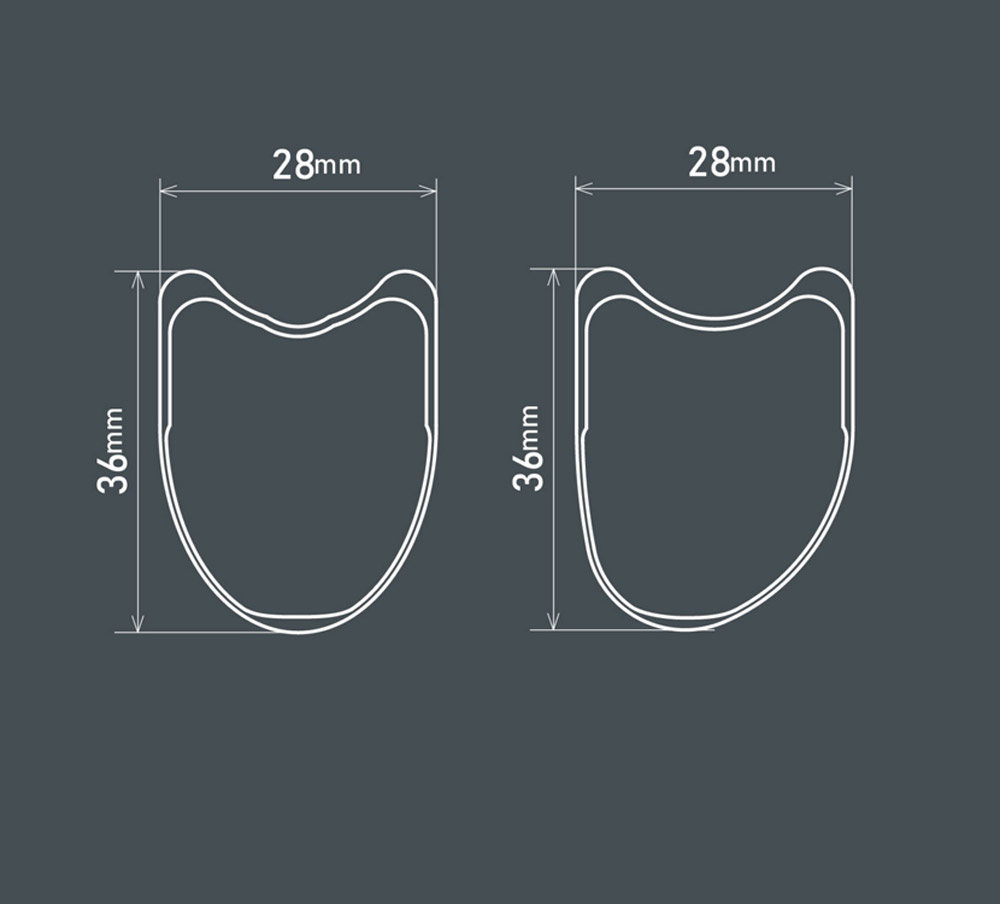

Rim height (choose variant)

• C36 Rim (36mm)
• C50 Rim (50mm)
• C60 Rim (60mm)

Material
