SDG Tellis V2 31.6mm Dropper Post

Stability meets innovation and reliability: TELLIS V2 Dropper Post from SDG

The Tellis V2 Dropper Post combines durability, simplicity, and advanced design. Built with IGUS bushings, a sealed Wintek cartridge, and a Trelleborg main seal, it virtually eliminates maintenance issues. Fewer moving parts mean reduced chances of failure.

The new version features a patented flatter head (-10 mm headroom), side-access bolts and a stronger 26 mm sliding tube diameter for improved rigidity and durability. Improved copper bearings in the polycarbonate guide system ensure longevity and prevent play, while the stroke remains smooth.

Included 5, 10, and 20 mm travel adjustment shims allow riders to fine-tune the drop height for a perfect fit.

Features – SDG Tellis Dropper Post 31.6mm Vario seatpost

• Hydraulic telescopic seatpost with mechanical stealth cable routing

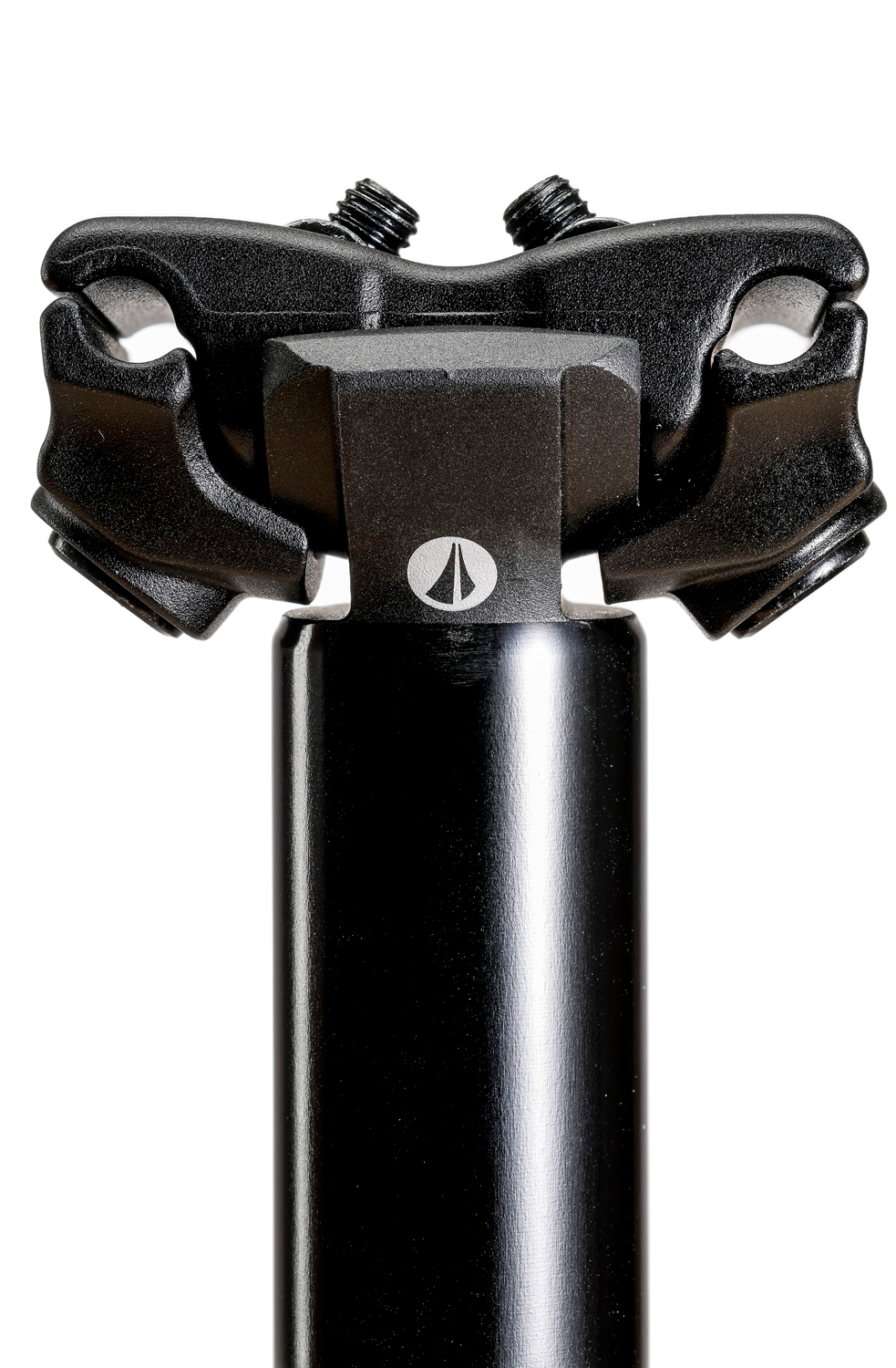

• revised seat clamp with reduced height (10mm less)

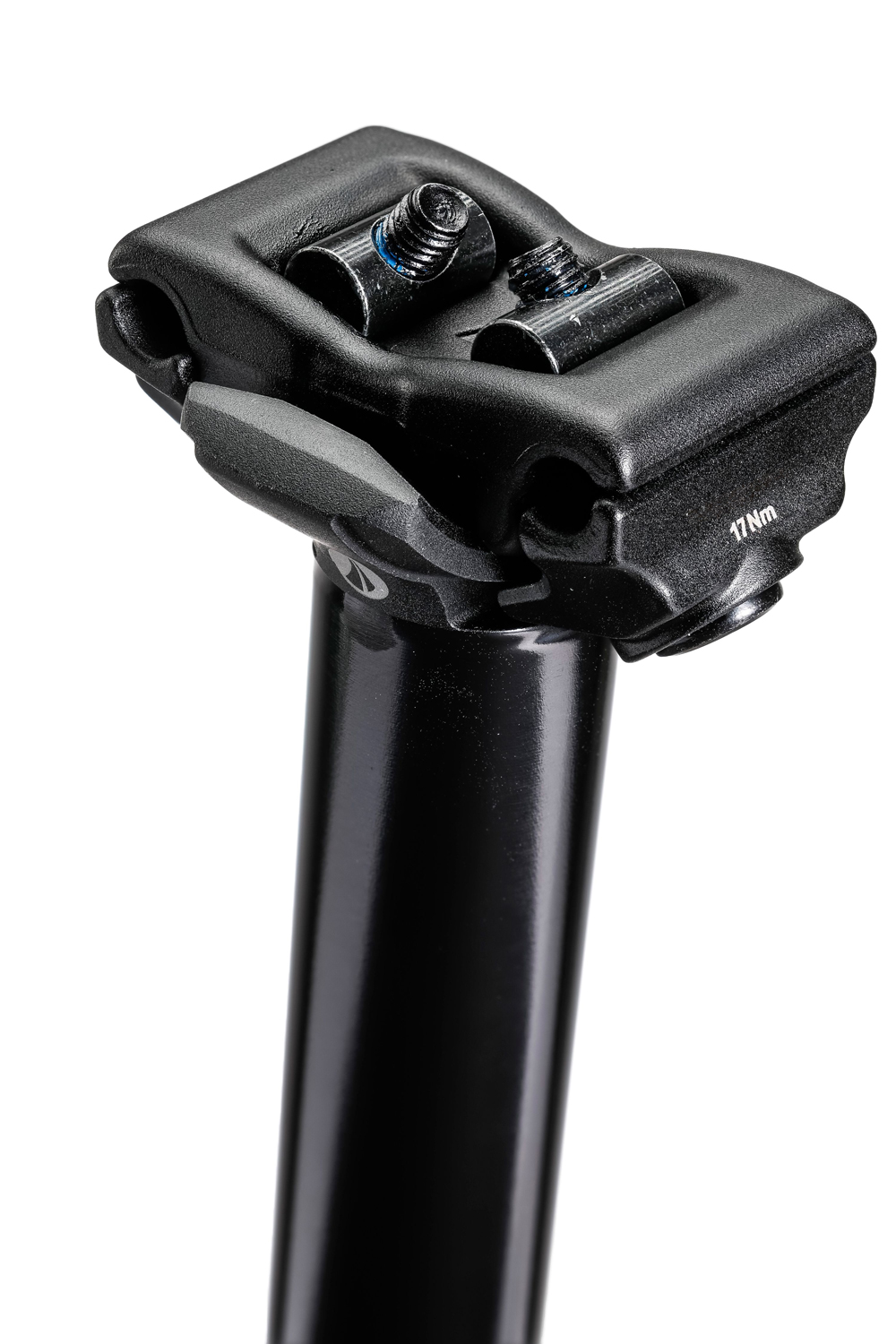

• Micro Adjust design with easily accessible side bolts
• New 3D forged head, reinforced with robust 26mm stanchion tube upper section
• Self-lubricating IGUS bushing
• Intelligent PTFE and copper wedge system to minimize head play and increase shear strength
• Incl. reducing height compensation washers (5mm, 10mm, 20mm)

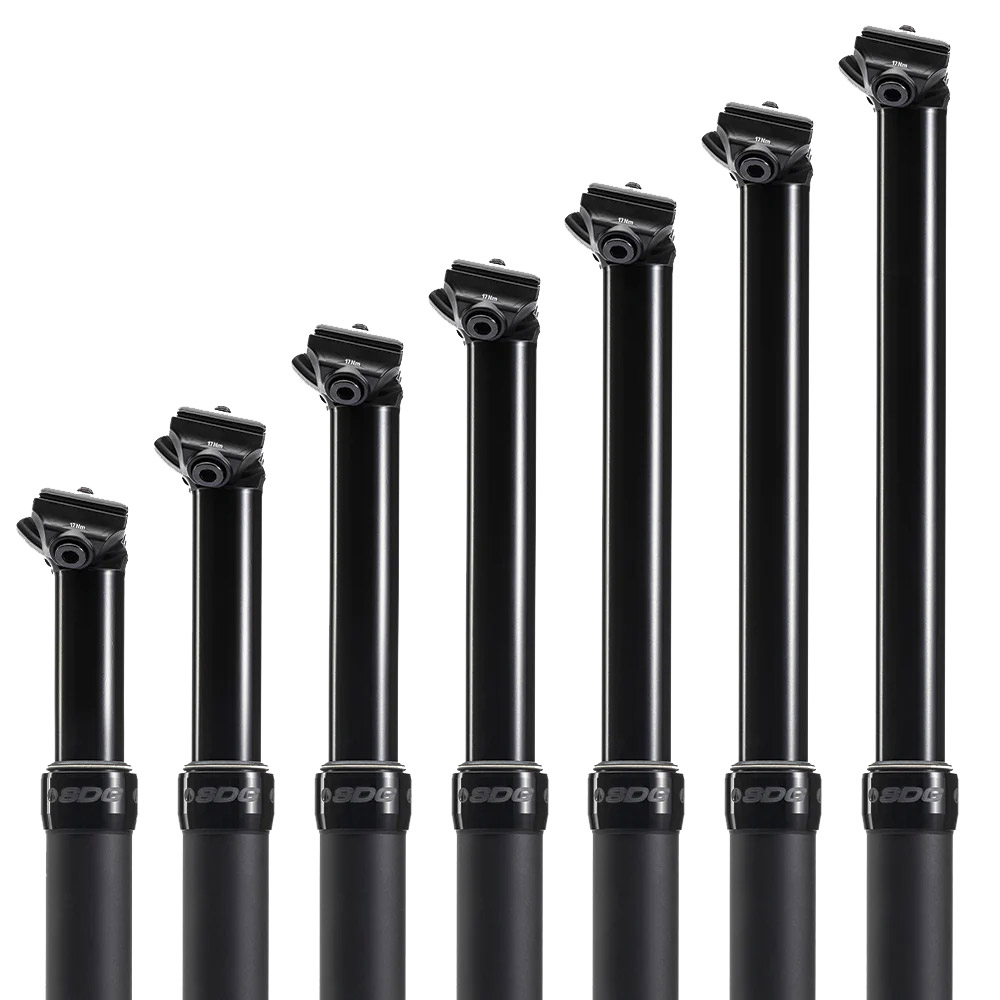

• Infinitely variable adjustment range: 75, 100, 125, 150, 170, 200, 230mm
• Closed hydraulic cartridge
• Anodized, scratch-resistant post body with lasered markings for easier saddle height adjustment
• Quick-Connect mechanism for simplified cable pull assembly
• Reduced overlap design (10mm) on the 200mm and 230mm travel options
• Suitable for cold weather: tested down to -20 degrees Celsius

Product features

• Use: MTB All Mountain, Enduro
• Diameter. 31.6mm
• Travel: 100 / 125 / 150 / 170 / 200 / 230mm (choose variant)
• Offset: 0mm
• Type: Handlebar remote (mechanical)
• Cable routing: Internal
• Saddle clamp: 2-bolt
• Seat rail clamp: 7 x 7mm
• Dimensions:
  • Distance rail to colloar / Min. Einstecktiefe:
    • 31.6 x 100mm / 352,5mm: 206 mm / 103 mm
    • 31.6 x 125mm / 402,5mm: 231 mm / 103 mm
    • 31.6 x 150mm / 452,5mm: 256 mm / 103 mm
    • 31.6 x 170 mm / 492,5mm: 276 mm / 143 mm
    • 31.6 x 200 mm / 552,5mm: 306 mm / 143 mm
    • 31.6 x 230 mm / 612,5mm: 336 mm / 173 mm

Version (choose variant)

• 31.6 x 100mm / 352.5mm
• 31.6 x 125mm / 402.5mm
• 31.6 x 150mm / 452.5mm
• 31.6 x 170 mm / 492.5mm
• 31.6 x 200 mm / 552.5mm
• 31.6 x 230 mm / 612.5mm

Material

• Seat post: Aluminum
• Remote lever: Aluminum

Color

• black

Weight (manufacturer information)

• 31.6 x 100mm: 481g
• 31.6 x 125mm: 525g
• 31.6 x 150mm: 569g
• 31.6 x 170 mm: 589g
• 31.6 x 200 mm: 640g
• 31.6 x 230 mm: 691g

Scope of delivery

• 1 SDG Tellis Tellis V2 Dropper 31.6mm Seatpost

Handlebar remote lever, shift cable and outer housing not included!

Explore the Tellis V2 – our workhorse dropper post elevated!

Introducing the technical features on the new Tellis V2 MTB dropper post.

Tellis V2 Dropper Post technical details

2024 sdgcomponents long video v2 002

How to install a saddle on an Sdg Tellis V2 MTB dropper post.

How to install travel reduction shims on Sdg Tellis V2 MTB dropper post.

How to replace an oil cartridge on a Tellis V2 MTB dropper post.
