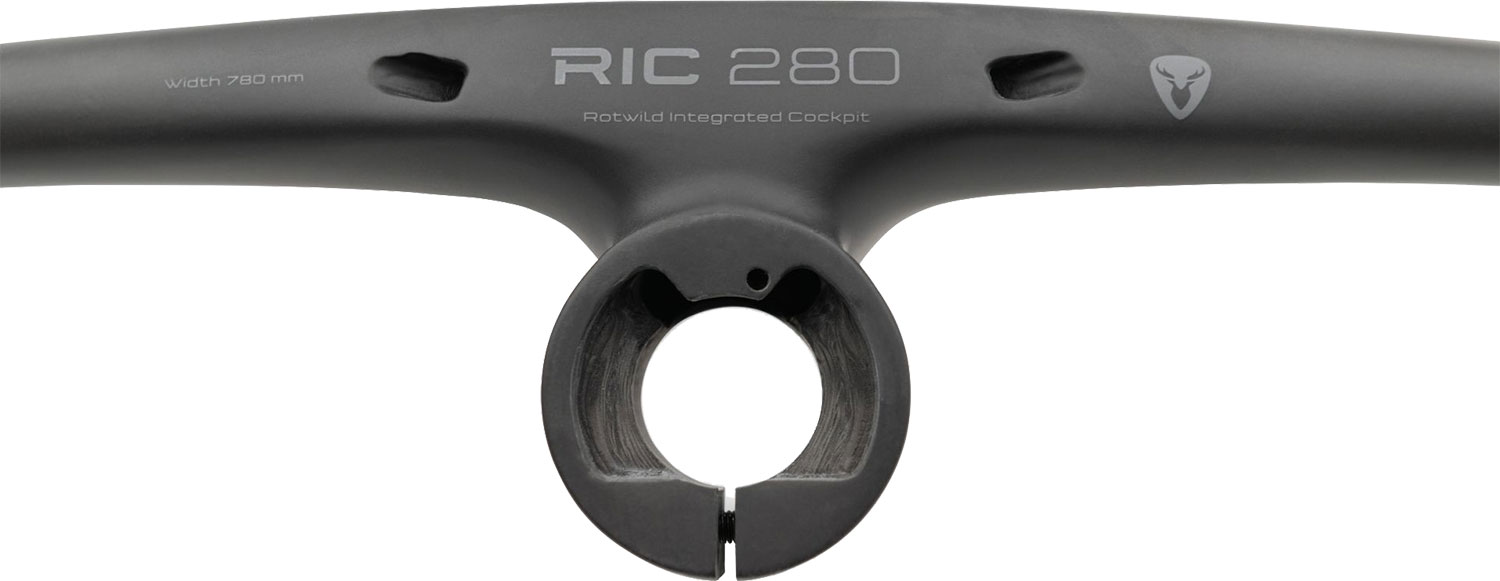

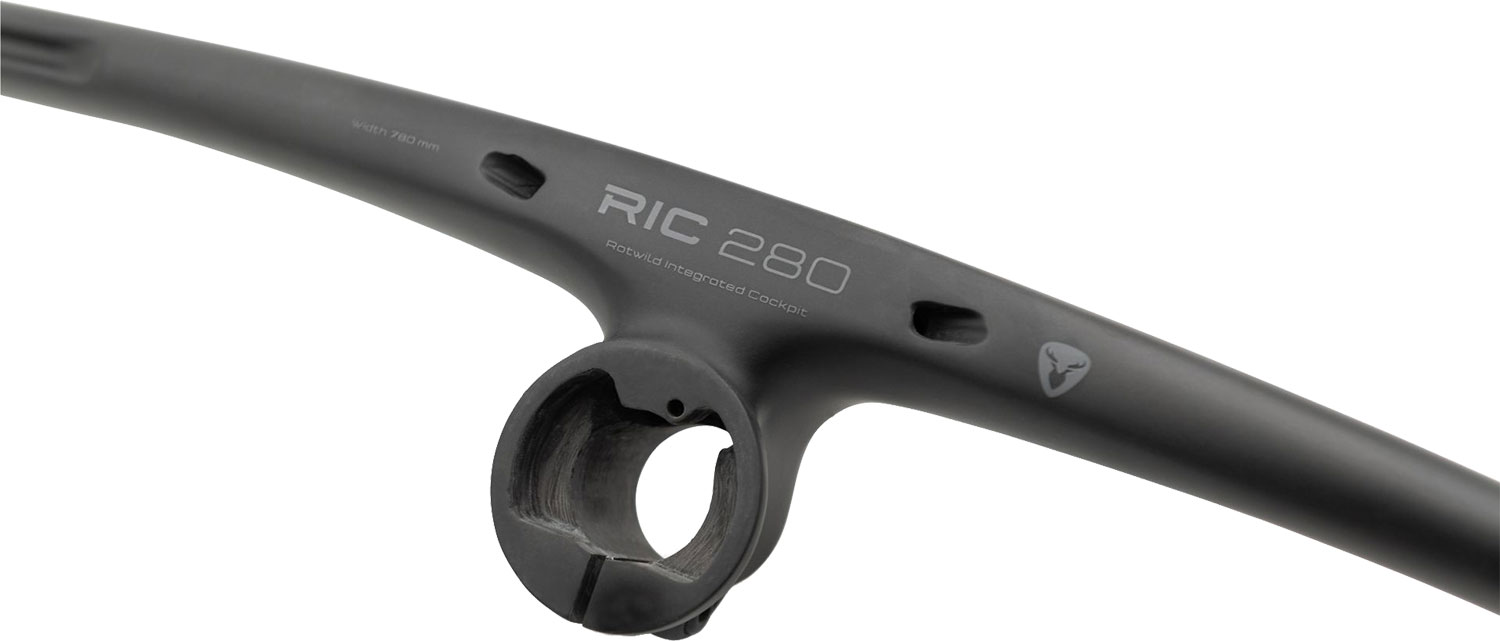

Rotwild RIC280 Carbon 50mm/780mm Handlebar Stem Unit

The Rotwild RIC280 Integrated Cockpit combines handlebars and stem into a lightweight, stiff carbon unit with fully integrated cable routing. The result is a tidy cockpit with a clear look and more freedom of movement on the trail. With a handlebar width of 780 mm and a 50 mm stem, it offers precise handling and high stability. Tested according to ASTM 3 up to 130 kg, it ensures safety and performance at the highest level.

---

Features – Rotwild Integrated Cockpit (RIC) 280

• The ROTWILD Integrated Cockpit (RIC) 280 made of carbon combines handlebars and stem into one unit – for full cable integration through the head tube and a tidy design.
• Improved freedom of movement and safety thanks to the cable-free front – no annoying tangled cables during technical maneuvers.
• Lightweight, stable system (ASTM3, 130 kg approved) with 780 mm width, 50 mm stem length and 15 mm rise for optimum ergonomics and control.

Product features

• Range of use: MTB
• Width: 780 mm
• Backsweep: 8°
• Upsweep: 5°
• Rise: 15 mm
• Stem length: 50 mm
• Stem clamping torque: 6 Nm
• ASTM classification: 3
• max. load: 130 kg

Material

• Carbon

Weight

• approx. 320 g

---

Scope of delivery

• 1 x Rotwild RIC280 carbon handlebar / stem unit (no box packaging)
