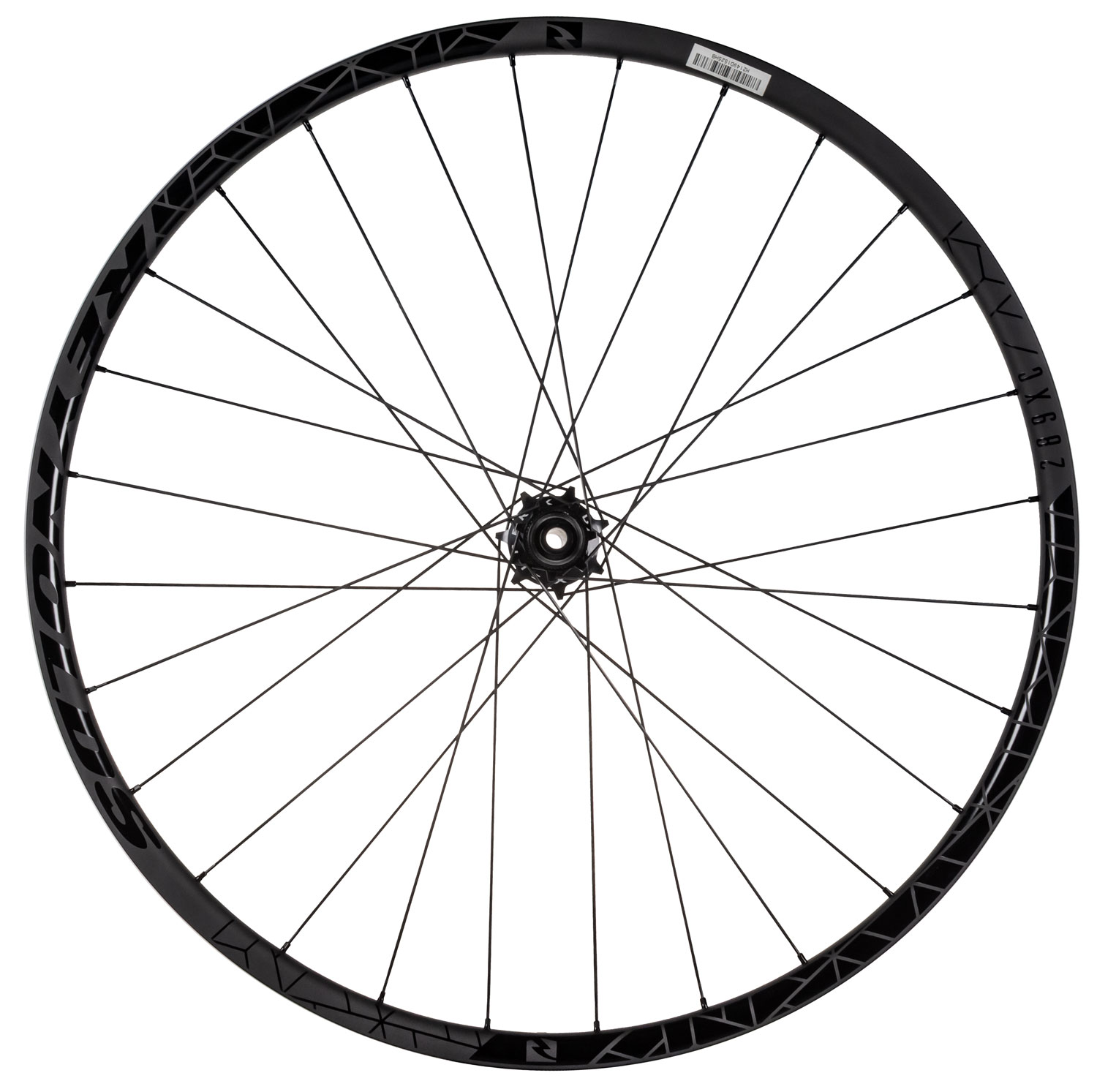

Reynolds BL 309/289 XC 29″ Boost CL SRAM XD Carbon Wheelset

Reynolds BL 309/289 XC – The ultimate wheelset for aggressive XC riders

The Reynolds BL 309/289 XC is a high-end carbon wheelset for ambitious XC riders looking for precision and ride quality at the highest level. At just 1510 g, it offers an optimum balance of lightness, stability and performance. The combination of 30 mm rim width at the front for maximum steering precision and traction and 28 mm rim width at the rear for more compliance and directional stability ensures controlled and agile handling.

Thanks to the TSS PR3, IDM and MR5 rim construction, the wheelset impresses with outstanding impact resistance and exceptional durability. The Sunringlé Super Bubba X hub with 4° engagement angle enables direct power transmission for explosive propulsion. Designed for demanding XC and trail racing, this wheelset sets new standards in terms of control and speed.

Features – Reynolds BL 309/289 XC Carbon wheelset

• Premium wide XC wheelset specifically created for high level aggressive XC riders looking for next level precision and ride quality
• only 1510 g per wheelset
• TSS PR3 material in both front and rear rim for superior impact strength and industry leading durability
• Front wheel with 30 mm rim width and a low profile provide increased steering precision and traction
• Rear wheel with 28 mm rim width channel and a low profile provide increased compliance and tracking

Product features

• Range of use: XC/Trail Racing
• Model: BL 309/289 XC
• Wheel size: 29″
• Rim diameter: 622 mm
• Rim type: Clincher (folding tire)
• Tire interface: Hookless tubless TSS PR3

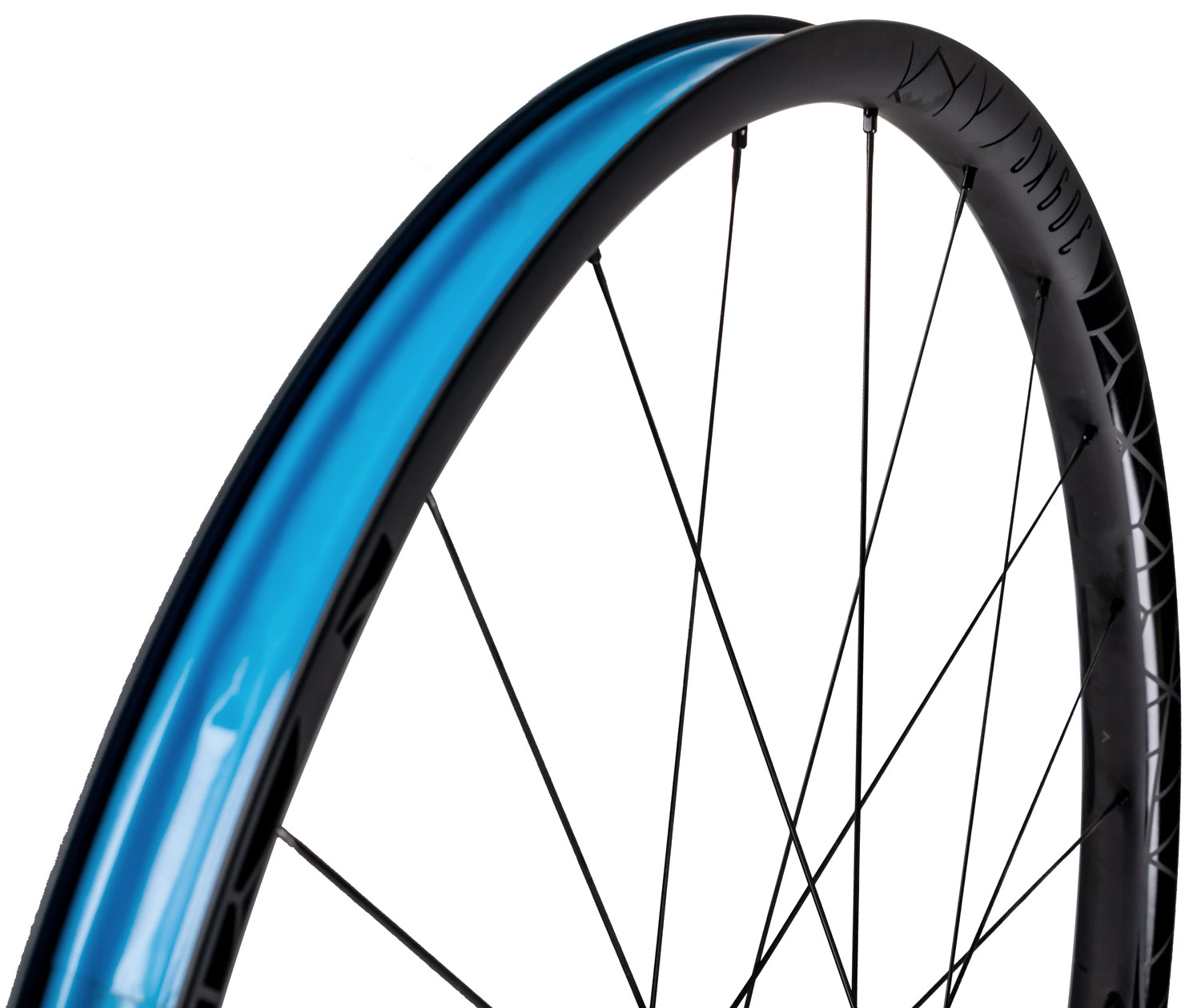

• Rim technology: IDM (Impact Dispersing Matrix) and MR5 rim construction technologies
• Rim width
  • Front: 30 mm
  • Rear: 28 mm
• Outer width
  • Front: 35.5 mm
  • Rear: 33.5 mm
• Rim height: 21 mm
• Axle system: 15 mm / 12 mm Thru Axle
• Built-in dimension: 110 mm / 148 mm Boost
• Hub type
  • Front: Super Bubba
  • Rear: Super Bubba X

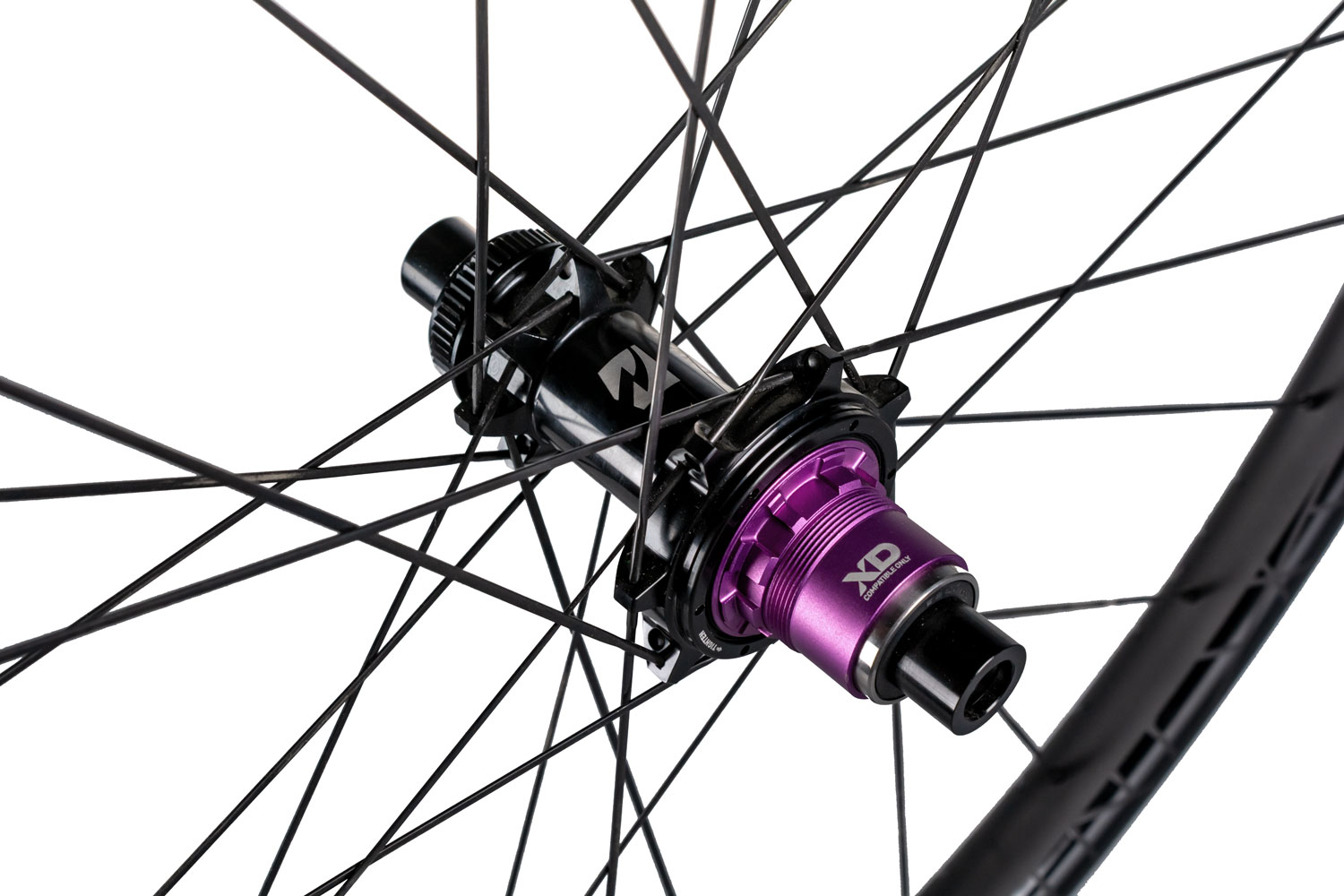

• Freehub system: 6-Pawl drop-in ratchet ring design (4° engagement angle)
• Freehub body: SRAM XD
• Spokes: Sapim CX-Sprint
• Number of holes/spokes
  • Front: 24
  • Rear: 28
• Spoke pattern
  • Front: 2-cross
  • Rear: 3-cross
• Valve hole: Presta / SV Ø 6.5 mm
• Brake interface: Disc Center Lock

Wheel material

• Rim: Carbon
• Hub shell: Aluminum
• Spokes: Stainless steel
• Nipples: Aluminum
• Freewheel: Aluminum

Color

• black

Weight

• Front approx. 690 g
• Rear approx. 820 g

Scope of delivery

• Reynolds BL 309/289 XC Carbon 29″ wheelset (no original packaging)
• 2 x tubeless tape

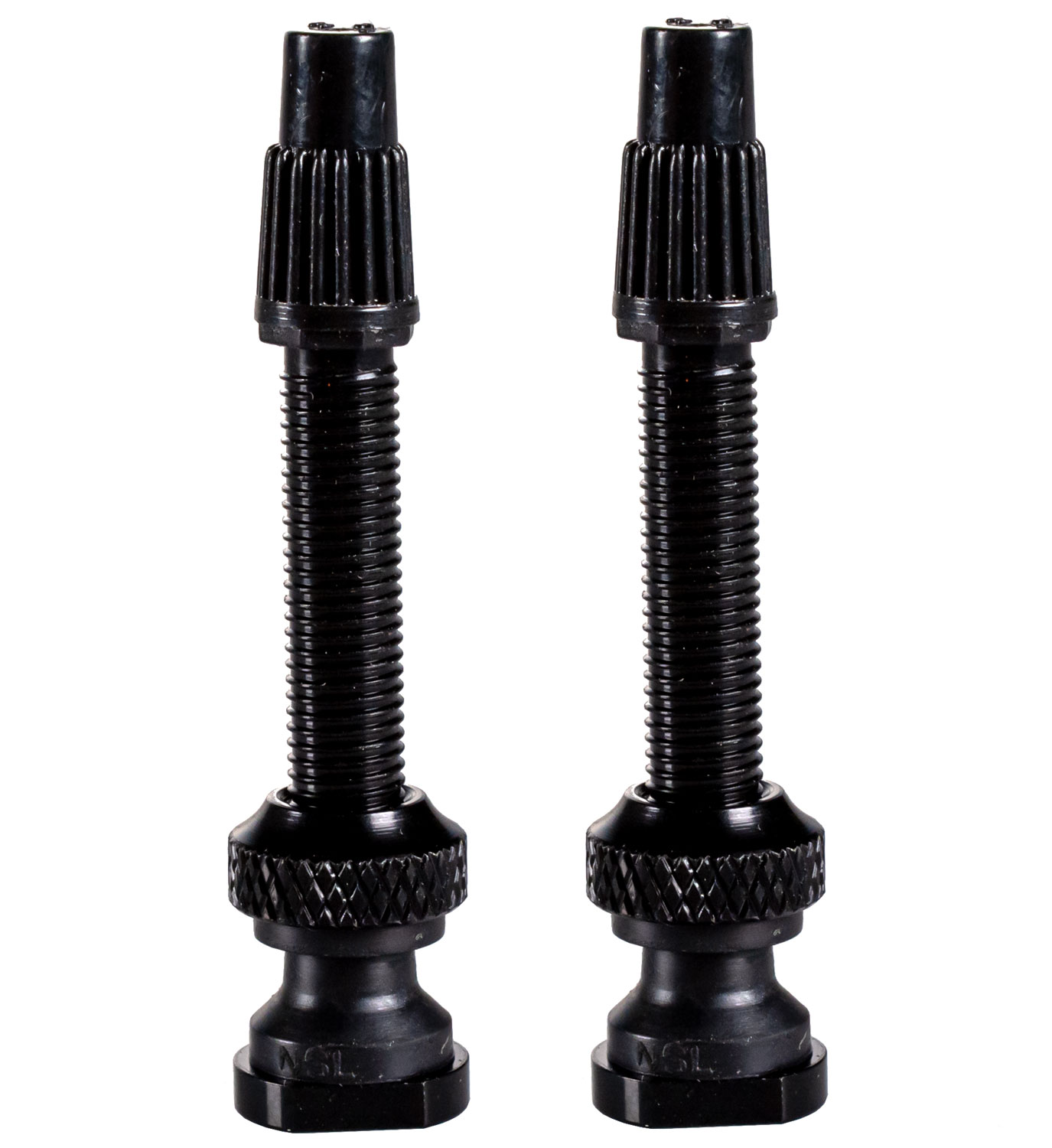

• 2 x tubeless valves

Thru axles not included!
