Reverse Components AirCon Rotor

Heat management is the main problem for most brake systems. That’s why Reverse Components has worked with one of the biggest brake specialists in the industry to develop a suitable solution for you. The AirCon system – an efficient heat dissipation system for the most common brakes on the market. Thanks to an elaborate, three-part brake disk with cooling fins, the brake disk is able to reduce the maximum temperature of the brake disc.
To be precise, 50 °C less after one minute of continuous braking. The brake disc also cools down to ambient temperature 20 seconds earlier than is the case with comparable brake discs.

Features – Reverse Components AirCon

• Anodized and laser engraved

Product features

• Range of use: MTB, Road, E-Bike
• Mounting: IS 6-bolt
• Wall thickness: 1.80 mm (+/- 5 % production tolerance)
• Compatibility: No restrictions (except for Fox 32 – QR15 x 100 mm)

Diameter (choose variant)

• 140 mm

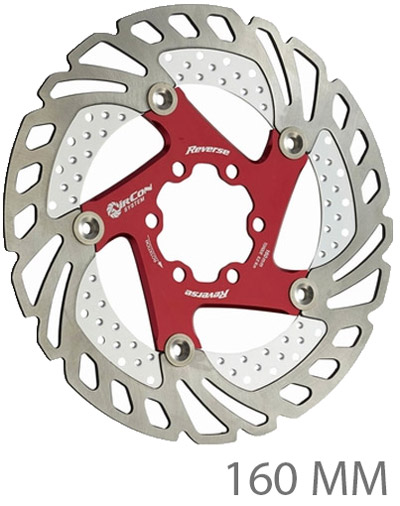

• 160 mm

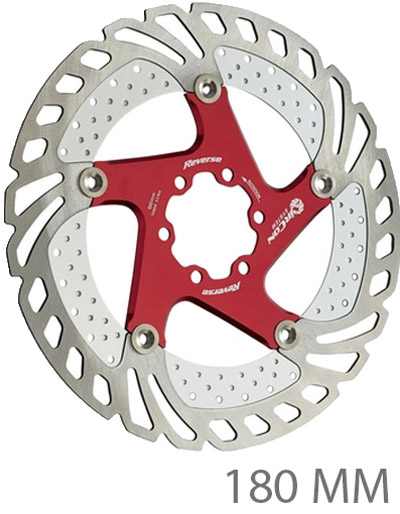

• 180 mm

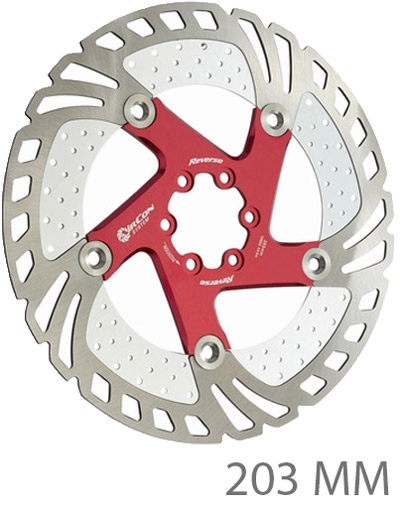

• 203 mm

Material

• Disc: Steel
• Cooling fins and star: Aluminium

Weight (manufacturer information)

• 140 mm: 101 g (+/- 5 % weight tolerance)
• 160 mm: 126 g (+/- 5 % weight tolerance)
• 180 mm: 149 g (+/- 5 % weight tolerance)
• 203 mm: 218 g (+/- 5 % weight tolerance)

Scope of delivery

• 1 x Reverse Components AirCon rotor
