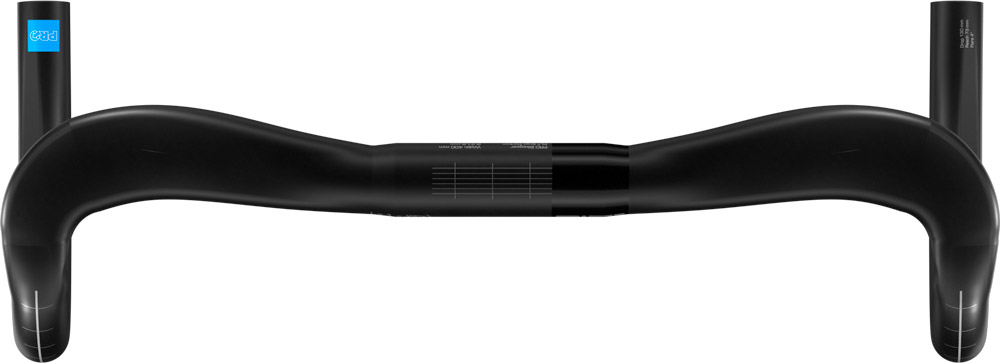

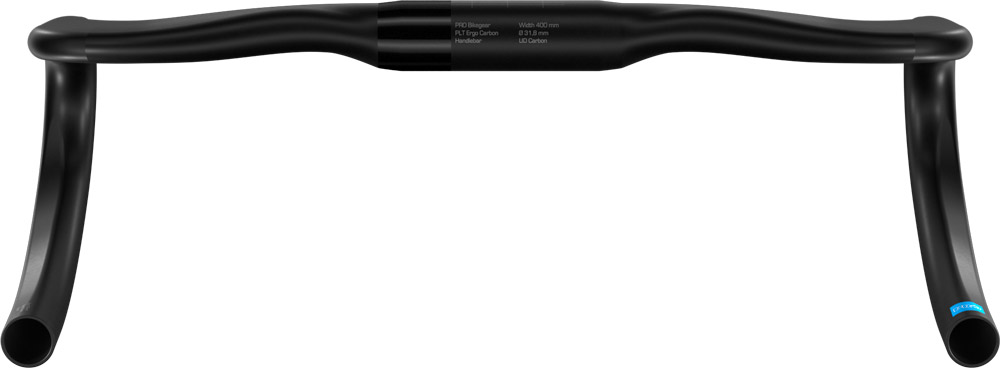

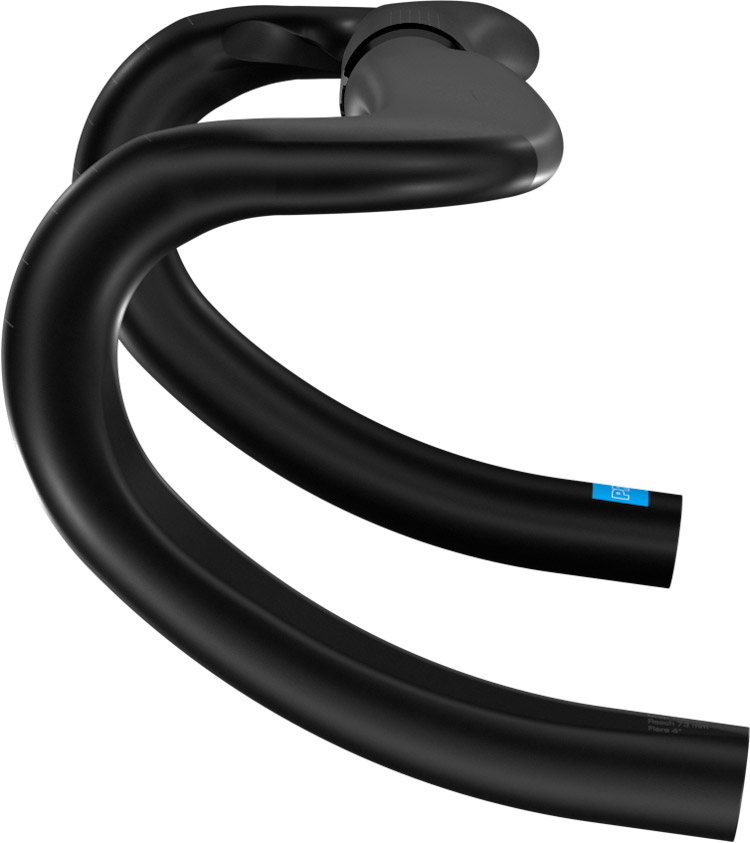

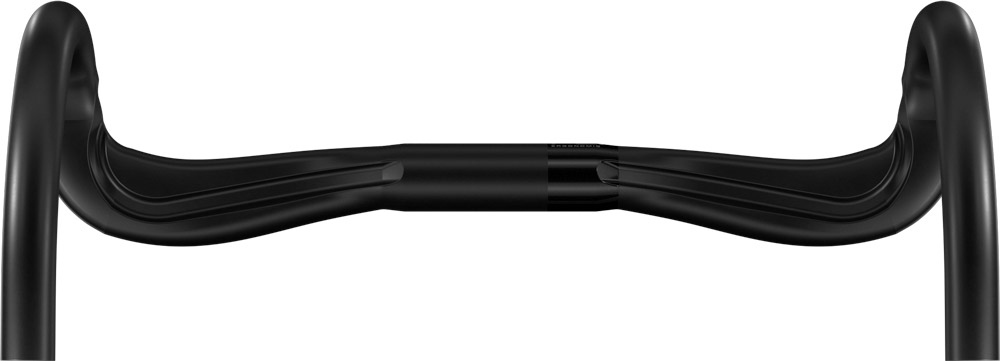

PRO PLT Ergo Carbon Handlebars

Designed for sporty riders, the PRO PLT Ergo carbon handlebars offer maximum comfort and an ergonomic design for all riders. Available in a variety of sizes, from a narrow 36 cm to an extra wide 46 cm, these are the perfect handlebars for long and strenuous days in the saddle. A 4 degree flare to the lower bar provides additional comfort as the rider has more control on long, twisty descents thanks to the wider base.

Features – PRO PLT Ergo Carbon handlebars

• Oversize monocoque construction made from T700 UD carbon
• Ergonomically adapted design for 3 hand sizes (reach, drop)
• 4.5 degree backsweep, 6 degree downslop prevent hand fatigue
• Grip surface wrapped by 8 degrees to better fit the palm of the hand
• Cable routing channel facilitates handlebar tape routing without thickening through the outer shell

Product features

• Range of use: Road
• Series: PLT
• Handlebar clamp: Ø 31.8 mm
• Reach:
  • 360 mm: 68 mm
  • 380 mm: 68 mm
  • 400 mm: 73 mm
  • 420 mm: 73 mm
  • 440 mm: 78 mm
  • 460 mm: 78 mm
• Drop:
  • 360 mm: 120 mm
  • 380 mm: 120 mm
  • 400 mm: 130 mm
  • 420 mm: 130 mm
  • 440 mm: 140 mm
  • 460 mm: 140 mm
• Flare: 4°
• Cable routing: External

Upper width (choose variant)

• 360 mm
• 380 mm
• 400 mm
• 420 mm
• 440 mm
• 460 mm

Material

• UD Carbon T700

Color

• black

Weight

• from 195 g (manufacturer information)

Scope of delivery

• 1 x PRO PLT Ergo Carbon handlebar
