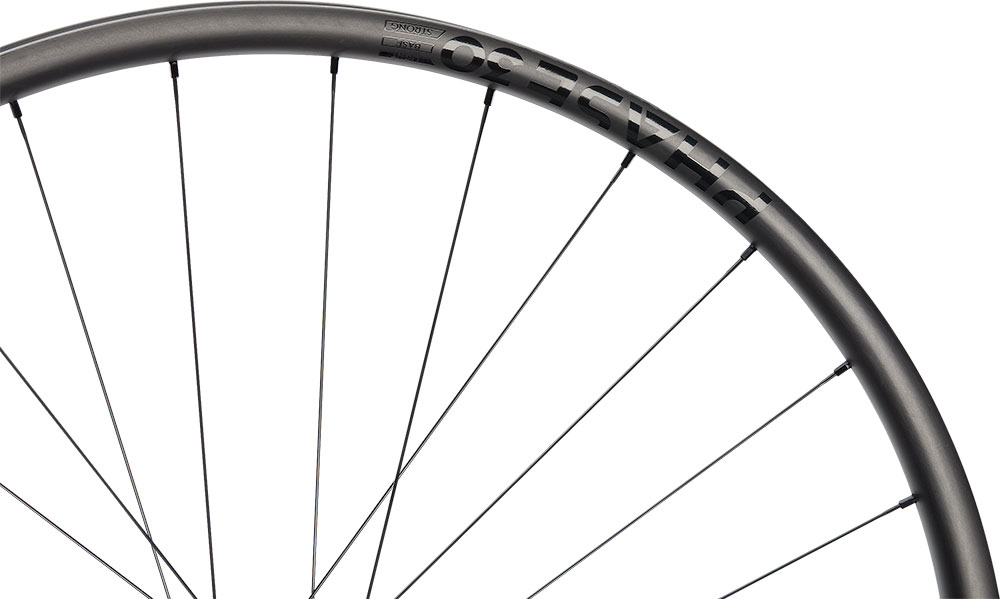

Newmen Phase Trail 29″ 6-bolt Shimano HG Carbon Wheelset

Robust lightweight for trail use – Phase 30 Trail gets the maximum out of fast down-country bikes and trail bikes! The combination of Phase 30 Light on the front wheel and the more robust Phase 30 Base at the rear guarantees an optimum ratio of weight and durability. With an inner width of 30 millimetres, the hookless carbon rims offer perfect support for modern MTB tires from 2.3 to 2.6 inches.

At the same time, the new Phase 30 Base Carbon rim has the same impressive impact resistance as the previous Enduro model, but is 50 grams lighter. Equipped with the proven FADE MTB hubs with whisper-quiet freewheel and an optimized spoke setup, the result is a lightweight, reliable carbon wheelset for almost limitless trail bike adventures in the mountains.

---

Features – Newmen Phase 30 Trail

• High-quality, hookless carbon rim with unpainted surface
• Perfectly suited for tire widths from 2.3″ to 2.6″
• Durable, lightweight and quiet FADE MTB hubs
• Suitable for use on E-MTBs

Product features

• Range of use: Trail
• Wheel size: 29″
• Rim diameter: 622 mm
• Rim type: Clincher
• Tire interface: Hookless Tubeless Ready
• Tubeless Ready: yes
• Inner width: 30 mm
• Axle system: 15 mm / 12 mm thru axle
• Built-in dimension: 110 mm / 148 mm
• Hub: FADE
• Brake interface: Disc 6-bolt
• Spokes
  • Front: Sapim Laser 2,0 / 1,5 / 2,0
  • Rear: Sapim Laser 2,0 / 1,65 / 2,0
• Spokes/Holes: 28
• Recommended system weight max: 150 kg (body weight + bike + equipment)
• ASTM Classification: 4

Freehub body

• Shimano HG

Material

• Hub: Aluminium
• Rim: Carbon
• Spoke: Steel
• Freehub body: Aluminium

Weight

• approx. 1470 g (manufacturer information)

---

Scope of delivery

• 1 x Newmen 29″ wheel set Phase Trail 6-bolt Shimano HG
