Newmen Forge 30 XC 29″ 6-bolt SRAM XD Wheelset

The Newmen Forge 30 XC wheelset is the perfect combination of the finest aluminum, special rim profiles and an unbeatable price. This modern cross-country aluminum wheel offers an impressive ratio of durability, weight and price thanks to the impact-resistant Forge 30 rim, the FADE MTB hubs and the high-quality Sapim Race spokes. With a width of 30 millimetres and an optimized design, it offers maximum grip and comfort with puncture resistance for an incomparable riding experience.

---

Features – Newmen Forge 30 XC

• High-quality, lightweight aluminum rims with unrivalled stability
• Perfectly suited for tire widths from 2.3″ to 2.6″
• Durable, lightweight and quiet FADE MTB hubs
• Suitable for use on E-MTBs

Product features

• Range of use: Cross Country
• Wheel size: 29″
• Rim diameter: 622 mm
• Rim type: Clincher
• Tire interface: Hooked Tubeless Ready
• Tubeless Ready: yes
• Inner width: 30 mm
• Axle system:
  • Front wheel: 15 mm thru axle
  • Rear wheel: 12 mm thru axle
• Built-in dimension:
  • Front wheel: 15 mm
  • Rear wheel: 148 mm

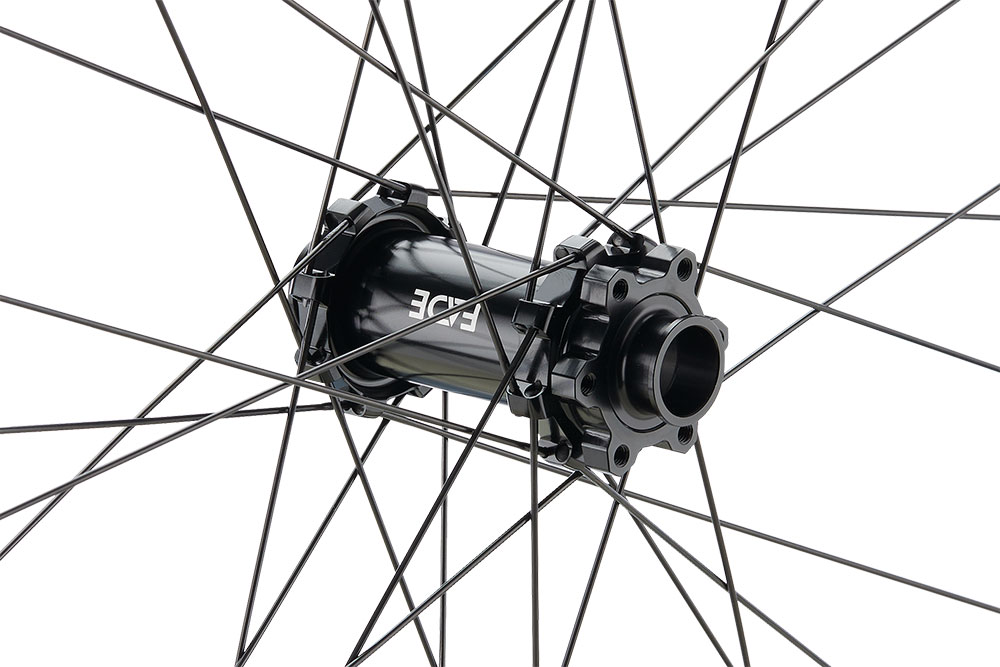

• Hub: FADE
• Brake interface: Disc 6-bolt
• Spokes: Sapim Race 2,0 / 1,8 / 2,0
• Spokes/Holes: 28
• Recommended system weight max: 130 kg (body weight + bike + equipment)
• ASTM Classification: 3
• Freehub body: SRAM XD

Material

• Hub: Aluminum
• Rim: Aluminium
• Spoke: Steel
• Freehub body: Aluminium

Weight (manufacturer information)

• Front wheel: 900 g
• Rear wheel: 1170 g

---

Scope of delivery

• 1 x Newmen Forge 30 XC 29″ 6-bolt SRAM XD Wheelset
