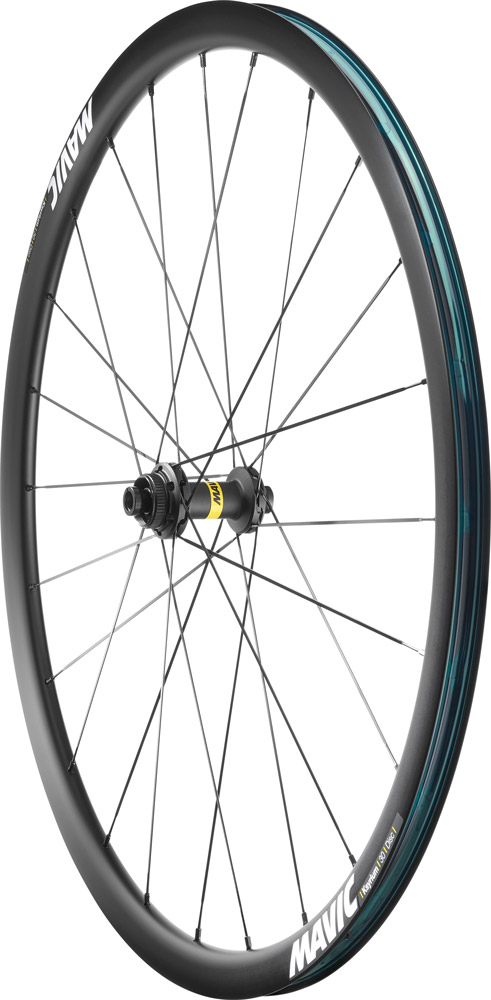

Mavic Ksyrium 30 Disc Wheel Set

The Ksyrium 30 Disc is an entry-level model for high-level race performance with a new UST Road Tubeless system for a smoother ride and improved puncture resistance. The 30 mm deep rim optimizes aero performance and stability in crosswinds, while the alloy rim offers a balance between stiffness, strength and weight by carefully balancing the rim wall thickness.

The straight spokes are connected to high-quality Infinity hubs, which guarantees optimum stiffness and durability. The Instant Drive 360 ratchet freehub system ensures fast activation and low friction.

---

Features – Mavic Ksyrium 30 Disc wheel set

• ID360 freewheel technology
• Infinity hub platform with stiffer axle, durable bearings and new design

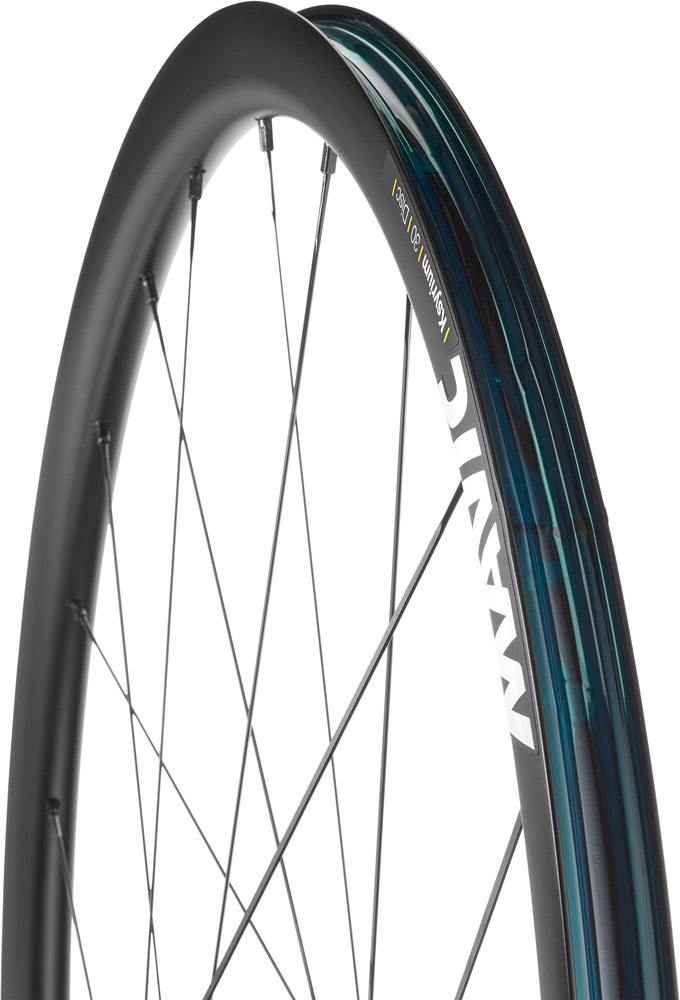

• Lightweight and aerodynamic rims 30 mm deep, 19 mm wide (internal)
• Light welded rim
• Traditional drilling
• Double butted flat spokes
• Refined UST rim bed that facilitates tire mounting
• Sophisticated tubeless technology ensures a faster and smoother ride while being easy to install and maintain

Product features

• Range of use: Road bike
• Model: Ksyrium 30 Disc
• Wheel size: 28″
• ETRTO: 622×19
• Rim type: Clincher (folding/wire tyres)
• Tubeless Ready: Yes
• Hub: Infinity Hub
• Freewheel technology: Instant Drive 360
• Freewheel: Shimano HG road
• Bearings: Self-sealing industrial bearings (QRM Auto)
• Internal rim width: 19 mm
• Spoke type: straight, extra-flat, constricted, antirotation
• Spokes: 24, crossed 2
• Brake type: Disc
• Brake system: Disc Center-Lock
• Recommended tyres: 25 mm to 32 mm
• Valve hole: Presta / SV Ø 6.5 mm
• ASTM category: 2 – for use on roads and off-road with jumps up to a height of 15cm
• Max. System weight: 120 kg (rider + bike + equipment)
• Hub axle system:
  • Front wheel 12 x 100 mm thru axle
  • Rear wheel 12 x 142 mm thru axle

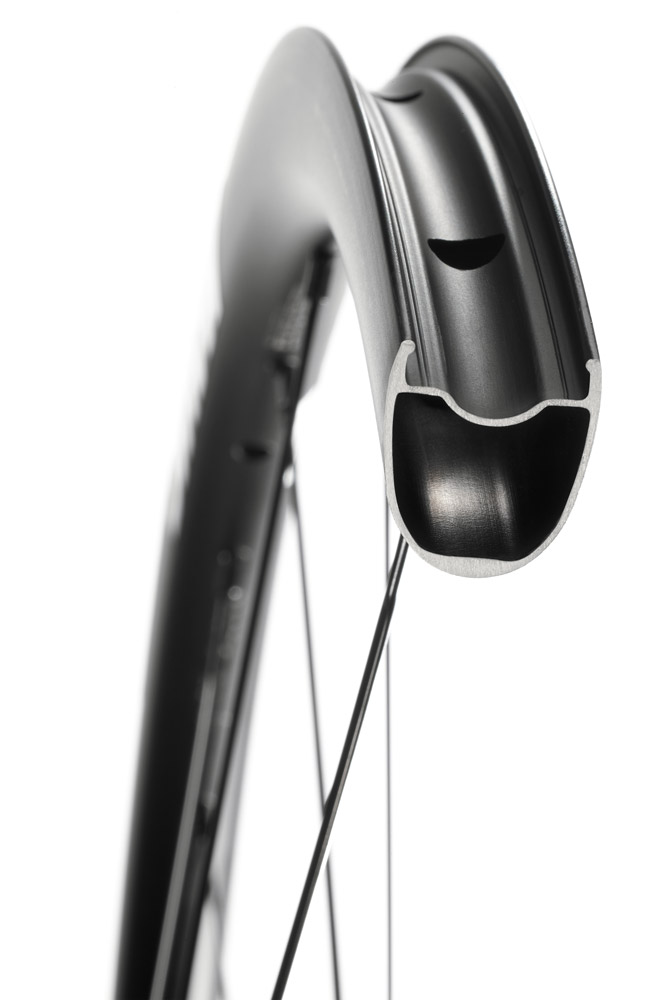

Material

• Rim: Maxtal Aluminium
• Hub shell: Aluminium
• Freehub: Steel
• Spokes: Steel
• Nipples: Steel

Color

• black

Weight

• approx. 1796 g (manufacturer information)

---

Scope of delivery

• 1 x Mavic Ksyrium 30 Disc wheel set
• 2 x adapter to quick release
• 2 x UST valves and accessories
• 2 x tubeless rim tape
• 1 x Multifunction adjustment wrench with the rear wheel

Thru axles not included!

---

Technologies

Maxtal
Light and strong. The aluminium alloy produced exclusively for Mavic offers a higher strength-to-weight ratio than conventional 6106 aluminium.

SUP welding technology
More stable and smoother rim joint. Soudé Usiné Process. The rim joint is welded and then milled over to achieve an even braking surface.

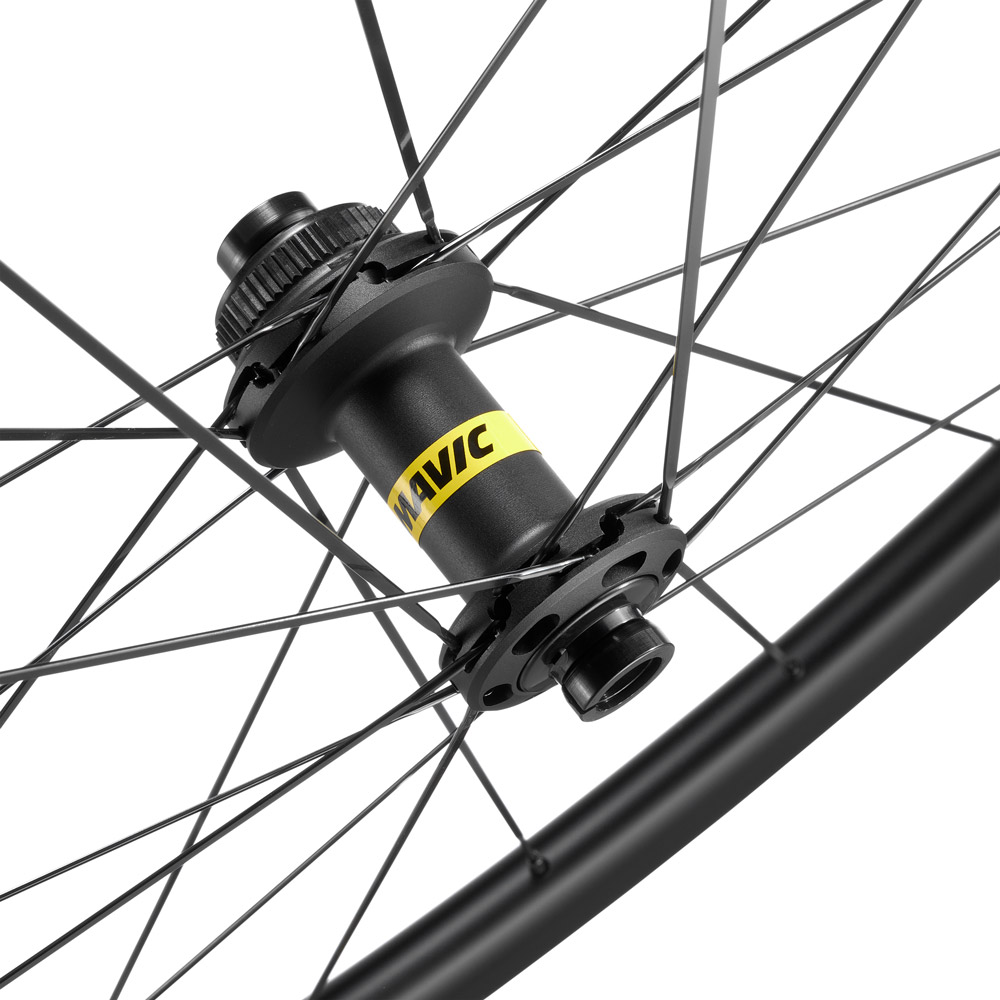

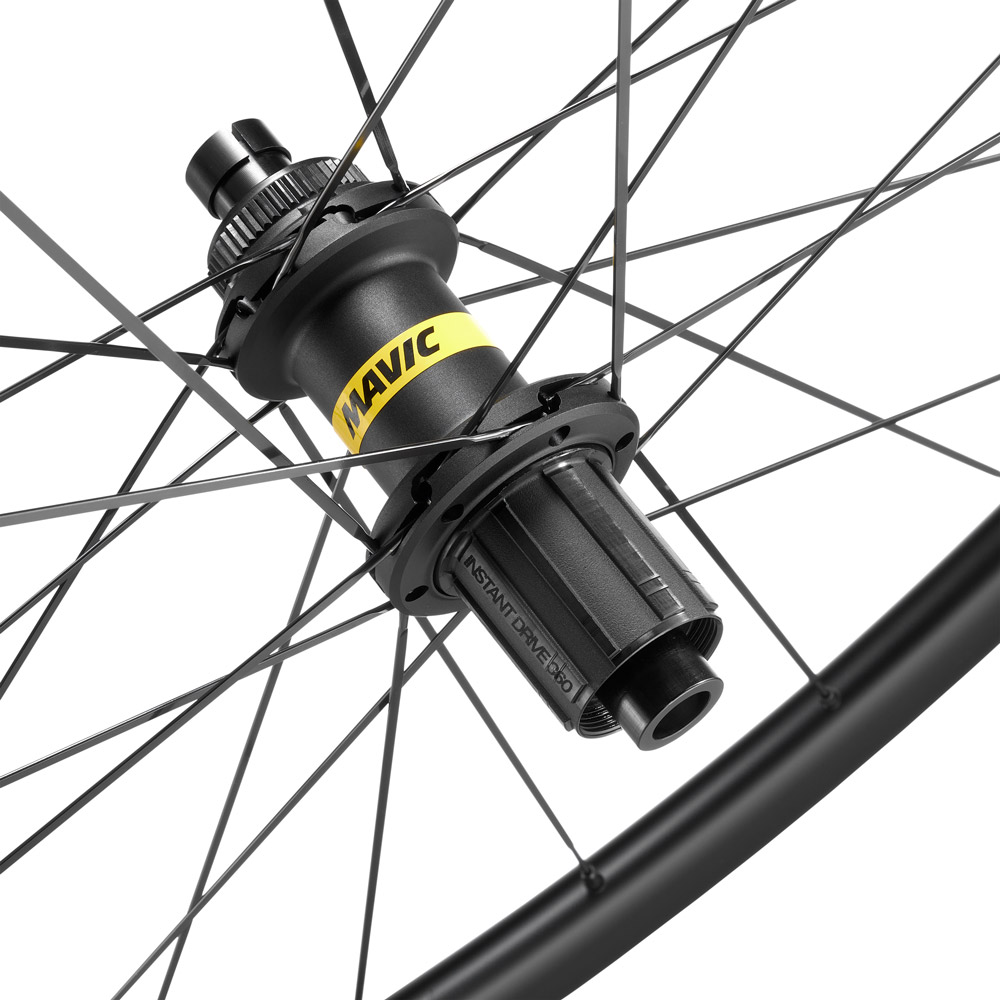

Infinity hub
Mavic’s Infinity hub stands for optimum power transmission, durability and compatibility. The Instant-Drive 360 freehub technology ensures fast engagement under load with high stiffness and durability and offers automatic bearing preload adjustment (QRM Auto), which is easy to maintain without special tools. Designed for compatibility and ease of use, the Infinity hub can be converted to all major freehub options and axle sizes.

UST Tubeless Technology
Traction, control and lightweight. The UST concept improves traction, control and comfort – while reducing inertia and puncture risk. Mavic’s tubeless design reduces rolling resistance, makes the wheel lighter and conjures up more riding comfort on the road.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high-quality, sealed cartridge bearings. On QRM wheels, they are double-sealed (2RS or LLU) and have a tight C3 internal clearance.
