Mavic E-Deemax S 29″ Disc 6-Bolt Front Wheel

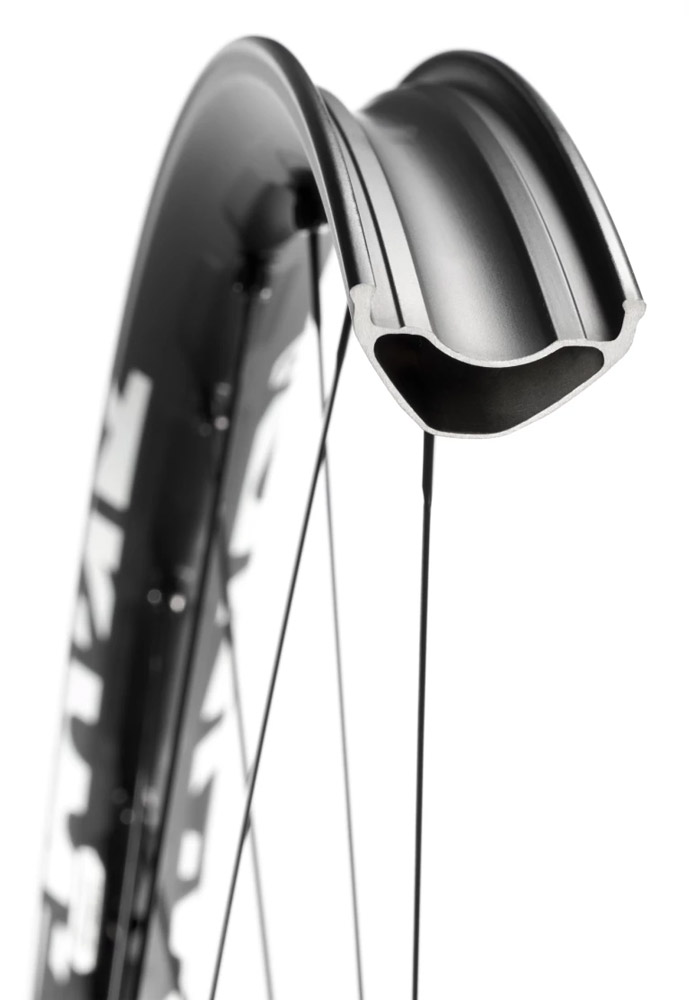

The 30 mm wide rims allow you to run lower tire pressure, which ensures better traction and smoother rolling. ISM rim machining removes material in strategic areas to save weight without compromising strength. Our new Black Shield treatment also protects the rims from impacts and scratches. 28 straight-pull spokes (same spoke length throughout) ensure a strong connection between rim and hub.

Features – Mavic E-Deemax S 29″

• Thanks to its PFP (Pinch Flat Protection) rim sidewalls, this wheel is reinforced to endure the toughest obstacles
• Fore technology: stronger rim profile thanks to less spoke holes
• Complete sealed rim and no rim tape for the best system on the market brought by the pionneers of tubeless
• Specially designed for the added torque of E-bike motors, validated for a total weight of 180 kg

Product features

• Use: E-MTB
• Model: E-Deemax S
• Rim diameter: 29″ / 622C
• ETRTO: 622 mm
• Rim joint: SUP welding technology
• Rim type: Clincher (folding/wire tires)
• Tubeless Ready: Yes
• Rim height: 22 mm
• Outer width: 36 mm
• Inner width: 30 mm
• Axle system: 15 mm Thru Axle
• Built-in dimension: 110 mm
• Number of holes: 28
• Spoke pattern: 3-crossed (front and rear)
• Spokes: straight, extra flat, narrowed (front)
• Valve hole: Presta / SV Ø 6.5 mm
• Brake system: Disc 6-Bolt
• Recommended system weight: 180 kg (body weight + bike + equipment)
• ASTM classification: 5 (gravity riding with focus on downhill)
• Approved for E-bikes: Yes

Material

• Rim: Maxtal Aluminium
• Hub body: Aluminium
• Spokes: Steel
• Nipples: Steel

Weight

• 915 g (manufacturer information)

Scope of delivery

• 1 x Mavic E-Deemax S 29″ Disc 6-Bolt front wheel
• 1 x UST valve
• 2 x Replacement spokes

Thru axle not included!
