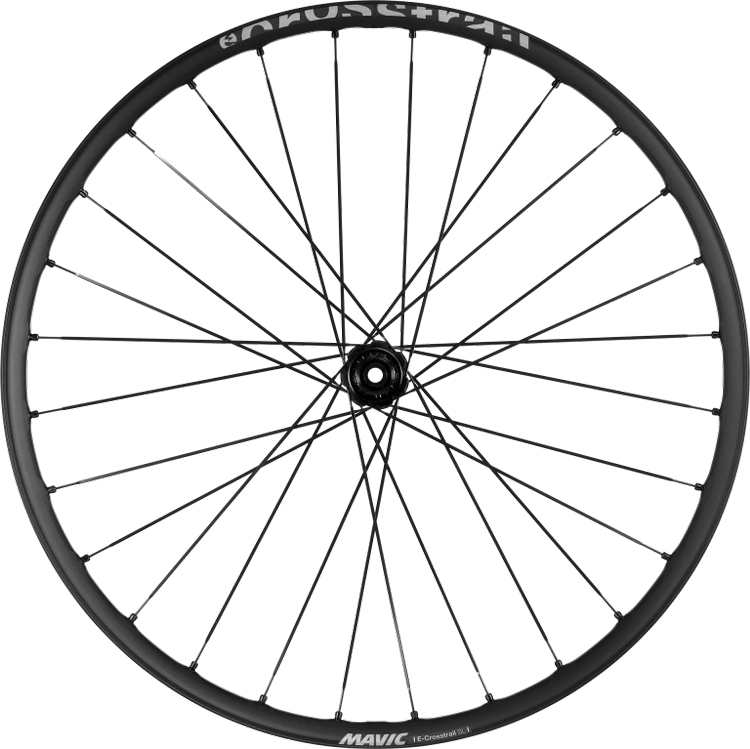

Mavic E-Crosstrail SL 29″ Disc 6-Bolt Sram XD Wheelset

Features – Mavic E-Crosstail SL 29″

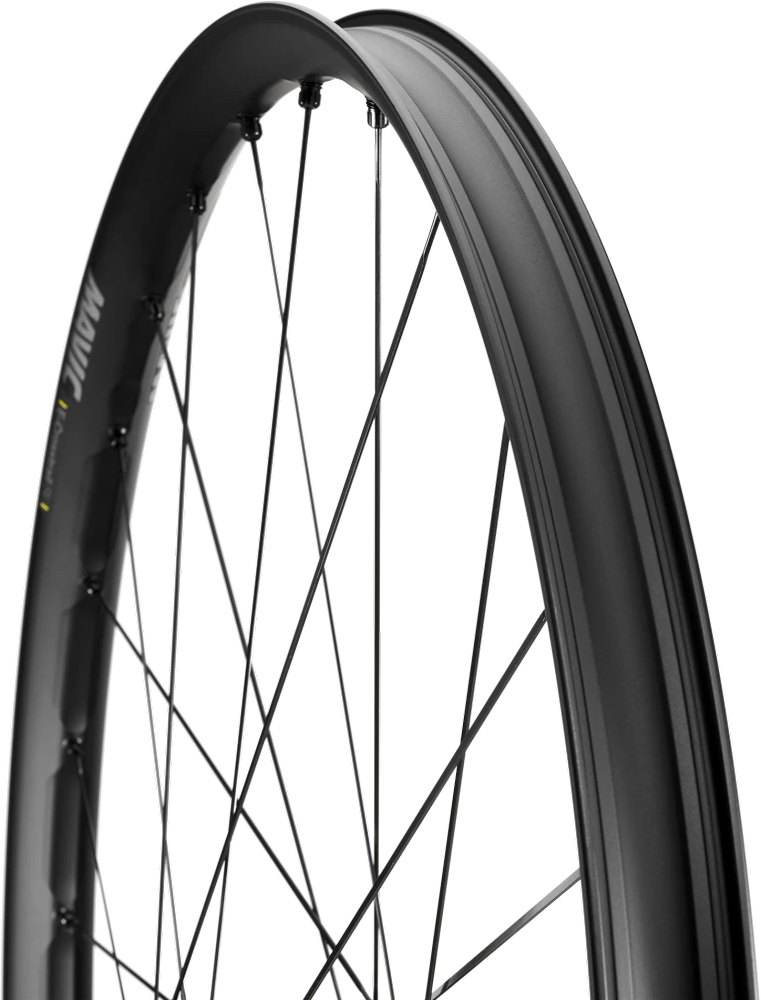

• The 30 mm aluminium rim and patented FORE & PFP technologies make the e-Crosstrail SL an indestructible e-mtb wheel
• With INFINITY hubs specially reinforced for e-bike use, power transfer is ultra-efficient and the wheel is even more responsive
• The lightness of its rim and its spoking make the e-Crosstrail SL one of the most versatile e-bike wheels in its category

Product features

• Use: E-MTB, Trail
• Model: E-Crosstail SL
• Rim diameter: 29″ / 622C
• ETRTO: 622 mm
• Rim joint: SUP welding technology
• Rim type: Clincher (folding/wire tires)
• Tubeless Ready: Yes
• Freehub system: Instant Drive 360
• Rim height: 22 mm
• Outer width: 35.6 mm
• Inner width: 30 mm
• Axle system: 15 mm / 12 mm Thru Axle
• Built-in dimension: 110 mm / 148 mm
• Number of holes: 28
• Spoke pattern: 3-cross (front, rear)
• Spokes: straight, extra flat, constricted (front), straight, flat, constricted (rear)
• Valve hole: Presta / SV Ø 6.5 mm
• Brake system: Disc 6-Bolt
• Recommended system weight: 150 kg (body weight + bike + equipment)
• ASTM classification: 4 (enduro and trail racing)
• Approved for E-bikes: Yes

Freehub body

• SRAM XD

Material

• Rim: Maxtal Aluminium
• Hub body: Aluminium
• Spokes: Steel
• Nipples: Brass
• Freehub body: Steel

Weight

• 1980 g (manufacturer information)

Scope of delivery

• 1 x Mavic E-Crosstail SL 29″ Disc 6-Bolt SRAM XD wheelset
• 2 x UST valve
• 2 x replacement spokes per wheel
• 1 x multifunctional adjustment tool for the rear wheel

Thru axle not included!
