Mavic E-Crosstrail SL 29″ Carbon Disc CL Front Wheel

The new Infinity hub with 28 steel spokes ensures high lateral stiffness and therefore optimum stability when cornering. This wheel was developed for the high torque of e-bike motors and is equipped with a wide 30 mm rim (inside), which provides additional stiffness and precision. With their dynamic handling and unbeatable robustness, the E-Crosstail SL Carbon wheels are the ideal choice to optimize your E-MTB.

Features – Mavic E-Crosstail SL 29″ Carbon

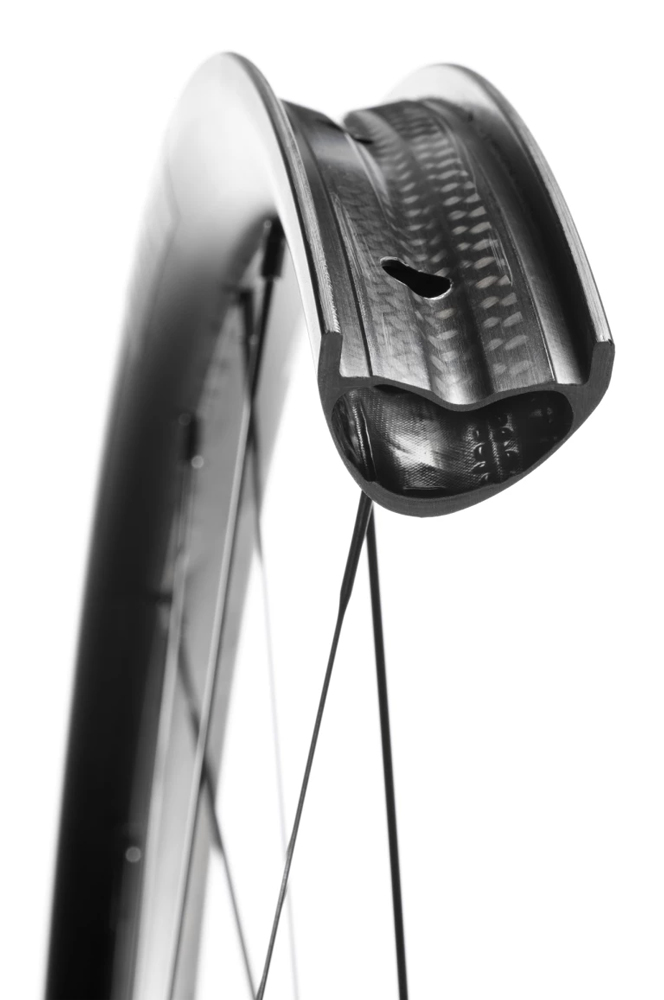

• Lightweight but strong carbon rim reduces inertia
• Lightweight spokes improves vertical compliance and control
• New Infinity hub with 28 spokes keeps high lateral stiffness
• Wider 30mm (internal) rim adds stiffness and cornering precision
• Engineered for the added torque of E-bike motors with 28 threaded three-cross spokes that further boost lateral stiffness
• Ultra-reliable and low maintenance ID360 freewheel system
• Userfriendly tubeless system eases tyre mounting
• Delivered with replacement spokes

Product features

• Use: E-MTB, Trail
• Model: E-Crosstail SL
• Rim diameter: 29″ / 622C
• ETRTO: 622 mm
• Rim joint: seamless
• Rim type: Hookless (folding tire)
• Tubeless Ready: Yes
• Rim height: 25 mm
• Outer width: 35 mm
• Inner width: 30 mm
• Axle system: 15 mm Thru Axle
• Built-in dimension: 110 mm
• Number of holes: 28
• Spoke pattern: 3-crossed (front)
• Spokes: straight, extra flat, constricted (front)
• Valve hole: Presta / SV Ø 6.5 mm
• Brake system: Disc CenterLock
• Recommended system weight: 150 kg (body weight + bike + equipment)
• ASTM classification: 4 (enduro and trail racing)
• Approved for E-bikes: Yes

Material

• Rim: Carbon
• Hub body: Aluminium
• Spokes: Steel
• Nipples: Steel

Weight

• 800 g (manufacturer information)

Scope of delivery

• 1 x Mavic E-Crosstail 29″ Carbon Disc CL front wheel
• 1 x UST rim tape pre-assembled
• 1 x UST valve
• 2 x Replacement spokes per wheel

Thru axle not included!
