Mavic E-Crossride 1 6-bolt Shimano HG Wheelset

Thanks to the ID360 freehub system, it offers efficient power transfer, easy maintenance, and worry-free performance. As with Mavic’s high-end models, this wheel is also subjected to rigorous laboratory and field testing—without compromising on reliability.

Features – Mavic E-Crossride 1

• Instant Drive 360 freehub technology – The new Instant Drive 360 freewheel system is super light and efficient. A large contactless rubber seal provides low friction, while a wide array of end caps makes it super versatile.
• UST tubeless technology – Traction and control. Universal Standard for Tubeless. Ready to ride tubeless system. The UST concept improves traction, control and comfort whilst reducing inertia and flats.
• Pinch Flat Protection sidewall – 20% less risk of puncture with PFP. An e-bike specific innovation to significantly reduce the risk of tire cuts and punctures.
• QRM Auto bearing preload technology – Qualité de Roulements Mavic Auto. Those cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to guarantee a perfect spin with no play on the long run.

Product features

• Range of use: E-MTB
• Model: Crossride
• Rim diameter: 29″
• ETRTO: 622 mm
• Rim type: Clincher (folding/wire tires)
• Rim profile: Asymmetrical and hookless
• Tubeless Ready: Yes
• Rim height: 21 mm
• Inner rim: 30 mm
• Axle system: 15 mm / 12 mm Thru Axle
• Built-in dimension: 110 mm / 148 mm

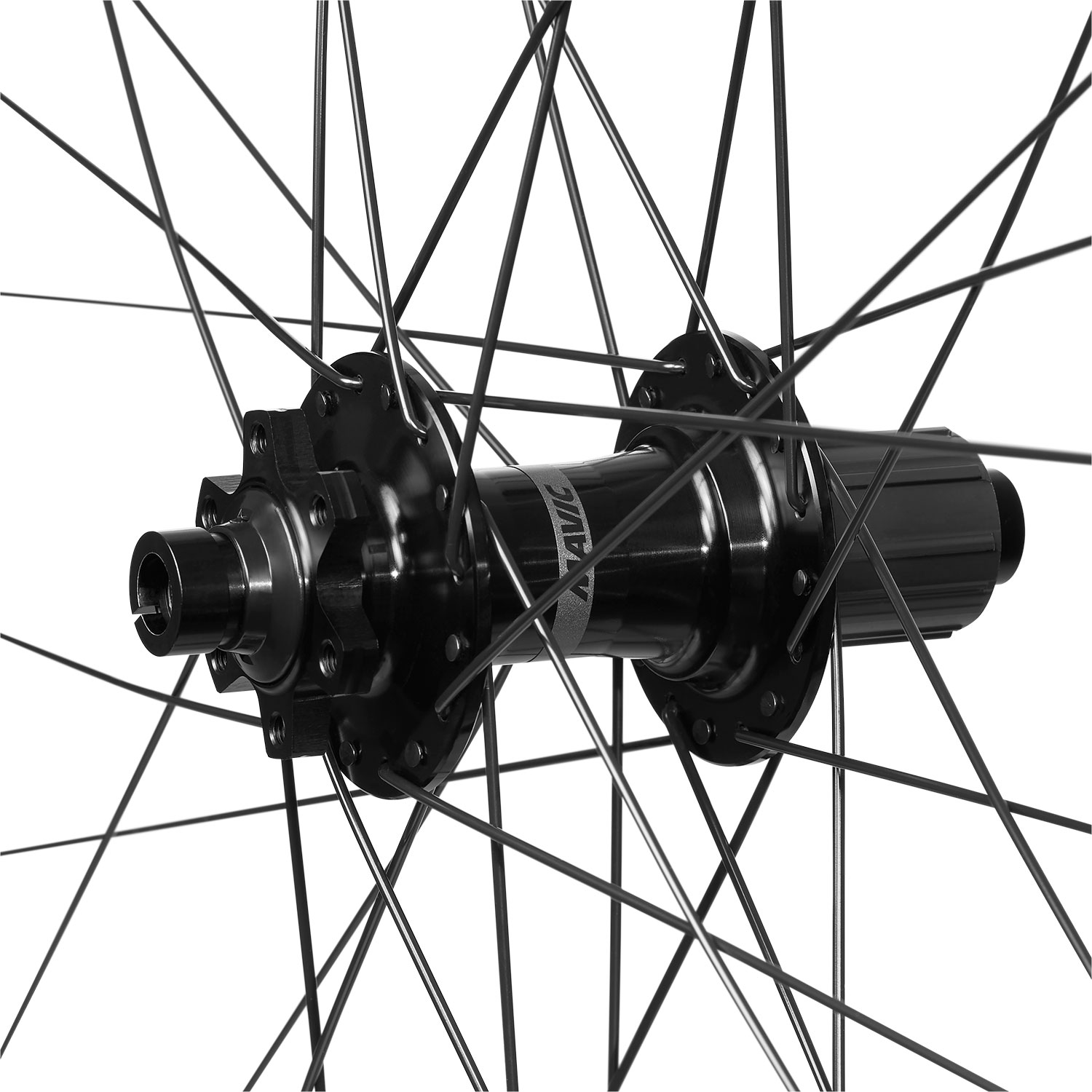

• Hub: Classic
• Bearing technology: QRM automatic setting – sealed cartridge
• Freehub system: Instant Drive 360
• Freewheel body: Shimano HG
• Number of holes: 32
• Spoke pattern: 3-crossed
• Spokes: bent radius, round
• Valve hole: Presta / SV Ø 6.5 mm
• Brake interface: Disc 6-bolt
• Recommended tires: 52 mm to 125 mm
• Maximum system weight: 150 kg (body weight + bike + equipment)
• ASTM classification: 3 (Cross Country)

Material

• Rim: S6000-Aluminium
• Hub: Aluminum
• Spokes: Steel
• Nipples: Steel

Weight

• 2220 g (manufacturer’s specification)

Scope of delivery

• 1 x Mavic E-Crossride 1 6-bolt wheelset
• 2 x rim tape
