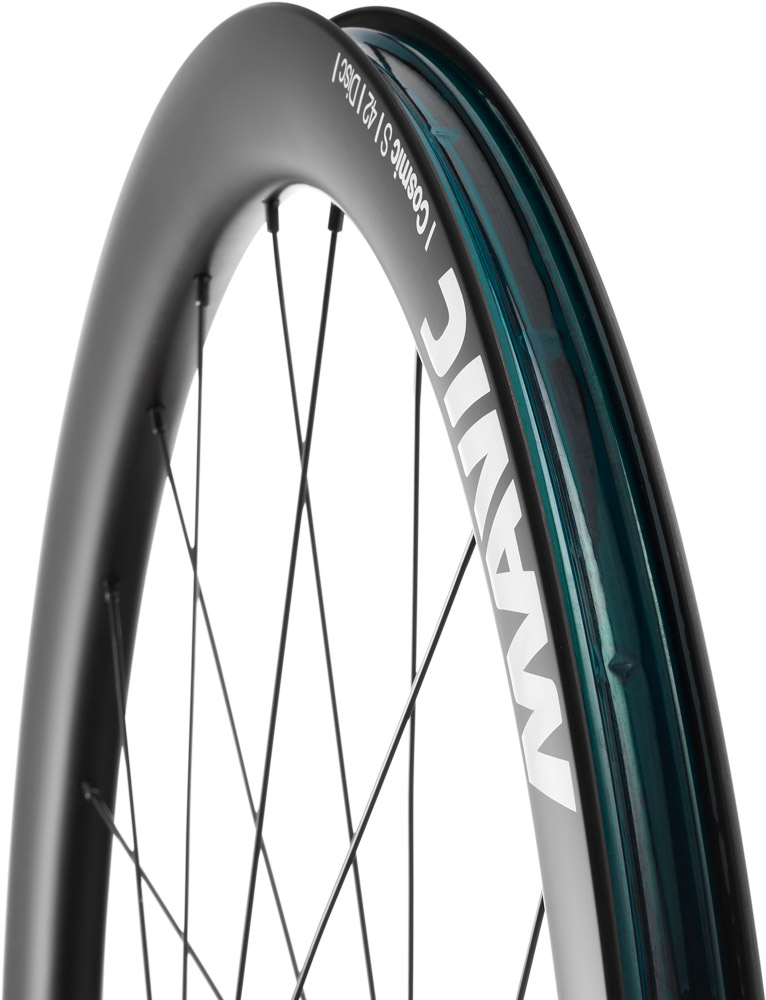

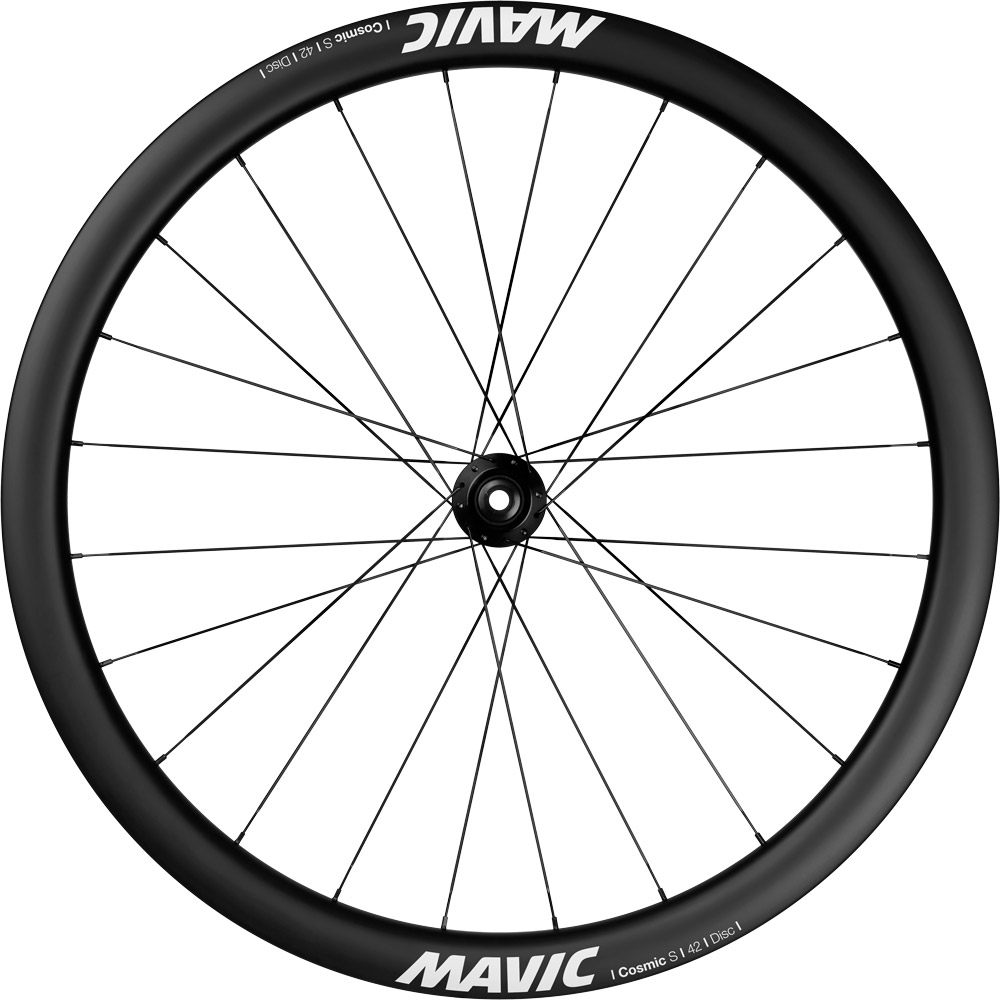

Mavic Cosmic S 42 DCL Rear Wheel

The Mavic Instant Drive 360 hub is equipped with self-adjusting, maintenance-friendly industrial bearings. This ensures fast propulsion, durability, stiffness and instant acceleration.

Features – Mavic Cosmic S 42 DCL rear wheel

• Special rim shape minimizes drag for additional speed
• Optimized for 28 mm tires
• Flat, double-butted spokes save weight and improve responsiveness
• Strong hub axle and ID 360 freewheel technology for instant acceleration
• UST tubeless technology offers better efficiency and grip
• Special rim bed shape makes it easier to mount and change tyres
• QRM auto bearing preload technology

Product features

• Range of use: Road bike
• Model: Cosmic S Disc CenterLock
• Wheel size: 28″
• ETRTO: 622×21
• Rim type: Clincher
• Tubeless Ready: Yes
• Hub: Aluminium body
• Freewheel system: Instant Drive 360
• Compatibility: 8-/9-/10-/11-/12-speed Shimano HG Road
• Bearings: sealed industrial bearings (QRM)
• Rim inner width: 21 mm
• Rim outer width: 28 mm
• Rim height: 42 mm
• Hub axle system: 12 x 142 mm thru axle
• Spoke type: straight pull, aero
• Spokes: 24 (2-cross)
• Brake type: Disc CenterLock
• Recommended tyre size: 25 mm to 32 mm
• Valve hole: Presta / SV Ø 6.5 mm
• ASTM category: 2 – for use on roads and off-road with jumps less than 15 cm
• System weight max: 120 kg (rider + bike + equipment)

Material

• Rim: Carbon
• Hub: Aluminium
• Freewheel: Steel
• Spokes: Steel
• Nipples: Aluminium

Color

• black

Weight

• approx. 850 g (manufacturer information)

Scope of delivery

• 1 x Mavic Cosmic S 42 DCL rear wheel
• 1 x Mavic UST valve

Technologies

ID 360 Instant Drive
A lightweight and low-friction dual ratchet freewheel system with a fast 9° engagement angle that supports high compatibility with common axle types and freehub standards thanks to the plug-in modular hub design

UST tubeless technology
Traction, control and lightweight. The UST concept improves traction, control and comfort – while reducing inertia and the risk of punctures. Mavic’s tubeless design reduces rolling resistance, makes the wheel lighter and conjures up more riding comfort on the road.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high-quality, sealed cartridge bearings. On QRM wheels, they are double-sealed (2RS or LLU) and have a tight C3 internal clearance.
