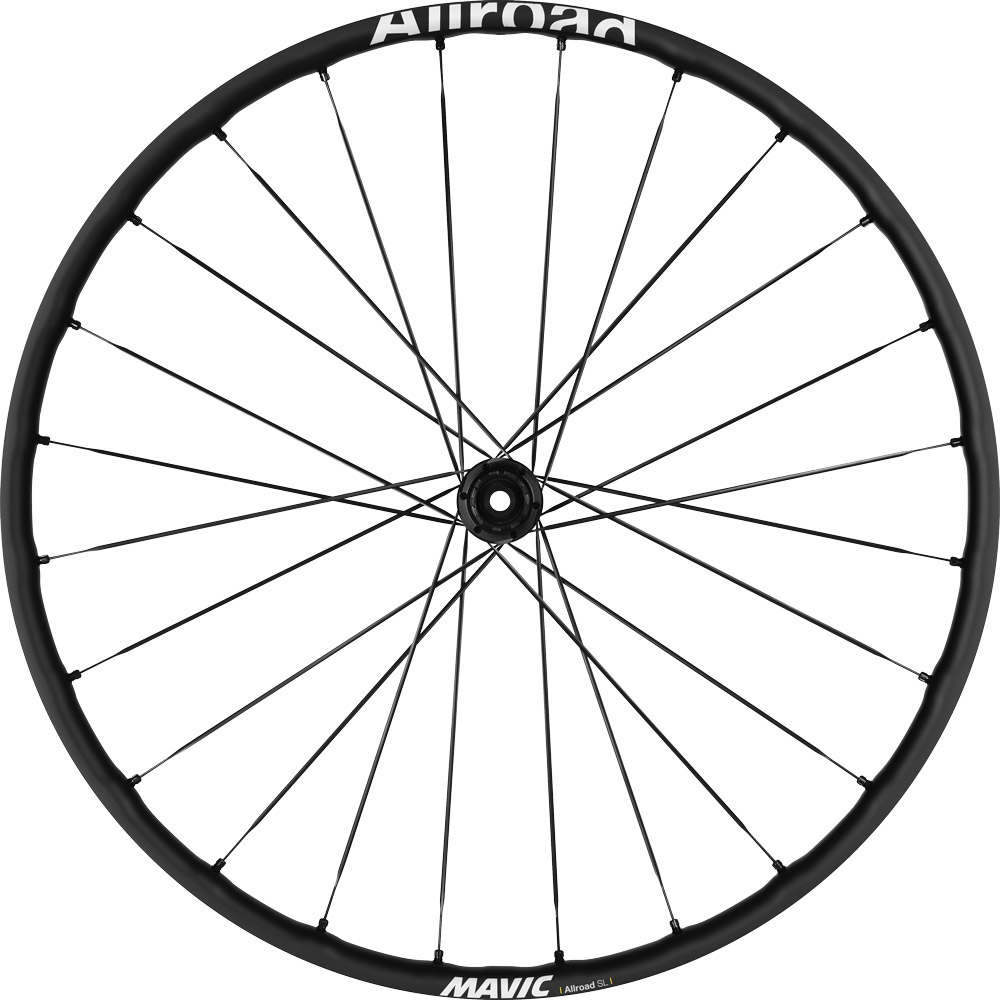

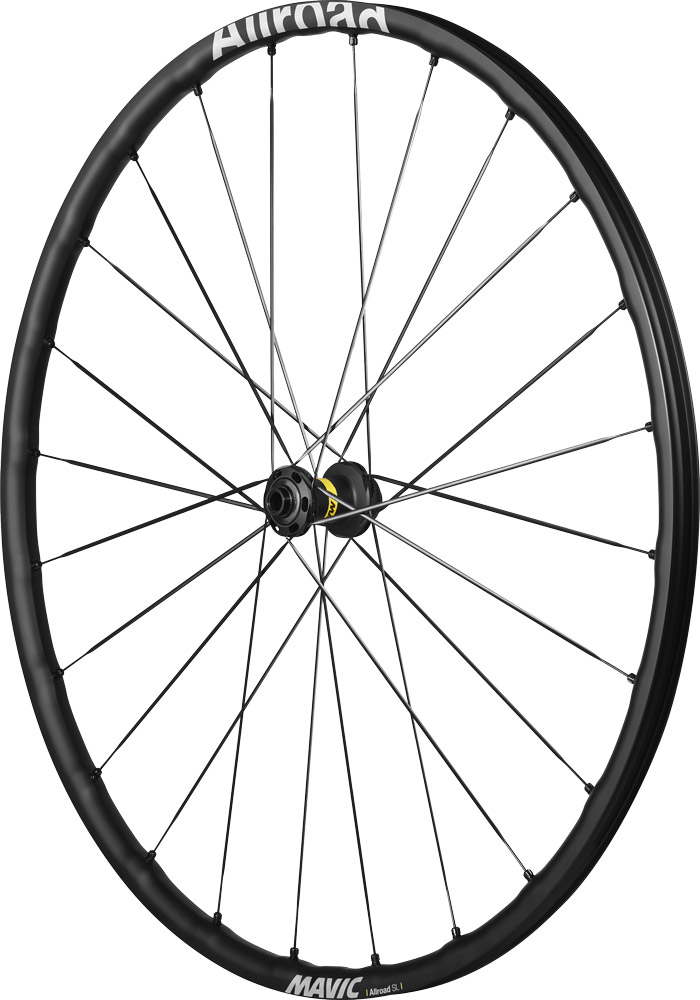

Mavic Allroad SL CL Wheel Set

Patented aero spokes improve ride quality and speed. The Fore drilling makes the rim airtight without rim tape, saves weight and the ID360 freewheel is smooth and easy to maintain.
The wheel is lightweight, durable and easy to maintain thanks to ISM4D RIM technology, which saves weight and increases durability. The Black Shield Rim surface protects against impacts and scratches.
It offers an ideal combination of lateral stiffness and vertical compliance for a dynamic handling. Fore technology and oversized axles and bearings enhance stability.
The Allroad SL is the ideal choice for cyclists looking for a dynamic and powerful riding experience.

Features – Mavic Allroad SL CL wheel set

• 25mm wide hookless UST rims for a smooth ride with a wide range of tubeless tires from 30mm-64mm
• UST Road Tubeless lets you run lower tire pressure for comfort and control on rough roads
• No tubes means less friction, better efficiency and grip, and pinch-flat protection
• Patented aero spokes improves ride quality and speed
• ISM4D rim saves weight where it matters while protecting durability
• Black Shield rim finish offers 2 times stronger protection against rock impacts and scratches
• Fore drilling makes the rim fully airtight without the need for a rim tape – 30g saved per wheel
• ID360 freewheel is low and easy maintenance and automatic bearing preload (QRM Auto) requires no adjustment and guarantees long-term durability
• Fore technology keeps the rim upper bridge solid to make the rim stiffer
• Oversize axles and bearings offers greater lateral stiffness
• ID360 freehub technology is compatible with a 12 mm thru axle, convertible to quick release (adapters optional available)

Product features

• Range of use: Gravel
• Model: Allroad SL
• Wheel size: 28″
• Rim type: hookless
• Tubeless Ready: Yes
• ETRTO: 622×25
• Inner rim width: 25 mm
• Rim height: 22 mm
• Bearings: Self-aligning sealed industrial bearings (QRM Auto)
• Freewheel technology: Instant Drive 360
• Freewheel: Shimano/SRAM 9-/10-/11-speed
• Axle size:
  • Front: 12 x 100 mm thru axle
  • Rear: 12 x 142 mm thru axle
• Spoke type: straight, aero, constricted, anti-rotation
• Spokes:
  • Front: 24, double-crossed
  • Rear: 24, double-crossed
• Brake type: Disc
• Brake system: Disc Center-Lock
• Recommended tyres: 30 mm to 64 mm
• Valve hole: Presta / SV Ø 6.5 mm
• ASTM category: 2 – for use on roads and paths with jumps of less than 15 cm in height
• Max. System weight: 135 kg (rider + bike + equipment)

Material

• Rim: Maxtal Aluminium
• Hub: Aluminium
• Freewheel: Aluminium
• Spokes: Steel
• Nipples: Brass

Wheel weight

• 1655 g (manufacturer information)

Scope of delivery

• 1 x Mavic Allroad SL wheelset
• 2 x tubeless valve and accessories
• 2 x multifunctional adjustment wrench

Technologies

ISM 4D weight tuning
Inter Spoke Milling 4 Dimension ISM 4D not only noticeably reduces weight and inertia without sacrificing durability, it also results in faster acceleration, better handling and greater stability – the perfect mix for a better riding experience. The exclusive Mavic patent with its sophisticated rim profile also ensures better aerodynamics.

Maxtal
Light and strong. The aluminum alloy produced exclusively for Mavic offers a higher strength-to-weight ratio than conventional 6106 aluminum.

Fore Tubeless technology (without rim tape)
Stiffer and more stable. Instead of conventional rim bores, the inner rim base is pressed inwards in a single operation and provided with threads into which the spoke nipples are screwed directly. The outer rim base remains intact.

UST tubeless technology
Traction and control. Universal Standard for Tubeless. Compatible with UST tubeless tyres. UST technology improves traction, control and riding comfort while reducing inertia and the risk of punctures.

Instant Drive 360 freewheel technology
The new Instant Drive 360 freewheel system is super light and ensures fast engagement with an angle of just 9°. A large non-contact rubber seal reduces friction. And a wide selection of axle stubs ensures compatibility with many installation standards.

QRM Auto Bearing Clearance Adjustment Technology
Qualité de Roulements Mavic Auto. Mavics latest bearing innovation. These industrial bearings (C3) are of course double-sealed. Their bearing clearance is automatically adjusted to guarantee permanently smooth running without any play.

SUP welding technology
More stable and smoother rim joint. Soudé Usiné Process. The rim joint is welded and then milled over to achieve a uniform braking surface.
