Magped ROAD2 Magnetic Pedals

In comparison to standard click in pedals the risk of crash and injury will be reduced to a minimum – and your head stays free for a hassle free biking experience without fear.

Features – Magped Road2 Magnet Pedal

• Circular motion: The magped pedal ensures a continuous circular tread by employing your extensor muscles (70%) as well as your flexor muscles (30%) for maximum riding performance. You will feel the difference especially on longer rides.

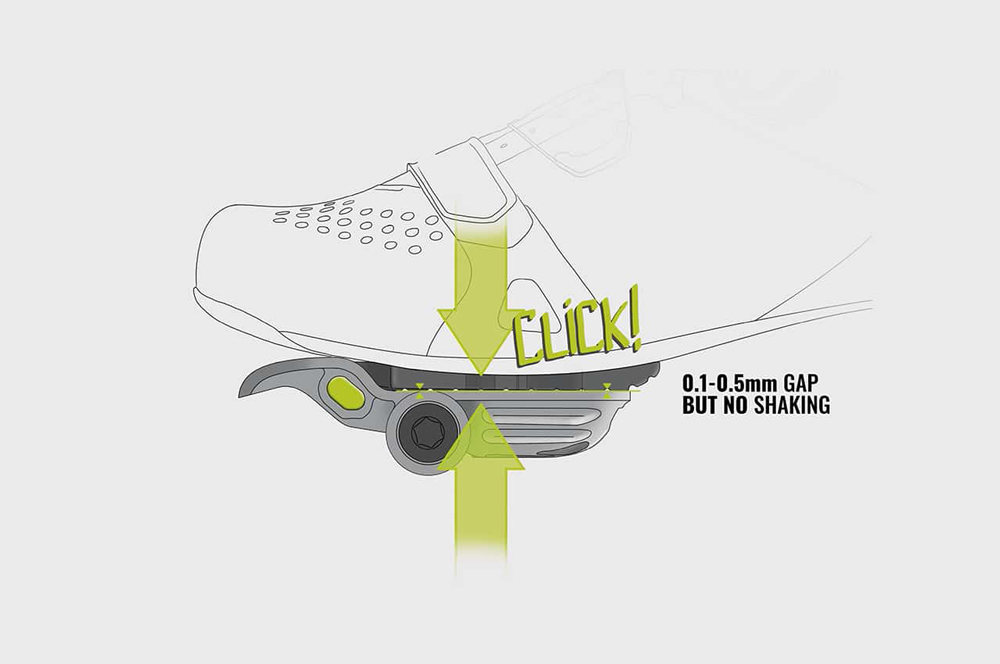

• Pulling Force: Depending on your choice of pedal the magnet will connect you up to approx. 20 kg in pulling force. The force deploys primarily in a downward force and therefore a quick and simple release with a sideways move of your foot is possible practically without effort. But even in more critical situations the pulling force can be overcome without difficulties in a vertical direction as well.

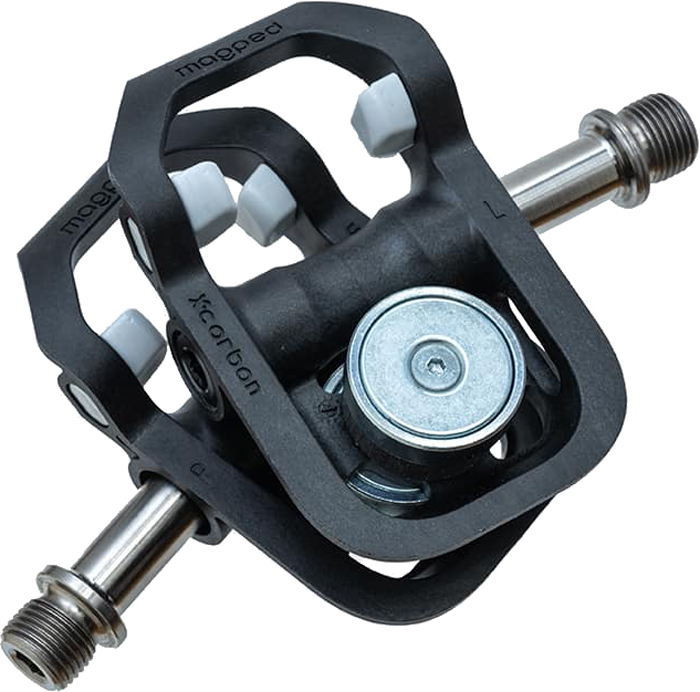

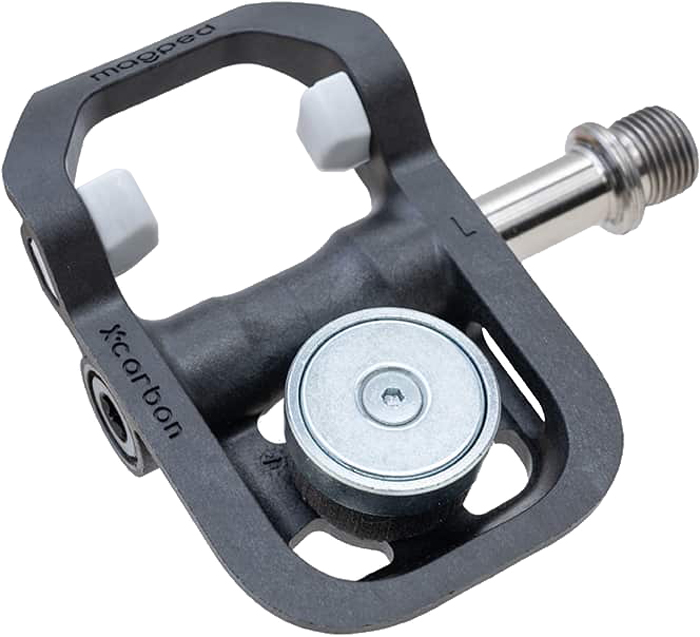

• Weight: The magped pedal is a modern high quality flat pedal made from light carbon with a titanium spindle. All magped pedals are highly weight competitive to other high end pedals – in spite of the added magnet system.

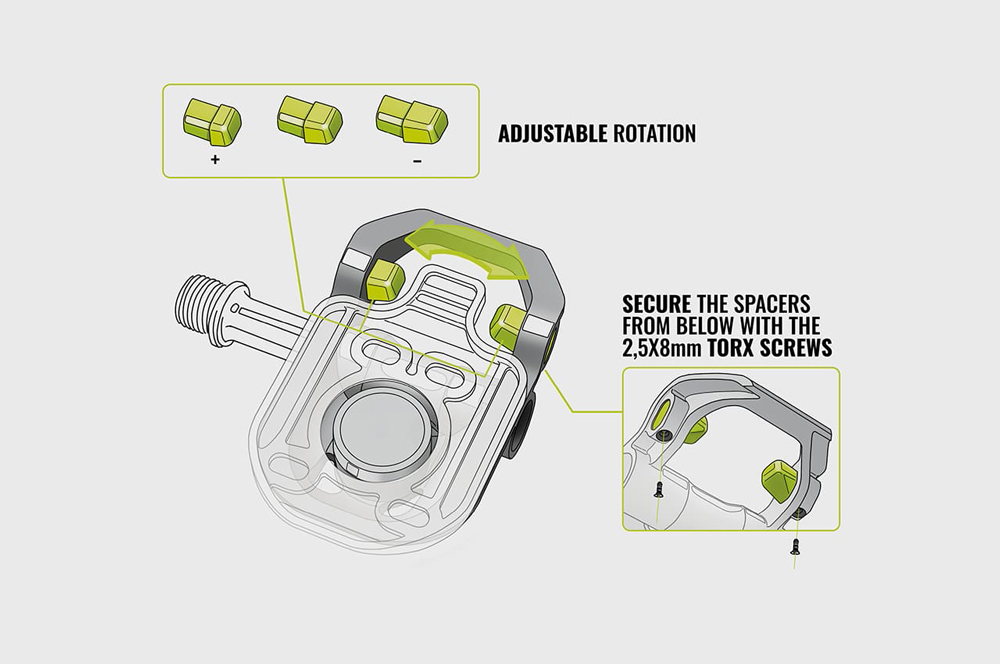

• Positioning: The pedal allows for several degrees of twist of your foot and therefore provides less strain on your ankles during your rides. In addition the foot position can be varied to the front or back without a loss of pulling force for an ideal position on your ascend and your descend.

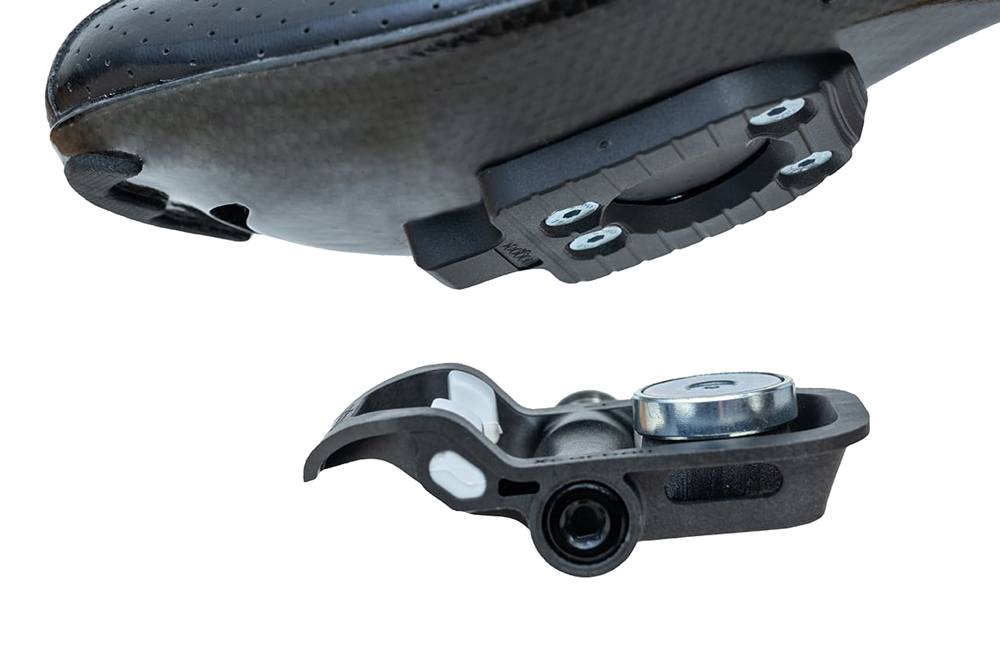

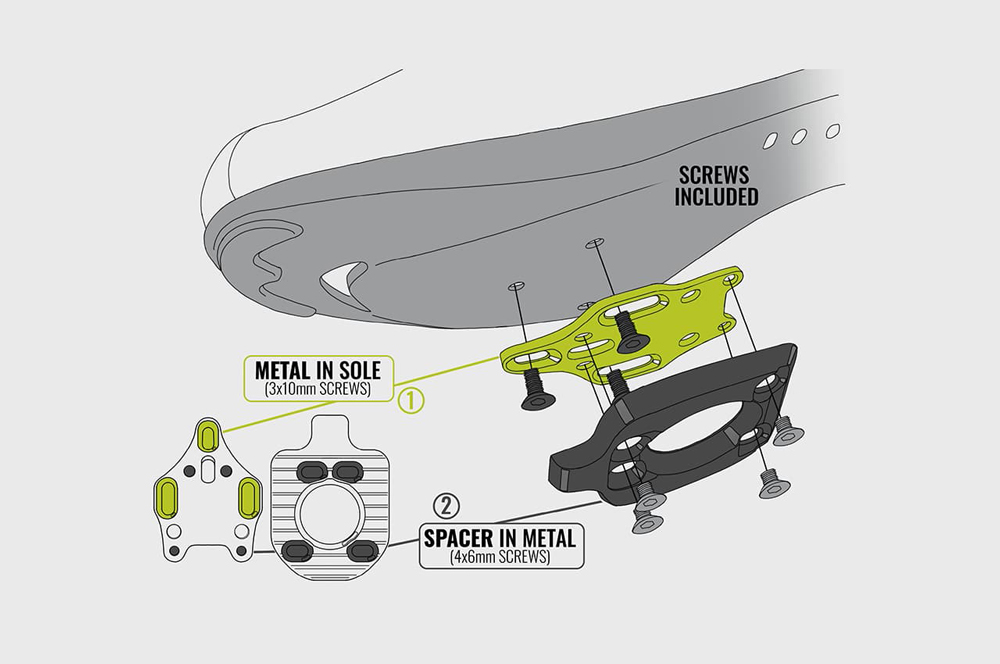

• Shoe plate: The shoe plate is made of anti corrosion treated steel and it is compatible with all SPD-SL bike shoes. The shoe plate can be mounted very easily within a few minutes with 3 screws. In comparison to other systems the magped pedal is insensitive to dirt. Additionally the “walkability” of your bike shoe will be significantly improved.
• Technology: The magped pedal is equipped with 3 sealed high quality industrial type bearings. Pins can be exchanged if required. The high performance neodymium magnet is adjustable by means of an integrated polymer damper unit.

Product features

• Range of use: Road
• Type: Magnet pedal
• Compatibility: Shoes with SPD-SL System
• Release Force: 200N suitable for all weight classes from approx. 45kg
• Dimensions: 92mm x 58mm x 29mm (L x B x H)

Spindle (choose variant)

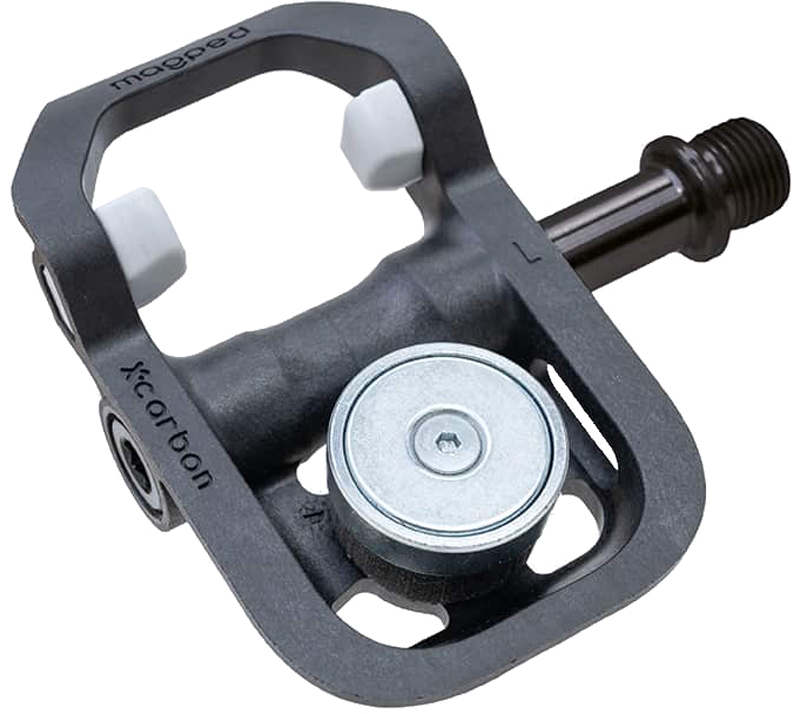

• Steel spindle

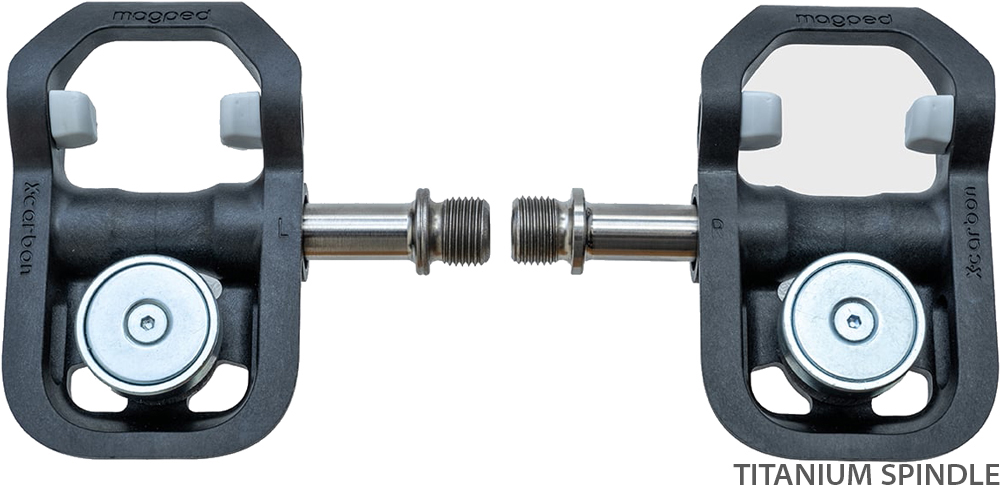

• Titanium spindle

Material

• Body: Carbon
• Axle: Titanium
• Bearings: Sealed Industrial Bearings
• Magnets: Neodym

Color

• black

Weight (manufacturer information)

• Gravel pedals with steel spindle: 264g
• Gravel pedals mit titanium spindle: 214g

Scope of Delivery

• 1 pair Magped Road2 Magnet Pedals
• 1 pair Magnets
• 1 pair Metalic plates for SPD-SL shoes
• 1 pair of plastic plates for the SPD-SL shoes
• Magnetic screws
• Allen key

For the magped ROAD you should use a road shoe use with 3 hole mount:

• fi’zi:k Tempo R5 Powerstrap
• fi’zi:k Tempo R5 Overcurve
• Scott ROAD RC SL SUPERSONIC EDT.
• Scott ROAD VERTEC BOA
• Northwave Revolution 3
• Northwave Core Plus 2
• SPECIALIZED S-WORKS VENT 2022
• SIDI Alba 2
• SIDI Genius 10
• Lake CX 238
• Lake CX 403
• Lake CX 332 Women
• Giro Stylus
• SHIMANO SH-RC3 Women
