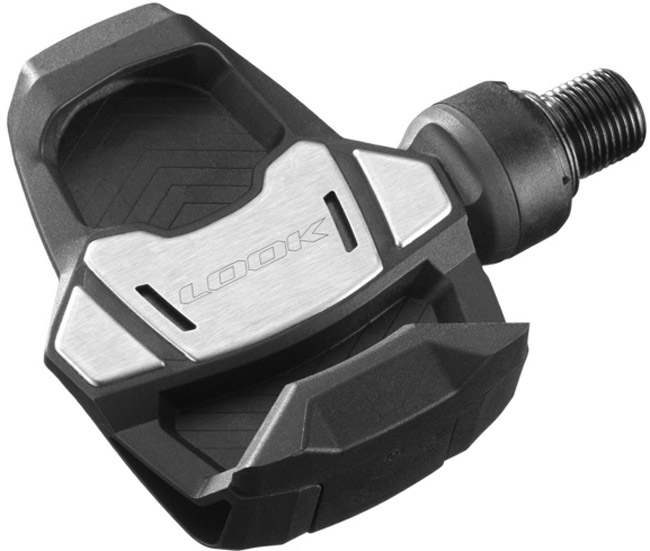

Look Keo Blade Pedals 12Nm

The Keo Blade is equipped with a Chromoly+ axle and steel ball bearings. Thanks to the patented LOOK Blade technology in an aerodynamically optimized carbon body, these clipless pedals (Q Factor 53 mm or 56 mm) offer lightness, stability and durability – but above all a large contact surface for maximum power transmission with every pedal stroke. At just 115 g per pedal and aerodynamically optimized, the Keo Blade ensures intuitive engagement and disengagement, secure grip and maximum comfort and efficiency to boost your performance on the road.

Features – Look Kéo Blade pedals

• With its 705 mm² contact surface and a supportive width of 64 mm, the Keo Blade ensures even pressure distribution under the foot
• The exclusive carbon blade technology offers unsurpassed safety, enables quick release and a superior feeling of safety
• Aerodynamic design, ultra-lightweight design, improved aerodynamics

Product features

• Range of use: Racing
• Body marerial: Carbon
• Spindle material: Chromoly+
• Bearing: Steel
• Total stack height (pedal + cleats): 14.8 mm
• Platform width: 64 mm
• Platform area: 705 mm²
• Retension: The pedals are supplied with mounted carbon 12 Nm spring blades
• Pedal plates: Kéo Grip Cleat grey
• Freedom of movement depending on cleat type
  • 0° black
  • 4.5° gray (included)
  • 9° red

Q-Factor (choose variant)

• 53 mm
• 56 mm

Color

• black

Weight

• 230 g per pair (manufacturer’s information)

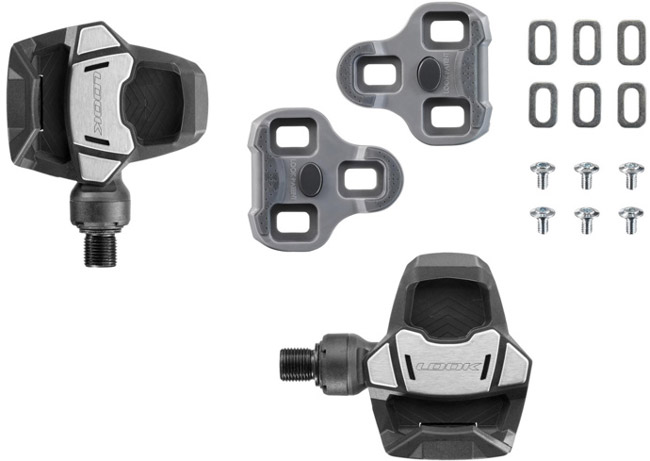

Scope of delivery

• 1 pair of Look KéO Blade pedals incl. cleats

Technology

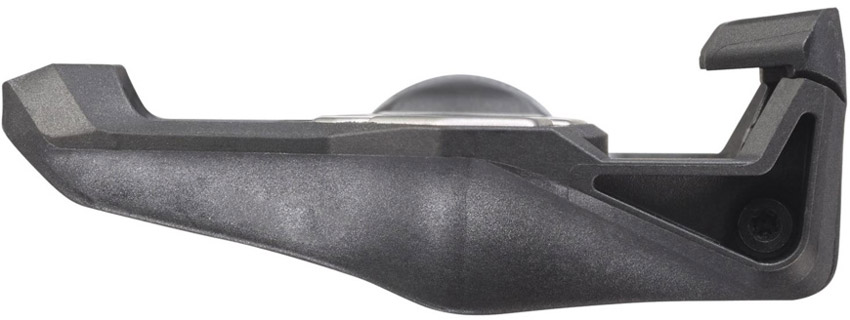

Aerodynamic design
The new design optimizes the front section and the transition between shoe and pedal to reduce pedal drag. The elegant lines of the spring harmonize seamlessly with each other and make the Kéo Blade the leader in its category in terms of aerodynamics. This fusion of aesthetics and efficiency redefines the performance standards for demanding cyclists.

Increased comfort
With its 705 mm² contact area and a width of 64 mm, the Keo Blade ensures even pressure distribution under the foot with every pedal stroke. This setup minimizes the risk of “hot spots” or foot discomfort, regardless of the stiffness of your shoes. The extended contact surface consisting of three stainless steel plates provides more stability and reduces unwanted movements and lateral tilting when pedalling.

Simplified tension adjustment
Blade technology offers 4 tension levels: 8/12/16/20. In less than 30 seconds, you can change the springs with a single special tool to choose your ideal tension.
