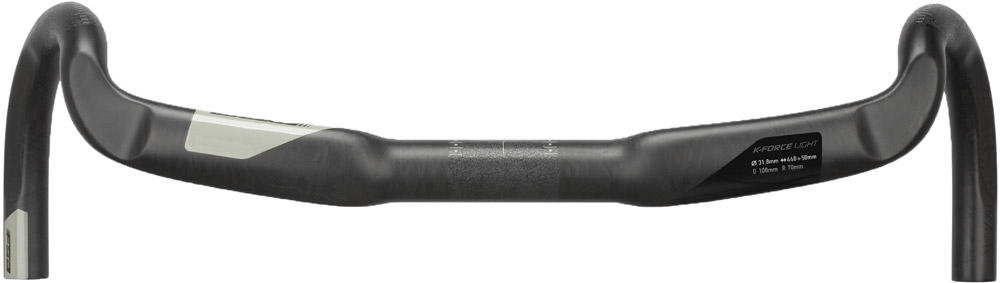

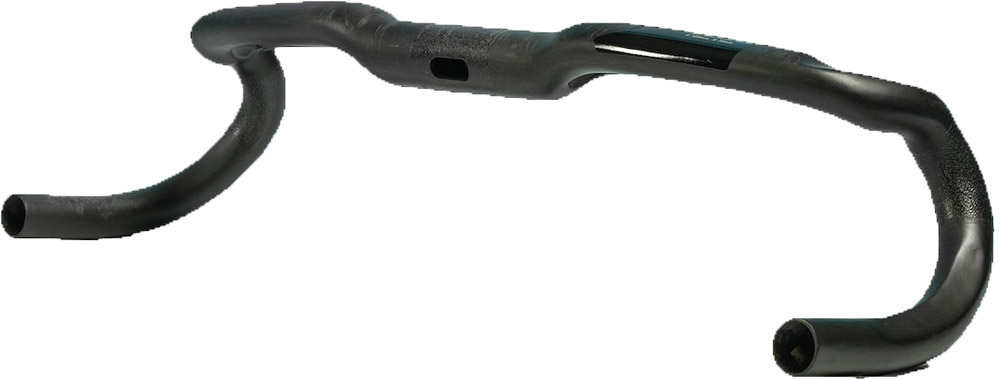

FSA K-Force AGX Carbon Gravel Handlebar

Features – FSA K-Force AGX Carbon Gravel handlebars

• Handlebars for gravel, race, bikepacking and adventure
• Ergonomically shaped grip positions and attachment markings for hoods/drops

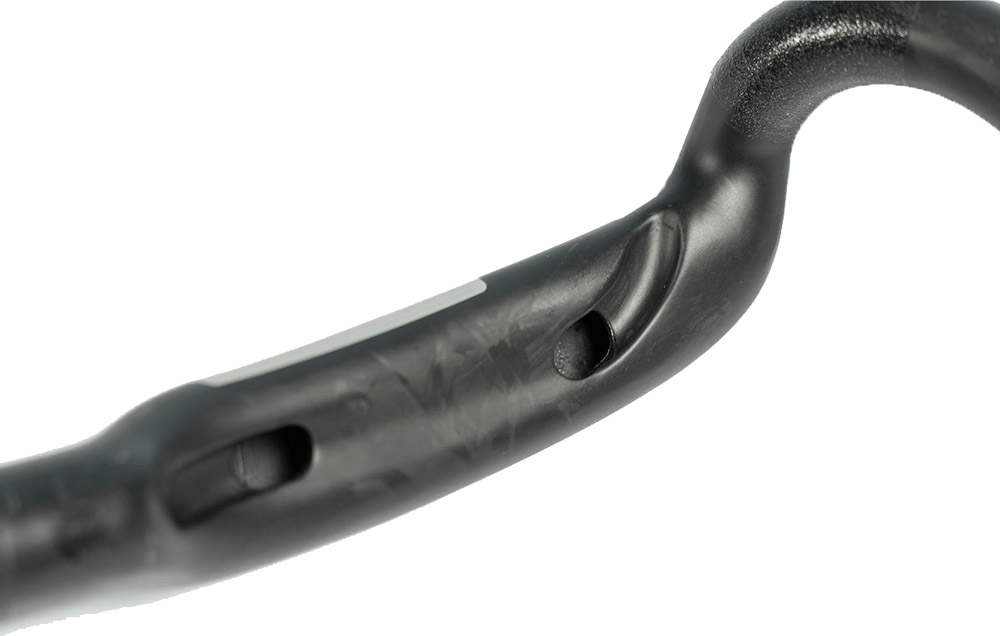

• Aerodynamic integrated cable routing (ACR)
• Sculpted contact points for the “hoods” and “drops” riding positions for better ergonomics
• Flared drops for better control and clearance when descending
• 100 mm wide center clamp for easy mounting of aero bars and accessories
• Shorter reach and drop for improved control and ergonomics

Product features

• Range of use: Adventure, gravel and bikepacking
• Shape design: Compact
• Technology: ACR, AGX
• Reach: 70 mm
• Drop: 100 mm
• Flare: 25°
• Front sweep: 10°
• Offset: 50 mm
• Clamping: Ø31.8 mm

Width (choose variant)

• 420 mm
• 440 mm
• 460 mm

Material

• Carbon

Weight (manufacturer information)

• 235 g (420 mm)

Scope of delivery

• 1 x FSA K-Force AGX Carbon Gravel handlebar

Technology

AERODYNAMIC CABLE ROUTING SYSTEM (ACR)
The ACR system, a fully integrated aerodynamic cable routing solution that routes all cables, wires and hoses internally, is available for top-of-the-range FSA handlebars. At the heart of the ACR system is a headset and integrated cockpit (or stem) that provides manufacturers with a “plug-in” solution for clean and simple cable routing for their frames. By using standard headset dimensions, the system maintains frame stability, and because the cables are routed through the headset, a round steering column is also safely maintained. In addition, brands have the flexibility to use a single-frame design with a variety of specifications by simply customizing the cockpit and headsets.

FSA AGX | Product line for Adventure, Gravel and Cyclocross.
