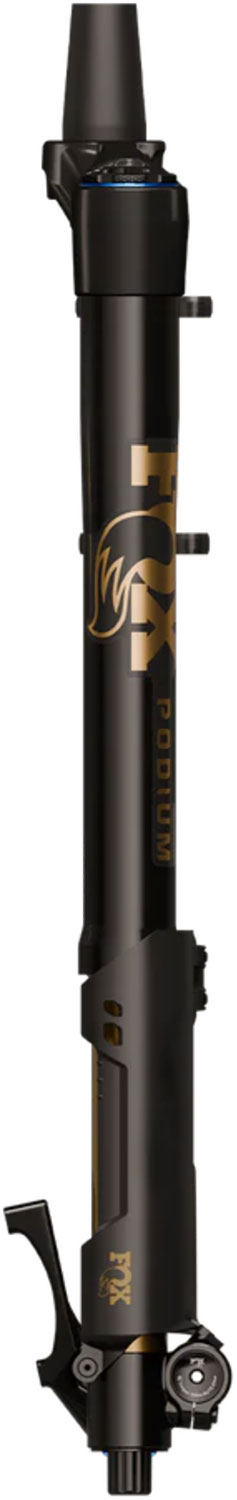

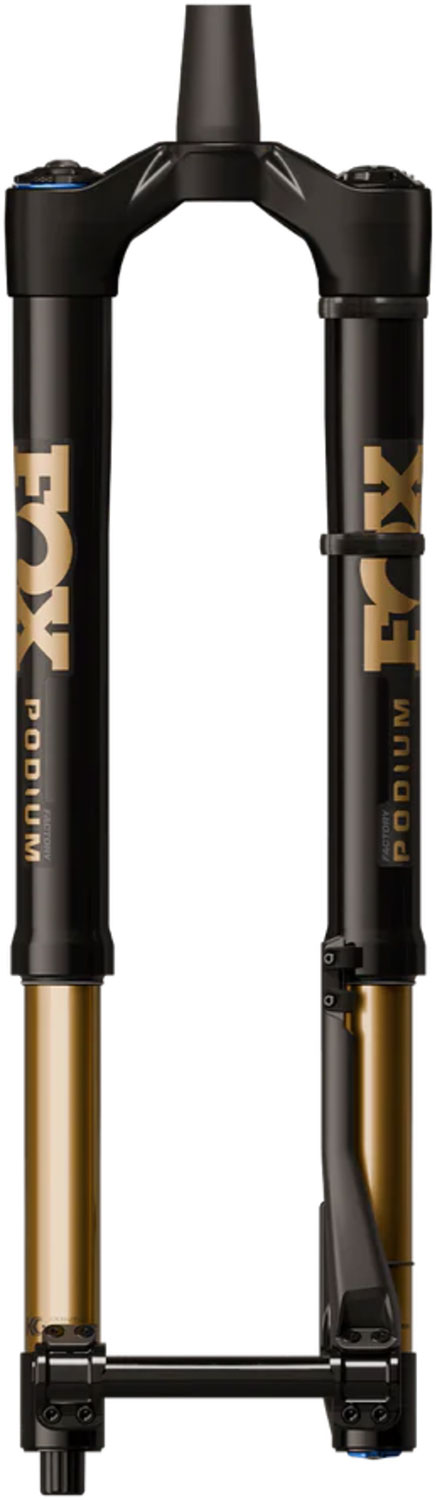

Fox Racing Shox Podium Factory Grip X2 58HT 29″ Upside-down fork

Fox Racing Shox Podium Factory Grip X2 – The ultimate MTB upside-down fork for Downhill & Enduro

The Podium Factory Grip X2 sets new standards for MTB performance. Developed like a downhill fork, it offers uncompromising control, maximum torsional stiffness and a smooth response – even on the toughest trails.

The innovative upside-down design with massive 47 mm fork tubes, the award-winning GRIP X2 damping and GlideCore technology ensure first-class riding comfort, less fatigue and maximum traction in every situation. Whether steep descents, technical corners or rough high-speed passages – with the Podium Factory Grip X2 you ride at racing level.

Features – Fox Racing Podium Factory Grip X2

• LARGE DIAMETER AXLE – Inverted forks have no arch, so achieving sufficient torsional stiffness was a challenge in the past. Using a custom steel 20 x 110mm Boost DH axle we achieved the optimum torsional stiffness for Podium, verified with extensive (and blind) testing by our engineers and athletes.
• GLIDECORE AIR SPRING – GlideCore reduces friction by moving with the fork under dynamic load. Large Nitrile Butadiene rings dampen and control this motion laterally under load and axially to reduce breakaway friction. The result? Smoother suspension action and less overall fatigue.
• CUSTOM TUNED GRIP X2 DAMPER – Podium is powered by the award-winning GRIP X2 damper, tuned for more compression support to account for reduced chassis friction. Riders sit higher in the travel and corner with increased traction, giving greater confidence while reducing fatigue significantly.
• OVERSIZED UPPERS. OVERBUILT CROWN. – Podium’s oversized 47mm upper tubes and massive crown give it incredible fore-aft rigidity. The chassis stiffness approaches that of a FOX 40, letting you power through the roughest and steepest trails with absolute confidence, even at Downhill race speed.

Product features

• Use: Downhill
• Wheel size: 29″
• Spring: Air
• Offset: 44 mm
• Damping: GripX2
• Adjustments: Compression/Rebound, spring hardness over air pressure
• Adjustments GripX2 damper:
  • High-speed compression: 8 clicks
  • Low-speed compression: 18 clicks
  • High-speed rebound: 8 clicks
  • Low-speed rebound: 16 clicks
• Steerer: 1 1/8″
• Steerer length: 245 mm
• Upper Tubes: 36 mm
• Disc brake mount: Post Mount (PM8 – Direct Mount 203 mm)
• Maximum Rotor Size: 230 mm
• Drop out: 20×110 mm Boost Thru Axle
• Crown diameter: 58 mm

Travel (choose variant)

• 160 mm
• 170 mm

Material

• Steerer: Aluminum
• Crown: Aluminum
• Lowers: Magnesium
• Upper Tubes: Aluminum  (Kashima Coat)

Color

• black ano/kashima

Weight (manufacturer information

• approx. 2695 g

Scope of delivery

• 1 x Fox Racing Podium Factory GripX2 Upside-down fork
• 1 x Fox Racing Boost Thru Axle 20×110 mm
• 1 x Star nut

Technologies

GRIPX2
To create the ultimate descent-focused damper, Fox sought the level of tunability seen in motocross and supercross racing suspension. The award-winning Grip 2 damper had a 20mm base valve diameter and seven valves. Grip X2 scaled up the tunability by increasing the base valve diameter to 24mm with 23 valves. The result is the most tunable, supportive, and smoothest descent-focused fork damper ever created by FOX. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground. They can corner with increased traction, giving them the confidence to push the limits of downhill and enduro racing, all while reducing overall rider fatigue.

Kashima Coat
Buttery-smooth, Genuine Kashima Coat’s distinctive gold color is backed by its high performance attributes – properties that provide an exceptionally smooth feel and extreme durability. All Factory Series Forks – Now available on the entire Factory Series fork lineup. Buttery-smooth, Genuine Kashima Coat is available only from FOX – the Kashima Coat logo is individually pad-printed on each stanchion.

Walkthrough: The new Podium fork – the first inverted single crown fork from FOX ” ACADEMY | FOX
