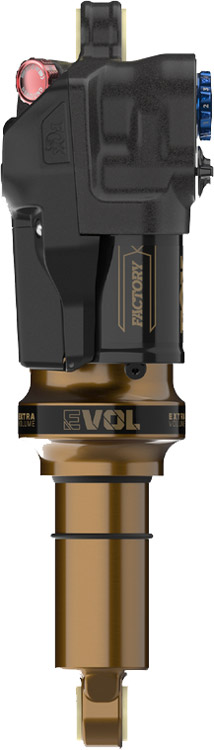

Fox Racing Shox Float X LiveValve Neo Shocks

Features – Fox Racing Float X LiveValve Neo shock

• FOX-SPECIFIC RECHARGEABLE LITHIUM BATTERY – interchangeable with Transfer Neo seatpost
• SHAKE TO WAKE FUNCTION – when activated, LiveValve Neo turns on automatically when bike moves and wheels are bumped
• BUMP LED INDICATION – when enabled, any bump will illuminate the ring around the power button on your controller
• BATTERY LEVEL INDICATOR SURROUNDS POWER BUTTON – when inserting battery, powering on, or briefly pressing the power button while the system is awake
• 2-POSITION MAGNETIC LATCHING SOLENOID – for quick and quiet transitions between open and firm shock position
• Shock defaults to open position in event of a dead battery
• SENSORS USE COMMON CR2032 COIN CELL BATTERIES – easily replaceable without removing sensor from bike
• TOOL-FREE FIRM MODE ADJUSTER – controls the firmness of the shock’s platform when the 2-Position solenoid is closed

Product Features

• Use: All-Mountain
• Mounting: Standard
• Version: LiveValve Neo
• Suspension: Air
• Settings:
  • Firm Mode Adjust: 6 Klicks
  • Lowspeed-Compression: 10 Klicks
  • Lowspeed-Rebound: 12 Klicks

Installation length / Stroke (choose variant)

• 210-50
• 210-52.5
• 210-55
• 230-57.5
• 230-60
• 230-62.5
• 230-65

Color

• Black

Scope of delivery

• 1 x Fox Racing Float X LiveValve Neo shock

Note: The Live Valve Neo Kit (with sensors, controller battery and mounting material) is sold separately and is required for the FLOAT X Live Valve Neo shock to function correctly

Technology

EVOL – Extra Volume
The Extra Volume (EVOL) air sleeve significantly reduces the force to initiate travel, providing added sensitivity and better small bump compliance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
