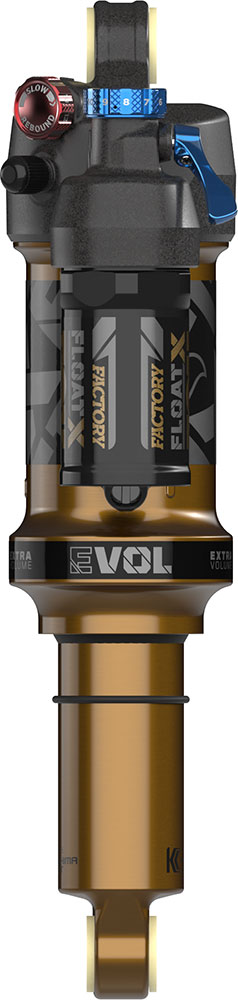

Fox Racing Shox Float X Factory 2Pos-Adj Shock

The master of All-Mountain: The Float X Factory 2Pos-Adj Shock from Fox Racing

From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of FLOAT X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.

Tool-free adjustment for compression and rebound means the FLOAT X can be quickly and easily set up or tuned for the current trail and riding conditions. The numbered 11-click low-speed compression dial and 2-position (Open or Firm) lever switch run on independent circuits, giving all-mountain riders the descent tuneability they need with the convenience of a single switch for climbing.

Each size of the FLOAT X is paired with a specific length of piggyback reservoir, giving the shock just the right amount of volume for maximum performance-to-weight ratio. Paired with the large EVOL air chamber, ride feel remains consistent over long descents. A hard-hitting shock geared for the gamut of aggressive trail and all-mountain riding while fitting a wide range of frame designs and geometries.

“Factory” says it all – feature-packed and designed to exceed the demands of our Factory-level riders. What we sell is what they race.

Features – Fox Racing Float X Factory 2pos- Adj Evol Shock

• High-flow main piston for excellent performance, tuneability and reduced damper noise
• Volume spacers in precise increments
• MCU bottom out bumper for end-stroke progressivity
• Numbered tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit – Clockable 2 position adjuster
• Wide range of rebound adjustment
• Optimized reservoir lengths per shock size
• Hydraulic top out feature
• Large air volume for lower average operating pressures
• Bearing hardware compatible both sides
• Convenient air valve location for frame fitment and pump access

Product Features

• Use: All-Mountain, Trail, Enduro, Downhill
• Version: Factory
• Mounting: Standard
• Suspension: Air
• Settings:
  • Low-Speed-Rebound 11 clicks
  • Low-Speed-Compression 11 clicks
  • 2 Position Open/Firm lever

Installation length / Hub (choose variant)

• 190-45
• 210-50
• 210-52,5
• 210-55
• 230-57,5
• 230-60
• 230-62,5
• 230-65

Color

• kashima coated

Scope of delivery

• 1 Fox Racing Float X Factory 2pos- Adj Evol Shock

Damper bushings not included!

Technology

EVOL – Extra Volume
The Extra Volume (EVOL) air sleeve significantly reduces the force to initiate travel, providing added sensitivity and better small bump compliance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
