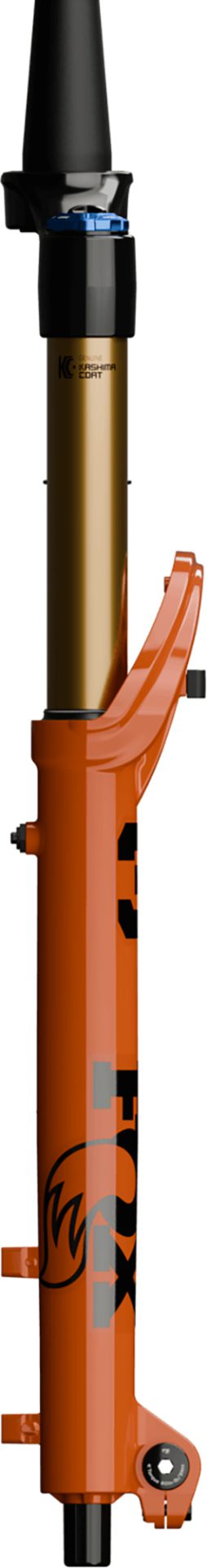

Fox Racing Shox 36 K Float 29″ Factory 160 Grip X Tapered Kabolt-X Boost

Features – Fox Racing 36 K Float 29″ Factory 160 Grip X Tapered Kabolt-X Boost

• FLOAT EVOL air spring adds plushness
• Downhill-oriented GRIP-X damping cartridge with high-speed and low-speed compression damping
• Factory Series models feature Genuine Kashima Coat
• Completely redesigned immersion tube unit, optimum stiffness/weight
• Air and oil channels in the immersion tube unit
• New fork bridge design for more space in the head tube area; big advantage for shorter offsets
• Adjusted fork crown diameter for optically even transition between voluminous steering tubes and fork crown

Product features

• Use: All Mountain, Enduro
• Wheel size: 29″
• Spring: Air
• Damping: GripX Fit Adjust
• Adjustments: Rebound, spring hardness over air pressure, GripX 2-position compression (Open/Firm) with Adjust
• Adjustments GripX damper:
  • High-speed compression: 15 clicks
  • Low-speed compression: 16 clicks
  • Low-speed rebound: 17 clicks
• Steerer: Tapered 1.5″ auf 1 1/8″
• Steerer length: 265 mm
• Upper Tubes: 36 mm
• Disc brake mount: Post Mount (PM7 – Direct Mount 180 mm)
• Maximum Rotor Size: 230 mm
• Drop out: 15×110 mm Kabolt-X Thru-Axle
• Offset: 44 mm
• Travel: 160 mm

Material

• Steerer: Aluminium
• Crown: Aluminium
• Lowers: Magnesium
• Upper Tubes: Aluminium (Kashima Coat)

Color

• shiny orange /kashima

Weight

• approx. 2005 g

Scope of delivery

• 1 x Fox Racing 36 K Float 29″ Factory 160 Grip X Tapered Kabolt-X Boost
• 1 x Fox Racing Boost Thru Axle Kabolt-X
• 3 x Volumen Spacer
• 1 x Star nut

Technologies

GRIPX
When it’s time to climb, simply rotate the high-speed compression adjuster clockwise until you feel the final distinct click. At that point, Grip X simultaneously closes both high and low-speed compression, allowing a firm platform for efficient power transfer to the pedals. Before dropping in, back the highspeed adjuster off to the desired setting and descend with all the added traction and predictability, without compromise.

Kashima Coat
Buttery-smooth, Genuine Kashima Coat’s distinctive gold color is backed by its high performance attributes – properties that provide an exceptionally smooth feel and extreme durability. All Factory Series Forks – Now available on the entire Factory Series fork lineup. Buttery-smooth, Genuine Kashima Coat is available only from FOX – the Kashima Coat logo is individually pad-printed on each stanchion.

FLOAT Airspring
The FLOAT air spring system developed for 32, 34 and 40 is lighter and reduces the force to initiate travel, providing excellent sensitivity and small bump compliance for all riders and pressure settings. Similar to our FLOAT rear shocks, the new FLOAT system features positive and negative air springs that automatically equalize during use to give each rider the right pressure balance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.

EVOL
A more linear spring curve gives EVOL forks and shocks plushness off the top, extra mid-stroke support, and more tunable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel. The EVOL technology from rear shocks is now integrated into all FOX forks. EVOL increases negative air spring volume, specifically positioned and sized for optimum small bump sensitivity.

Air Volume Spacers
The progressiveness of the FLOAT air spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
