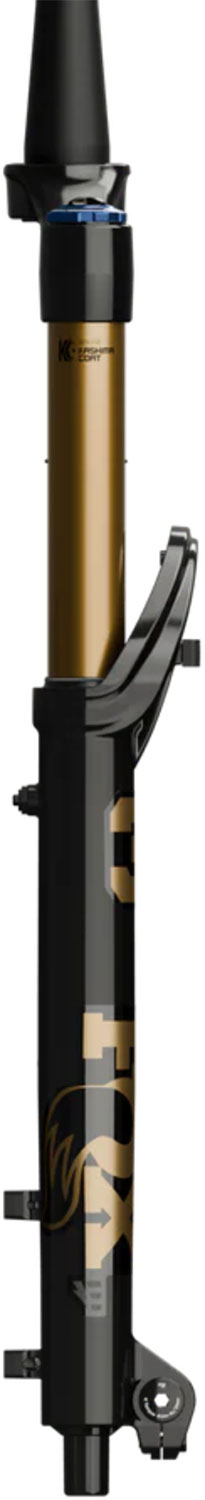

Fox Racing Shox 36 K Float 29″ E-Optimized Factory Grip X2 Tapered Kabolt Boost

GRIP X2 is the most tunable, supportive and smoothest descent-focused damper ever created by FOX. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction. It gives you the confidence to push the limits of downhill and enduro racing, all while reducing overall rider fatigue. GRIP X2 is the winning difference.

Features – Fox Racing 36 K Float 29″ Factory GripX2

• FLOAT EVOL air spring adds plushness
• Downhill-oriented GRIP-X2 damping cartridge with high-speed and low-speed compression damping
• Factory Series models feature Genuine Kashima Coat
• Completely redesigned immersion tube unit, optimum stiffness/weight
• Air bleed system ensures consistent fork performance at any altitude
• Air and oil channels in the immersion tube unit
• New fork bridge design for more space in the head tube area; big advantage for shorter offsets
• Adjusted fork crown diameter for optically even transition between voluminous steering tubes and fork crown

Product features

• Use: All Mountain, Trail
• Wheel size: 29″
• Travel: 160 mm
• Spring: Air
• Damping: GripX2
• Adjustments: Compression/Rebound, spring hardness over air pressure
• Adjustments GripX2 damper:
  • High-speed compression: 8 clicks
  • Low-speed compression: 18 clicks
  • High-speed rebound: 8 clicks
  • Low-speed rebound: 18 clicks
• Steerer: Tapered 1.5″ auf 1 1/8″
• Steerer length: 265 mm
• Upper Tubes: 36 mm
• Disc brake mount: Post Mount (PM7 – Direct Mount 180 mm)
• Maximum Rotor Size: 230 mm
• Drop out: 15×110 mm Thru-Axle
• Offset: 44 mm
• Fork crown diameter: 58 mm
• E-Bike ready: Yes

Material

• Steerer: Aluminium
• Crown: Aluminium
• Lowers: Magnesium
• Upper Tubes: Aluminium (Kashima Coat)

Color

• shiny black kashima, black decals

Scope of delivery

• 1 x Fox Racing 36 K Float 29″ E-Optimized Factory GripX2 Boost (no box packaging)
• 1 x Fox Racing Boost Thru Axle 15×110 mm Kabolt
• 1 x Cable Routing

Volume Spacer, star nut not included!

Technologies

GRIPX2
To create the ultimate descent-focused damper, Fox sought the level of tunability seen in motocross and supercross racing suspension. The award-winning Grip 2 damper had a 20mm base valve diameter and seven valves. Grip X2 scaled up the tunability by increasing the base valve diameter to 24mm with 23 valves. The result is the most tunable, supportive, and smoothest descent-focused fork damper ever created by FOX. Riders reap the benefits of sitting higher in the travel while tires stay glued to the ground. They can corner with increased traction, giving them the confidence to push the limits of downhill and enduro racing, all while reducing overall rider fatigue.

Kashima Coat
Buttery-smooth, Genuine Kashima Coat’s distinctive gold color is backed by its high performance attributes – properties that provide an exceptionally smooth feel and extreme durability. All Factory Series Forks – Now available on the entire Factory Series fork lineup. Buttery-smooth, Genuine Kashima Coat is available only from FOX – the Kashima Coat logo is individually pad-printed on each stanchion.

FLOAT Airspring
The FLOAT air spring system developed for 32, 34 and 40 is lighter and reduces the force to initiate travel, providing excellent sensitivity and small bump compliance for all riders and pressure settings. Similar to our FLOAT rear shocks, the new FLOAT system features positive and negative air springs that automatically equalize during use to give each rider the right pressure balance. The progressiveness of the spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.

EVOL
A more linear spring curve gives EVOL forks and shocks plushness off the top, extra mid-stroke support, and more tunable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel. The EVOL technology from rear shocks is now integrated into all FOX forks. EVOL increases negative air spring volume, specifically positioned and sized for optimum small bump sensitivity.

Air Volume Spacers
The progressiveness of the FLOAT air spring curve can be adjusted via air volume spacers, allowing riders to fine-tune the feel of the air spring.
