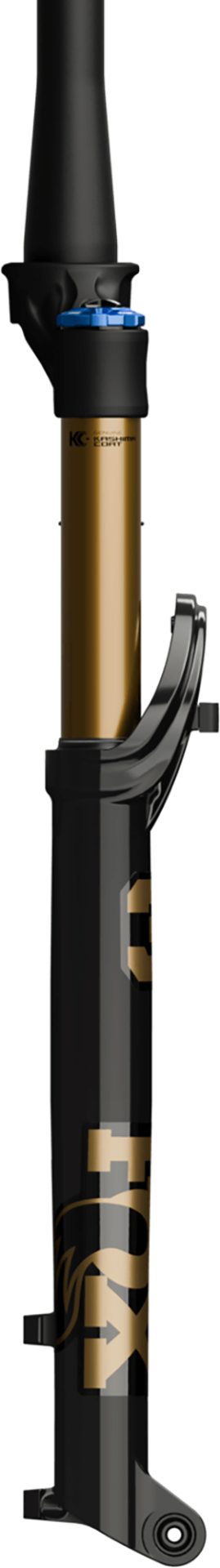

Fox Racing Shox 34 SL K Float 29″ Factory 130 Grip X Tapered Kabolt Boost

Features – Fox Racing 34 SL K Float 29″ Factory GripX

• SL version offers more stiffness and only a minimal weight increase compared to the 34 Step-Cast
• FLOAT EVOL air spring adds plushness
• Downhill-oriented GRIP-X damping cartridge with high-speed and low-speed compression damping
• Factory Series models feature Genuine Kashima Coat
• New arch shape offers improved head tube clearance with shorter rakes
• New 58 mm diameter crown
• New air/oil channels

Product Features

• Application: XC
• Wheel size: 29″
• Suspension: Air
• Suspension travel: 130 mm
• Damping: GripX with fine tuning
• Adjustability: Compression/rebound, spring stiffness via air pressure, GripX 3-position compression (Open/Medium/Firm) with fine tuning
• GripX damper adjustability:
  • rebound: 10 clicks
• Steerer tube: Tapered 1.5″ to 1 1/8″ (tapered)
• Fork steerer length: 265 mm
• Stanchions: 34 mm
• Disc brake mount: Post Mount (PM7 – Direct Mount 180 mm)
• Maximum recommended brake rotor size: 203 mm
• Dropouts: 15×110 mm Boost Kabolt thru axle
• Offset: 44 mm

Material

• Steerer tube: Aluminum
• Fork crown: Aluminum
• Dip tubes: Magnesium
• Stanchions: Aluminum (Kashima Coat coating)

Color

• shiny black/kashima

Weight

• approx. 1510 g

Scope of delivery

• 1 x Fox Racing 34 SL K Float 29″ Factory 130 Grip X Tapered Kabolt Boost
• 1 x Fox Racing Kabolt thru axle
• 1 x Ahead claw
• Incl. volume spacer

Technologies

GRIPX
Trail and all-mountain riders no longer have to choose between a downhill-oriented shock and a lightweight endurance shock. The GRIP X offers outstanding downhill performance, optimized for less weight, easier adjustment and an easily accessible fixed mode for efficient pedaling.

Kashima Coat finish
The distinctive gold Genuine Kashima Coat coating provides superior overall performance and ensures minimal friction and optimum responsiveness with maximum durability. All Factory Series Forks – Now available for all Factory Series forks. The Genuine Kashima Coat coating for a buttery smooth ride is exclusive to FOX – the Kashima Coat logo is applied to both stanchions.

FLOAT air spring – patented air balancing technology
The FLOAT air suspension system for the 32, 34 and 40 is lighter and reduces the compression release force, providing excellent ride comfort and better response to small bumps for all riders and at all pressure settings. similar to our FLOAT shocks, the new FLOAT system features positive and negative air springs that automatically balance each other out in use to give the rider exactly the suspension response they want. The progressivity of the spring characteristic can be adjusted via air volume spacers, allowing the rider to fine-tune the spring behavior of the air spring.

EVOL
A more linear spring curve gives EVOL forks and shocks smoother top end travel, extra mid-stroke support and more tunable end progression. EVOL technology has an increased negative air spring volume. Specially positioned and dimensioned with optimum sensitivity to small bumps.

Air Volume Spacers
The FLOAT air spring on Fox forks and shocks can be fine-tuned by using volume spacers to make the suspension elements more progressive or less progressive. This allows the rider to fine-tune the suspension exactly to their needs.
