Eufab BS260 drawbar Carrier

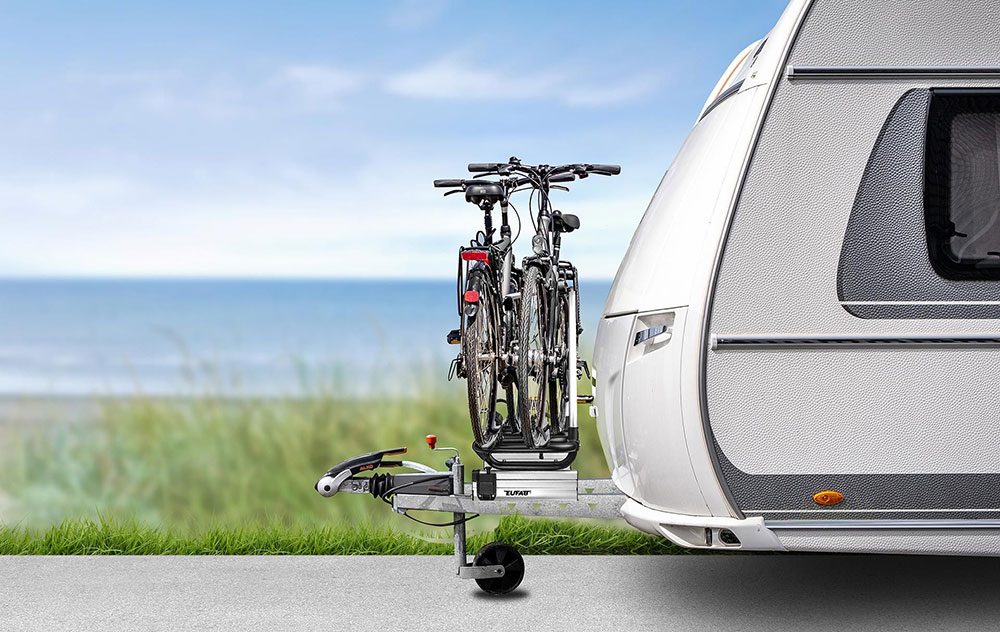

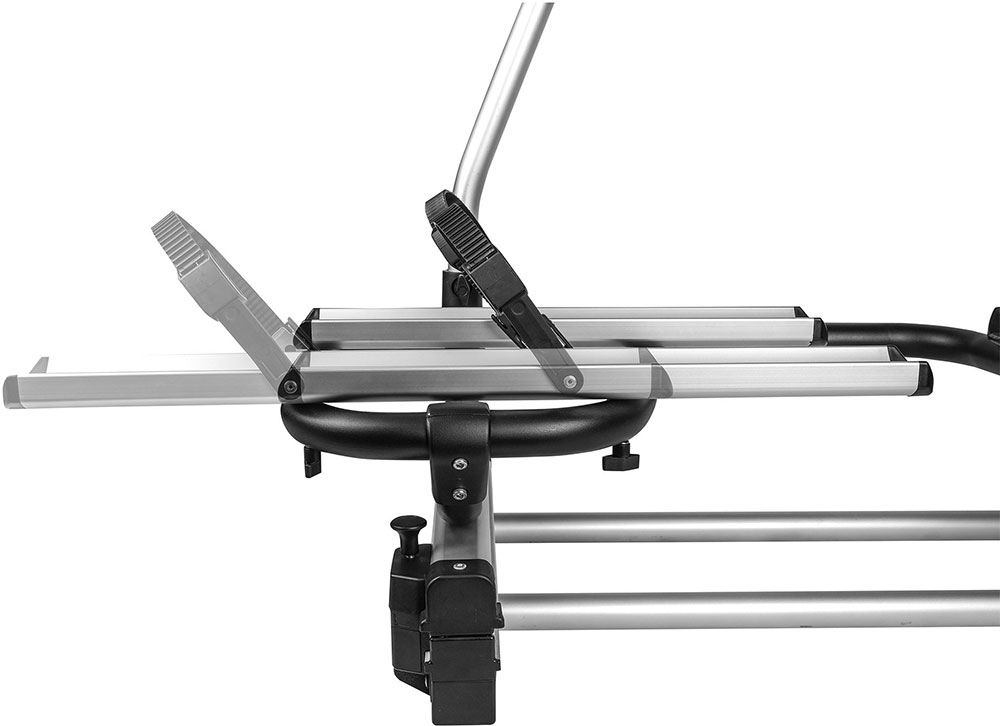

The BS260 is compatible with almost all types of caravan drawbars, carries 30 kilograms per rail and is attached to the drawbar without drilling using special fastening clamps. It is equipped with removable and lockable frame holders, tensioning straps and ratchets so that you can securely fasten your bikes. Its sturdy aluminum profile rails allow wheelbases up to 135 centimeters and accommodate tire widths up to 2.35 inches (60 millimeters).

Features – Eufab BS260 drawbar carrier

• Extra-narrow design – The EUFAB BS260 has an extra-narrow design and is therefore particularly suitable for short drawbars and deep-drawn front flaps.
• Fits for e-bikes – The BS260 is approved for the transportation of e-bikes. Please remove the batteries from your bikes before each transport – this saves weight and protects the technology.
• Low weight – It only weighs around 12.5 kilograms, but is designed to safely transport a total weight of up to 60 kilograms.

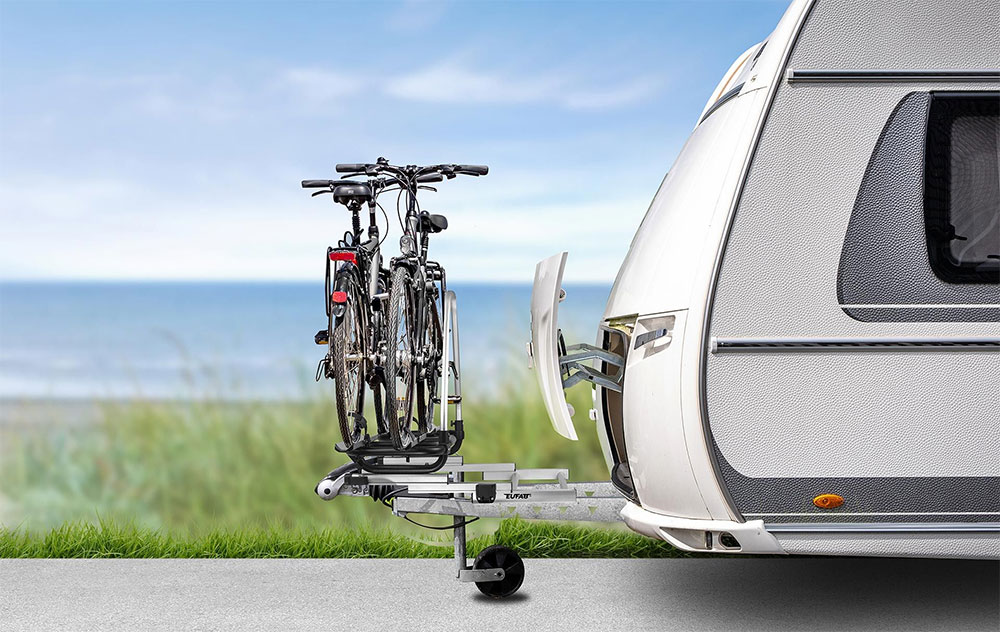

• Easy to pull out – The BS260 can be pulled out to the rear at any time when fully loaded so that you have a clear path to the stowage and bottle compartment of your caravan on your tours.
• Highly compatible – Like our other drawbar bike carriers, this model also fits almost all types of caravan drawbars.

Product features

• Lockable frame holders: yes
• Extendable: approx. 50 cm
• Attaching the bikes to the U-bracket: removable frame holders
• Securing the bikes at the rail: tensioning straps with ratchets
• E-mark (EG-BE): yes
• Number of bikes: 2 bikes
• Wheelbase: max. 135 cm
• Tire width (max.): 2.35 inch (60 mm)
• Rail spacing: approx. 20 cm
• For e-bikes: yes
• Load (max.): 60 kg
• Dimensions: 50.5 x 106-138 x 83 cm

Note: The maximum load of the bike carrier and the permissible drawbar load of the trailer coupling must not be exceeded. The permissible total weight and the permissible axle load of the vehicle must not be exceeded by the bike carrier and load.

Material

• Aluminium / plastic / steel

Weight

• approx. 12.5 kg (manufacturer information)

Scope of delivery

• 1 x Eufab BS260 drawbar carrier
