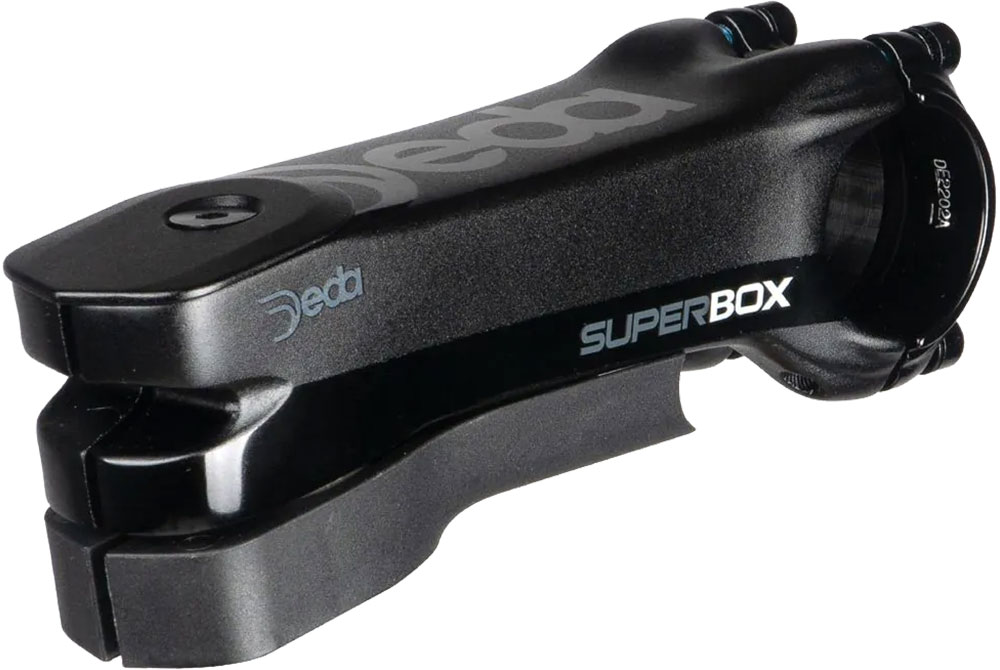

DEDA Superbox DCR Stem Ø31.7 mm

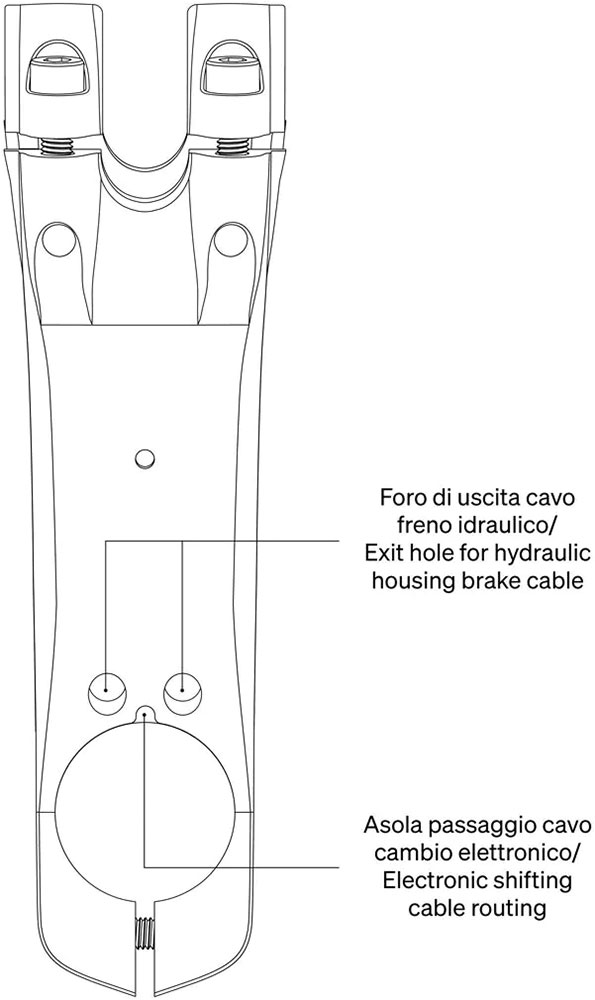

Combined with Deda handlebars featuring the DCR system (Deda internal cable routing), the stem is the perfect solution for bicycles with full internal cable routing. The Superbox® stem features a proprietary system that provides two possible mounting solutions for the internal cable routing. The complete internal cable routing (DCR) or the semi-internal cable routing (S-DCR) through a cover that allows the installation, adjustment or service without unnecessary complications for electronic cables and hydraulic housing disconnection.

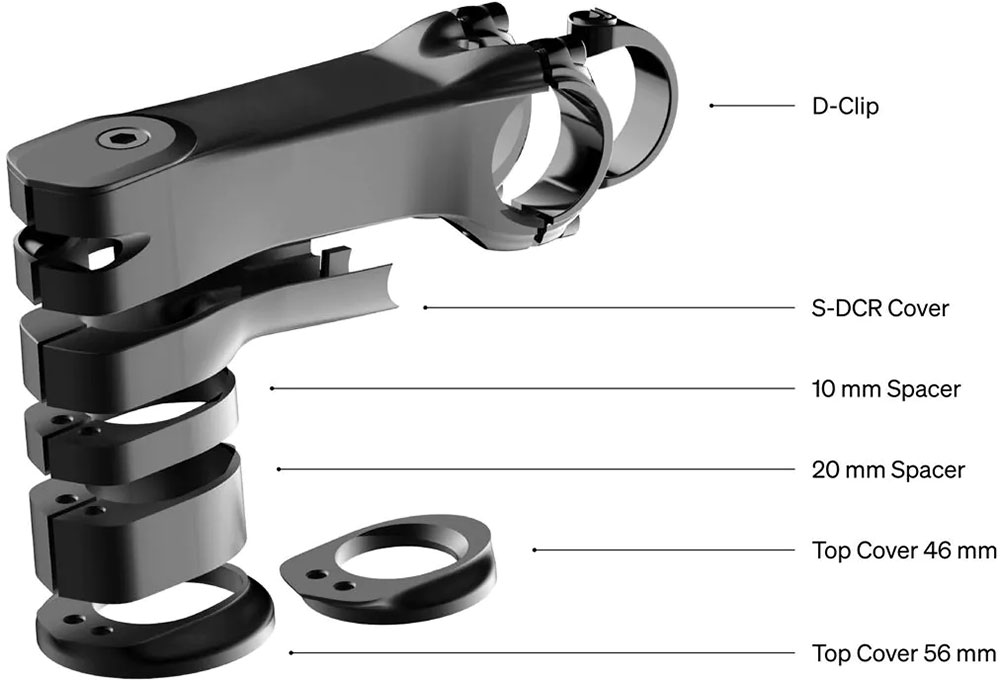

Superbox® works with 1-1/8” standard fork steerer, the stem is compatible with a 46 mm (for 1-1/8” bearing) or 56 mm (for 1.5”bearing) upper headtube. The stem package includes special spacers that provide the channels for the housing cables. Spacers and the nylon cover are designed with slits that let them pull open, they can be added or removed to get the fit right without having to remove all cables. The innovative 3D forging technology and the flat design result in a better aero performance.

Features – DEDA Superbox DCR stem

• Tidy cockpit thanks to internal cable routing
• Clever design
• With matching cover and spacers

Product features

• Range of use: Road bike
• Angle: 82°
• Clamp height: 32 mm; 47 mm (with topcover)
• Diameter handlebar: 31.8 mm
• Fork steerer: 1 1/8″ (28.6 mm)

Length (choose variant)

• 60 mm
• 150 mm
• 160 mm

Material

• Stem: 6061 aluminum
• Screws: Steel

Color

• Polish on Black

Weight (manufacturer’s specification)

• 110 mm: 175 g

Scope of delivery

• 1 DEDA Superbox DCR stem
• Incl. spacer/top cover

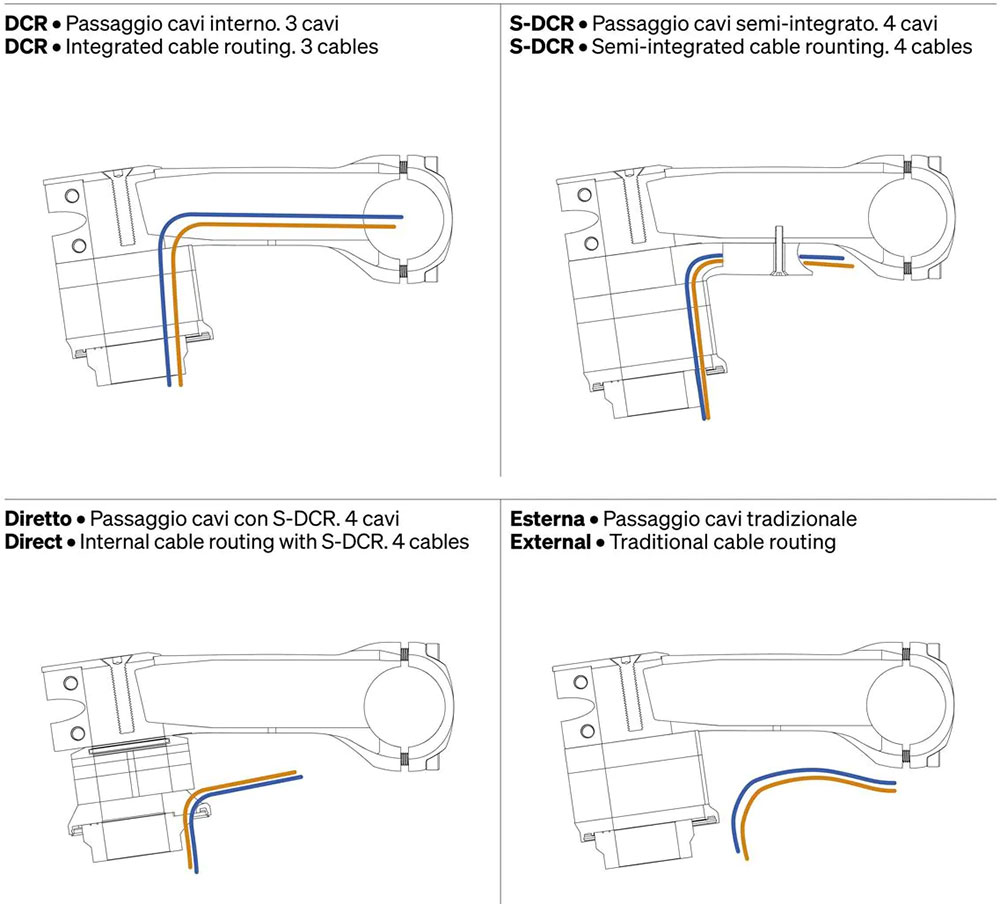

Superbox DCR: one stem four ways.
