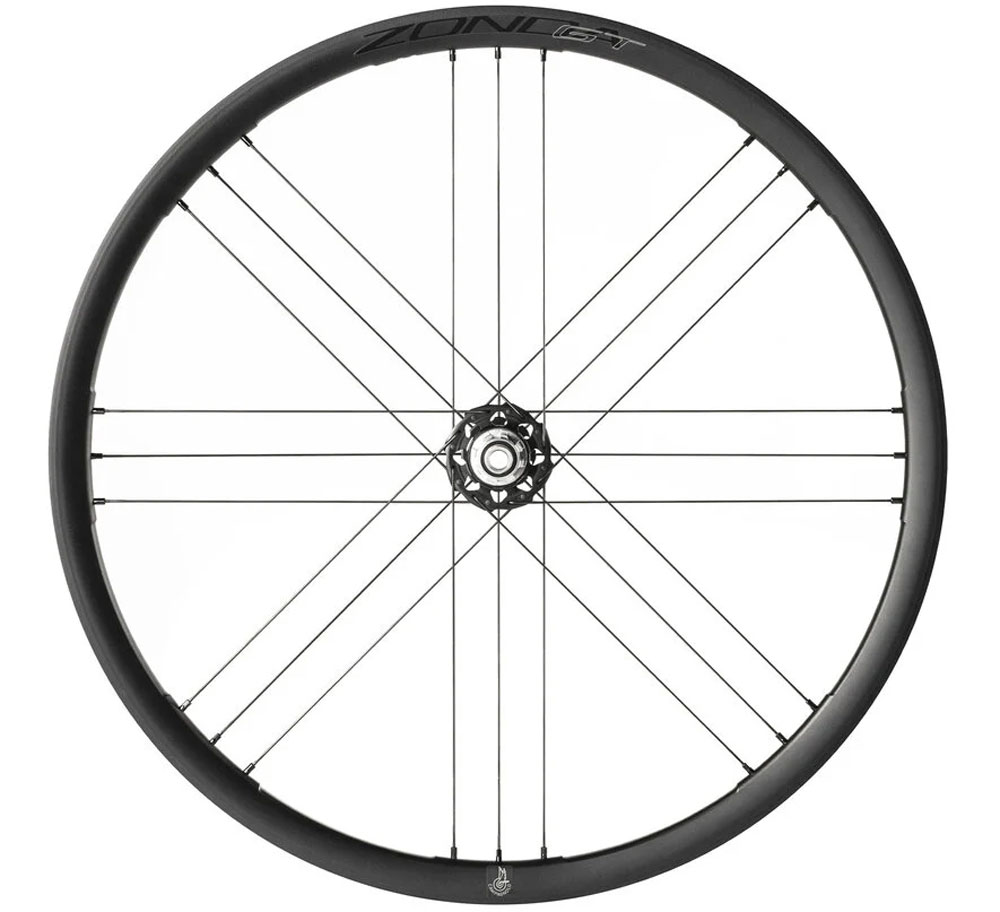

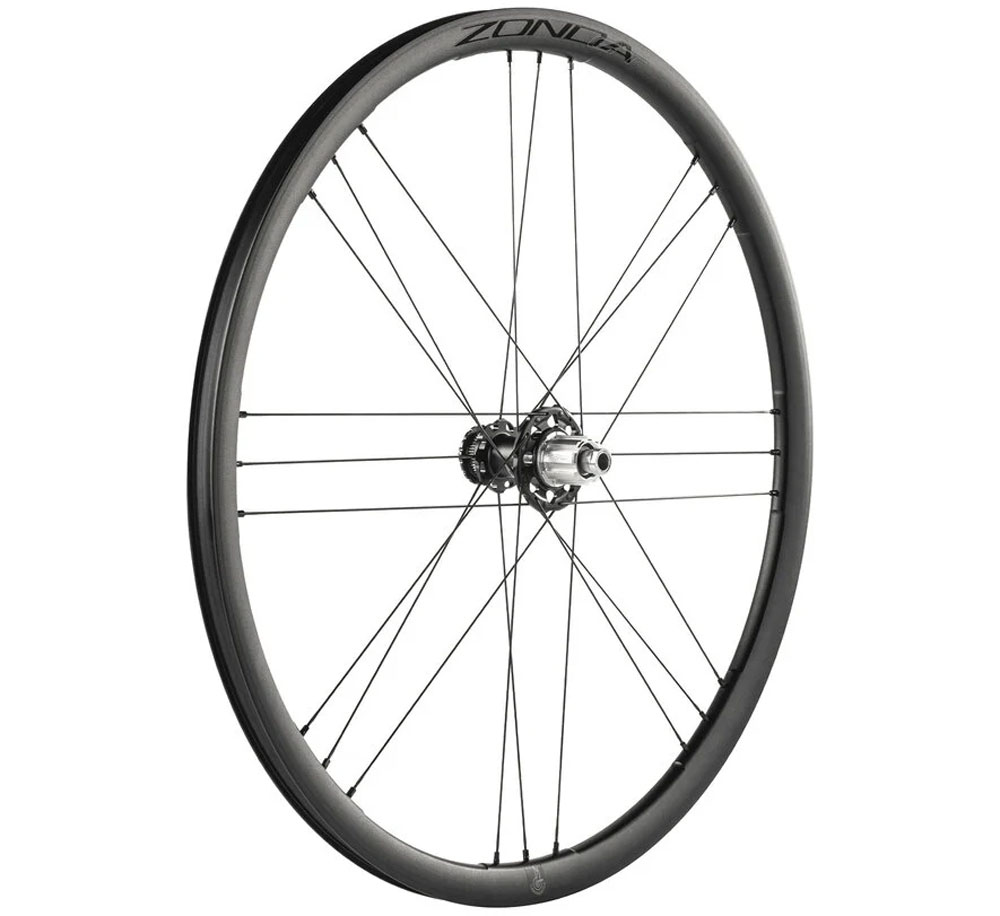

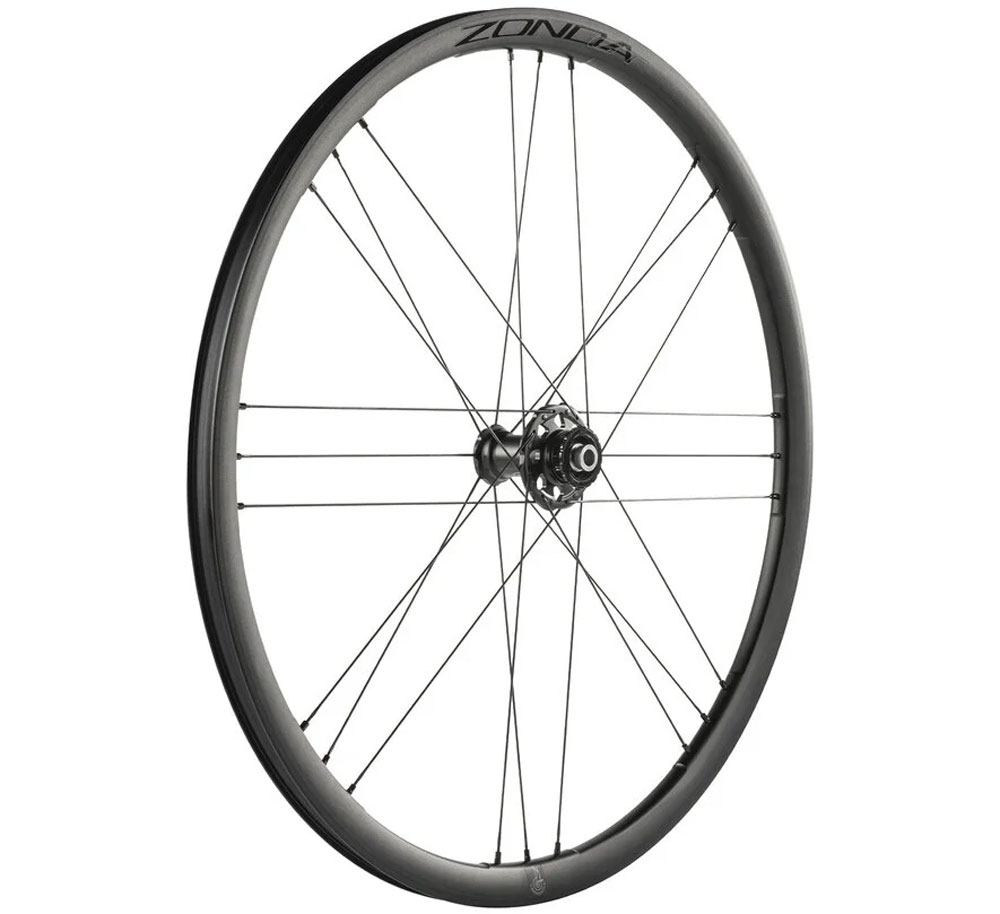

Campagnolo Zonda GT DB 2WF C23 Wheelset

Features – Campagnolo Zonda GT DB 2WF C23 wheelset

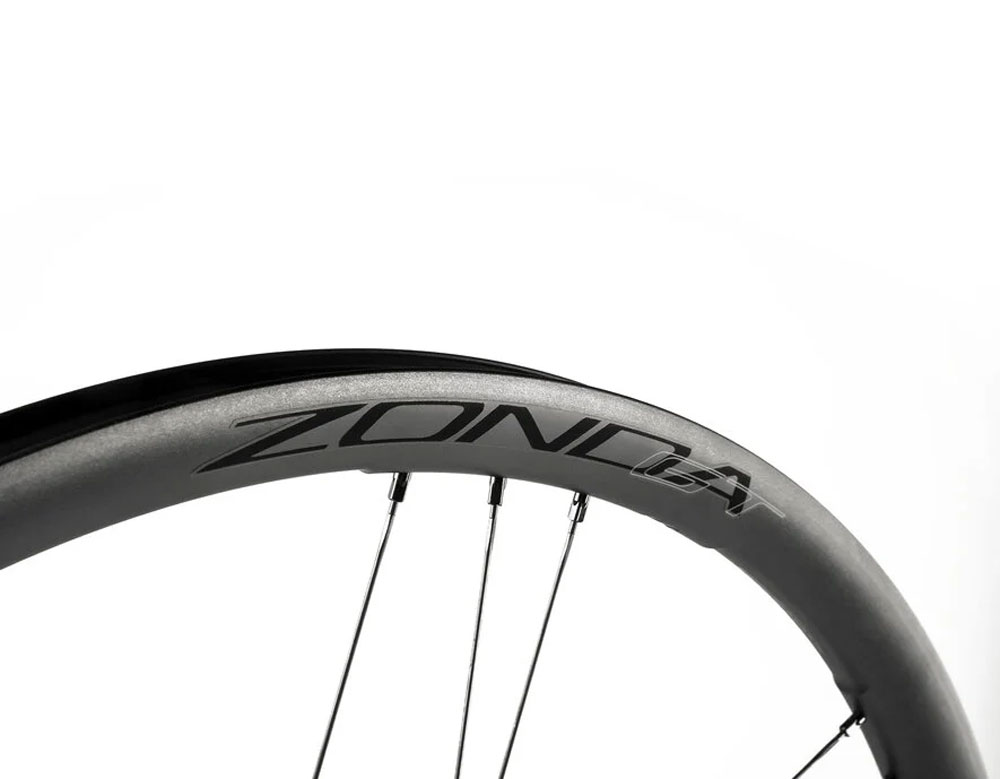

• MILLOWED RIM: Reduces the rim weight, making the wheel extremely capable of acceleration.
• RDB™ – RIM DYNAMIC BALANCE: Simple yet sophisticated: The weight of the valve is balanced by a similar weight on the diametrically opposite side.
• MOMAG™: Enables an outer rim profile without holes, which has a positive effect on both stiffness and weight.
• SPOKES: G3™ pattern also on the front wheel to improve performance under high braking power.
• FRONT WHEEL SPOKES: 24 stainless steel spokes with a circular cross-section reduced to 1.6 mm.
• REAR WHEEL SPOKES: 24 stainless steel spokes with circular cross-section reduced to 1.6 mm.
• SELF-LOCKING NIPPLES: Black anodized self-locking nipples on the outside of the rim for easier maintenance.

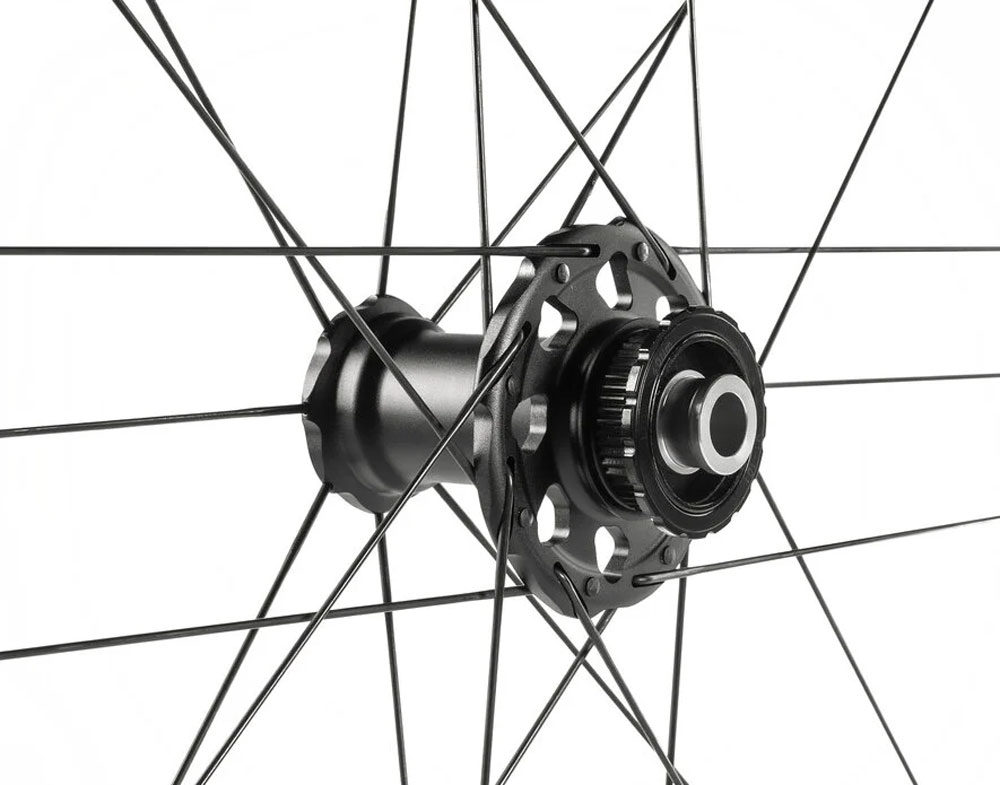

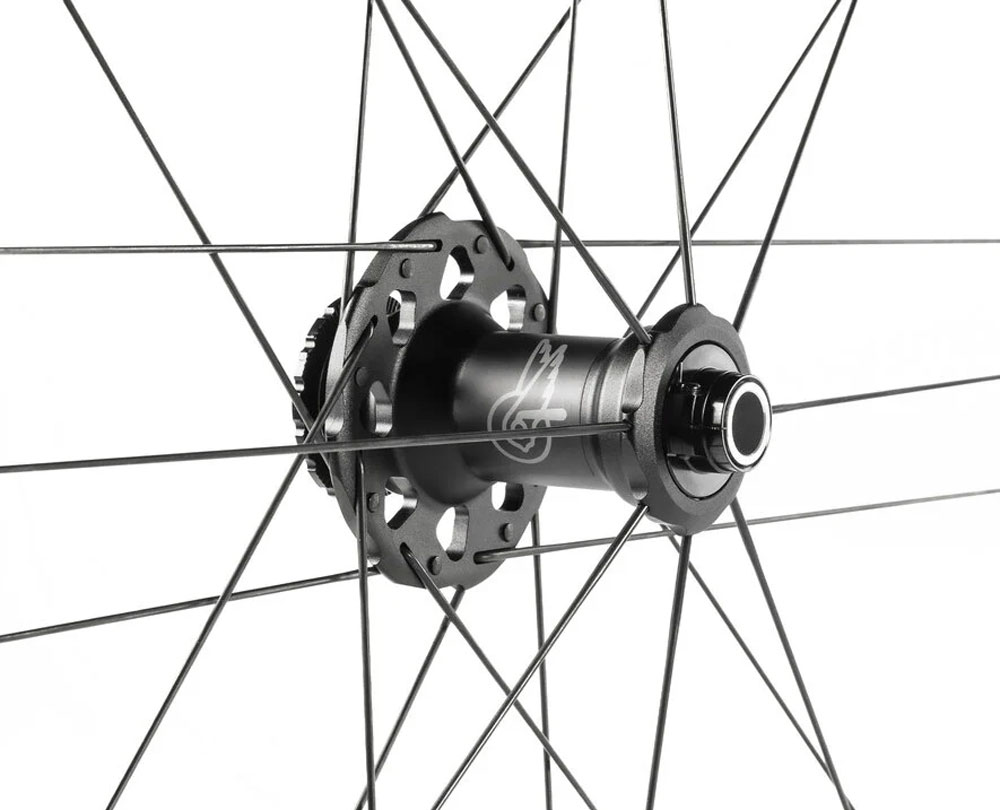

• CUP AND CONE BEARING SYSTEM: Simple bearing adjustment reduces potential play while maintaining consistent performance over time and ensuring an optimal contact angle between the ball and the surface.
• ADJUSTING RING: For precise adjustment of the hub to prevent any play.

Product features

• Use: Gravel bike / road bike
• Model: Zonda GT Disc Brake
• Rim type: Clincher
• Wheel size: 28″
• Rim size: 622x23C
• Brake type: Disc Center Lock
• Axle type: Thru axle (12 mm)
• Installation width: 100 mm front / 142 mm rear
• Bearing: Cup and cone bearing
• Inner width: 23 mm
• Outer width: 28 mm
• Rim height: 28-29.5 mm
• Spokes: Front 24 / rear 24

Freewheel compatibility (select variant)

• Shimano (HG11)
• Campagnolo (N3W 11-13)
• SRAM (XDR 12)

Material

• Rims: Aluminum
• Hub shell: Aluminum
• Spokes: Stainless steel spokes with aerodynamic profile
• Nipples: Aluminum
• Bearing: Steel

Color

• Black

Weight (manufacturer information)

• 1690 g pair (front: 780 g / rear: 910 g)

Scope of delivery

• 1 x Campagnolo Zonda GT DB 2WF C23 wheelset

Technologies

2-WAY FIT™
2-WAY FIT™ is Campagnolo’s innovative rim profile that allows the use of both a tubeless tire and a classic clincher.

N3W

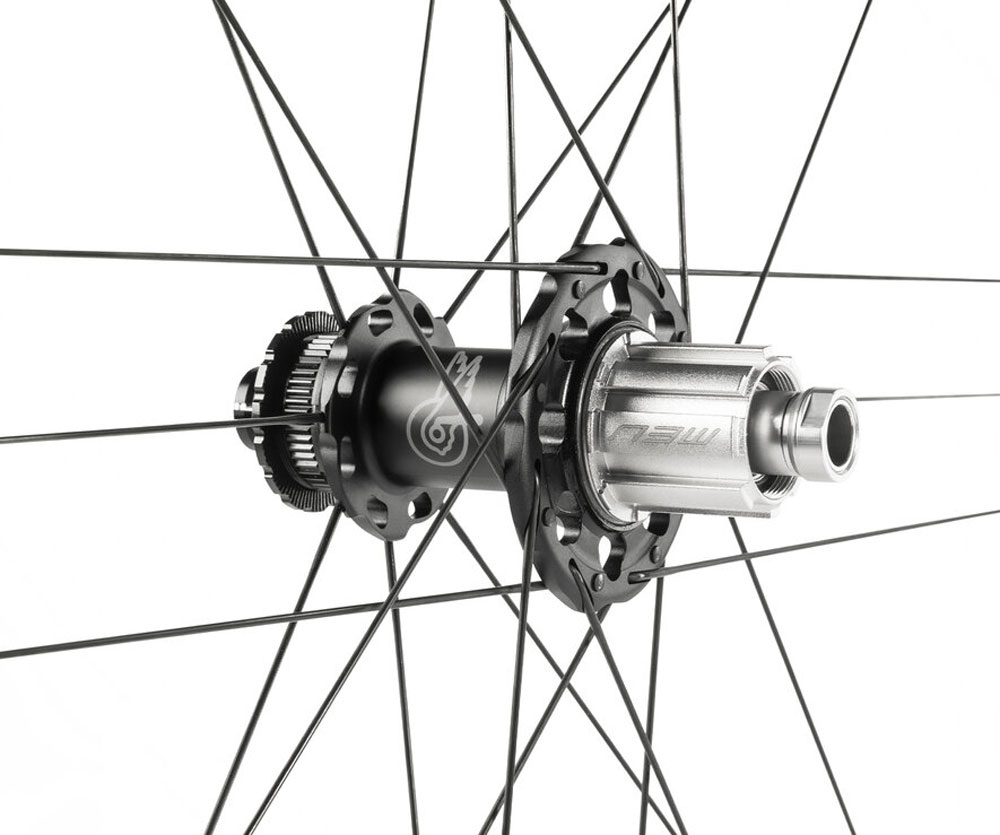

N3W, the abbreviation for NEXT 3 WAYS, is a patented freehub body standard developed for 11-, 12- and 13-speed cassettes from 9, 10 and 11 teeth, while remaining compatible with older 9- and 10-speed cassettes.

G3 spoke geometry
Campagnolo’s iconic G3 geometry is a challenge to the conventional spoke configuration for road bike wheels. Groups of three parallel spokes with straight heads are arranged in a 2:1 ratio. By having twice the number of spokes on one side, wheels with G3 technology achieve a perfect tension balance that increases stiffness and improves power transmission.
