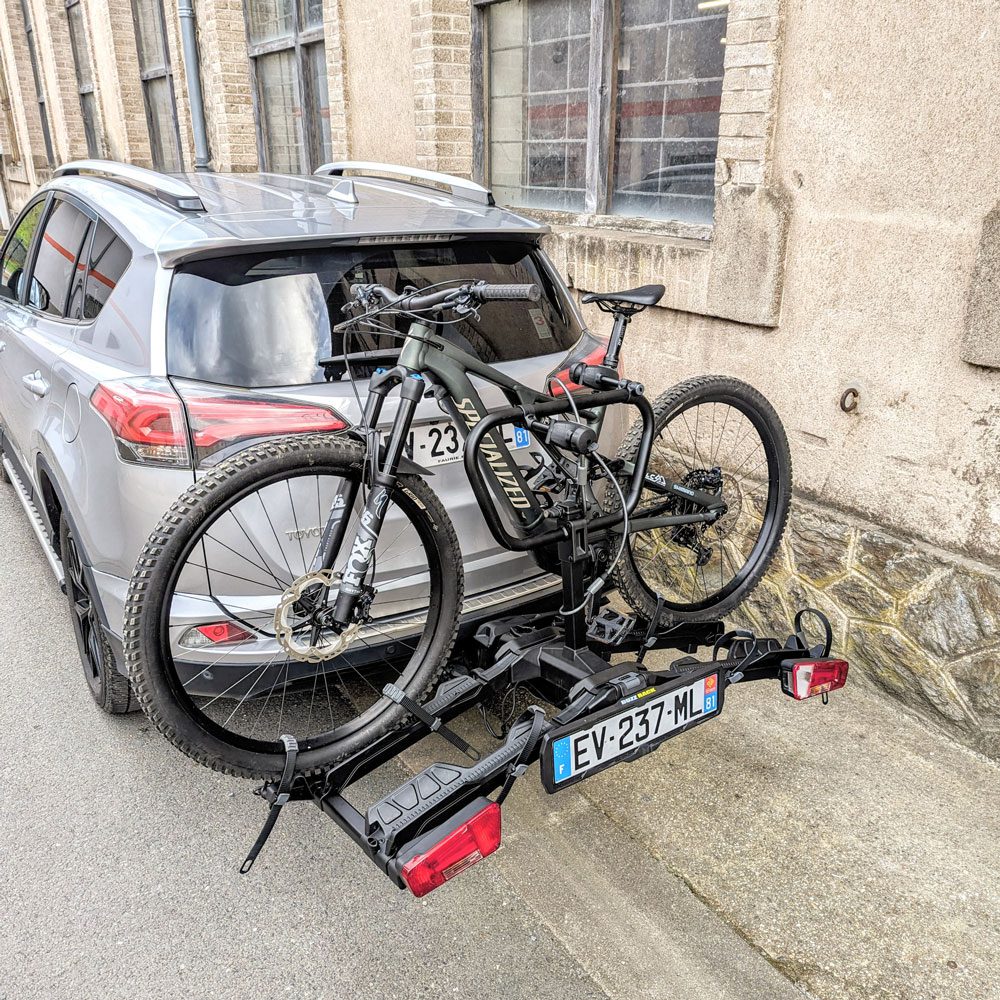

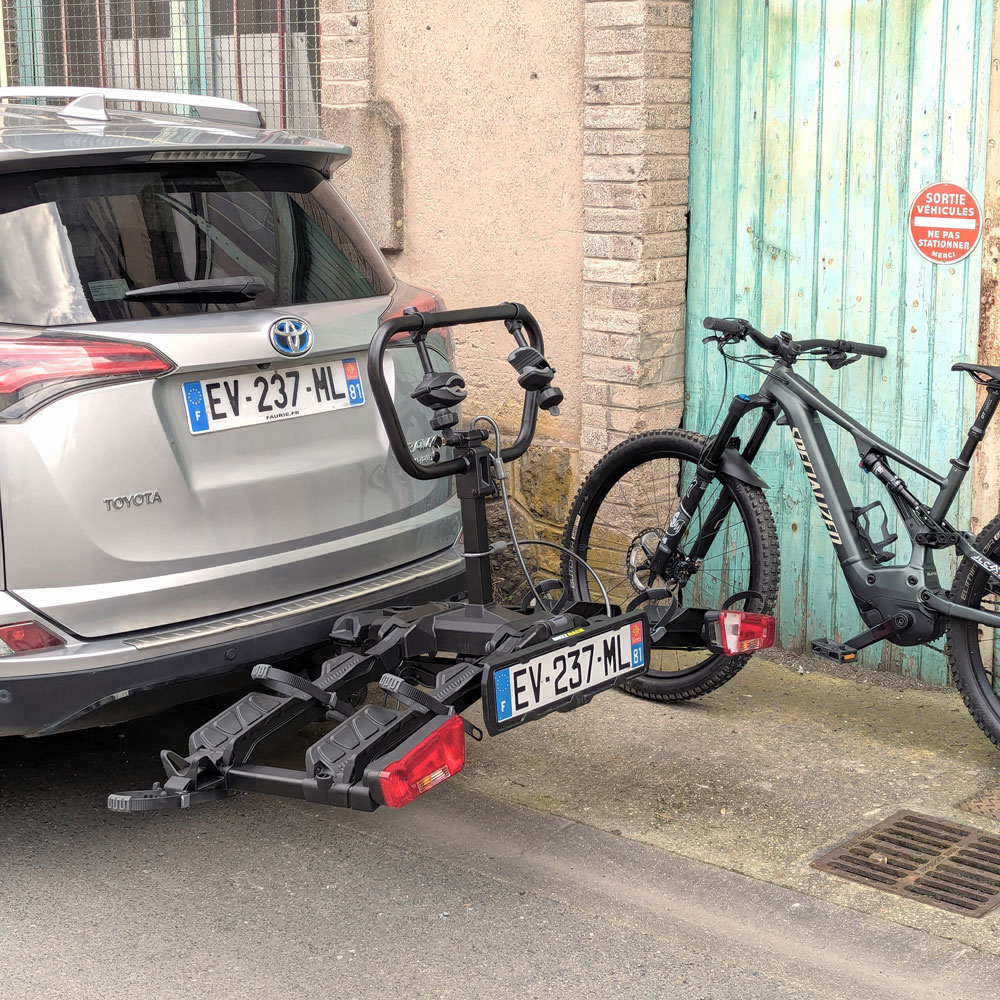

Buzzrack Scorpion PRO 2 – Bicycle Rack

The SCORPION PRO 2 from Buzzrack is a fully-accessorized bike carrier specially designed for larger or heavier bikes, including electric ones. With a frame shape that makes fitting step-through bikes a breeze, it can hold almost any model you currently have or may acquire in the future. With its solid build the carrier is no lightweight, yet it remains easy to handle thanks to its compact size when folded. You’ll be able to stay close to the tow ball to put it in place, thus preserving your back, and you can wheel it about for easy storage. The E-Scorpion also holds its weight on the ball while you let go to tighten, lock and unfold. You won’t even have to lift your bike.

just use the ramp to put it in place and then place the ramp back into the carrier. Once securely fastened, you’re ready to go, the added anti-sway device will keep everything firmly in place during transport. And Buzzrack has also included an anti-theft cable so you can travel worry-free. It’s particularly easy to tilt, with the tilt control just above the number plate. The lights have 5 functions – including a reversing light and a fog light if you have a 13 pin socket.

---

Highlights – Buzzrack Scorpion PRO 2

High end tow ball attachment

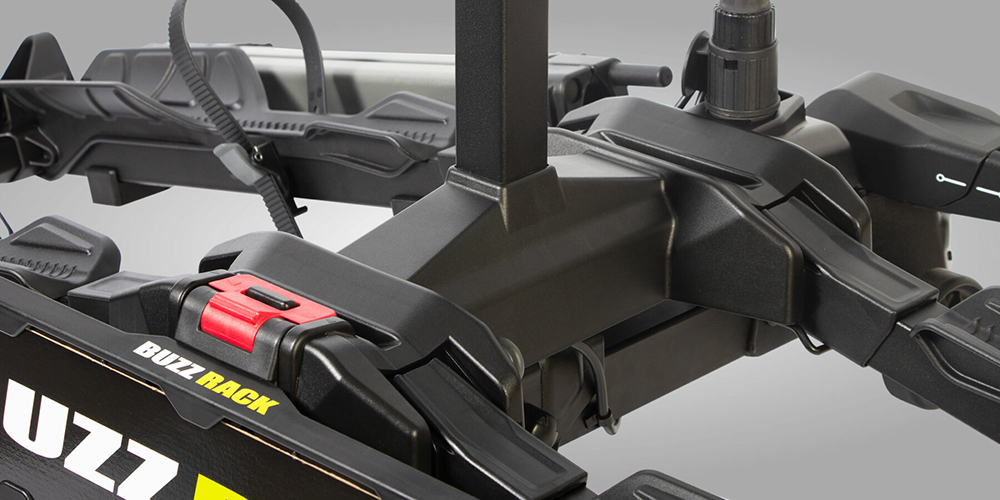

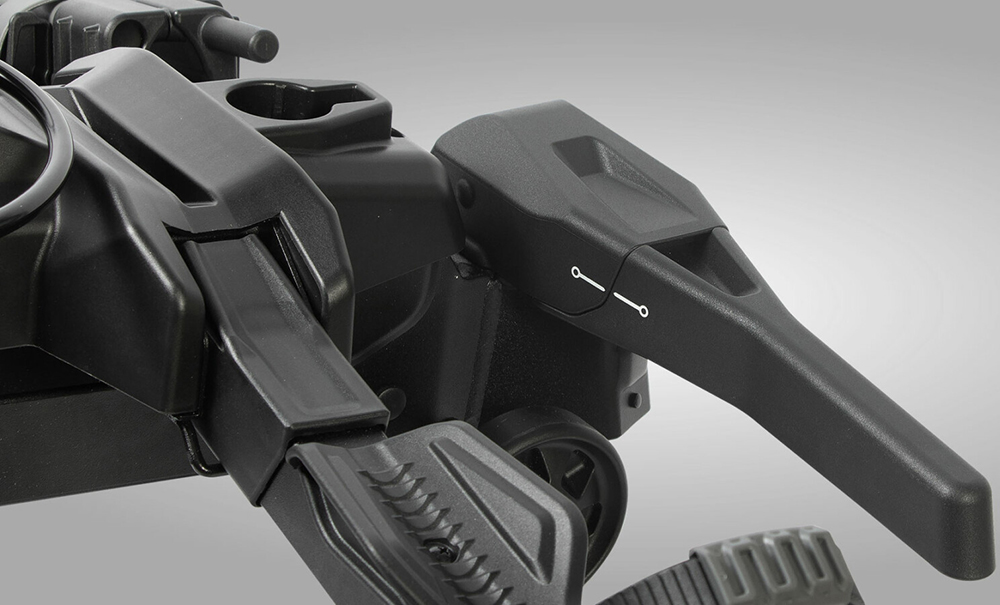

The most important point when choosing a bike rack is having a secure system to fix it to the car. The “Buzz high tech conic system” is one of the latest technologies available on the market. It is based on the Buzz Conic System and the experience Buzzrack has acquired over the past 17 years producing it. This very simple system can secure 2 e-bikes to a simple 50mm diameter steel ball and pass all European certification requirements as well as the new ISO 11154.

Designed for e-bikes and heavy bikes
the distance between the bikes is large enough to eliminate interference between wide motors, hubs, pedals or forks. (30cm for Scorpion 2 – 22cm between first and second bike

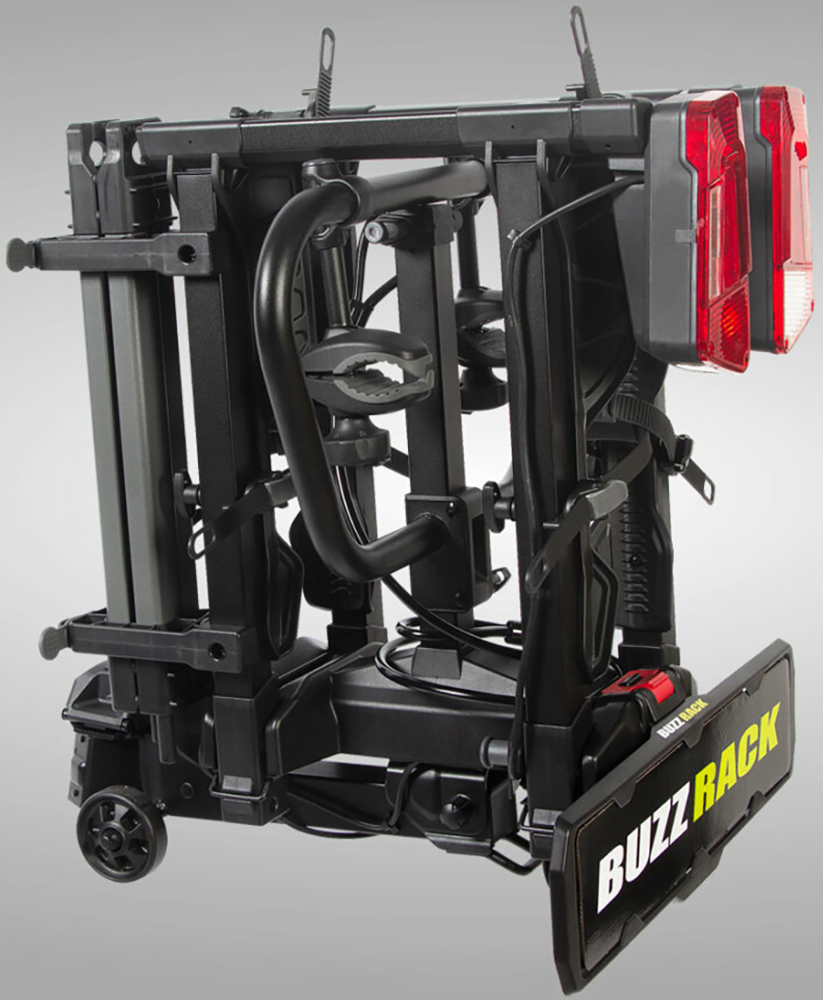

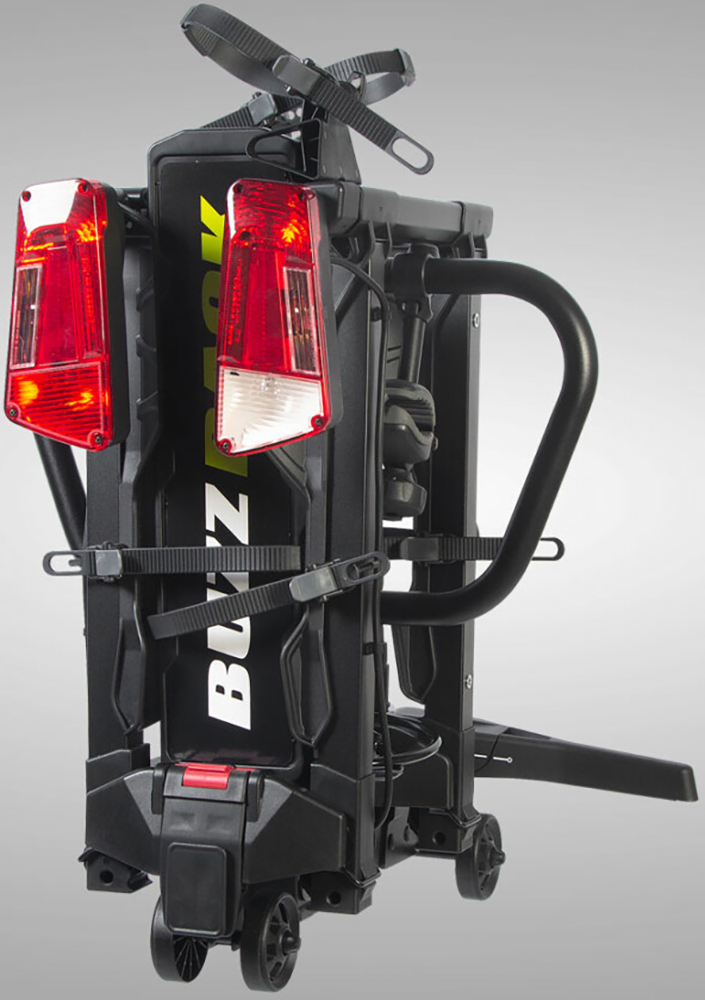

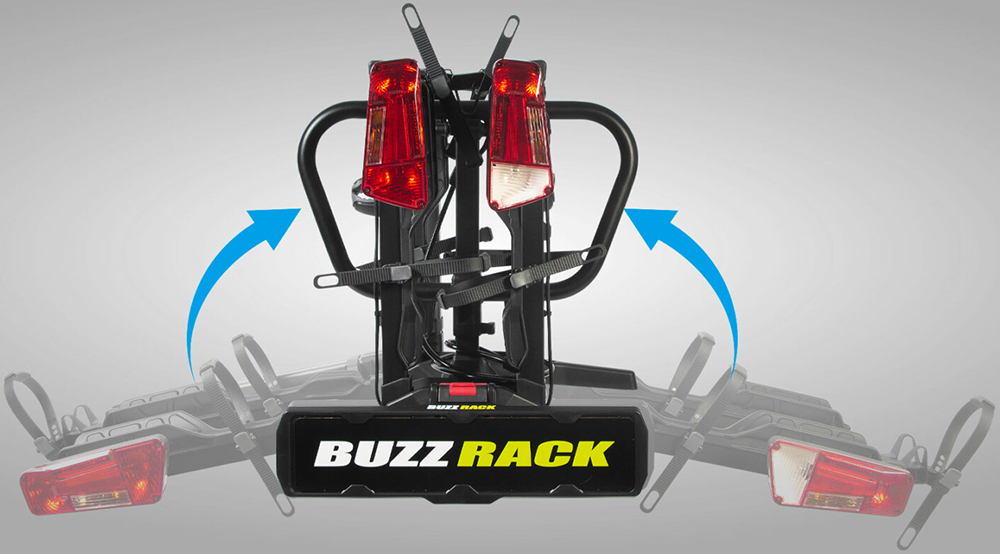

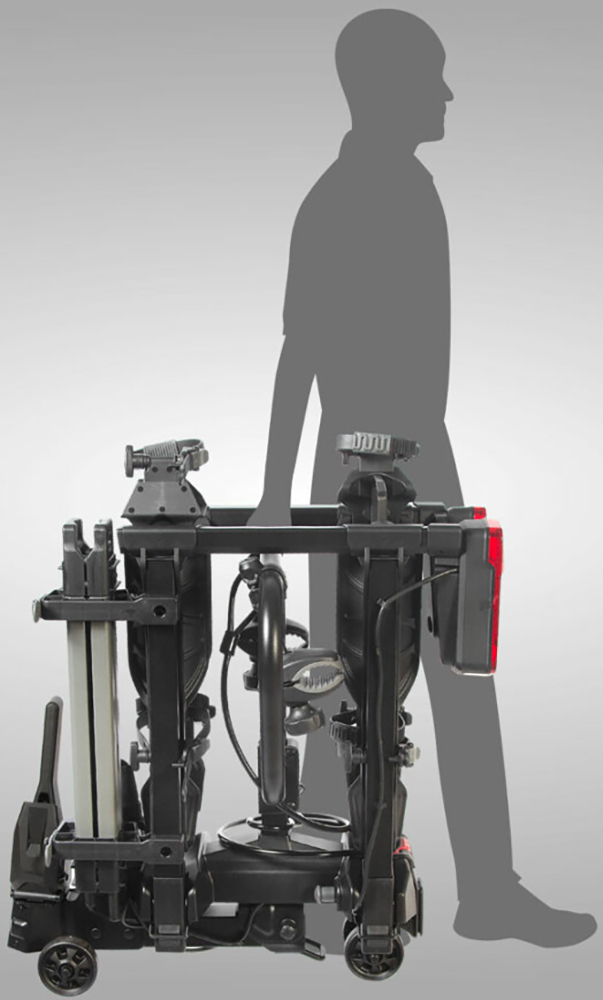

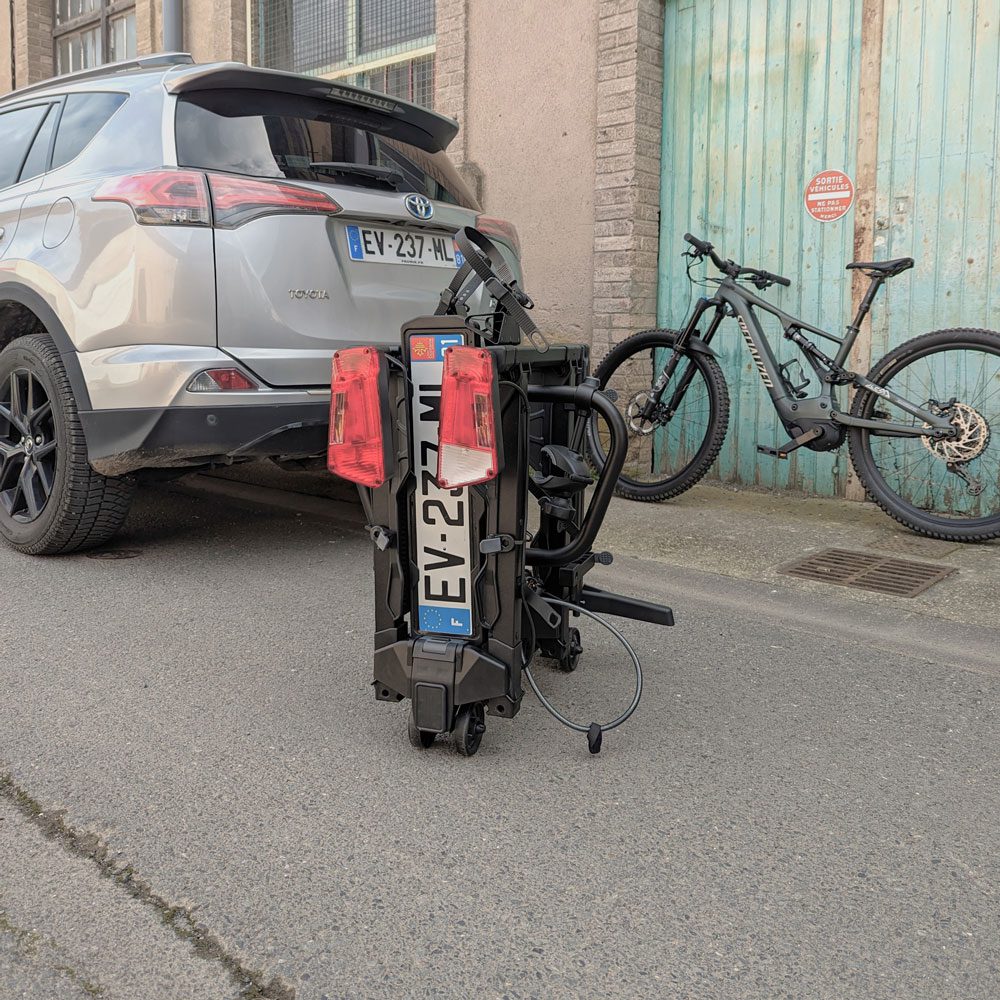

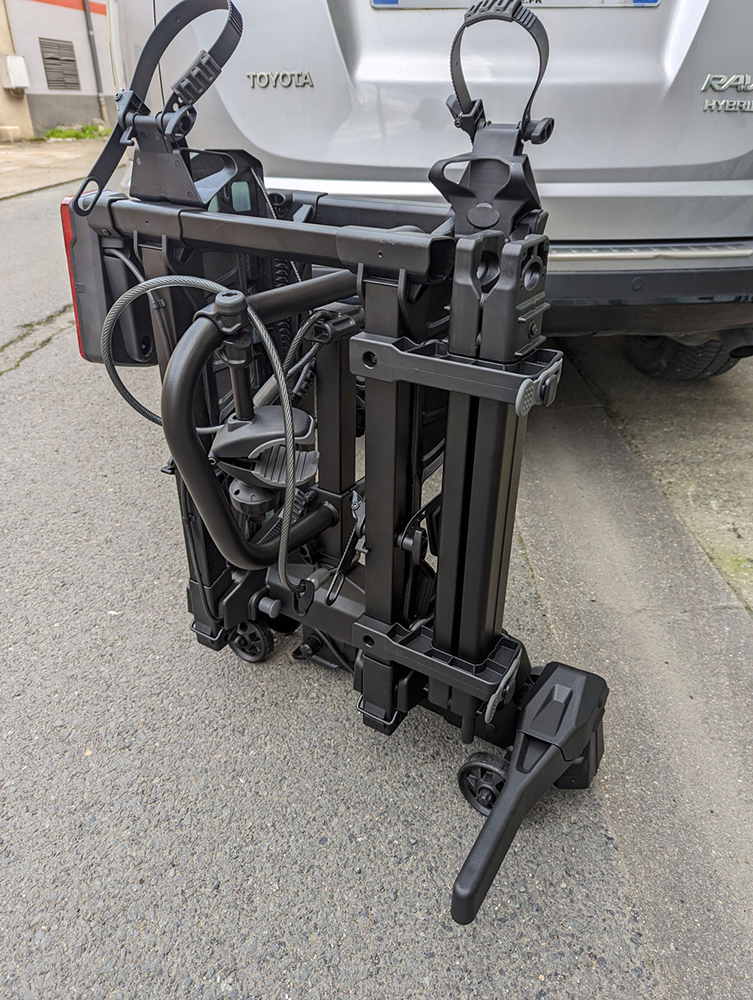

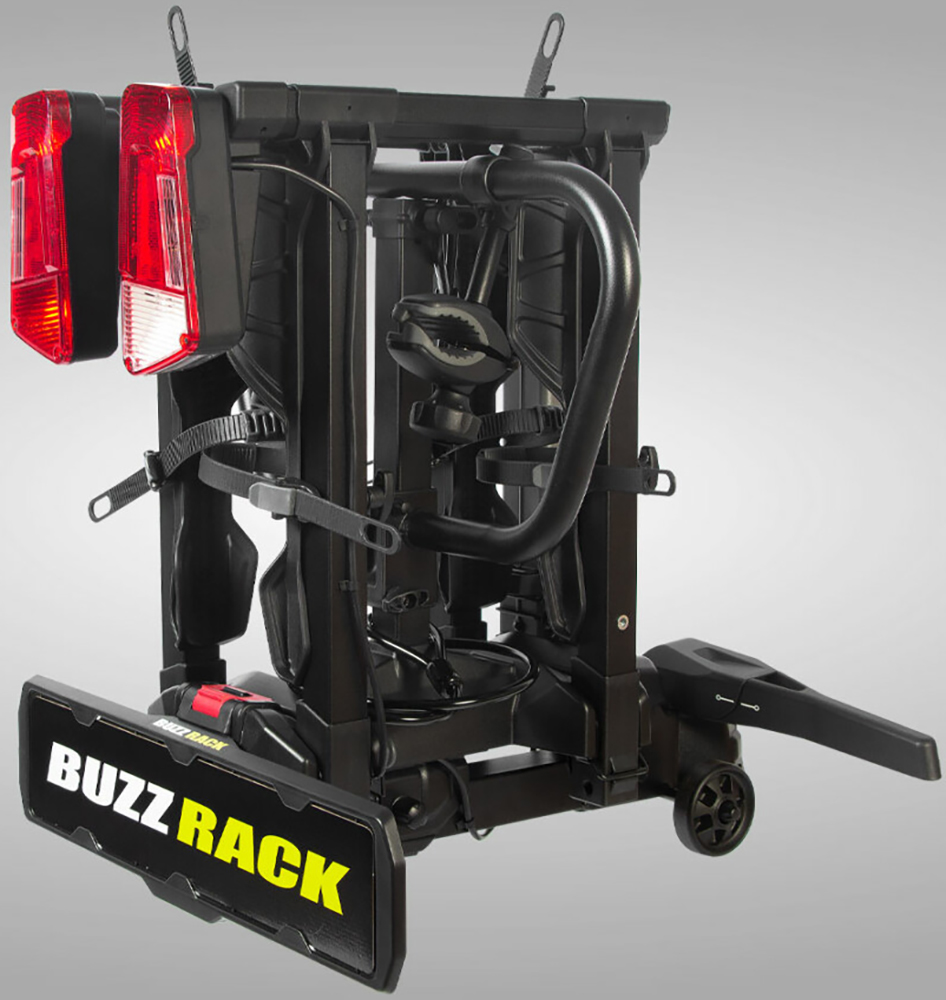

Foldable for easy storage
fold the wheel support tubes by pulling on the release button, turn the vertical clamp frame 90 degrees and slide it down and your rack will sit nicely on its 4 wheels, allowing it to be moved without any effort and kept stable during storage or transportation

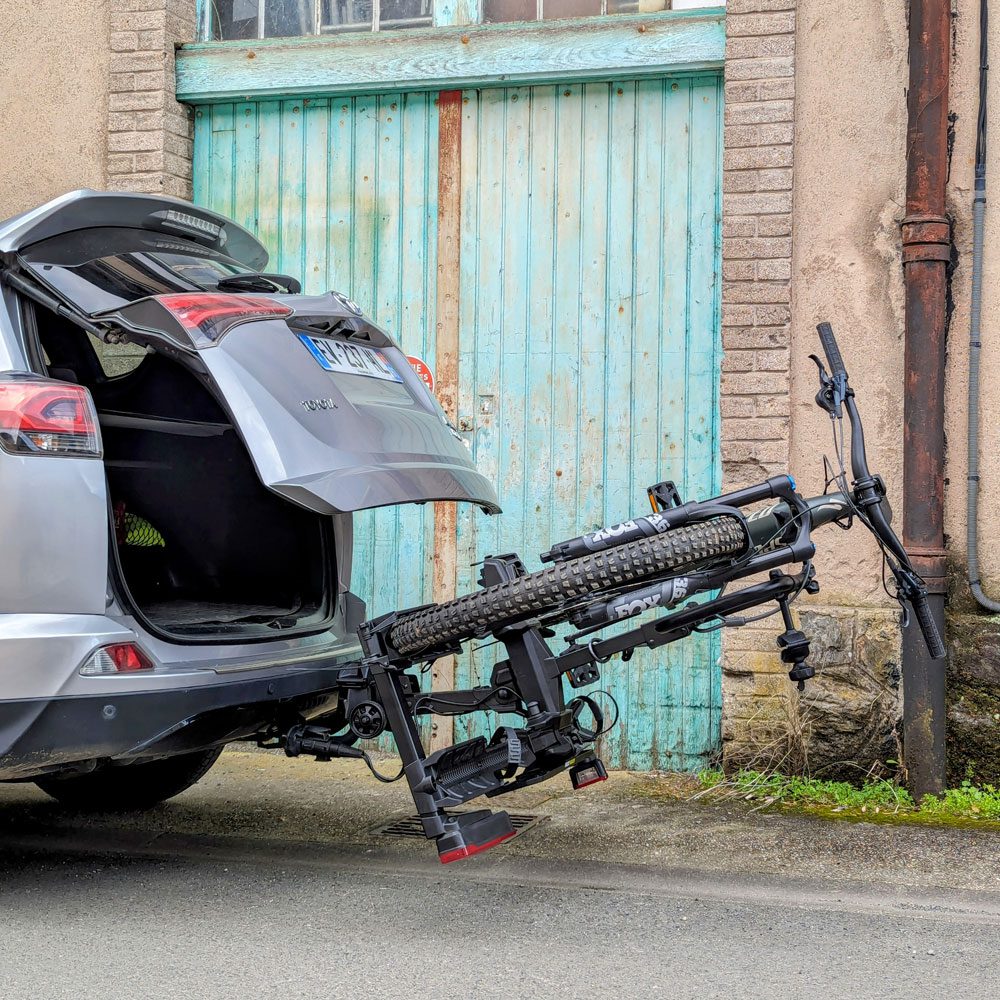

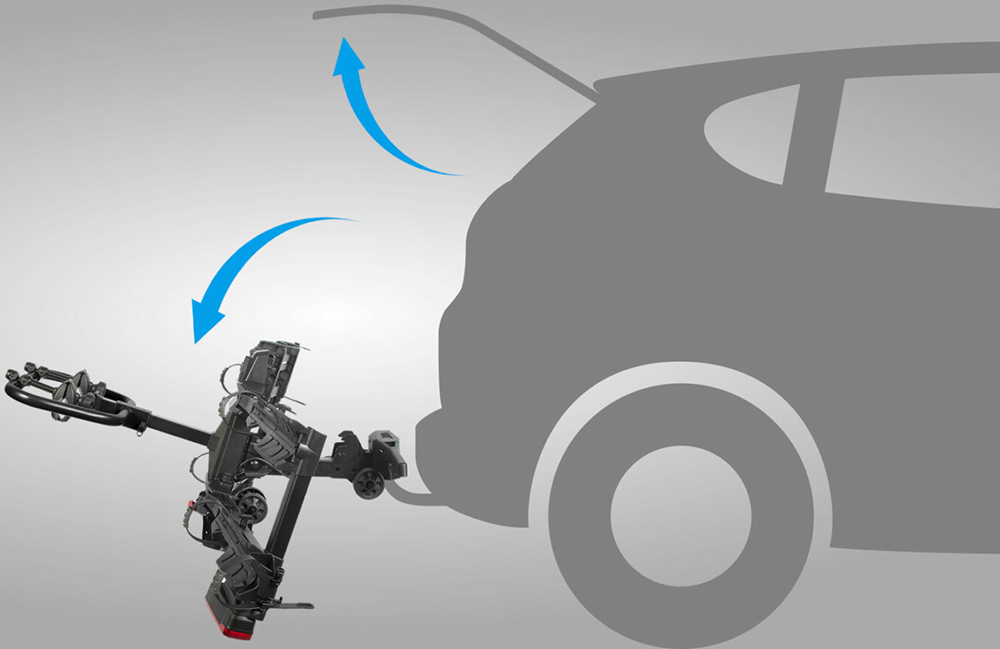

Tilt down for tailgate access
you can gently tilt the platform by pulling the lever behind the license plate support or simply push the bottom of the license plate to operate the tilting mechanism. Thanks to this well-balanced mechanism, you will not have to support the full weight of the bikes to tilt the rack, even with a full load.

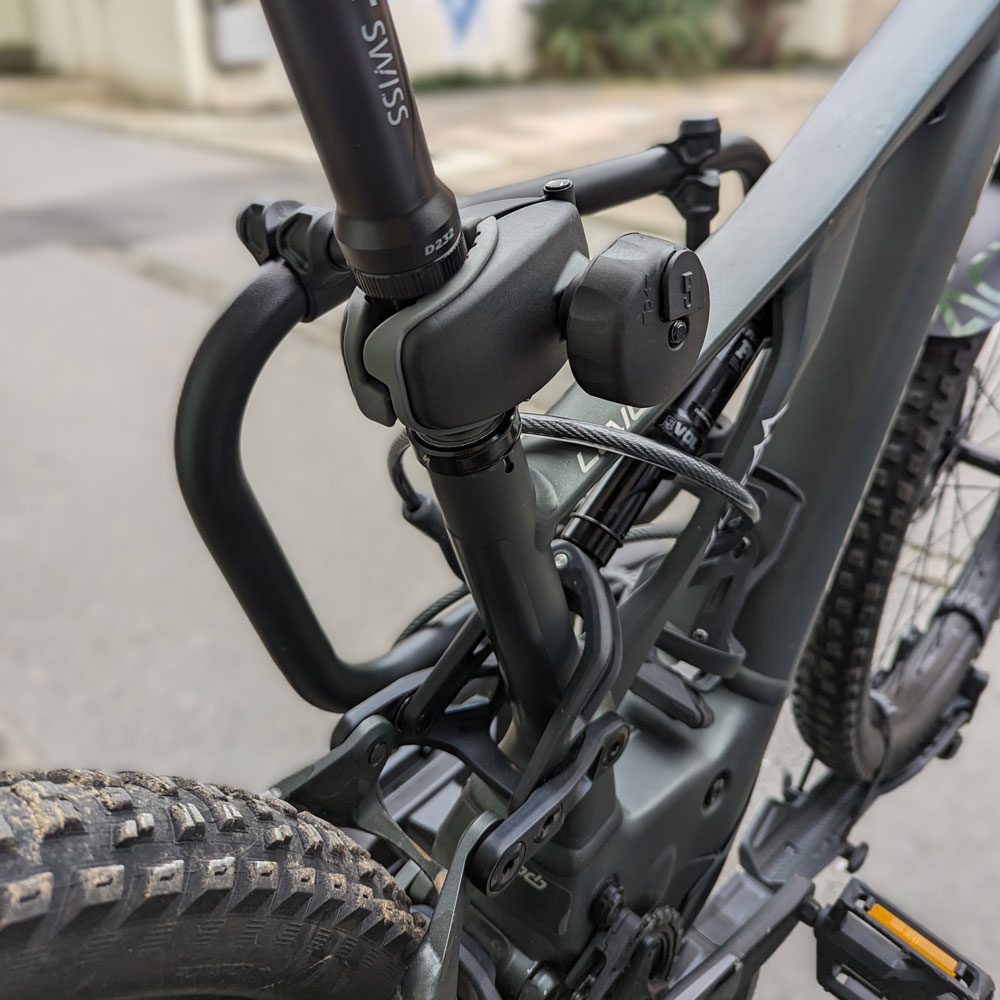

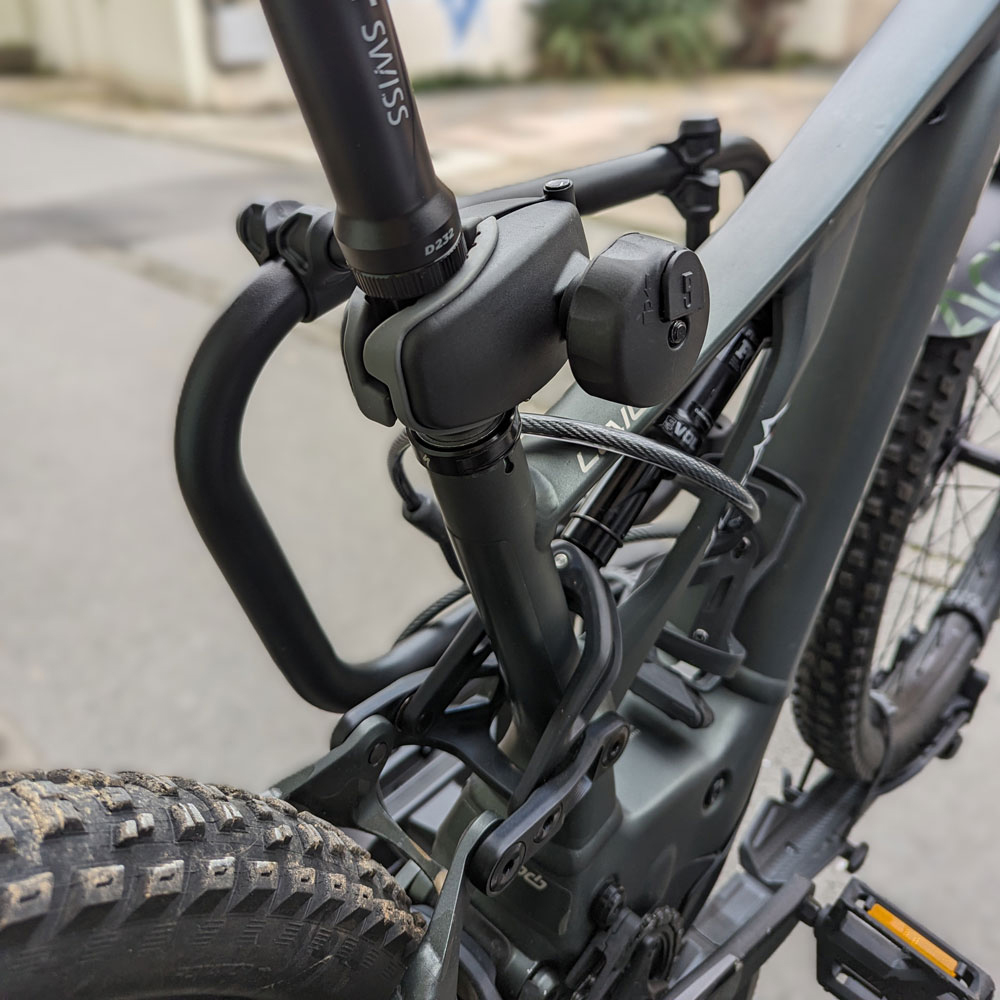

Strong bike attachment

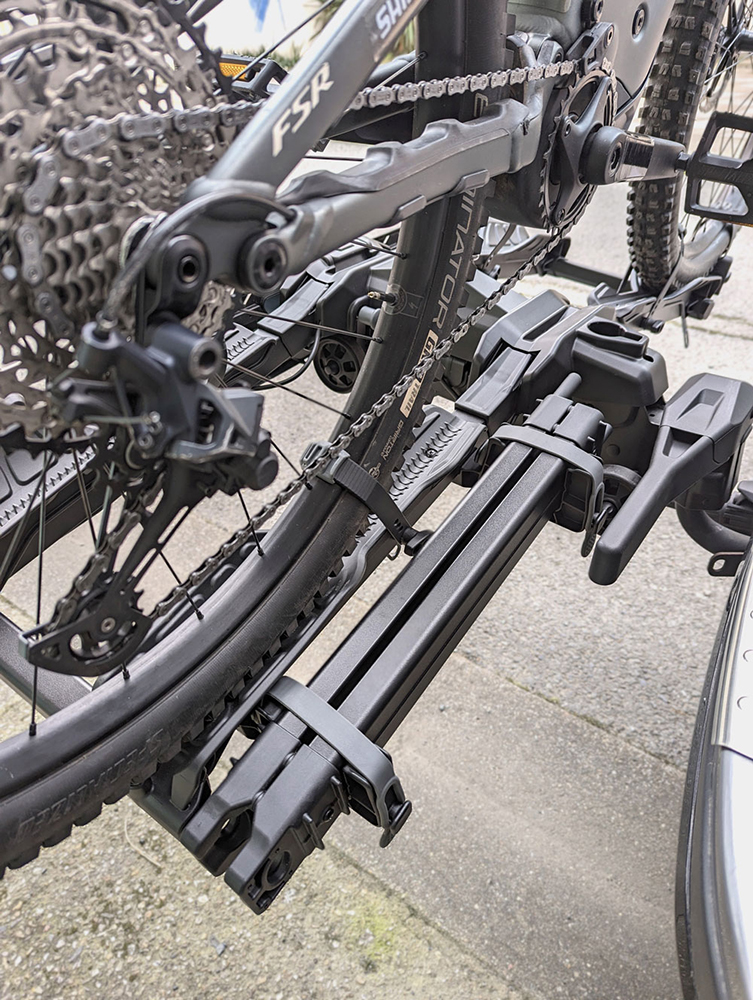

each bike is fixed using a locking clamp designed with a soft rubber pad to protect the frame. The clamp can fit a tube size from a diameter of 25mm to 60mm. In the 3 bike versions, the 3rd clamp can be removed using a simple clip and positioned onto the frame differently for an easier loading of the bike.

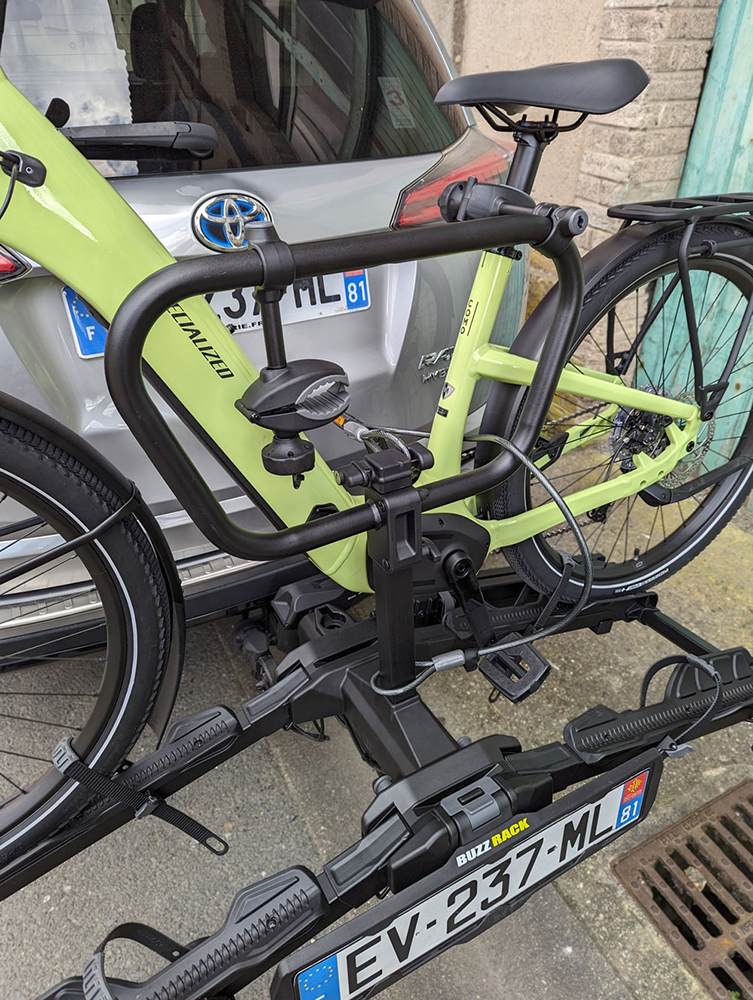

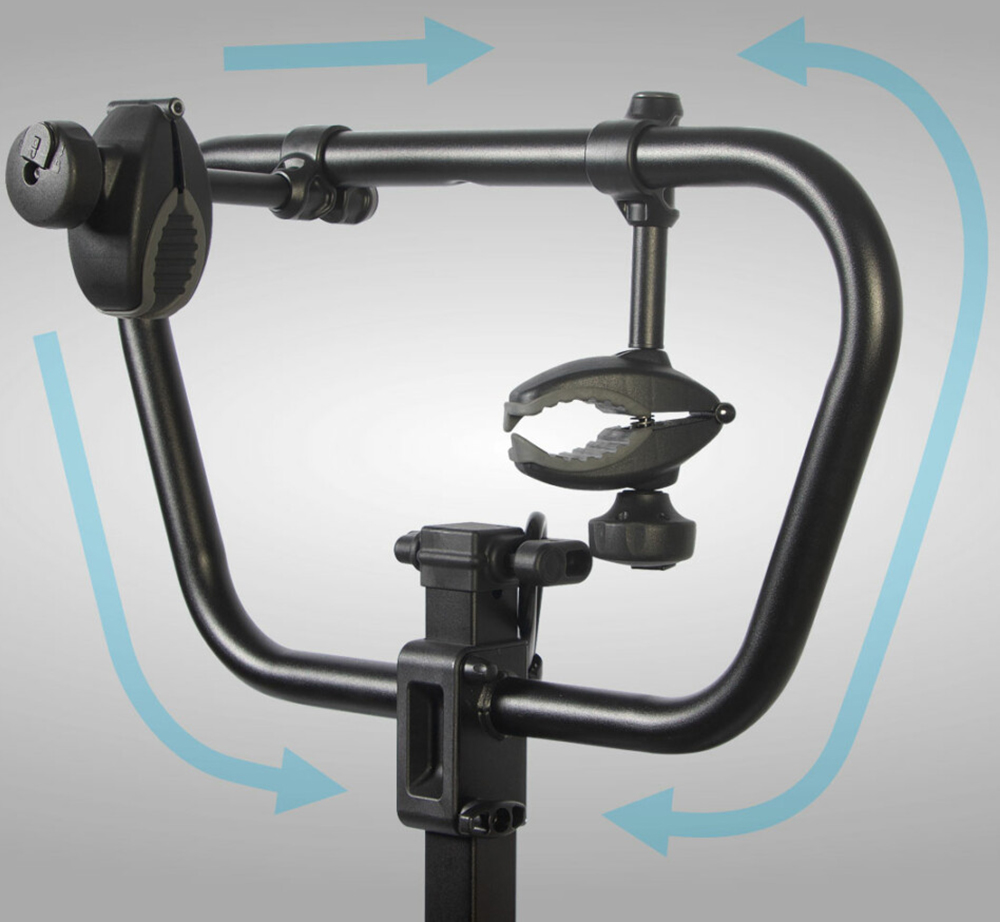

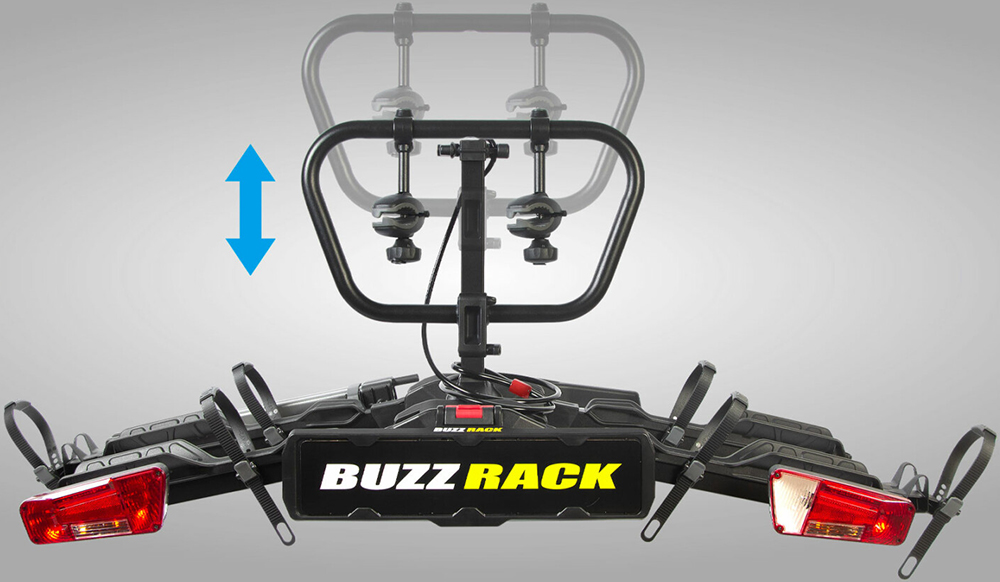

High upright sliding frame fit for all bikes
e-mountain bikes can be quite tall and the best way to hold a bike frame is at its highest point. The frame slides vertically and is wide enough so the attachment clamps can be positioned perfectly to catch the bike frame. The adjustable frame also accommodates for step-through bikes, where the best possible attachment point will usually be the seat tube. In the PRO version, the frame shape will make this fitting even easier.

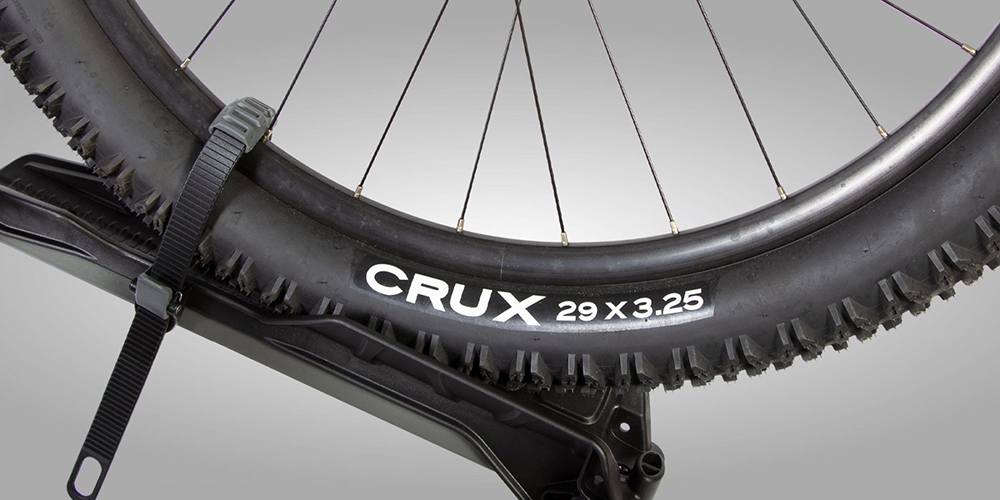

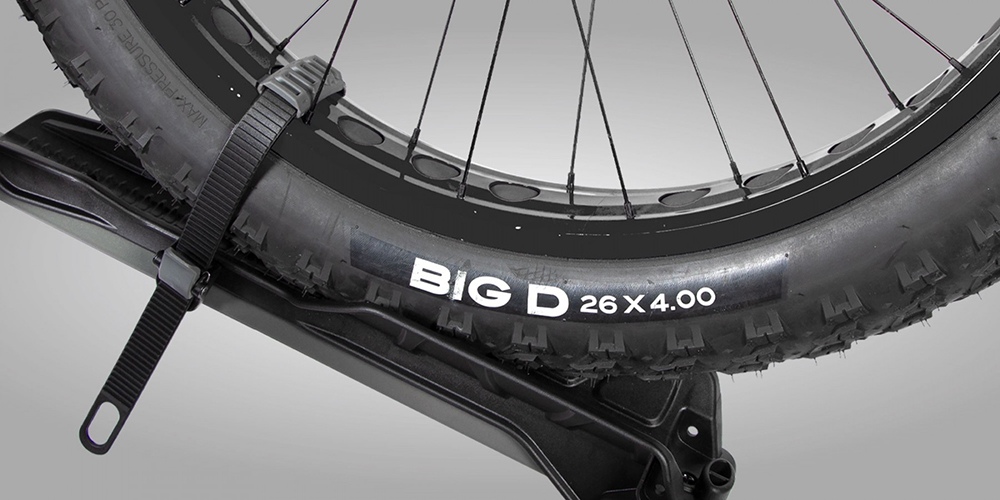

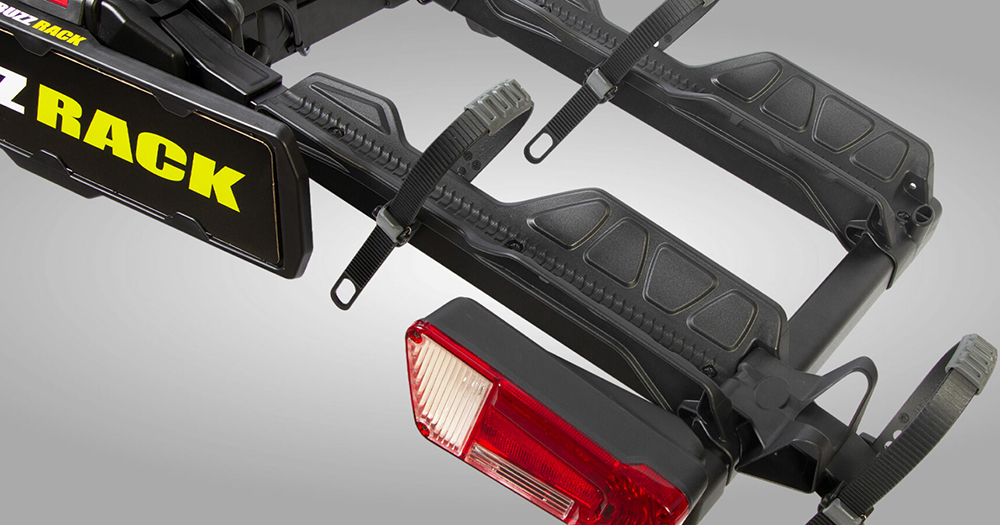

Large wheel support for tires up to 4” size
our wheel supports can hold any type of tires and they’re good looking too! They integrate a hook point to fix either a ramp or an antisway device that will prevent lateral movement of the front wheel. Both are available as accessories.

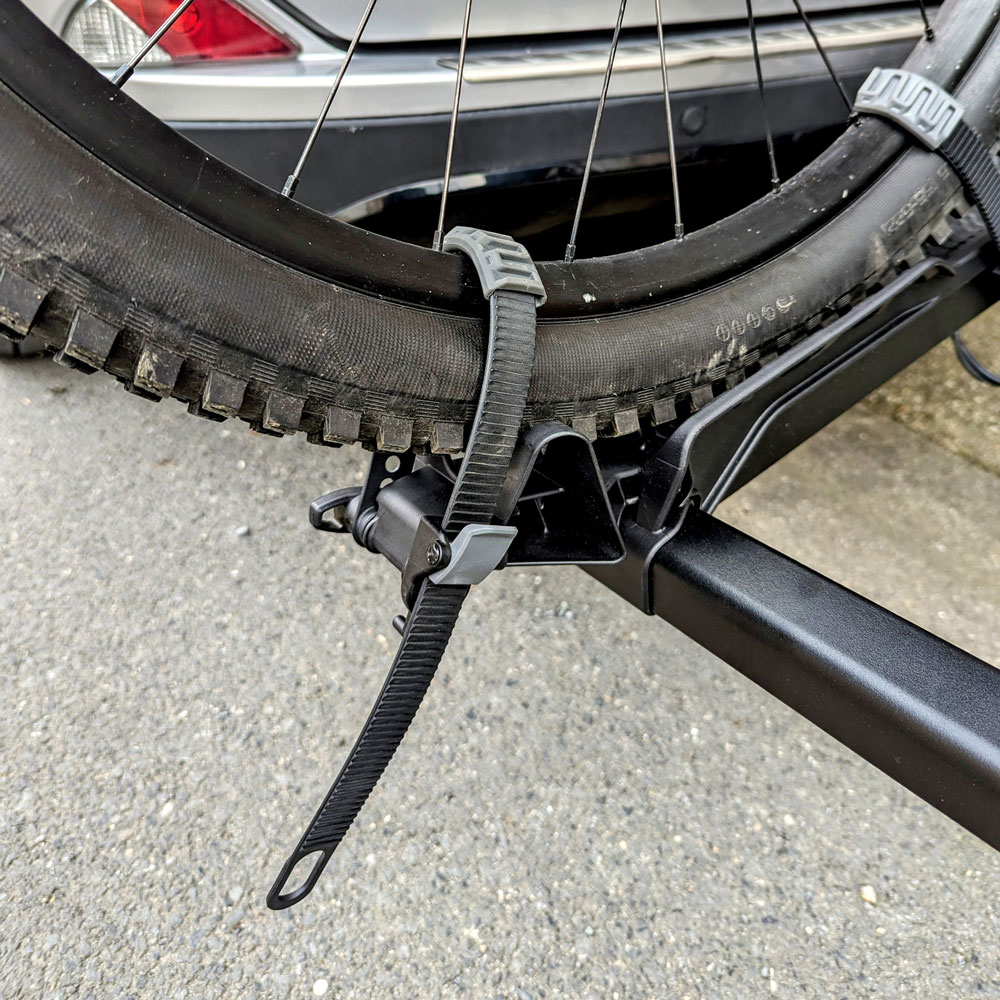

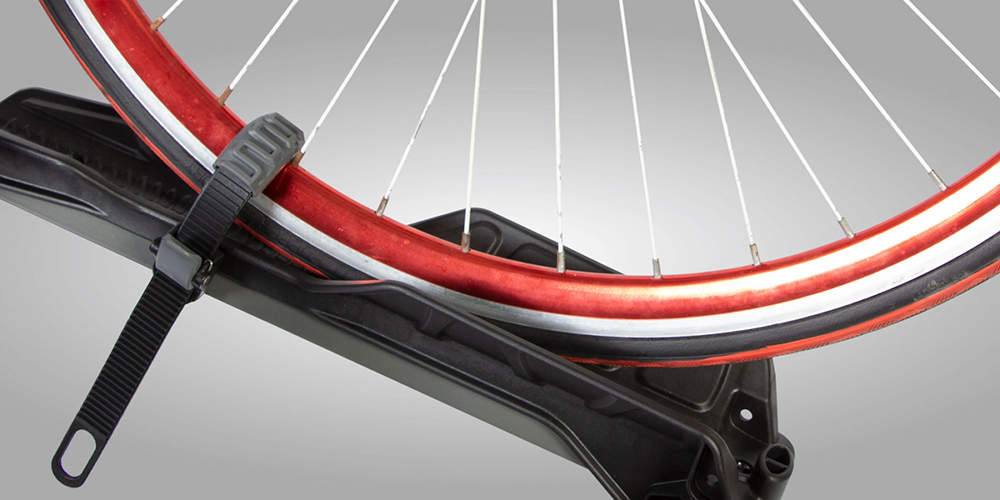

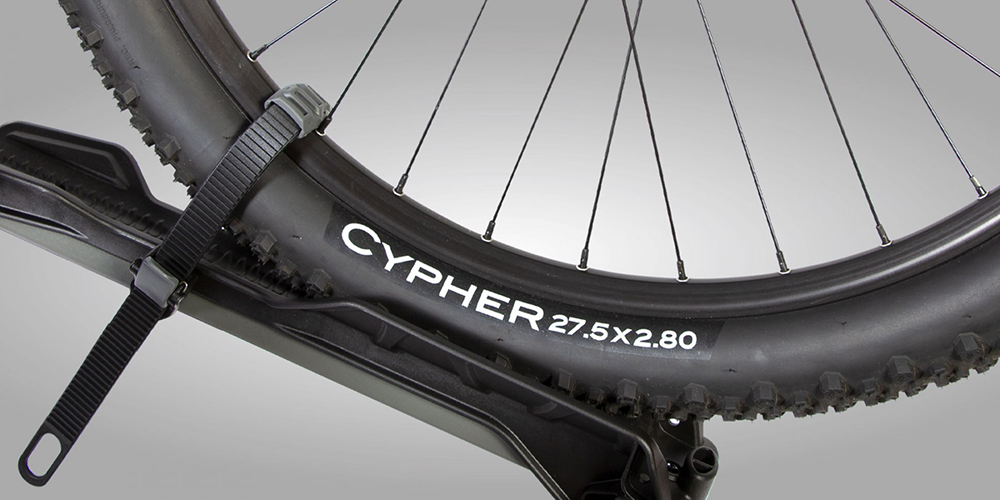

Strong ratchet straps and protective pads
the easiest way to fix the bike wheels is using ratchet straps. BuzzRack believes in simple systems; the easiest way to tighten the ratchet is to pull on it, it won’t jam from the dirt you can get in the back of your car. A protective rubber pad will help prevent scratches on your nice aluminum or carbon rims.

Front wheel anti-sway device
this feature included with the PRO version and available as a kit for the LITE version is designed to prevent the front wheel from moving too much during transportation. It provides a second attachment point using a ratchet strap

Integrated aluminum ramp
The Scorpion PRO has its own integrated ramp. Made of 2 pieces of aluminum extrusions that connect together, the ramp is simply positioned at the end of the wheel support and requires no tool. You can securely move your bike along the ramp. Once the bikes are installed, you can remove the ramp and place the pieces together in the receiving plastic brackets at the rear of the bike rack, securing them with the rubber straps.

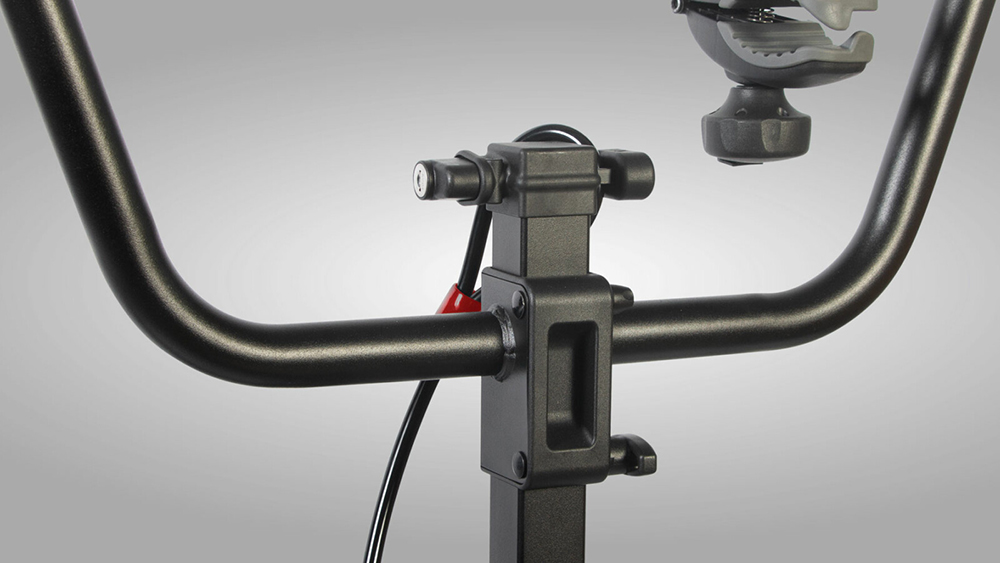

Locking
The bike clamps and the bike carrier can be locked with the same key

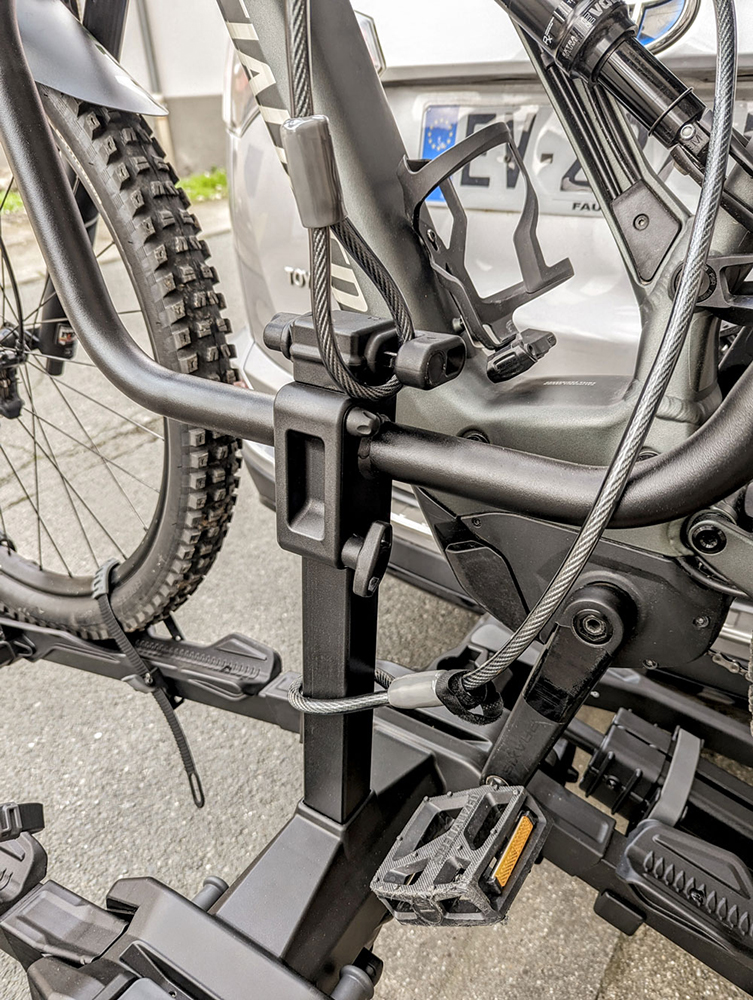

Locking cable
as an additional safety measure, Buzzrack supplies the Scorpion PRO with a standard 10mm diameter double loop cable that can be used with the same locking cap that secures the vertical frame.

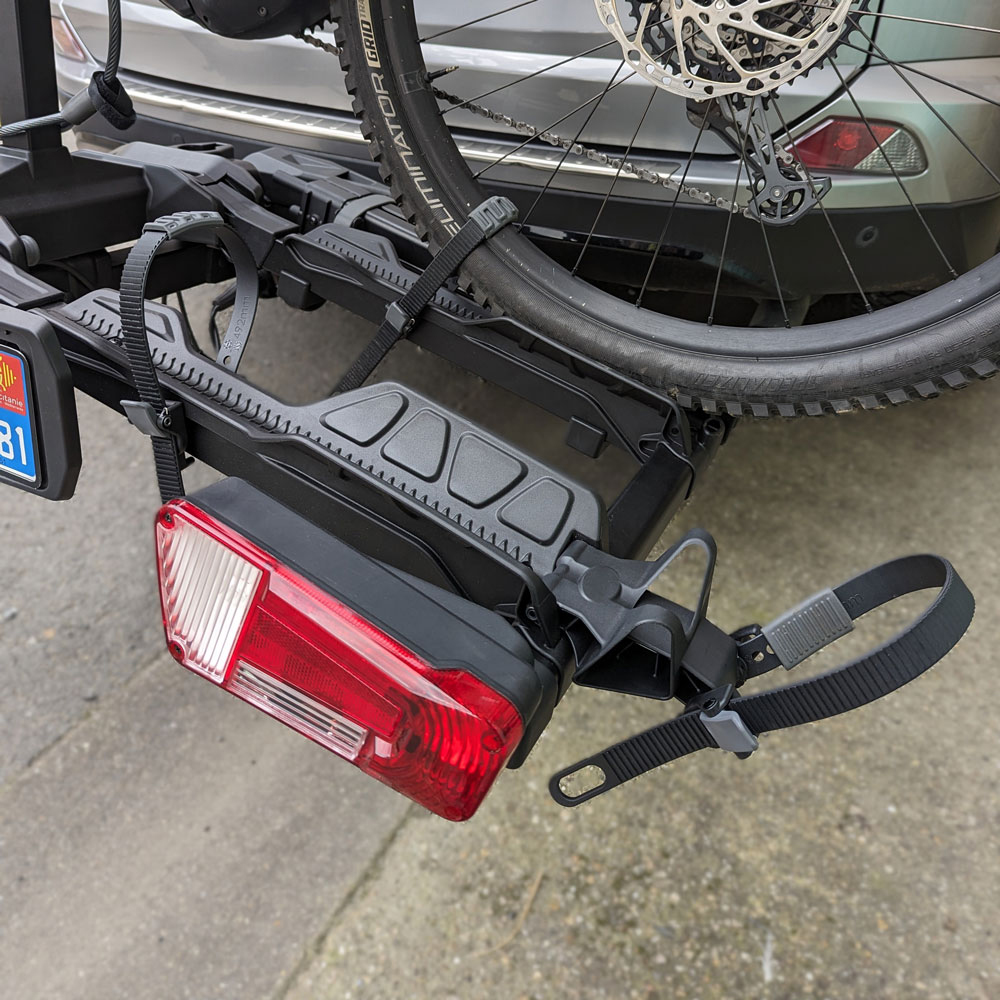

Lights
this rack is supplied with standard 5 function lights and a 13 pin plug. Electrical adapters are available for those with 7 pin systems.

License plate
the rack comes equipped with a special removable support in which to slide European license plates. It is also available as a spare part for those who have several cars – and thus license plates – and want to easily switch the rack from one to the other.

Rack structure
the structure of this rack is made entirely out of steel. It has been designed to pass the latest international standard (ISO 11154), following the own internal tests. The coating provides high protection against corrosion and is UV resistant.

Protective cover
a protective cover hides and protect the mechanical functions of the rack from dirt and water and includes a 13 pin plug receiver to facilitate storage.

Safety strap
all the products come with a strap for added security

Suitable for larger wheelbases
The wheel holders will accommodate larger wheelbases; up to 138.4cm

Various ramp types
Various ramp types are available separately (optional)

Installation instructions
Requires 65mm clearance from center of tow ball to rear of vehicle

Compatibility
Not suitable for trailers, caravans or motorhomes

Product features

• Max number of bikes: 2
• Max bike weight: 30 kg
• Max. carrying capacity: 60 kg (max. drawbar load of trailer coupling – tare weight of bike carrier = max. payload on bike carrier)

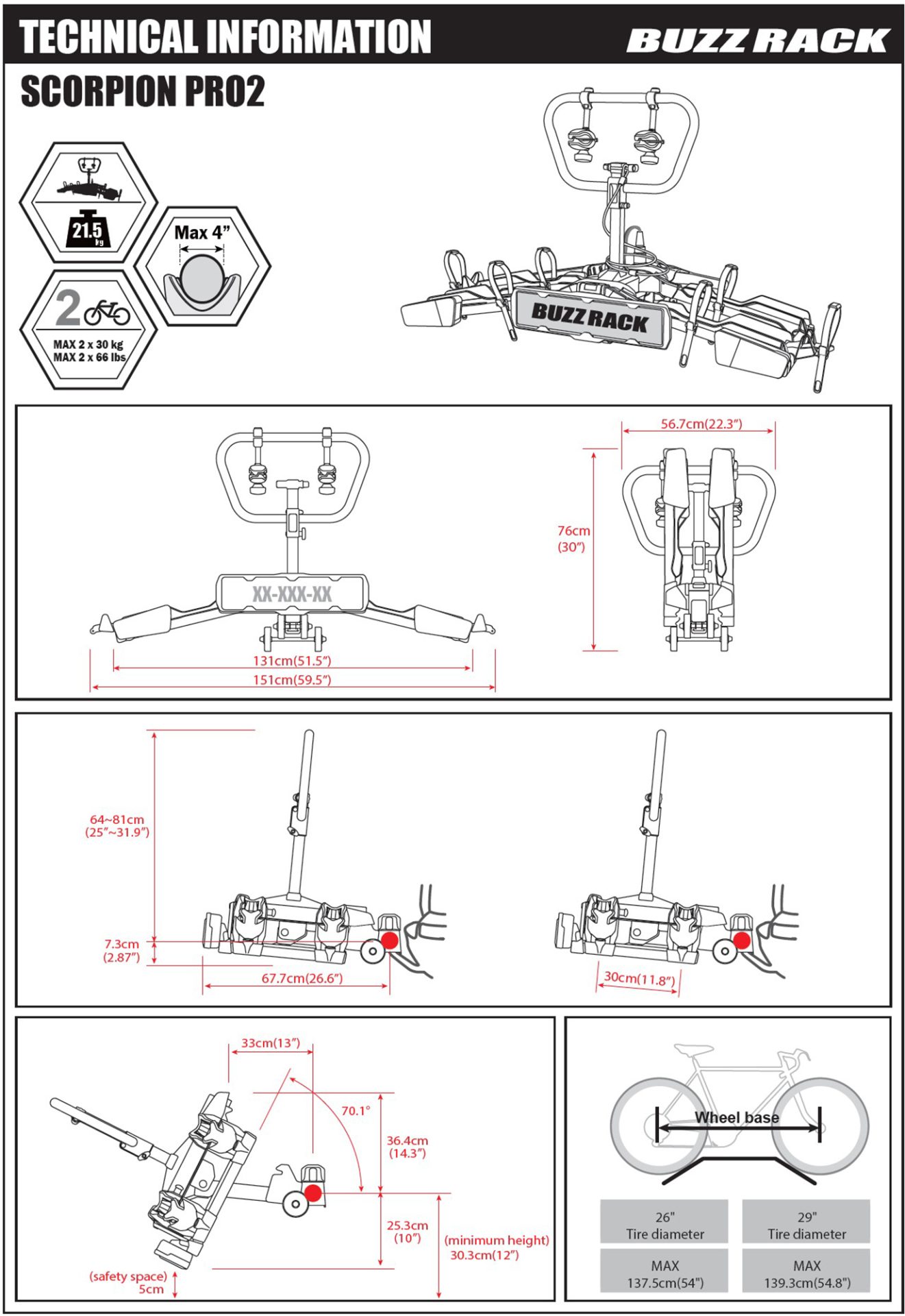

• Dimensions: 151.2 cm x 67 cm x 64-81 cm (WxDxH) measured from the center of the trailer coupling ball to the outer edge of the license plate holder
• Dimensions folded: –
• Maximum down tube diameter: 76 cm x 56.7 cm
• Maximum tire width: 4″
• Removable frame holders: No
• Wheel mounting on adjustable holders: No
• Tilt function (with bikes): Yes
• Fits cars with exterior spare tyre: No
• Rear lights: Yes
• Power connection: 13-pin
• Lockable bike-to-rack: Yes
• Lockable rack-to-vehicle: Yes
• Carbon frame compatible: Yes

Note: The max. carrying capacity of the bicycle carrier and the permissible bearing load of the trailer coupling must not be exceeded. The bicycle carrier and load must not exceed the permissible overall weight, or the permissible axle load of the vehicle.

Material

• Steel with plastic surrounds and brackets

Weight

• 21.5 kg (manufacturer information)

---

Scope of delivery

• 1 x Buzzrack Scorpion PRO 2 – Bike Rack
• 1 x Double Loop Cable
• 1 x Tool for Mounting

---
