Buzzrack Eazzy 4 – Bike Rack

Features – Buzzrack Eazzy 4

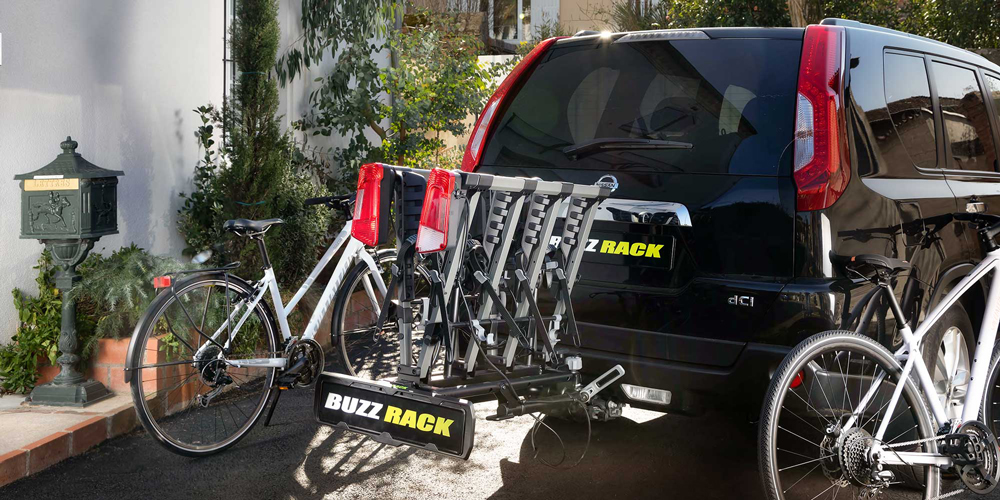

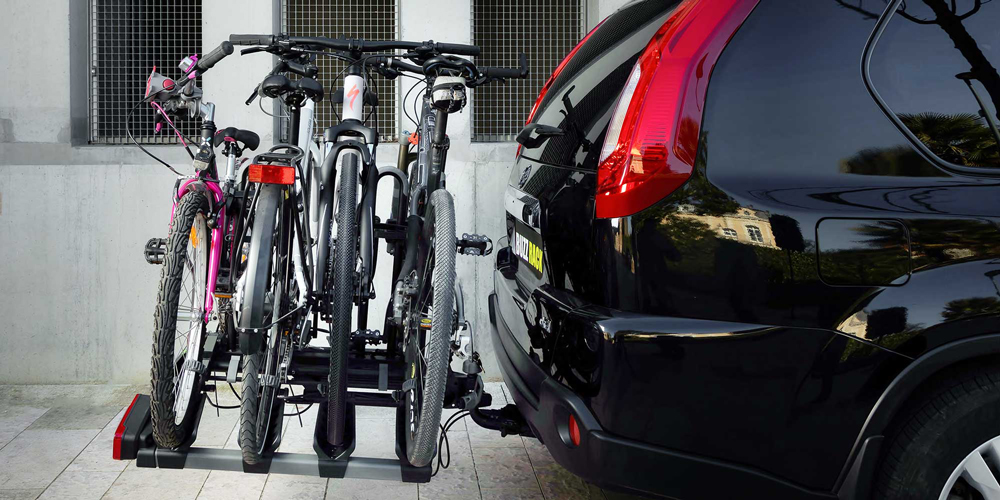

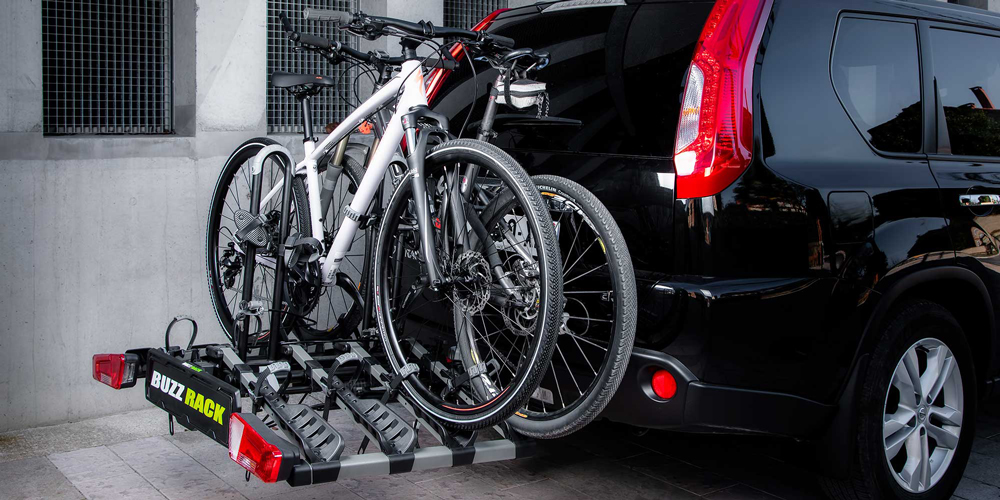

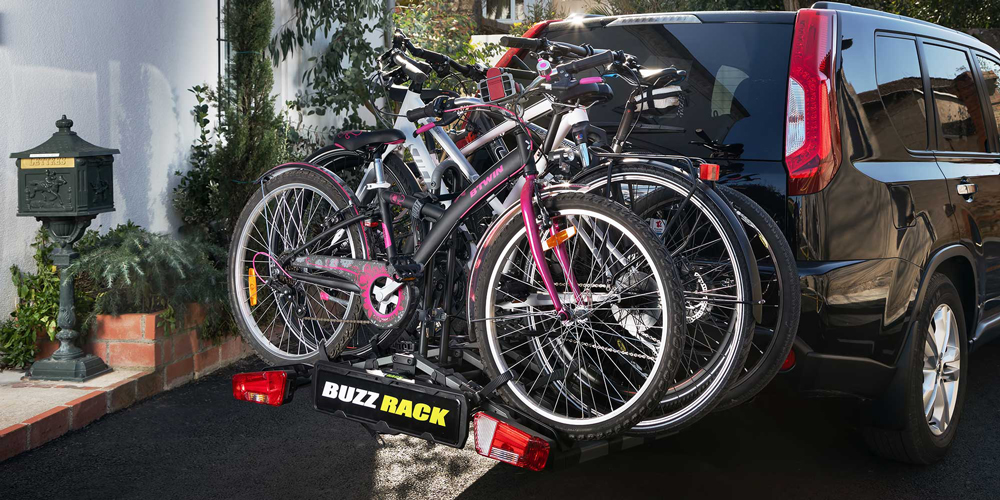

• For transporting 4 bikes on the trailer coupling
• Folds very easily and can be stored in the car
• Very easy installation in the folded state
• Features an anti-sway tensioner with integrated handle

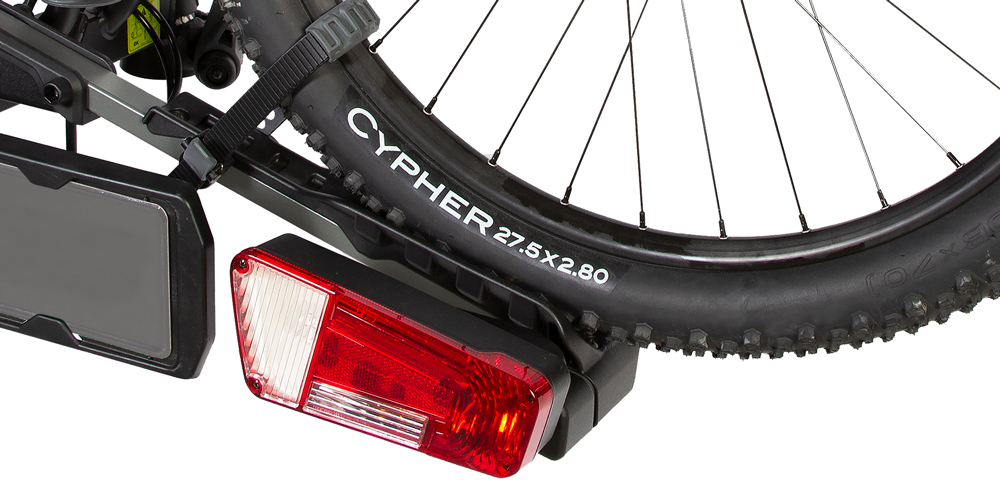

• 13-pin reversing lights and UK compliant fog lights

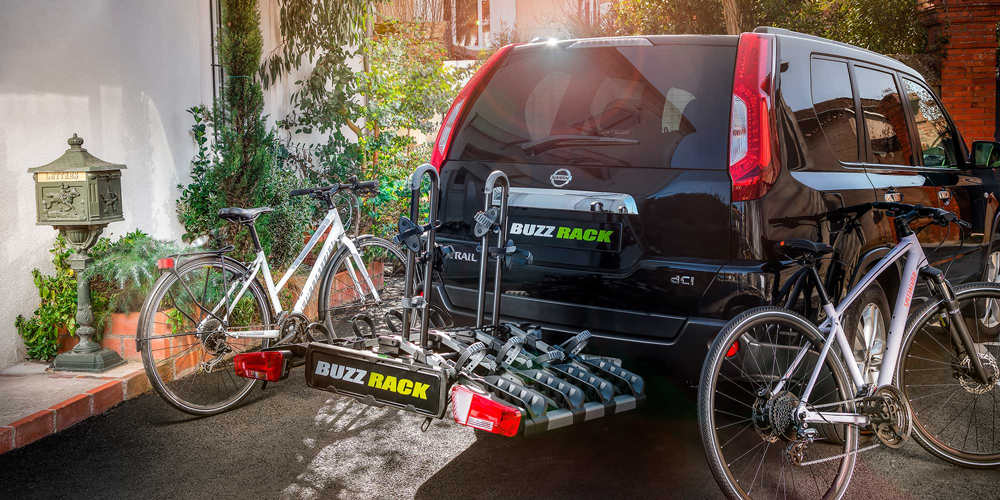

• Folding mechanism with attached bikes on bike rack

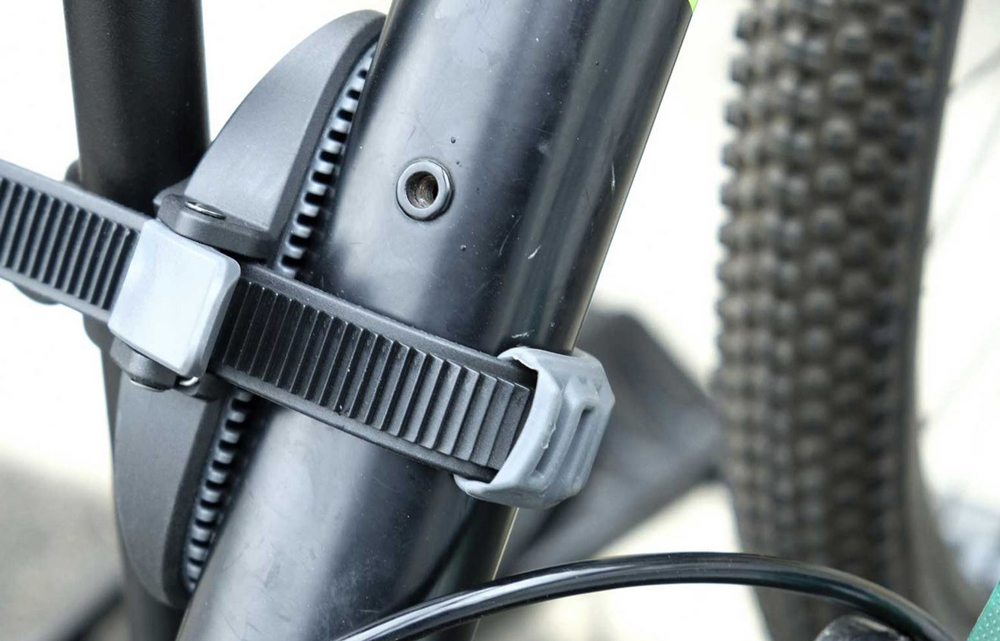

• Suitable for carbon frames
• Suitable for all standard bike types, including children’s bikes

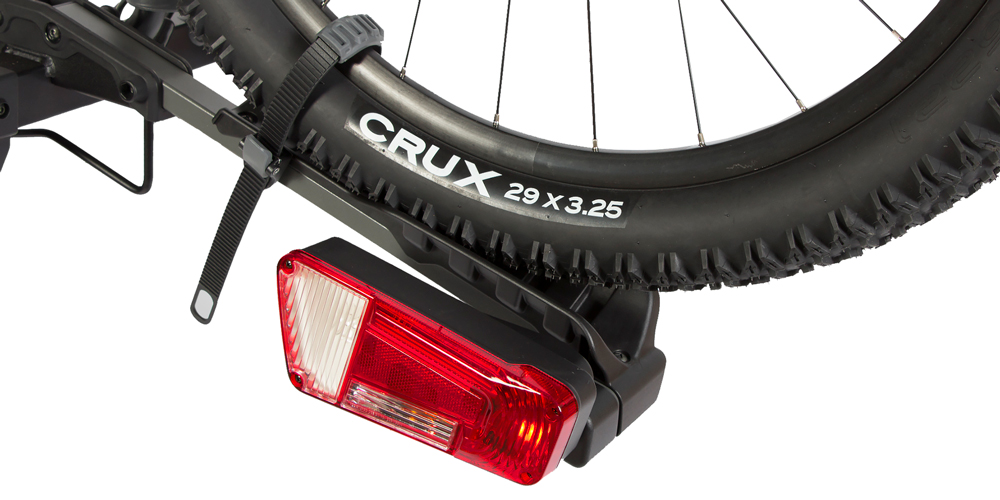

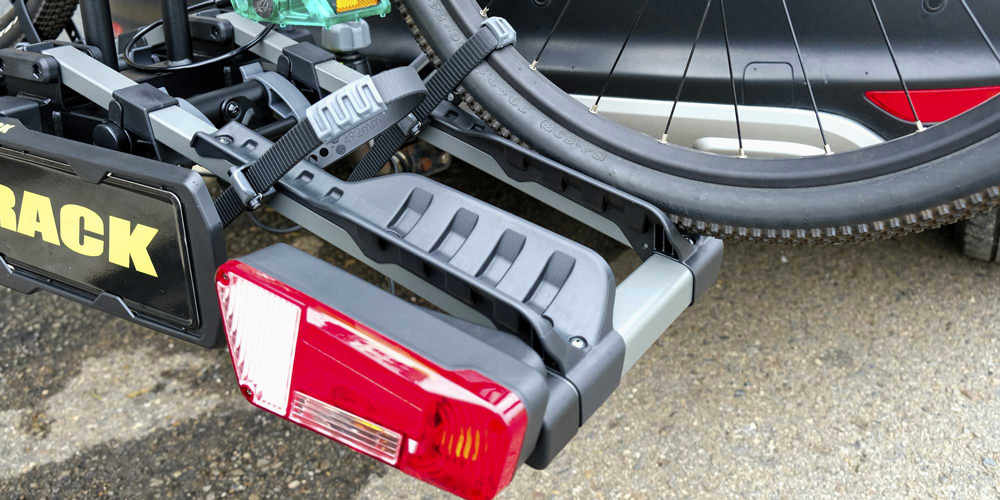

• Padded and non-slip wheel holders hold tires up to 3.25″ wide
• Padded rubber wheel holders rotate 360 degrees

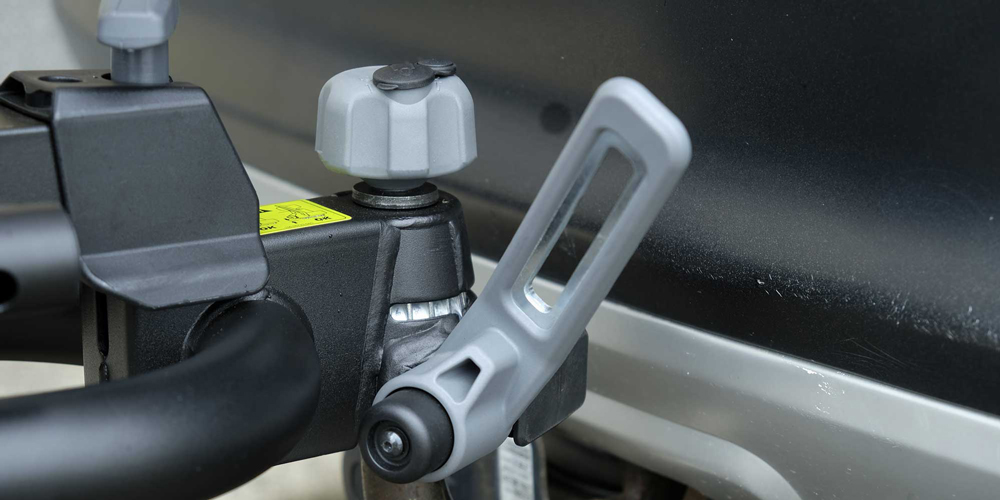

• Patented conical adapter with snap-in function fits all trailer hitches
• All tools for assembly are included
• All parts can be replaced if damaged
• License plate bracket

Product features

• Max number of bikes: 4
• Max bike weight: 20 kg
• Max. carrying capacity: 60 kg (max. bearing load trailer coupling – weight bicycle carrier = max. carrying capacity on bicycle carrier)
• Dimensions: 113 cm x 92 cm x 70 (WxDxH) measured from the centre of the tow ball mount to the outside edge of the number plate holder
• Dimensions folded: 113 cm x 24 cm x 70 cm (WxDxH)
• Maximum down tube diameter: 75 mm (3″)
• Maximum tire width: 3.25″
• Detachable frame holders: No
• Wheel mounting on adjustable holders: No

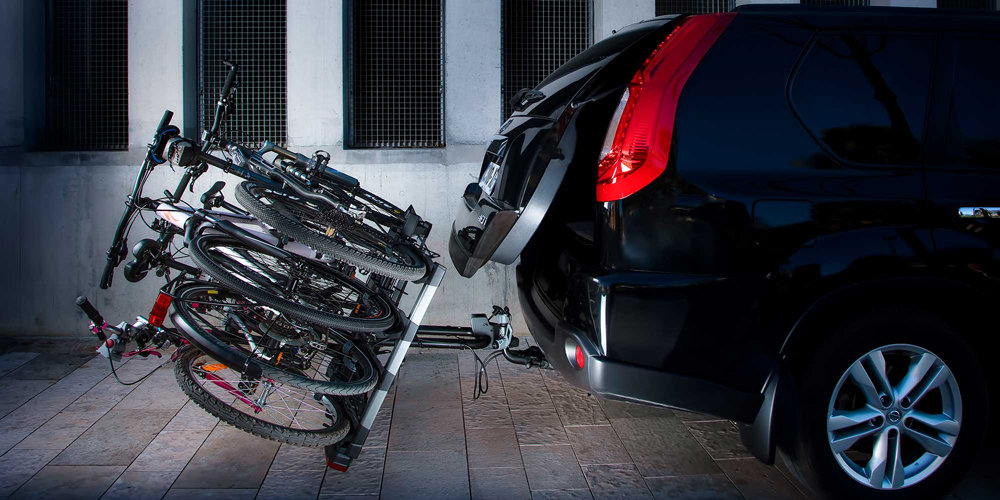

• Tilt function (with bikes): Yes
• Fits cars with exterior spare tyre: No

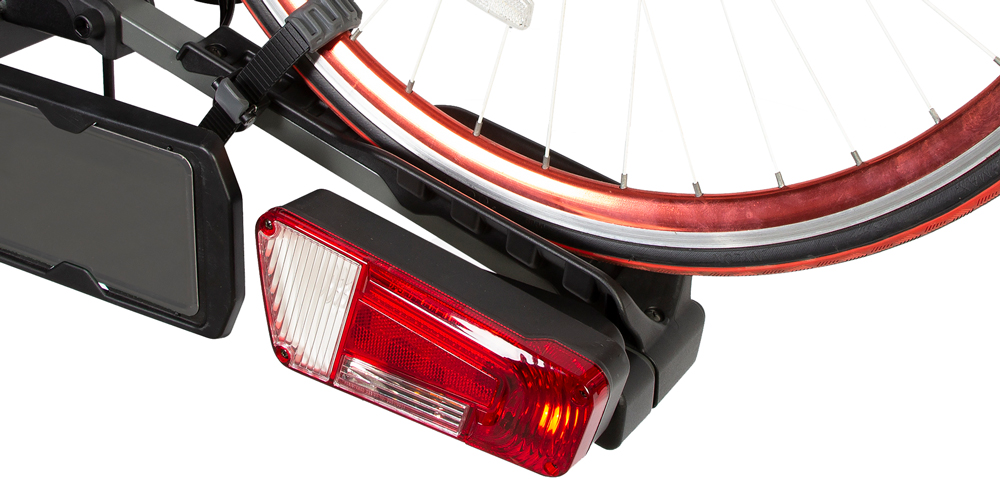

• Rear lights: Yes
• Power connector: 13-pin

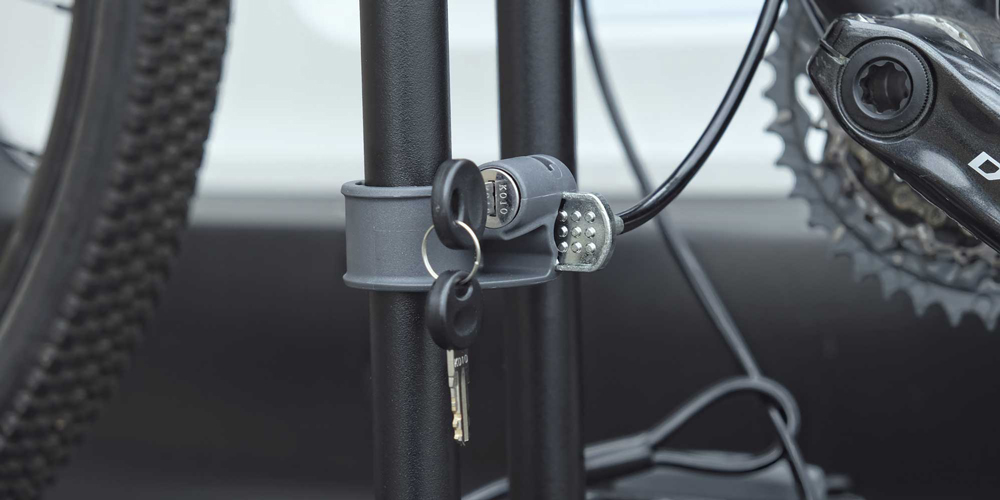

• Lockable bike-to-rack: Yes
• Lockable rack-to-vehicle: Yes
• Carbon frame compatible: Yes

Note: The max. carrying capacity of the bicycle carrier and the permissible bearing load of the trailer coupling must not be exceeded. The bicycle carrier and load must not exceed the permissible overall weight, or the permissible axle load of the vehicle.

Material

• Steel with plastic surrounds and brackets

Weight

• 19.8 kg (manufacturer information)

Scope of delivery

• 1 x Buzzrack Eazzy 4 – Bike Rack
• 1 x Tool for mounting
