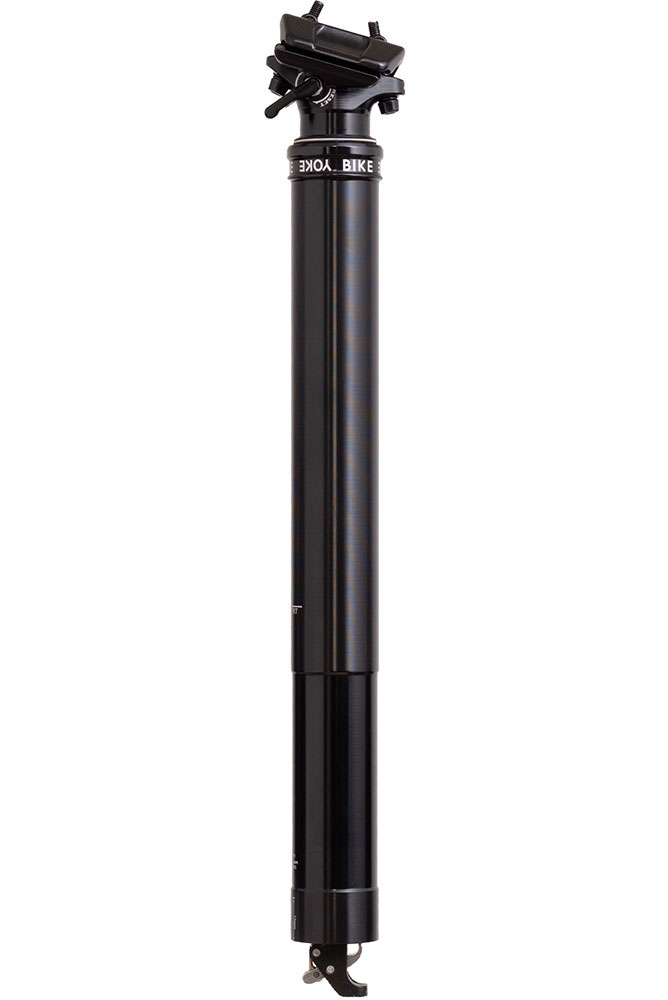

BikeYoke Revive Three 30.9 Dropper Post

The Revive 3.0 is available in four different lengths, all of which allowing for infinitely adjustable drop. Its extremely short stack height helps to maximize the drop on your bike. The low overall weight and the unrivaled smoothness, even under cold temperatures, should also be highlighted.

If you are right in between two sizes, you may opt for the longer one, as the drop, and thus the overall length of the post can be reduced using 5 mm spacers. This allows you to get the most of the available drop without the need to opt for a shorter version.

Although all BikeYoke remotes will work with the REVIVE THREE, we recommend our Triggy Alpha long for light and defined, actuation due to its longer paddle.

Features – BikeYoke Revive 3.0

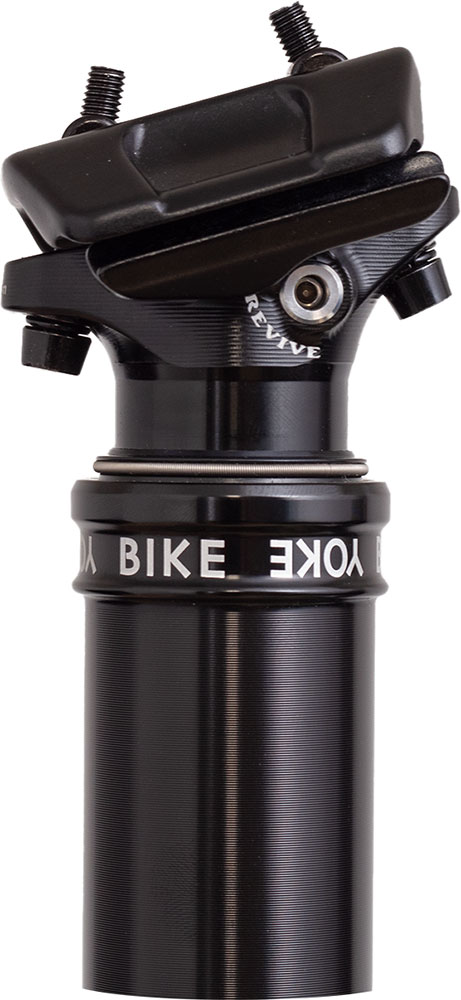

• New saddle clamps for a 5 mm lower stack height

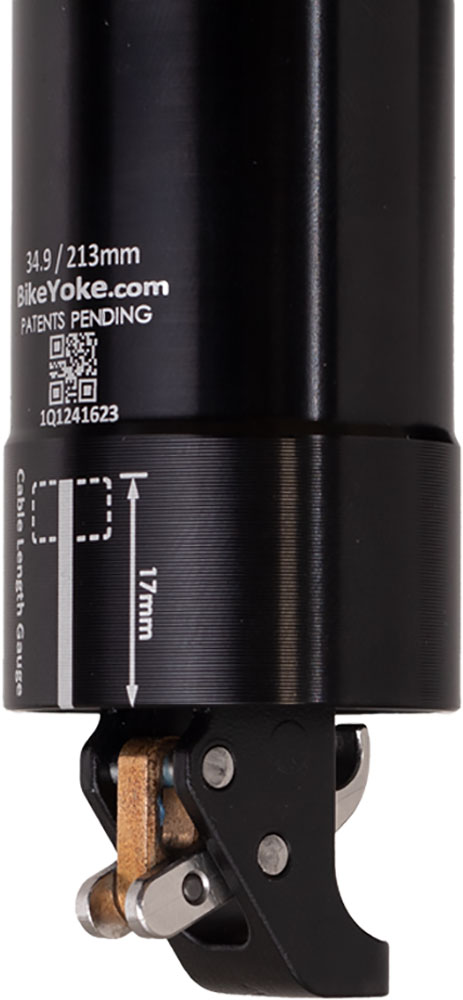

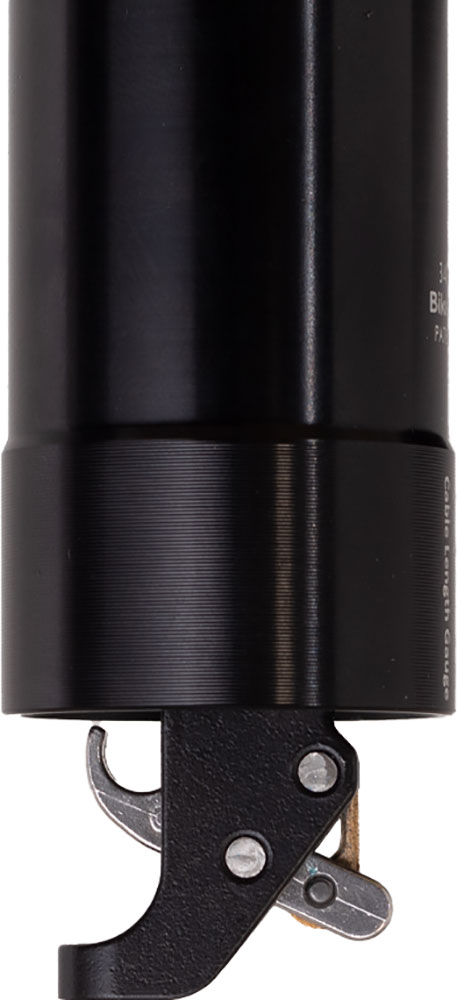

• A new 360° rotatable foot unit shortens the overall length of the seat post by further 10 mm
• New slide-on cable barrel for easier installation
• New BikeYoke cables (3 mm housing + 0.9 mm polished and coated stainless wire)
• Travel reduction in 5 mm increments (4×5 mm spacer included)
• 3D-forged, one-piece upper tube for increased stiffness and strength
• Redesigned actuation linkage for imprived feel and feedback

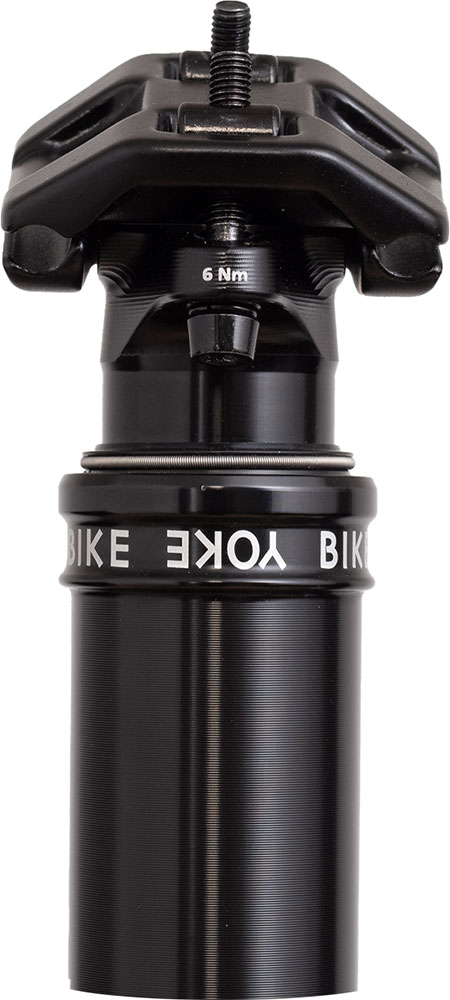

• Two-piece saddle bolts with integrated conical washers for easier saddle mounting

Product features

• Use: E-MTB/Trail/All Mountain
• Cable routing: Internal
• Saddle clamp: 2 bolts vertical
• Actuation: Mechanical
• Diameter: 30,9 mm

Travle (choose variant)

• 125 mm
• 160 mm
• 185 mm
• 213 mm

Material

• Aluminum

Weight (manufacturer information)

• 125 mm – 460 g
• 160 mm – 520 g
• 185 mm – 560 g
• 213 mm – 620 g

Scope of delivery

• 1 x BikeYoke Revive 3.0 Dropper Post
• 1 x cable housing 1600 mm
• 1 x inner wire 1800 mm
• 1 x cable barrel
• 2 x housing endcap
• 1 x cable crimp
• 1 x air valve adapter

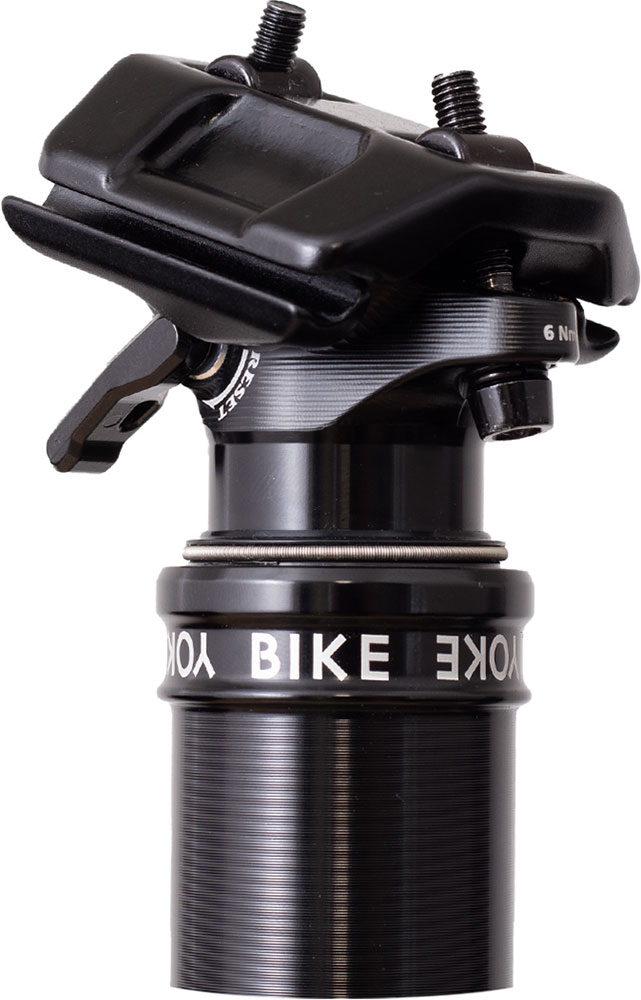

• 1 x Quick-Reset-Lever
• 4 x 5 mm travel adjust spacer

Remote lever not included!
