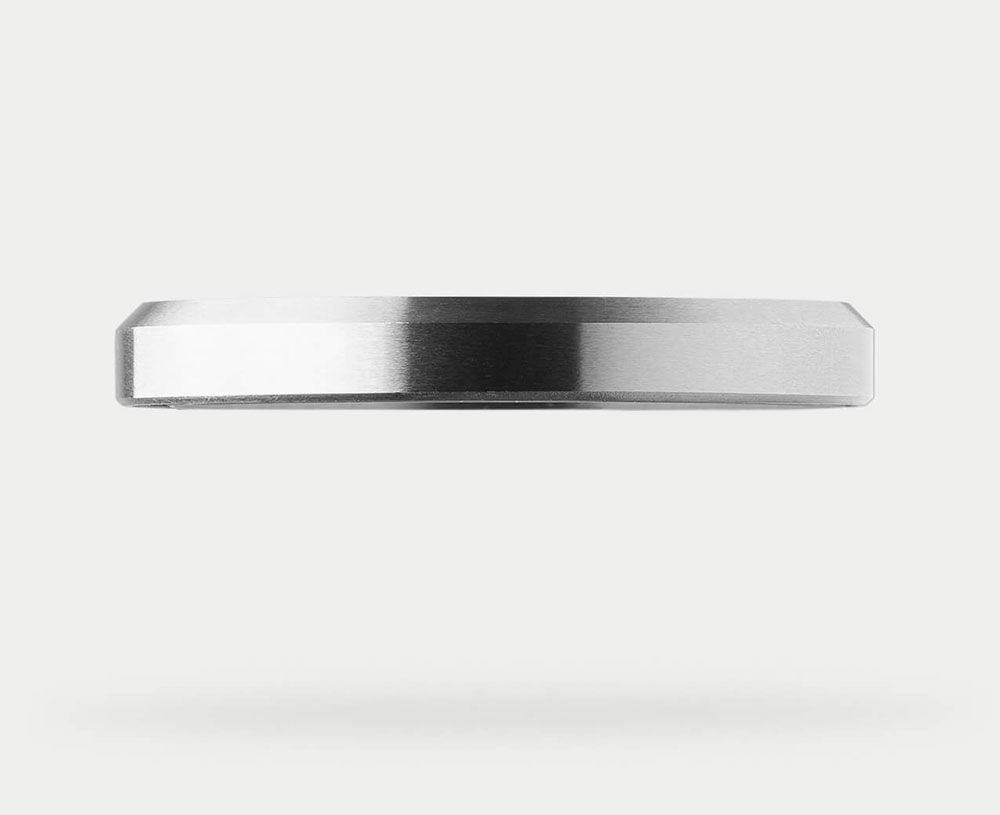

Acros IS41 / IS52 Head Bearing Set

High-quality ball bearings for your bike: ACROS IS41/IS52 head bearing set

As a subsidiary of a renowned bearing manufacturer, Acros was born with a passion for bearings. That’s why Acros develops headsets and bottom brackets for a carefree time on the bike. The mission is simple: ride more, worry less – regardless of the weather and whether you’re on the mountain passes, gravel roads or trails of this world.
Headsets are inconspicuous, but indispensable. Above all, however, a headset is more complex than it seems at first glance. The two sealing washers with double lip seal keep the grease securely inside the industrial ball bearing and prevent moisture and dirt from penetrating the bearing. Acros thus offers you long-lasting function, no matter what.

Product features – ACROS IS41 / IS52

• Model: Bearing set
• Type: Integrated (IS)
• Head tube: IS41 / IS52
• Steerer tube: Tapered 1 1/8″- 1 1/2″
• Bearing: Double-sealed angular contact ball bearing
• Upper:
  • 1 1/8″ / IS41
  • Outer diameter: 41mm
  • Inner diameter: 30.1mm
  • Height: 6.5mm
  • 36°/36°
• Lower:
  • 1 1/2″ / IS52
  • Outer diameter: 52mm
  • Inner diameter: 40mm
  • Height: 7mm
  • 45°/45°

Material

• Ball bearing: Stainless steel
• Centring ring: Glass fibre reinforced plastic with vulcanized seal

Weight:

• approx. 50g (manufacturer information)

Scope of delivery

• 1 x Acros IS41 / IS52 Head Bearing Set
