ACID Pro-E 200 High Beam X-Connect Front Light e-bike

Optimum visibility and safety day and night – ACID e-bike front light PRO-E 200 HB X-Connect

A 18 cm cable with X-Connect means it works seamlessly with all CUBE e-bikes featuring the X-Connect light port. E-bikes without integrated X-Connect can also be converted with an X-Connect to Bosch BES3 cable, and the light is also compatible with all new ACID Powerbanks. StVZO certification means the light meets all German road traffic regulations, and a custom reflector can also be attached. DRL mode is automatic to improve visibility in daylight, while IPX6 protection provides excellent weatherproofing protection, even in conditions of heavy rain and spray.

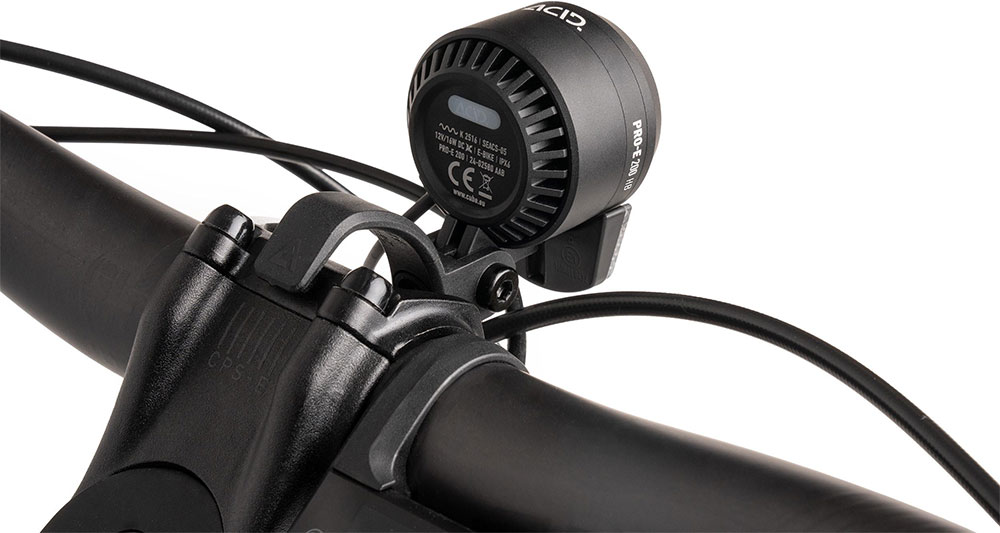

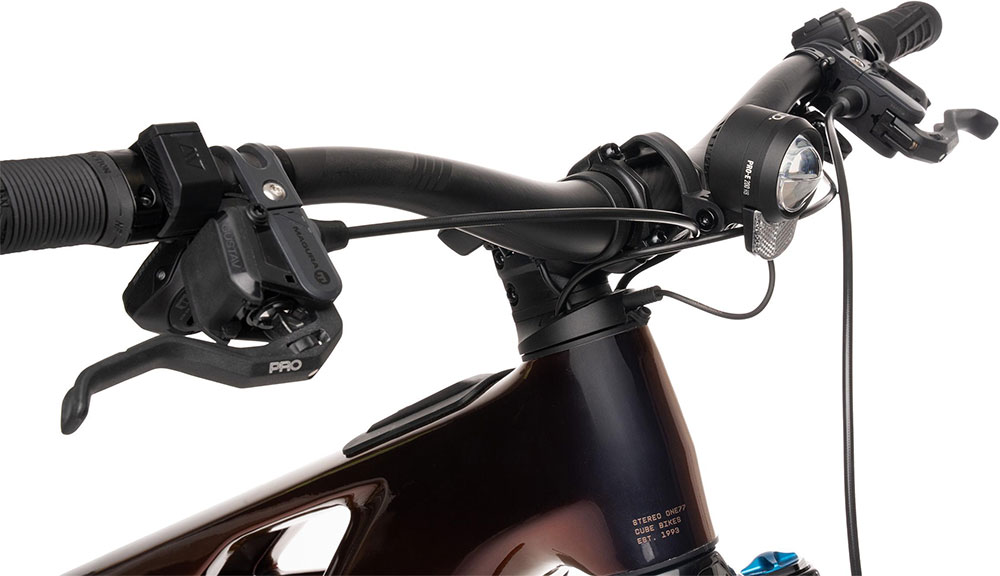

Mounting is simple thanks to full compatibility with the GoPro system. A range of brackets is available for attachment to the handlebar, fork or FPILink faceplate. Or, using the GoPro X-Lock mount, the light can be fitted to almost anywhere on the bike.

Features – ACID e-bike front light PRO-E 200 HB X-Connect

• LED front light for e-bikes
• StVZO (German road traffic regulations) approved

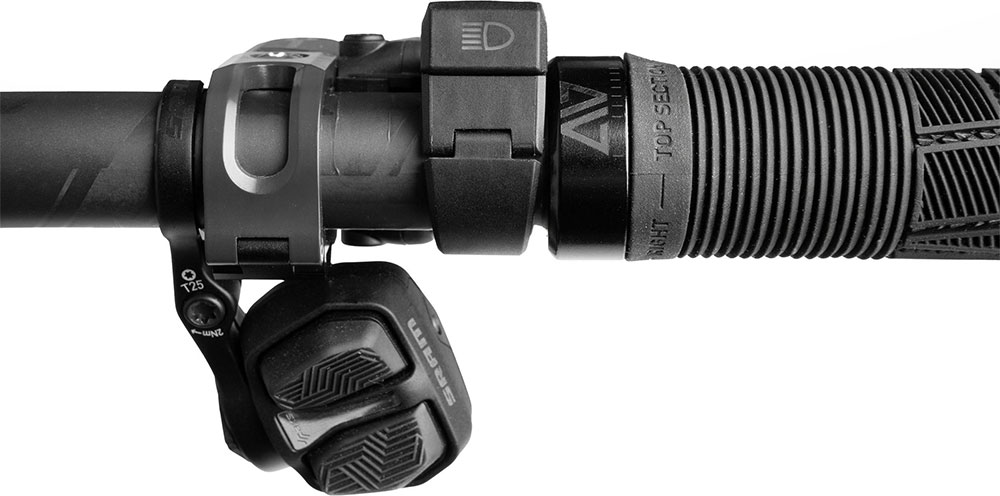

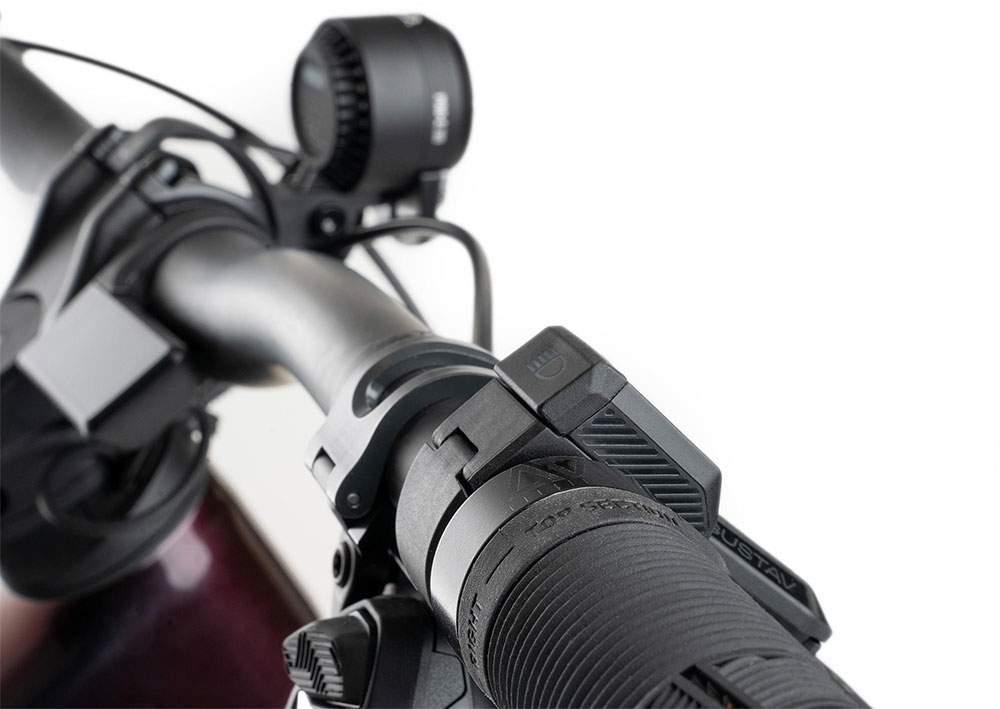

• High beam function by wireless handlebar button
• 200/150 lux (730/480 lumens)
• Automatic Day-Mode function
• New lens technology for eoutstanding illumination
• 18 cm X-Connect cable;
• Incl. GoPro-compatible universal adapter
• Incl. K-reflector
• Various mounts are sold separately

Product features

• Type: LED front light for e-bikes
• Approval: StVZO-approved (for e-bikes up to 25 km/h)
• Luminosity:
  • High beam: 200 lux (730 lumens)
  • Low beam: 150 lux (480 lumens)
• Operation: High beam function via wireless handlebar button
• Additional functions: Automatic daytime running light function (day mode)
• Optics: New lens technology for homogeneous illumination
• Connection: 18 cm X-Connect cable
• Voltage: 12 V (DC)
• Rated power: 16 W
• Protection: IPX6 (protection against strong water jets)
• Compatibility: X-Connect (adapter cable to Bosch BES3 optional)
• Dimensions: 45 x 46 x 46 mm
• Mounting: various brackets are sold separately

Material

• Aluminium
• Plastic

Weight (manufacturer’s information)

• 117 g (incl. cable + reflector + remote control)

Scope of delivery

• 1 x ACID Pro-E 200 High Beam X-Connect E-Bike front light incl. K-reflector
