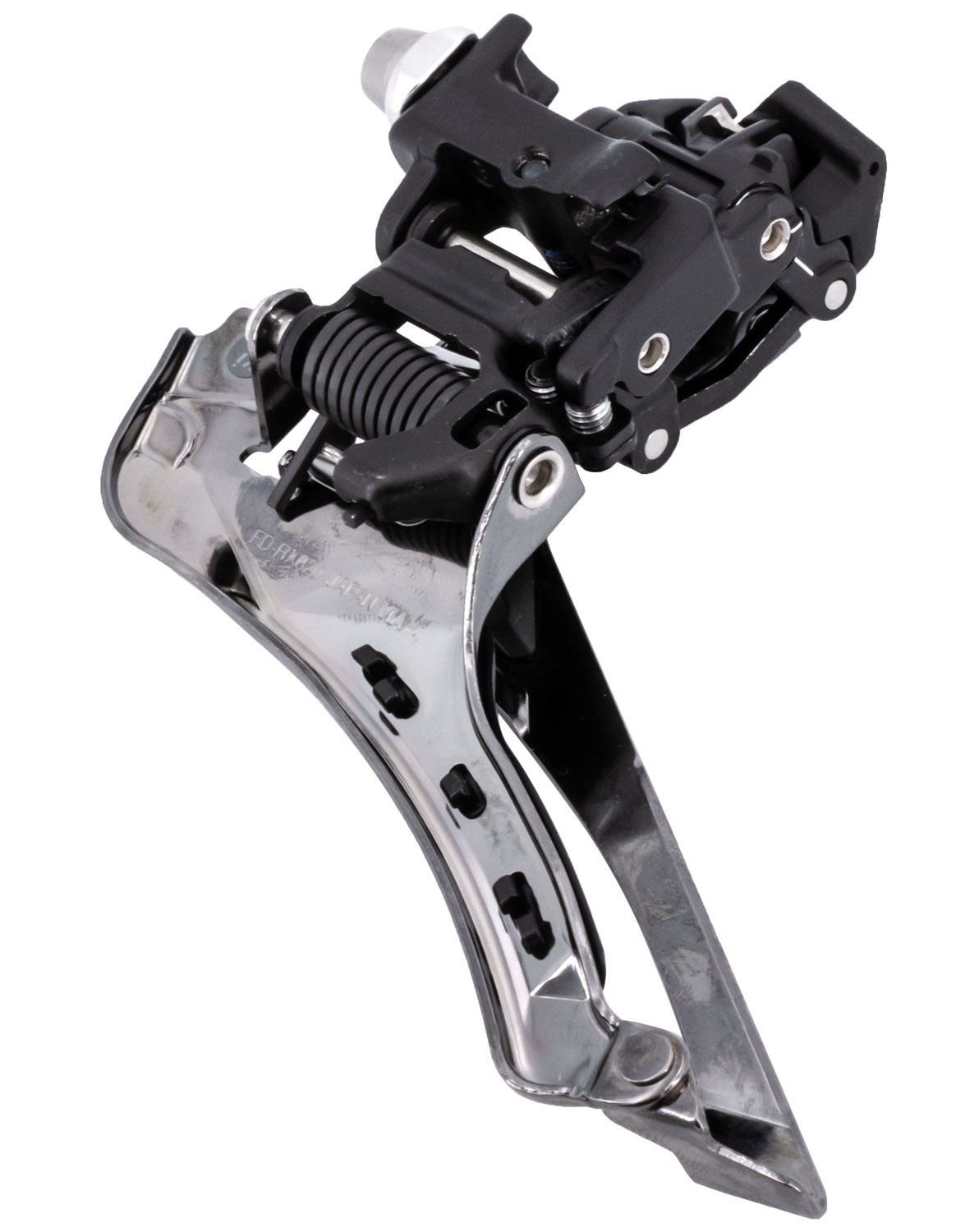

Shimano GRX FD-RX820 2×12-speed Front Derailleur

For your riding freedom: the Gravel GRX 2×12-speed Front Derailleur FD-RX820 Braze On from Shimano

Gravel cycling is not meant to be overly complicated. The heart and soul of cycling’s drop bar, dirt road discipline is rooted in simplicity, inclusivity, and adventure. No ride is out of bounds. All are welcome to join. Gear should be functional and reliable but need not break the bank. That’s why whether you’re a grizzled gravel cycling veteran or brand new to the road (or trail) less traveled, you’ll appreciate the latest iteration of Shimano’s groundbreaking—and industry-first-gravel-specific GRX component group. Designed to help you get the most from your next unpaved adventure, RX820 delivers top-tier performance without an over-the-top price.

For riders seeking the best of both worlds, the new 2×12 RX820 UNDROPPABLE drivetrain is the choice. Utilizing a gravel-optimized 48/31 front chainring paired with an 11-34 or 11-36 cassette, this setup delivers an ultra-wide gear range so you can spin a comfortable cadence whether cruising the flats, smashing endless dirt road rollers, or tackling a massive backcountry climb.

This setup delivers precise mechanical shifting both front and rear and an integrated SHADOW PLUS chain stabilization for ultimate security over bumpy terrain. The gravel-specific 2×12 option maintains tighter rear cassette gear steps, ideal for subtle cadence changes during competitive racing and spirited weekend group rides. And the 2×12 setup seamlessly interfaces with most existing 700c wheels thanks to its use of the tried-and-true HG freehub body design.

Features – Shimano GRX FD-RX820-F | 2×12-speed Front Derailleur Braze On

• Ergonomic power curve
• Integrated cable tension adjustment
• Natural stroke feeling
• Chainline +2.5 mm vs. conventional road FD
• Compatible with up to 42 mm tires
• More cable routing options
• Wider tire clearance
• Wider range front gearing
• Precise and easy front derailleur adjustment
• Wider range front gearing 17T

Product features

• Use: Gravel, Cyclocross
• Group: GRX
• Model: FD-RX820-F
• Mounting: Brazed-on
• Cable route type: Down-Pull
• Gear front: 2-speed
• Gear rear: 12-speed
• Top gear teeth: 48T
• Total capacity: 17T
• Compatible chain: 12-speed HG
• Chain stay angle: 63-66°
• Chain line: 47mm

Material

• Aluminum
• Steel
• GFRP

Color

• Series color

Weight

• approx. 95g (manufacturer information)

Scope of delivery

• 1 x Shimano GRX 2×12-speed FD-RX820 Front Derailleur Braze On
