Shimano CUES U6030 1×11-speed Gravel Group Disc 160/160mm

Scope of delivery – Shimano CUES U6030 1×11-speed groupset + disc brakes 160/160mm

Shimano CUES FC-U6030 9/10/11-speed crankset

The Shimano CUES FC-U6030 1 x 9/10/11-speed 2-PIECE crankset offers reliable performance and a smooth ride for gravel riders. This crankset invites you to take detours into rougher terrain with its wide gear range and harmonious pedaling.

Product features

• Use: Gravel, road bike, cyclocross
• Groupset: CUES U6030
• Model: FC-U6030-1
• Q-Factor: 152mm
• Housing width: 68/70mm
• Rear gear steps: 9/10/11-speed
• Mount: 2-PIECE
• Compatible chain: LINKGLIDE, HG 11-speed (CN-HG601, CN-HG701, CN-HG901, CN-LG500)
• 4-arm crank spider: Yes
• Bolt circle: 110mm
• Installation width|Thru: 142mm
• Installation width|quick release/nut: 135mm
• Chainline: 50mm

Graduation | crank arm length (choose variant)

• 40 teeth | 165mm
• 40 teeth | 170mm
• 40 teeth | 172.5mm
• 40 teeth | 175mm
• 42 teeth | 165mm
• 42 teeth | 170mm
• 42 teeth | 172.5mm
• 42 teeth | 175mm

Material

• Crank arms: Aluminum
• Crank spider: Aluminum
• Chainring: Steel

Color

• Series color

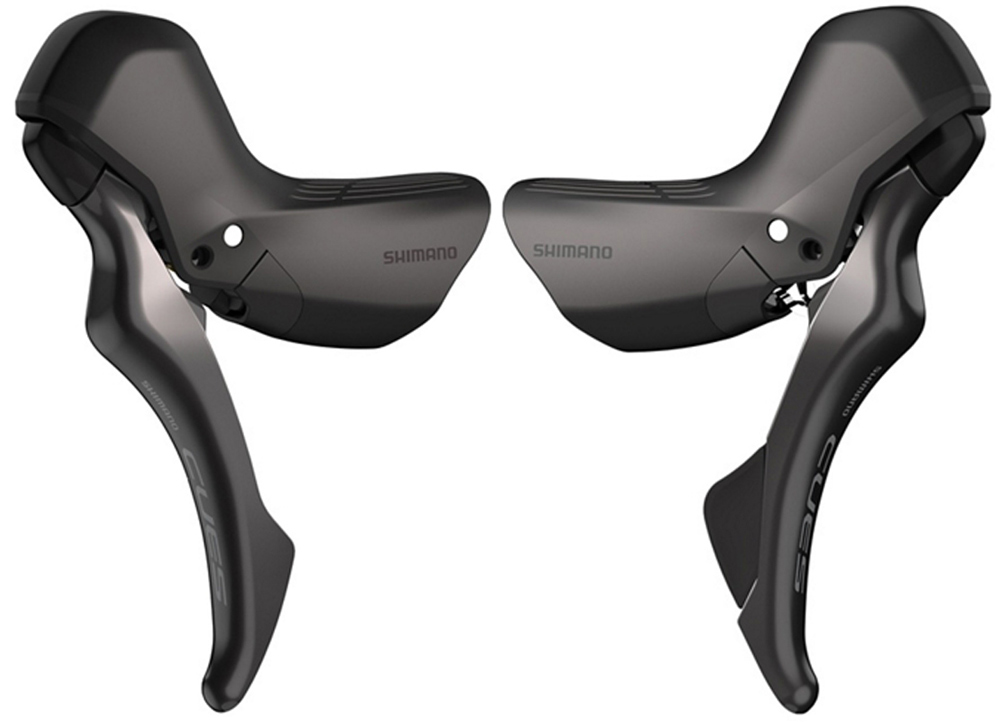

Shimano CUES BL/ST-U6030+BR-U6030 1×10/11-speed disc brake set

A new lever design offers ambitious riders more control, the new Shimano CUES 1×10/11-speed BL/ST-U6030 levers with BR-U6030 flat-mount brake calipers for hydraulic disc brakes are characterized by excellent deceleration performance. The new lever design offers ambitious riders significantly more control. In addition, the SHIMANO CUES U6030 DUAL-CONTROL levers now have the modern functions of the SHIMANO 105 series. Their improved lever position and grip design are the result of intensive research into different hand shapes. Enthusiastic road and gravel riders now benefit from a new lever shape, the reliable performance of hydraulic disc brakes and the smooth, intuitive shifting they have come to expect from SHIMANO CUES. The SHIMANO CUES flat mount hydraulic disc brake was developed specifically for the popular 160 mm rotors and features an integrated design that eliminates the need for an additional adapter. The simple and lightweight design with 2 pistons ensures reliable braking performance in all conditions.

Features

• 11/10-speed DUAL CONTROL LEVER compatible with mechanical shifting with improved ergonomics

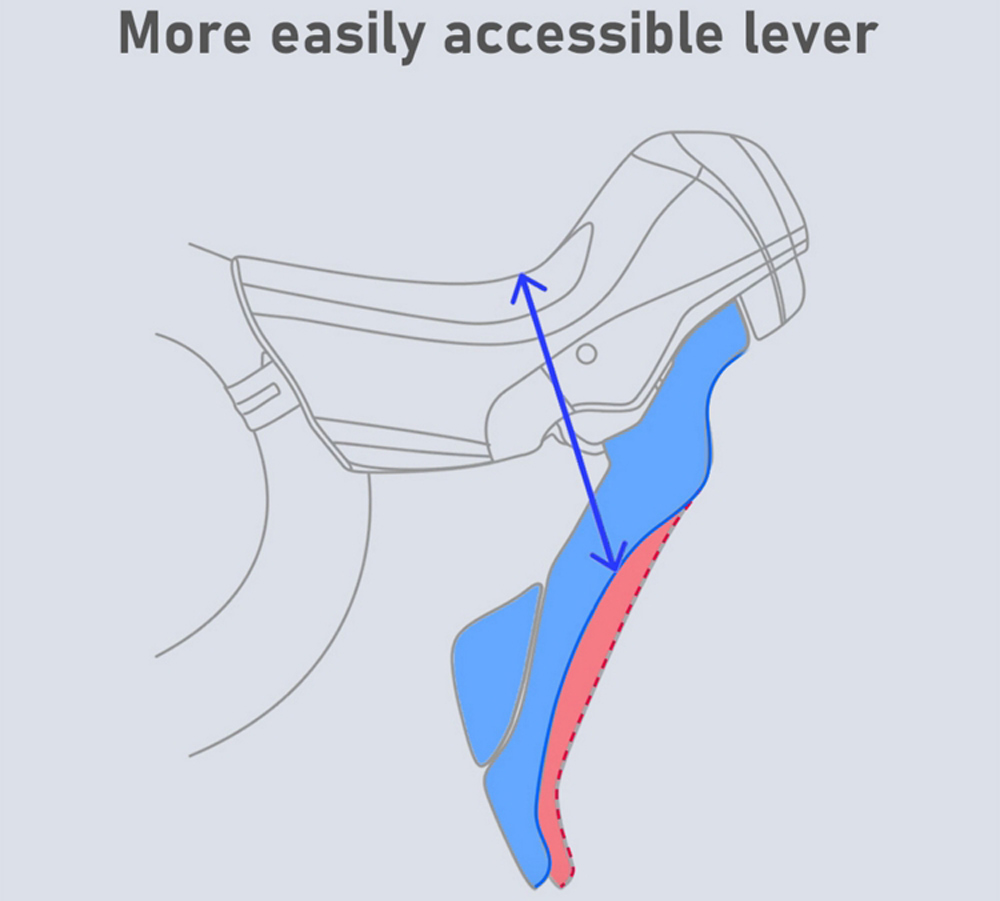

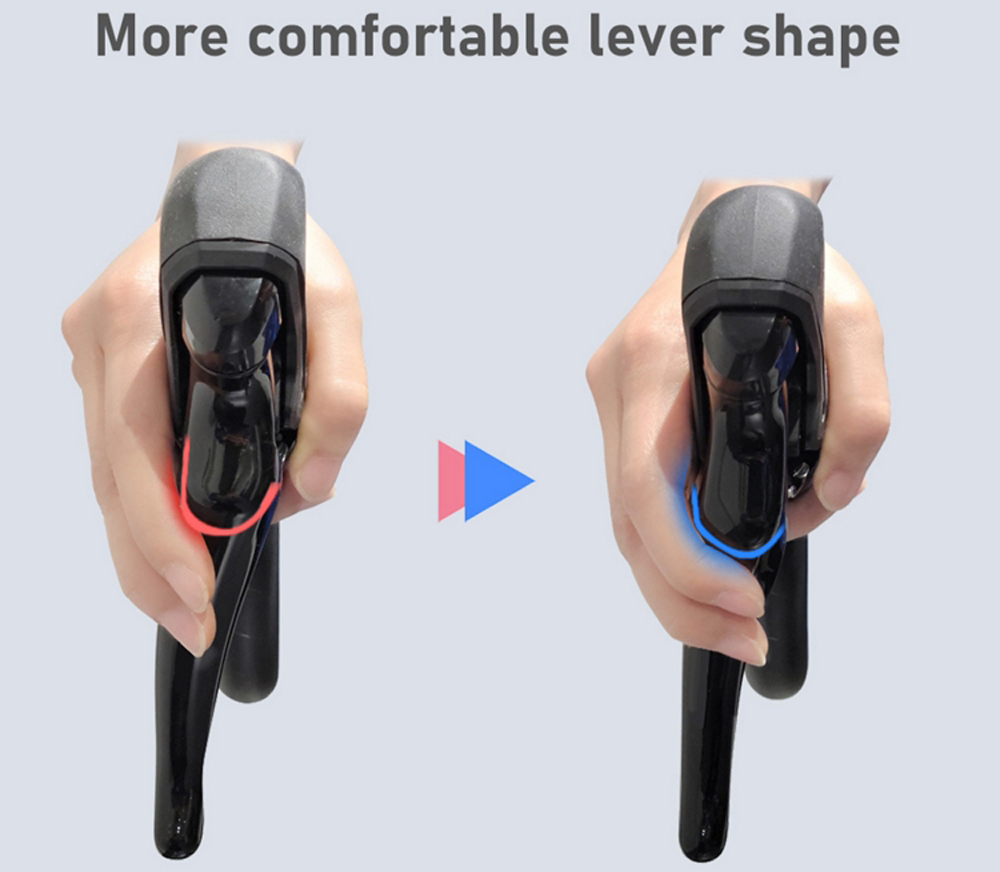

• The new lever shape offers an optimized grip width to allow riders with very different hand sizes to comfortably access the lever

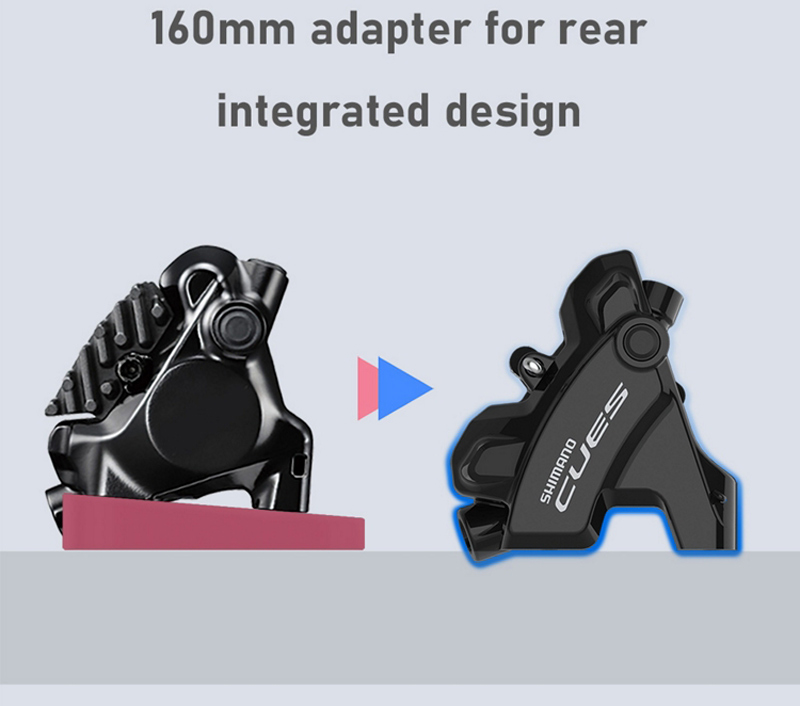

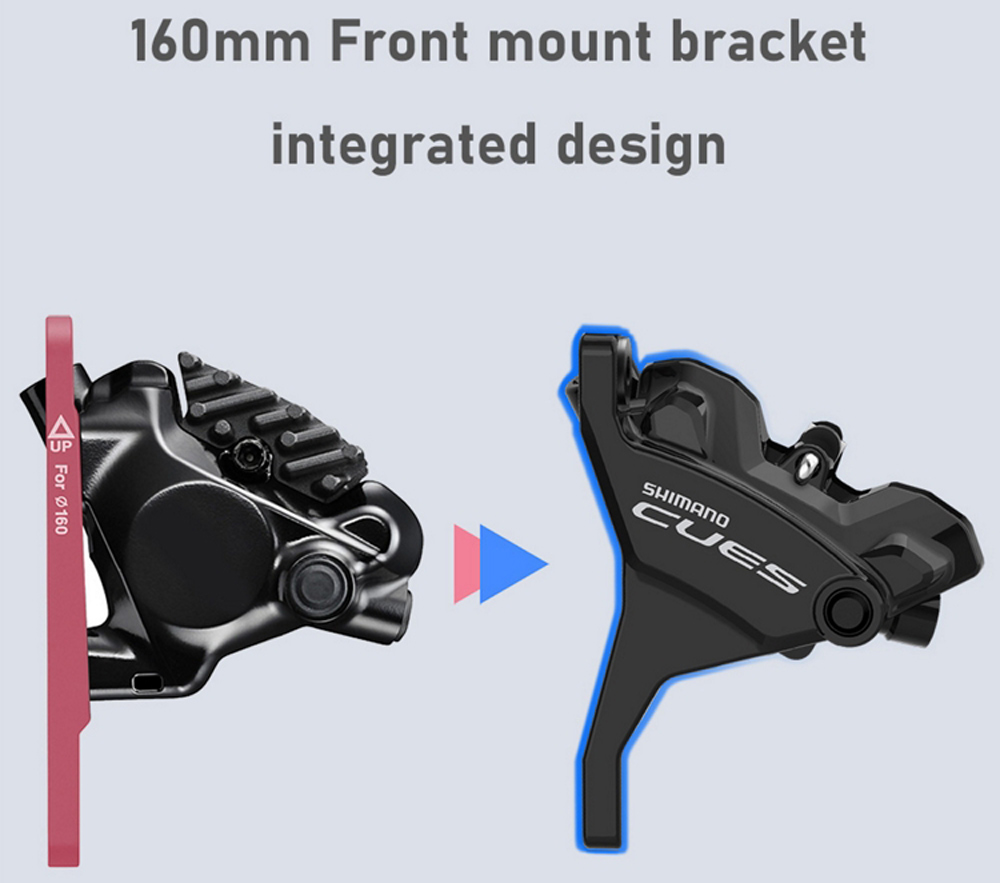

• Simple, integrated design specifically for 160mm brake rotors
• Simple line connection system (J-Kit)
• Simple, clean bleeding system
• ONE WAY BLEEDING
• Included in the scope of delivery: 1 x CUES BL/ST-U6030 1×11-speed STI unit set, 1 x CUES BR-U6030-F flat-mount brake calliper, 1 x CUES BR-U6030-R flat-mount brake calliper, 2 x B05S-RX resin brake pads without cooling fins, 2 x SM-BH59-JK-SS 1000mm / 1700mm brake hose (coolable), 4 x SM-BH59-JK-SS(coolable), 4 x fixing screw for brake calliper, 2 x cable connection kit, 1 x inner shift cable 2100mm, 1 x outer shift cable cover SIS OT-SP41, end caps + end covers
• J-Kit – The SM-BH59-JK-SS brake lines are filled with mineral oil and pre-assembled on the BR-U6030 brake callipers!

Product features

• Use: Gravel, road bike, cyclocross
• Groupset: CUES U6030
• Model: BL-U6030/ST-U6030
• Type: Dual-Control (STI) right
• Mounting: left/right
• Front gear steps: 1-speed
• Gear steps rear: 10/11-speed
• Optical gear indicator: no
• Grip width adjustment: yes, with tool
• Handlebar diameter: 23.8mm/24.2mm
• Brake type: Hydraulic brake system (disc brake)

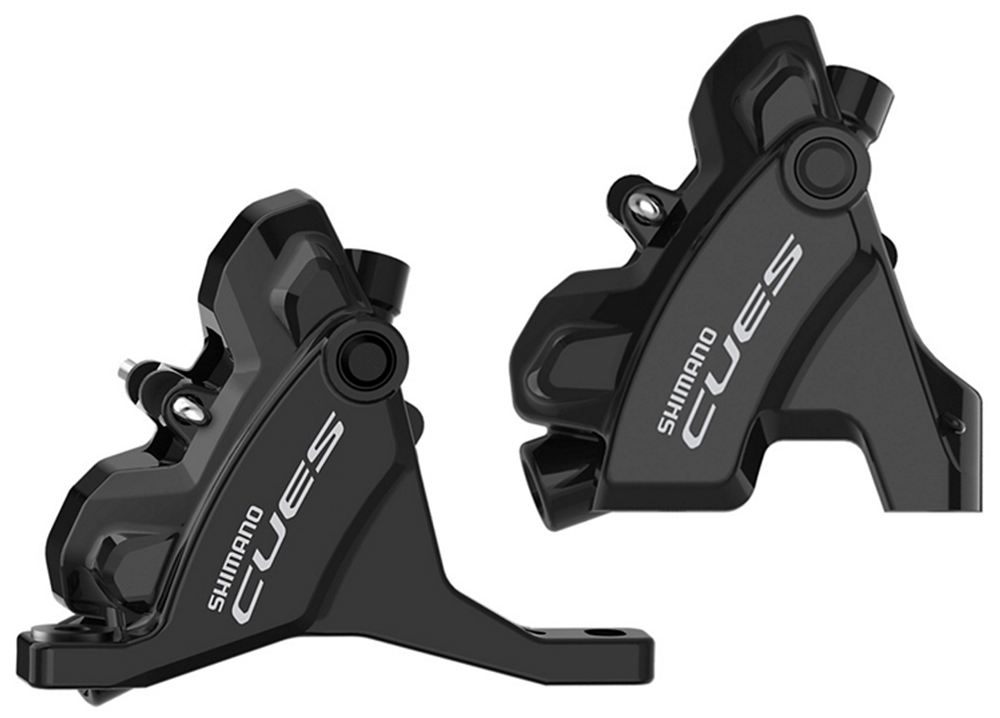

• Brake caliper: BR-U6030 (2-piston)
• Brake caliper mount: Flat mount
• Brake pad: B05S-RX Resin without cooling fins
• Brake hose: SM-BH59-JK-SS front 1000mm / rear 1700mm (can be shortened)
• Cable connection: Grade
• One-way bleeding: Yes
• Brake fluid: Mineral oil
• Recommended brake rotor: SM-RT54, SM-RT30

Material

• Lever: Aluminum
• Brake caliper: Aluminum

Color

• Series color

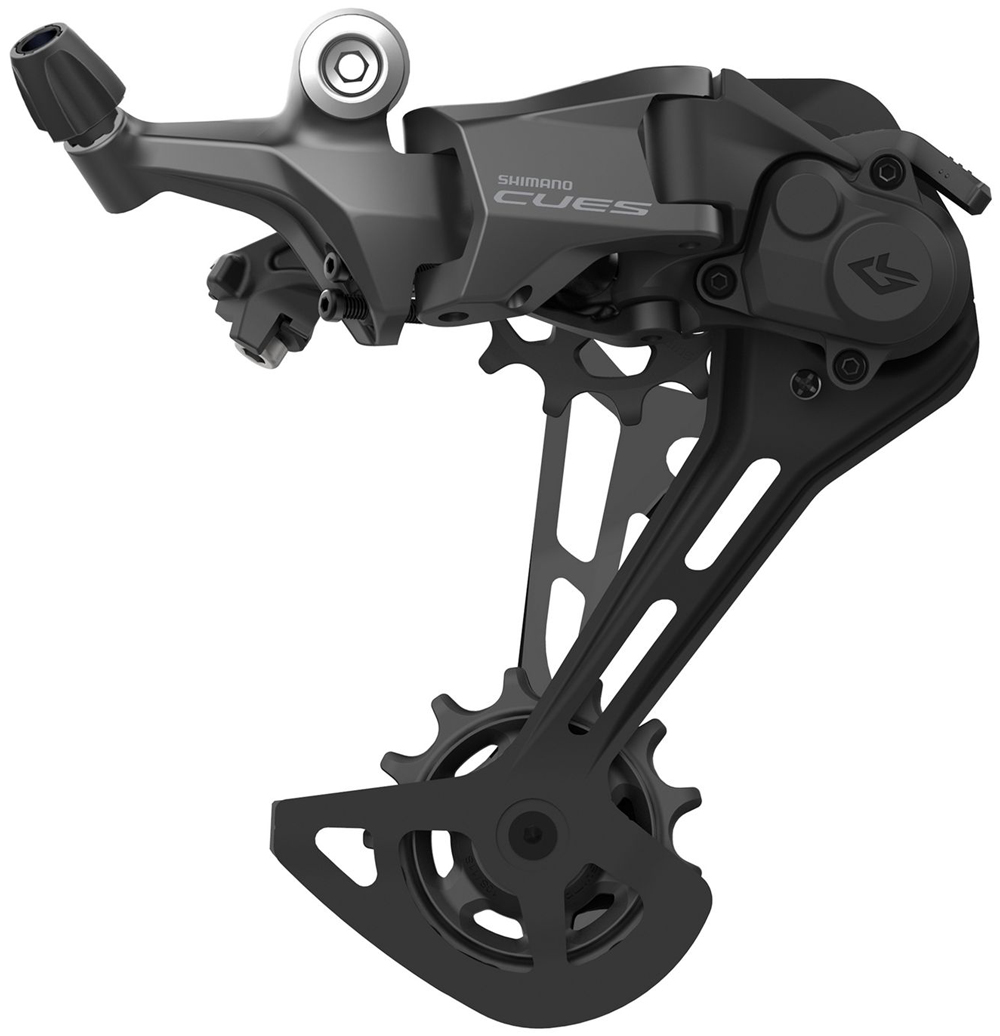

Shimano CUES RD-U6000 10/11-speed rear derailleur

The Shimano CUES RD-U6000 LINKGLIDE 1 x 10/11-speed rear derailleur with SHADOW RD+ technology impresses with smooth and reliable shifting performance. This versatile 1 x 10/11-speed rear derailleur provides seamless shifting and efficient pedaling for uninterrupted trail enjoyment. The flat design and chain stabilization offer generous safety reserves even for rougher terrain.

Features

• Stable drive performance, whether trail, gravel track or road
• Chain stabilizer prevents the chain from jumping off or hitting the chain and offers smoother running
• Flat profile optimized for rough terrain
• Total capacity: 39 teeth
• Max. Number of teeth for largest sprocket: 50 teeth (1×11-speed), 48 teeth (1×10-speed)
• Designed and tested for long-lasting performance with e-bikes
• Guide and tension pulleys with 13 teeth for reduced friction
• E-BIKE RATED
• Exclusively compatible with the LINKGLIDE shifting system

Product features

• Use: Gravel, Cyclocross
• Groupset: CUES U6000
• Model: RD-U6000-GS
• Cage length: Type-GS medium length
• Mounting: Direct mount (conventional)
• Technology: Shadow RD+
• Gear steps: GS type 1×10/11-speed
• Compatible chain: LINKGLIDE, HG 11-speed
• Max. Teeth large sprocket: 50 teeth
• Min. teeth large sprocket: 48 teeth
• Max. Teeth small sprocket: 11 teeth
• Min. teeth small sprocket: 11 teeth
• Max. Differential front: 0 teeth
• Total capacity: 39 teeth

Material

• Aluminum
• Stainless steel
• Steel
• PA-GF

Color

• Series color

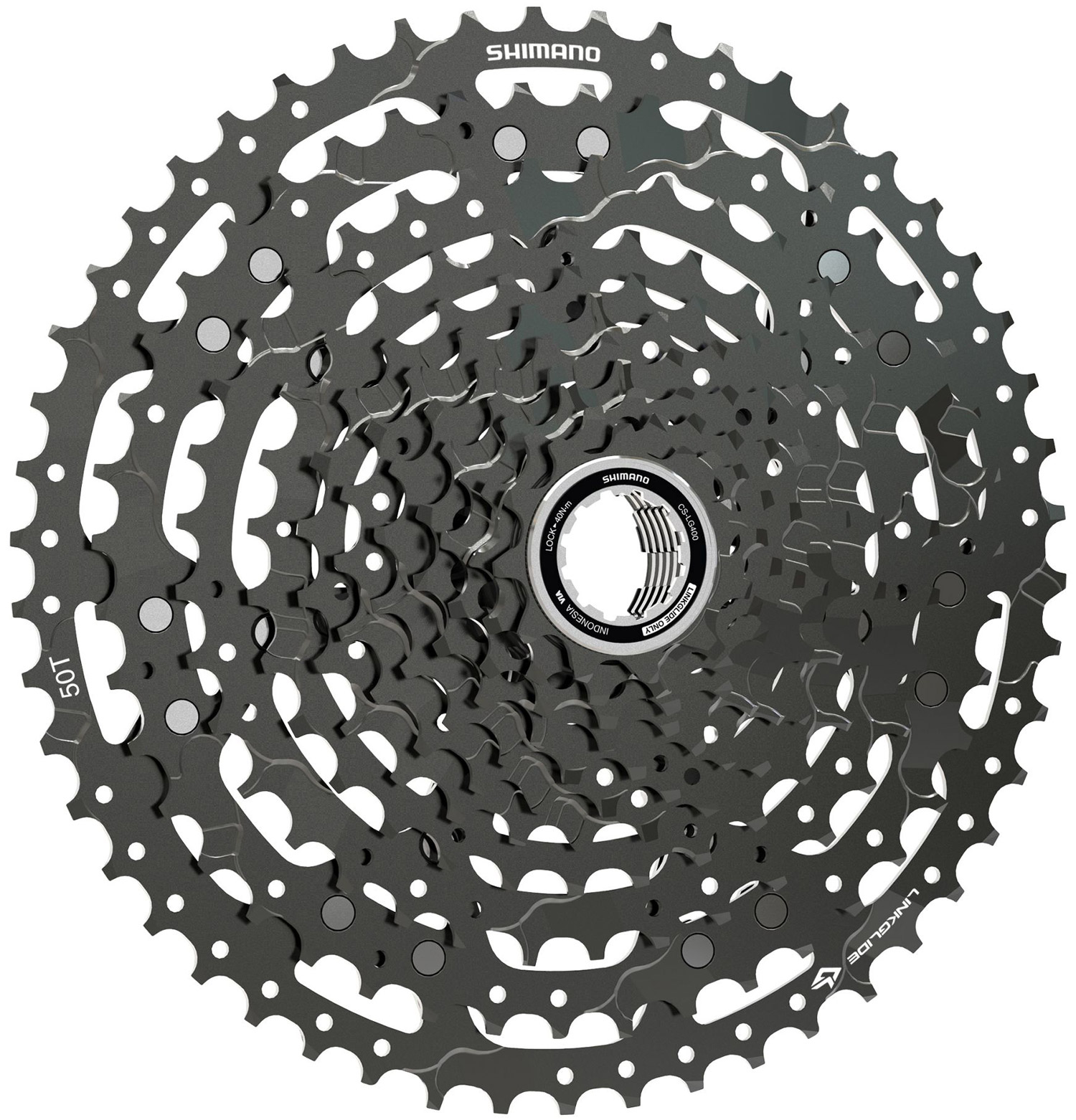

Shimano CS-LG400 11-speed Linkglide cassette 11-50

The Shimano LINKGLIDE LG400 11-speed cassettes offer smooth and reliable shifting as well as three times the durability of HYPERGLIDE with the high chain tension typical of E-bikes. Focus on riding enjoyment with smooth shifting in both directions and less shifting jolt.

Product features

• Use: Gravel, Cyclocross
• Model: CS-LG400-11
• Type: LINKGLIDE
• Freewheel mount: HG Spline
• Gear steps: 1×11-speed
• Recommended chain: HG-X11, CN-LG 11-speed

Gradation

• 11-50 (11-13-15-17-20-23-26-30-36-43-50 teeth)

Material

• Sprocket carrier: Steel
• Sprocket: Steel
• Circlip: Steel

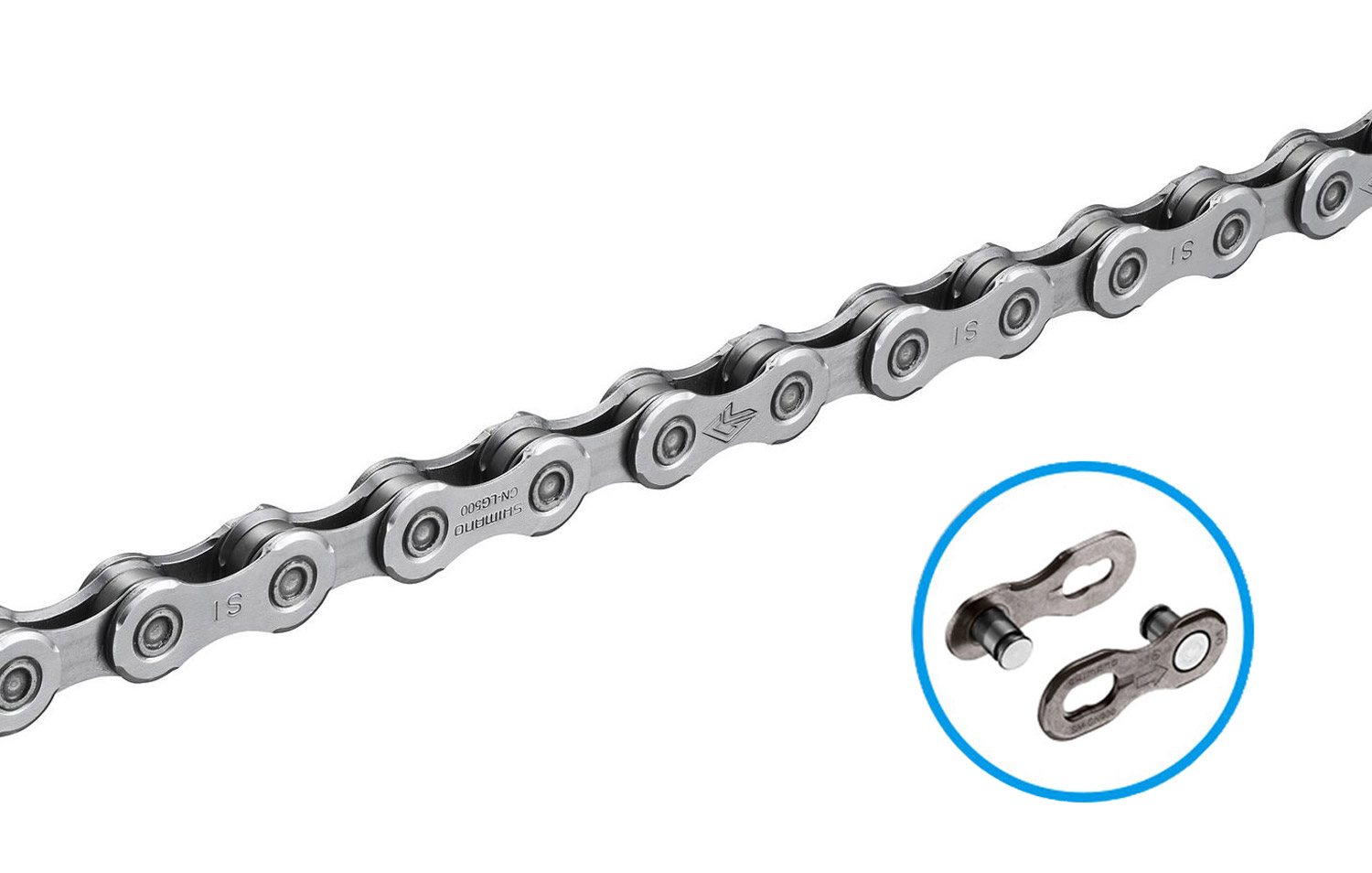

Shimano CN-LG500 Linkglide 10/11-speed chain with Quick-Link 126 links

The Shimano LINKGLIDE LG500 chain enables smooth and reliable shifting with 10/11-speed LINKGLIDE and 11-speed HYPERGLIDE systems. The SM-CN900-11 quick-link fastener enables easy installation.

Features

• Quick-Link chain lock type – the chains can be easily fitted without tools
• Optimized for LINKGLIDE systems
• Enjoy the smooth and reliable shifting performance of LINKGLIDE
• Smooth and reliable shifting performance
• LINKGLIDE technology
• Compatible with LINKGLIDE 10/11-speed and 11-speed HYPERGLIDE drivetrains

Product features

• Use: MTB, Gravel, Cyclocross
• Model: CN-LG500
• Rear gear steps: 10/11-speed LINKGLIDE
• Type: LG
• Directional design: Yes
• Chrome-plated connecting pin: Yes
• Outer plate coating: Gray
• Coating of the inner plate: Gray
• Closure: Quick-Link SM-CN900-11

Links

• 126

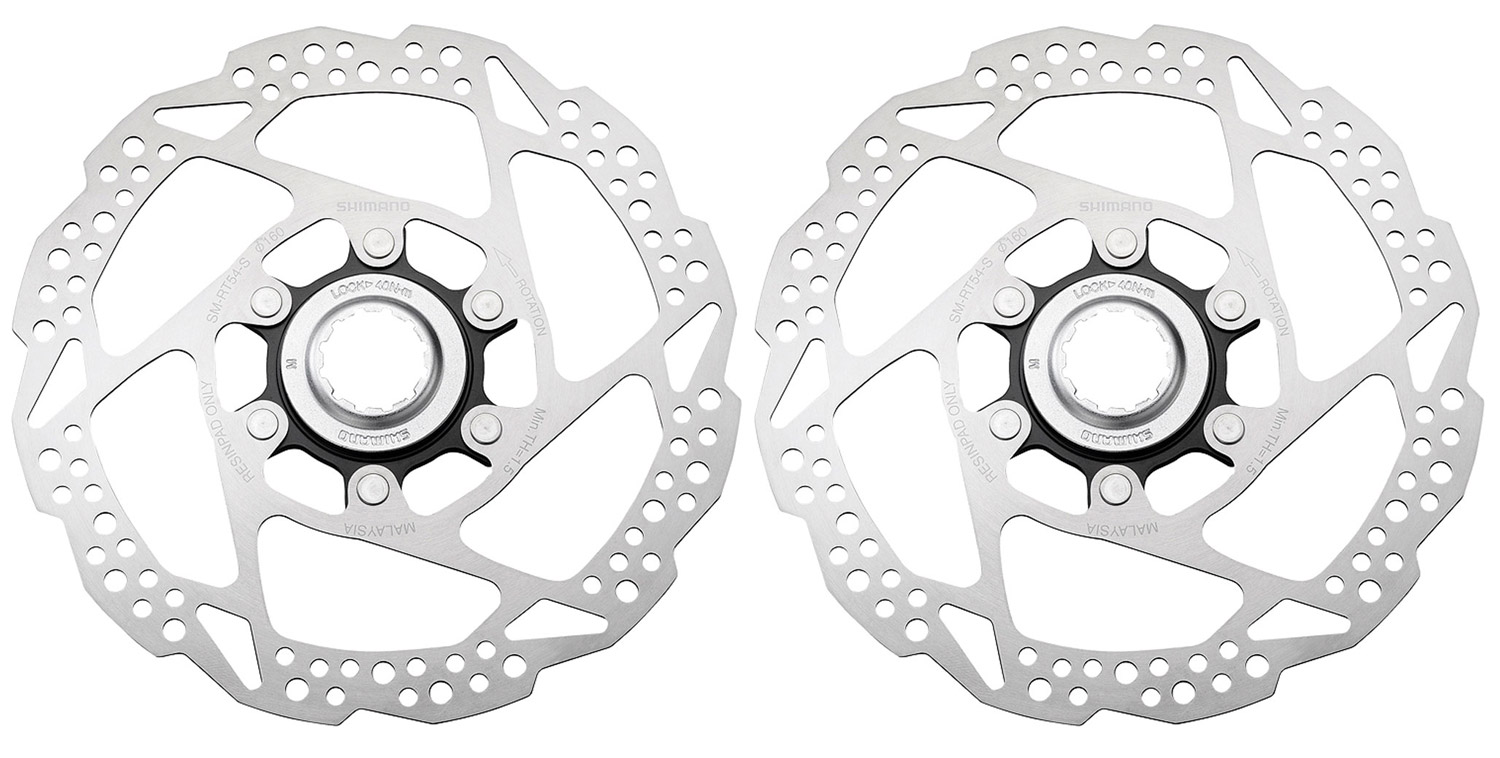

Shimano SM-RT54 Center-Lock brake rotors 160mm

The Shimano SM-RT54 brake rotors offer excellent braking power in all riding conditions. With the Center-Lock mounting system, the brake rotors can be mounted quickly and easily thanks to the retaining ring design. Only suitable for resin pads.

Features

• Locking ring type with internal (internal serration) or external (external serration) toothing

Product features

• Area of application: MTB, road bike, gravel
• Model: SM-RT54
• Mounting: Center-Lock
• Compatible pads: Resin (plastic)

Diameter

• 160mm

Material

• Rotor: Stainless steel
• Locking ring: Steel

Weight

• approx. 141g each (manufacturer’s specification)

Technologies

LINKGLIDE
LINKGLIDE allows smooth shifting and pedaling, both of which extend the service life. LINKGLIDE supports years of stress-free riding and riding experiences for new types of bikes and riding styles. This drivetrain is exceptionally durable, withstands daily wear and tear and offers long-lasting shifting and pedaling performance for multi-purpose bikes and high-torque e-bikes. The robust cassette design shifts up and down smoothly and significantly reduces component wear. LINKGLIDE is the ultimate long-lasting component system.

LINKGLIDE key features

• Smooth and fast shifting and pedaling, both of which extend service life.
• Optimized shifting aids.
• Robust cassette teeth can even cope with shifting and riding under high loads.

2-PIECE
Integration of crank arm and bottom bracket with increased stiffness and less weight. The axle bearings are further apart. Stiffness is increased and the rider’s power is transmitted effectively. Precision bearings with low maintenance requirements and simplified assembly.

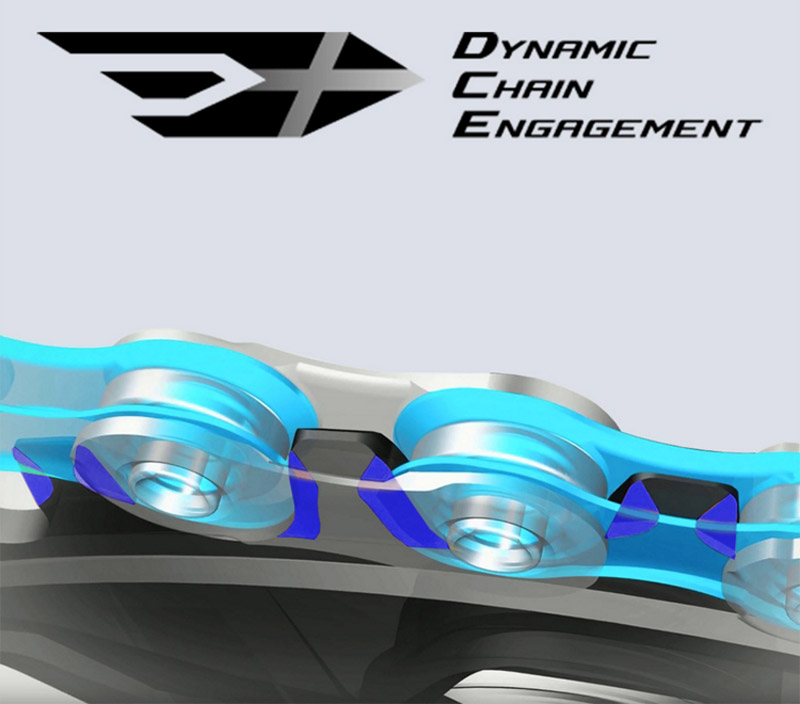

DYNAMIC CHAIN ENGAGEMENT+
Special tooth function SHIMANO’s DYNAMIC CHAIN ENGAGEMENT+ is a special tooth profile for single chainrings in XC, Enduro and Trail applications. It improves the retention and guidance of the chain and makes pedaling easier, even in rough terrain. The improved chain guide in every gear reduces abrasion and wear.

SHIMANO CUES – Keeps you moving
